| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_065T01_9000001454_10116cztM0_level2.evt | modeM0/AS1G07_065T01_9000001454_10116cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,995,520 | 98,616,960 |
| Size | 435.8 MB | 94.0 MB |
| Events in quadrant A | 3,807,578 | 659,029 |
| Events in quadrant B | 3,063,709 | 671,145 |
| Events in quadrant C | 2,789,228 | 642,795 |
| Events in quadrant D | 3,791,746 | 614,027 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15188 | 2 |
| B | 0 | 12617 | 1 |
| C | 0 | 11894 | 1 |
| D | 0 | 14898 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5710 | 90 | 1.576182% |
| B | 5710 | 76 | 1.330998% |
| C | 5710 | 59 | 1.033275% |
| D | 5710 | 199 | 3.485114% |

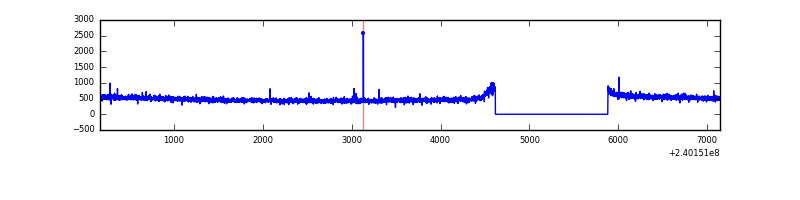

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6975 | 5710 | 2 | 2 | 0.03% | 0.04% |  |
| B | 6975 | 5710 | 7 | 7 | 0.10% | 0.12% |  |
| C | 6975 | 5710 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6975 | 5710 | 141 | 141 | 2.02% | 2.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 911082 | 5957.03 | 749 | 736 | 152.8 |
| A | 3 | 1 | 11433 | 70.0 | 749 | 736 | 152.8 |
| A | 0 | 226 | 6974 | 40.82 | 749 | 736 | 152.8 |
| B | 4 | 239 | 58228 | 410.94 | 741 | 727 | 139.9 |
| B | 0 | 214 | 56094 | 395.69 | 741 | 727 | 139.9 |
| B | 0 | 219 | 31689 | 221.27 | 741 | 727 | 139.9 |
| C | 13 | 61 | 5443 | 28.77 | 713 | 719 | 164.2 |
| C | 14 | 67 | 4360 | 22.17 | 713 | 719 | 164.2 |
| C | 12 | 4 | 4180 | 21.08 | 713 | 719 | 164.2 |
| D | 2 | 16 | 369202 | 2036.62 | 711 | 695 | 180.9 |
| D | 12 | 233 | 306932 | 1692.47 | 711 | 695 | 180.9 |
| D | 1 | 52 | 231485 | 1275.5 | 711 | 695 | 180.9 |

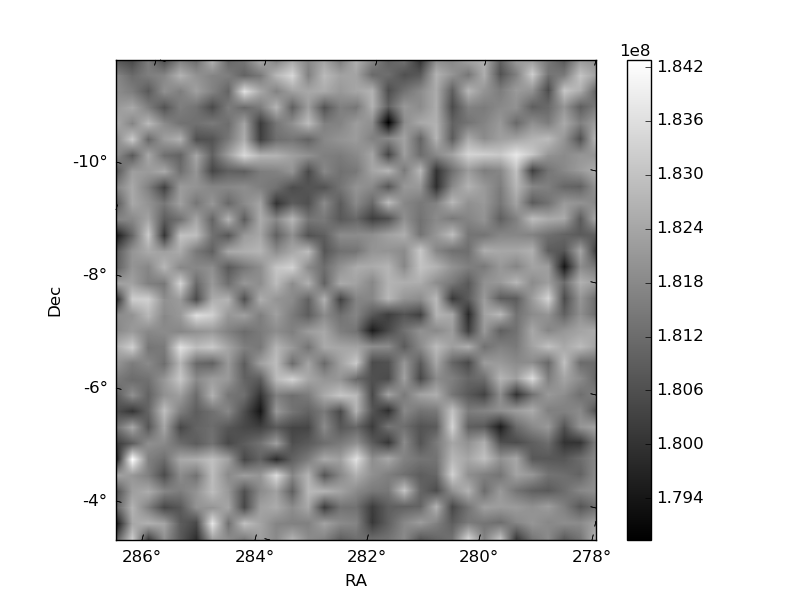

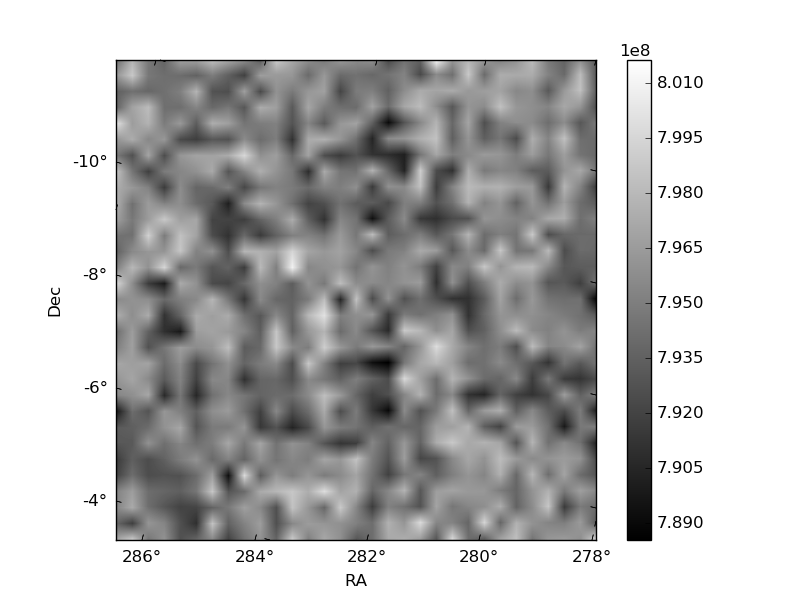

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

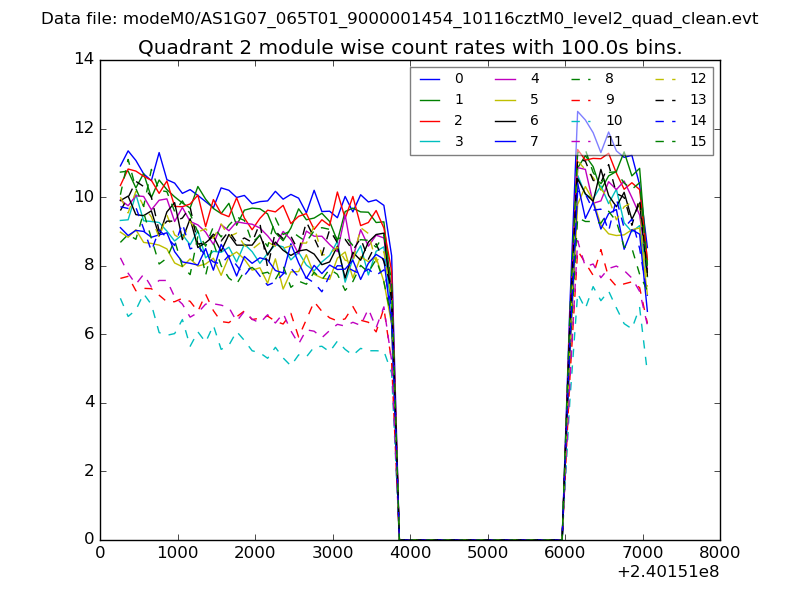

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

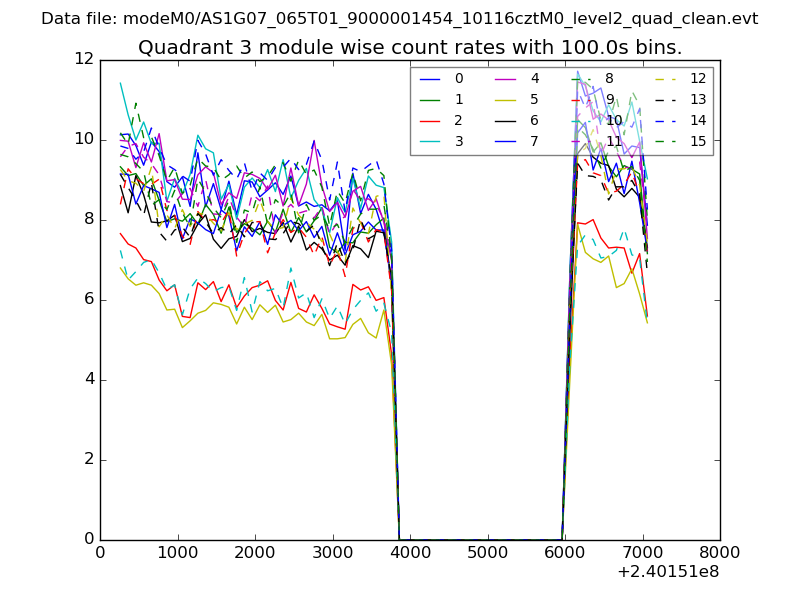

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

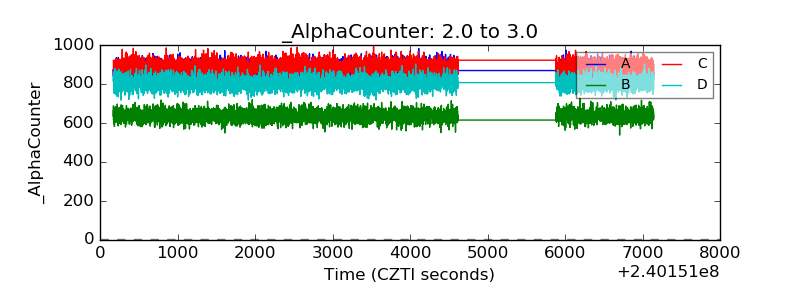

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

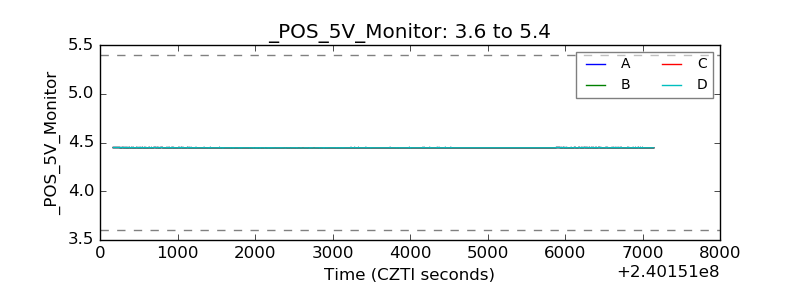

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

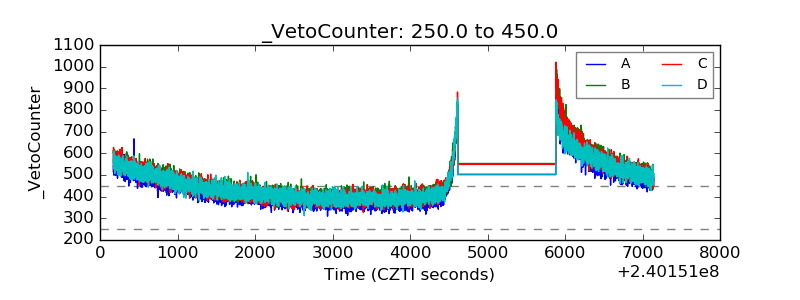

| Veto Counter |  |
