| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_116T01_9000001460_10135cztM0_level2.evt | modeM0/AS1A03_116T01_9000001460_10135cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,442,560 | 101,462,400 |
| Size | 486.8 MB | 96.8 MB |
| Events in quadrant A | 3,454,849 | 649,052 |
| Events in quadrant B | 3,840,256 | 659,008 |
| Events in quadrant C | 3,234,013 | 649,982 |
| Events in quadrant D | 4,439,458 | 611,804 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15272 | 3 |
| B | 0 | 16218 | 2 |
| C | 0 | 14792 | 2 |
| D | 0 | 17658 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7222 | 102 | 1.412351% |
| B | 7222 | 81 | 1.121573% |
| C | 7222 | 16 | 0.221545% |
| D | 7222 | 133 | 1.841595% |

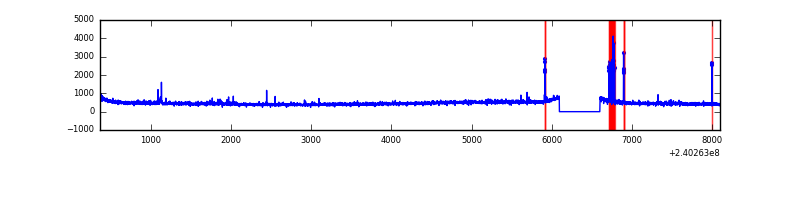

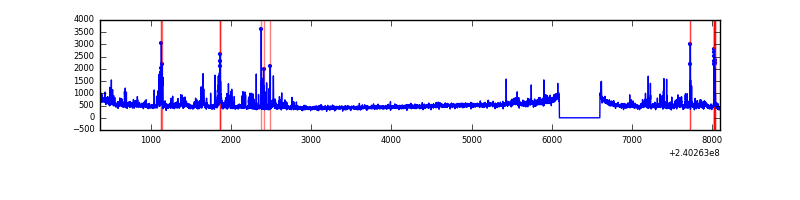

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7727 | 7223 | 52 | 52 | 0.67% | 0.72% |  |
| B | 7727 | 7223 | 19 | 19 | 0.25% | 0.26% |  |
| C | 7727 | 7223 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7727 | 7223 | 108 | 108 | 1.40% | 1.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 156921 | 894.3 | 851 | 834 | 174.5 |
| A | 8 | 15 | 14682 | 79.34 | 851 | 834 | 174.5 |
| A | 0 | 226 | 7869 | 40.31 | 851 | 834 | 174.5 |
| B | 4 | 81 | 178864 | 1076.65 | 859 | 839 | 165.4 |
| B | 0 | 214 | 77360 | 462.78 | 859 | 839 | 165.4 |
| B | 4 | 239 | 69162 | 413.2 | 859 | 839 | 165.4 |
| C | 14 | 67 | 17833 | 88.78 | 824 | 827 | 191.6 |
| C | 13 | 61 | 6223 | 28.17 | 824 | 827 | 191.6 |
| C | 8 | 222 | 2777 | 10.18 | 824 | 827 | 191.6 |
| D | 8 | 195 | 483825 | 2476.14 | 813 | 788 | 195.1 |
| D | 2 | 136 | 333553 | 1705.82 | 813 | 788 | 195.1 |
| D | 2 | 152 | 194765 | 994.36 | 813 | 788 | 195.1 |

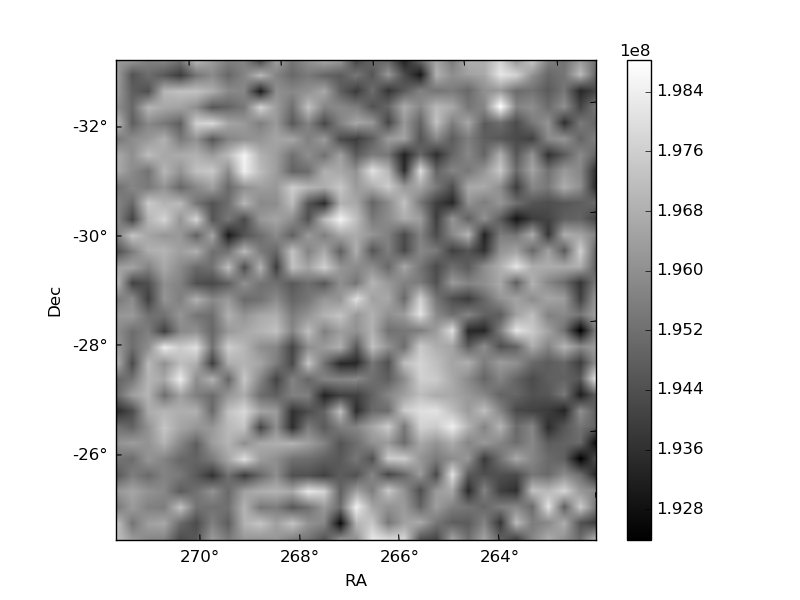

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

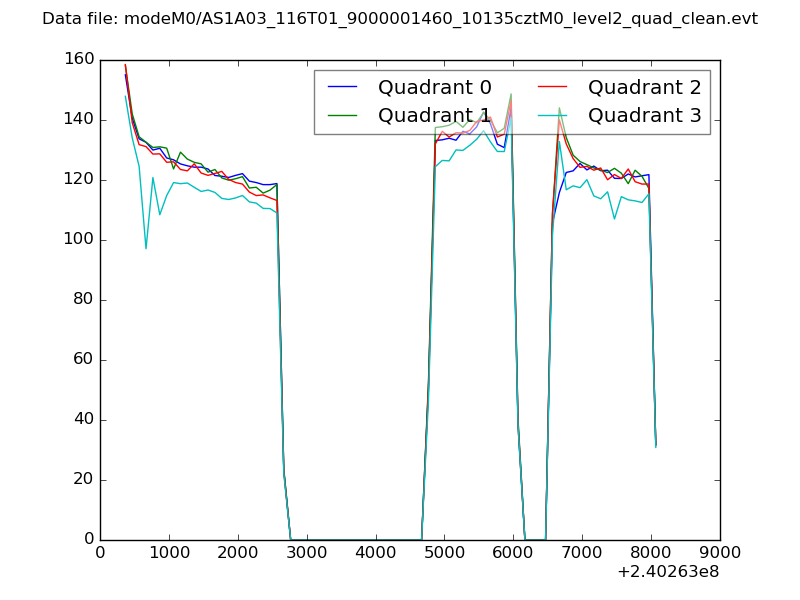

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

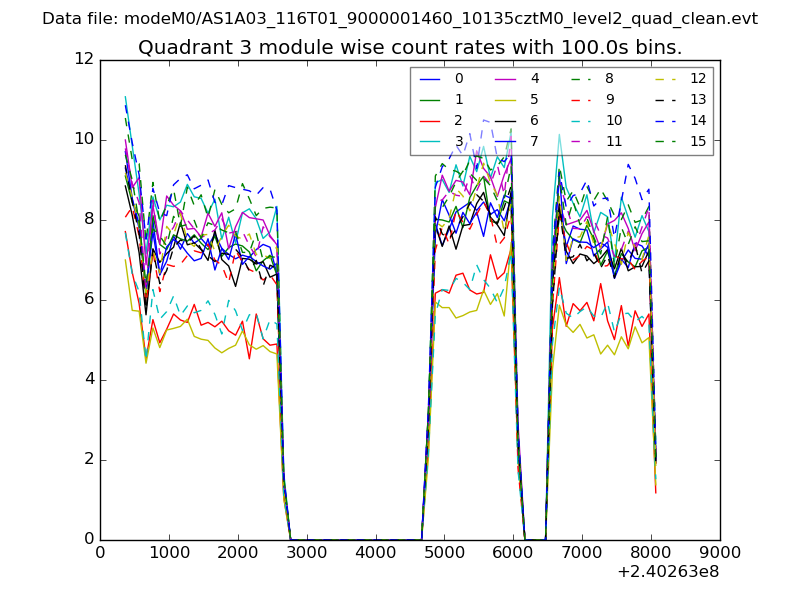

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

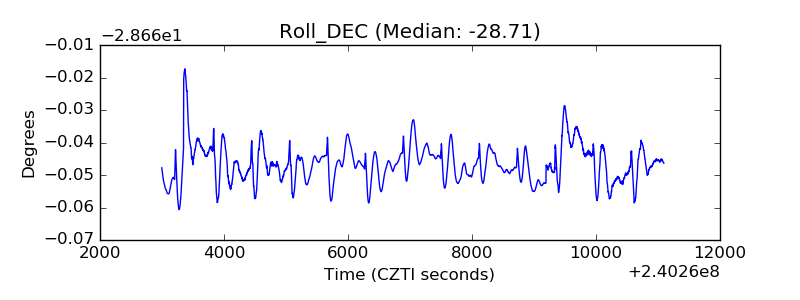

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
