| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_116T01_9000001460_10137cztM0_level2.evt | modeM0/AS1A03_116T01_9000001460_10137cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,602,240 | 114,215,040 |
| Size | 562.3 MB | 108.9 MB |
| Events in quadrant A | 3,931,445 | 727,539 |
| Events in quadrant B | 4,451,987 | 735,989 |
| Events in quadrant C | 3,803,661 | 726,151 |
| Events in quadrant D | 5,098,199 | 684,646 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 172 | 0 |
| B | 0 | 172 | 0 |
| C | 0 | 172 | 0 |
| D | 0 | 172 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17525 | 3 |
| B | 0 | 18877 | 2 |
| C | 0 | 17251 | 2 |
| D | 0 | 20761 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8418 | 90 | 1.069138% |
| B | 8418 | 153 | 1.817534% |
| C | 8418 | 47 | 0.558327% |
| D | 8418 | 190 | 2.257068% |

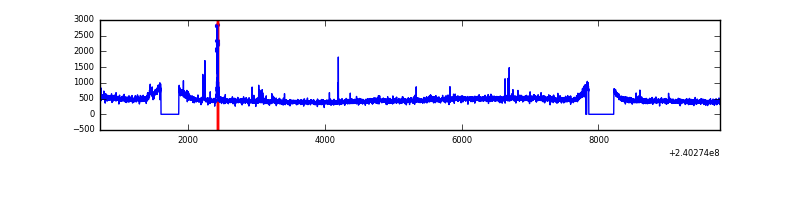

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9058 | 8421 | 10 | 10 | 0.11% | 0.12% |  |
| B | 9058 | 8421 | 29 | 29 | 0.32% | 0.34% |  |
| C | 9058 | 8421 | 2 | 2 | 0.02% | 0.02% |  |
| D | 9058 | 8421 | 124 | 124 | 1.37% | 1.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 75790 | 366.49 | 994 | 971 | 204.2 |
| A | 8 | 5 | 17494 | 80.94 | 994 | 971 | 204.2 |
| A | 0 | 226 | 9219 | 40.4 | 994 | 971 | 204.2 |
| B | 4 | 81 | 335552 | 1740.96 | 999 | 974 | 192.2 |
| B | 0 | 219 | 77606 | 398.75 | 999 | 974 | 192.2 |
| B | 4 | 239 | 48795 | 248.83 | 999 | 974 | 192.2 |
| C | 14 | 67 | 16432 | 68.62 | 963 | 964 | 225.4 |
| C | 14 | 234 | 11150 | 45.19 | 963 | 964 | 225.4 |
| C | 8 | 128 | 8638 | 34.05 | 963 | 964 | 225.4 |
| D | 8 | 195 | 642371 | 2775.64 | 951 | 923 | 231.1 |
| D | 9 | 85 | 222798 | 960.08 | 951 | 923 | 231.1 |
| D | 7 | 71 | 158795 | 683.13 | 951 | 923 | 231.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

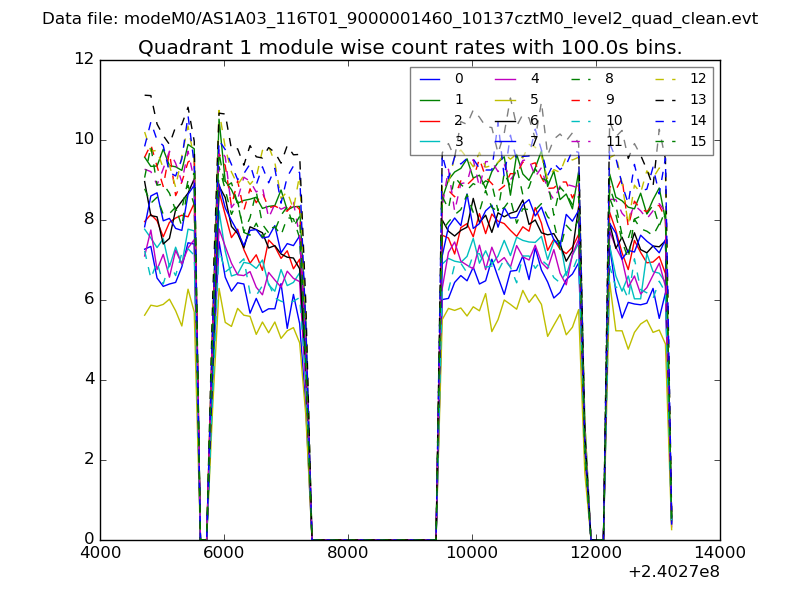

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

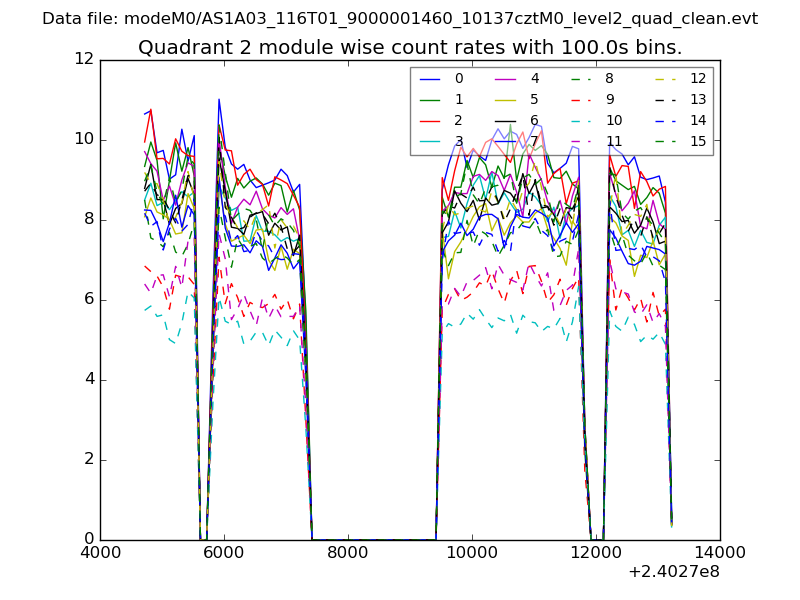

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

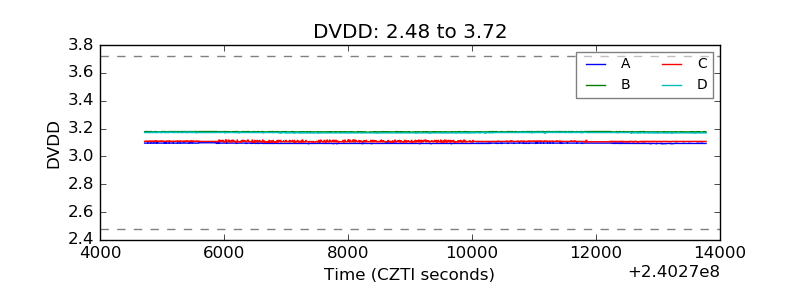

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

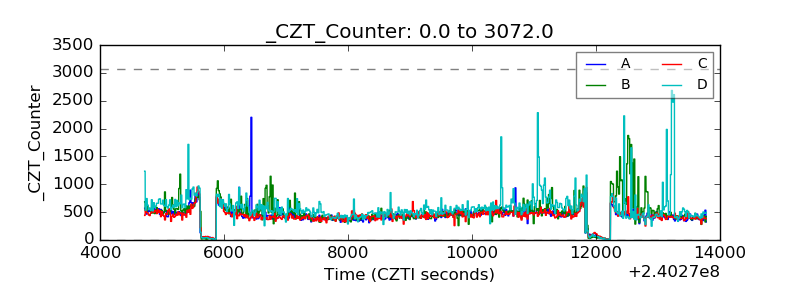

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

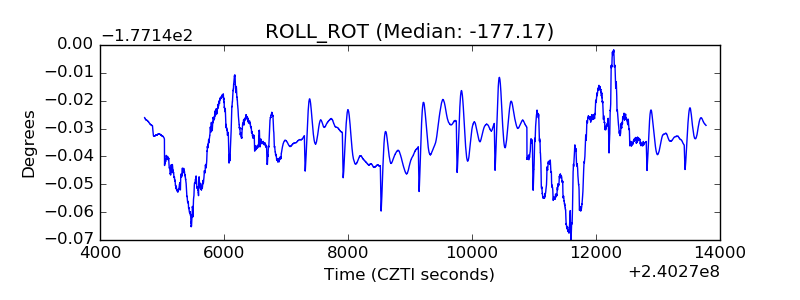

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

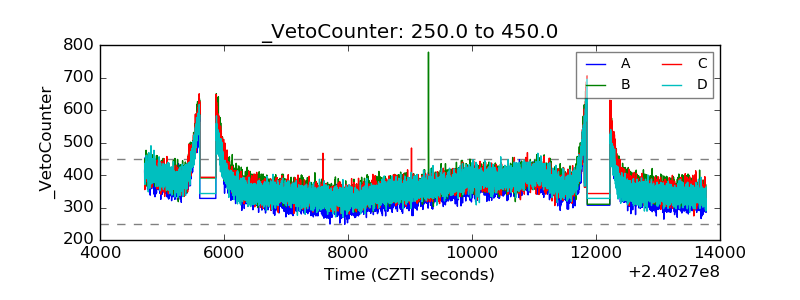

| Veto Counter |  |
