| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_116T01_9000001460_10145cztM0_level2.evt | modeM0/AS1A03_116T01_9000001460_10145cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,262,080 | 102,156,480 |
| Size | 446.6 MB | 97.4 MB |
| Events in quadrant A | 2,902,695 | 695,080 |
| Events in quadrant B | 3,123,068 | 700,908 |
| Events in quadrant C | 2,744,576 | 684,714 |
| Events in quadrant D | 5,027,553 | 618,003 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12187 | 7 |
| B | 0 | 13001 | 5 |
| C | 0 | 11822 | 5 |
| D | 0 | 18788 | 11 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5643 | 85 | 1.506291% |
| B | 5643 | 89 | 1.577175% |
| C | 5643 | 50 | 0.886054% |
| D | 5643 | 589 | 10.437710% |

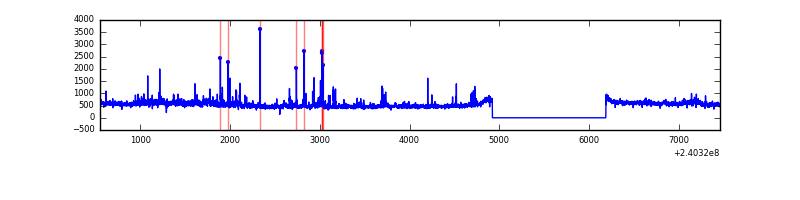

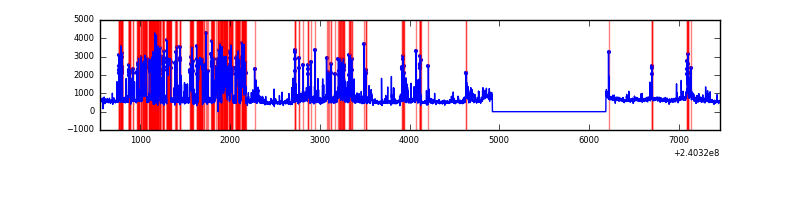

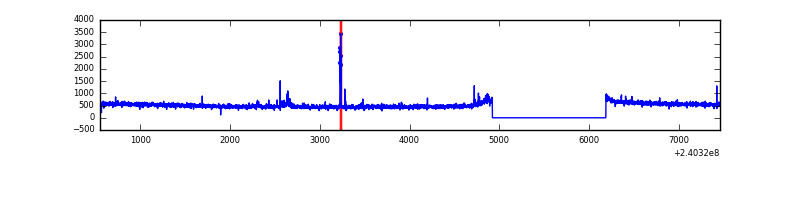

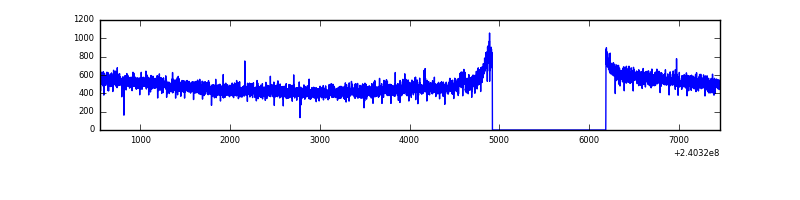

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6910 | 5645 | 6 | 6 | 0.09% | 0.11% |  |
| B | 6910 | 5646 | 9 | 9 | 0.13% | 0.16% |  |
| C | 6910 | 5645 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6910 | 5644 | 511 | 511 | 7.40% | 9.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 49384 | 327.87 | 735 | 721 | 148.4 |
| A | 13 | 251 | 13058 | 83.12 | 735 | 721 | 148.4 |
| A | 8 | 15 | 7550 | 46.01 | 735 | 721 | 148.4 |
| B | 0 | 214 | 144542 | 1042.44 | 728 | 713 | 138.0 |
| B | 4 | 239 | 62338 | 446.64 | 728 | 713 | 138.0 |
| B | 0 | 219 | 39858 | 283.71 | 728 | 713 | 138.0 |
| C | 14 | 67 | 14007 | 82.8 | 700 | 704 | 160.7 |
| C | 13 | 61 | 5407 | 29.27 | 700 | 704 | 160.7 |
| C | 3 | 202 | 1725 | 6.36 | 700 | 704 | 160.7 |
| D | 1 | 52 | 1745963 | 9797.63 | 669 | 659 | 178.1 |
| D | 8 | 195 | 207669 | 1162.09 | 669 | 659 | 178.1 |
| D | 2 | 136 | 139477 | 779.28 | 669 | 659 | 178.1 |

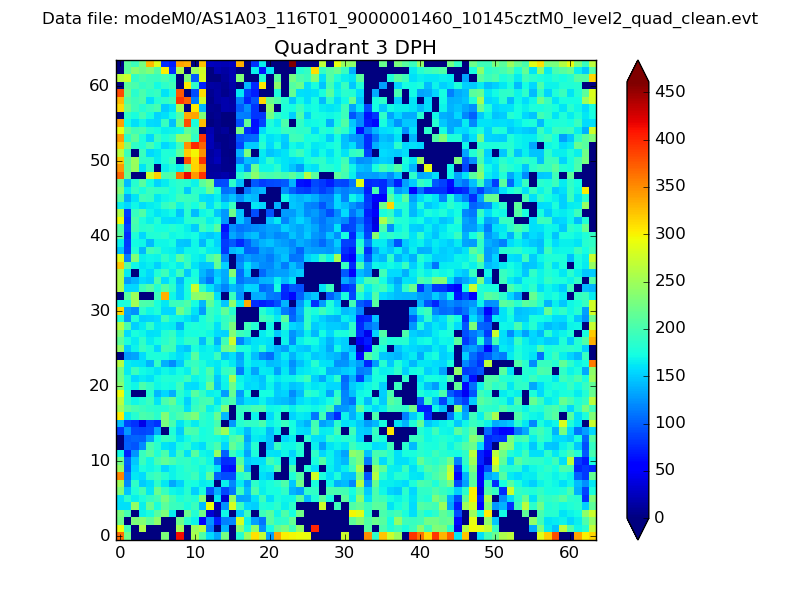

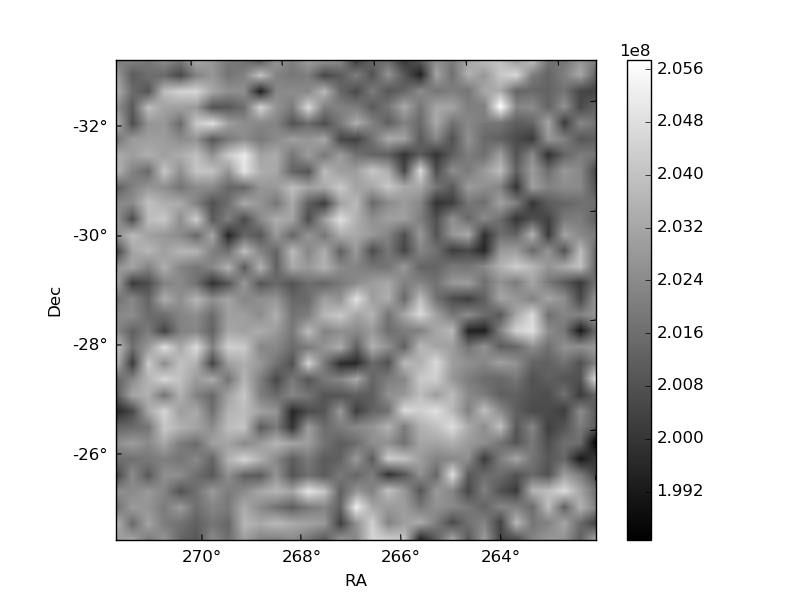

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

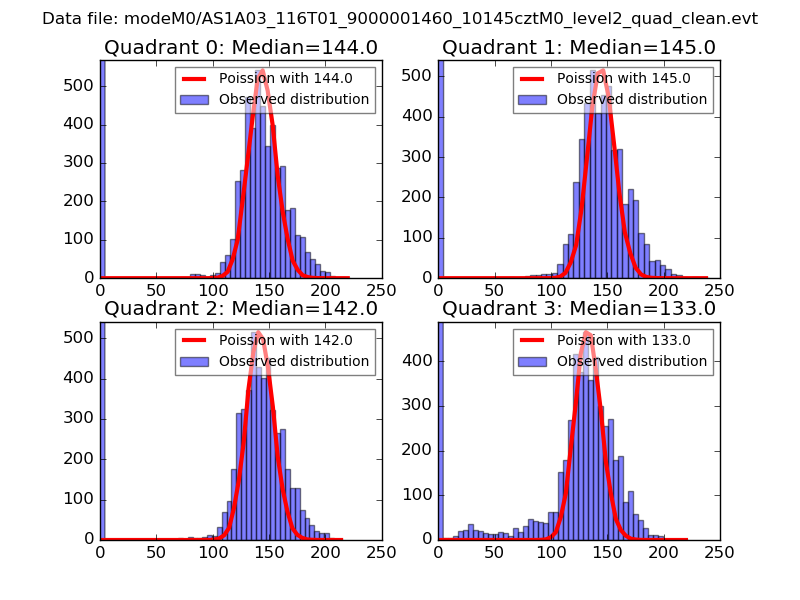

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

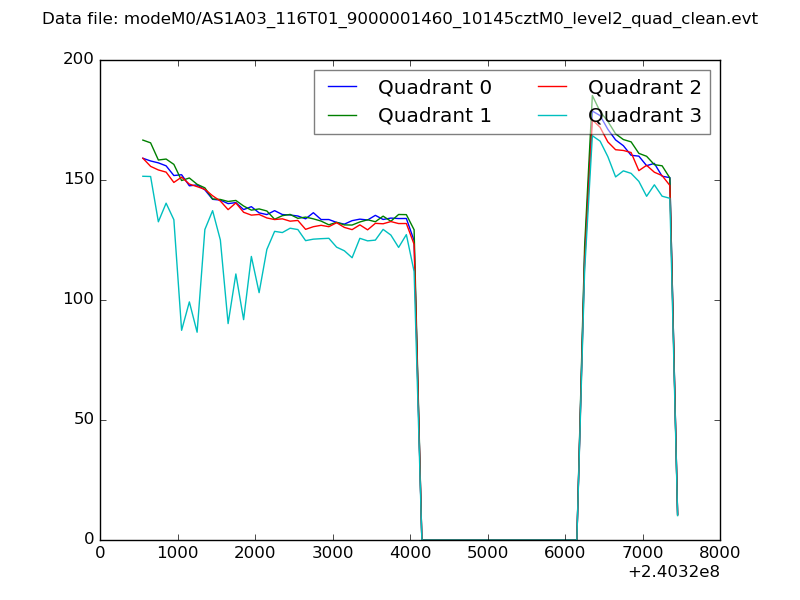

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

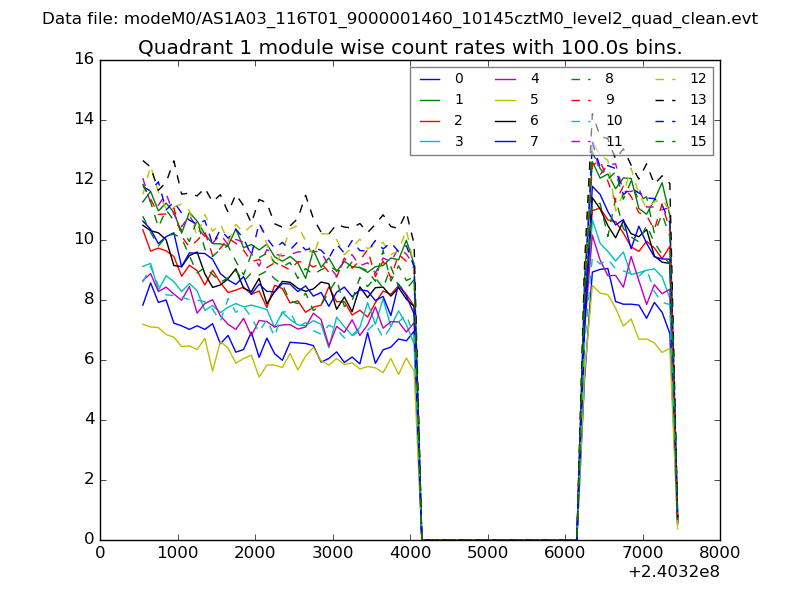

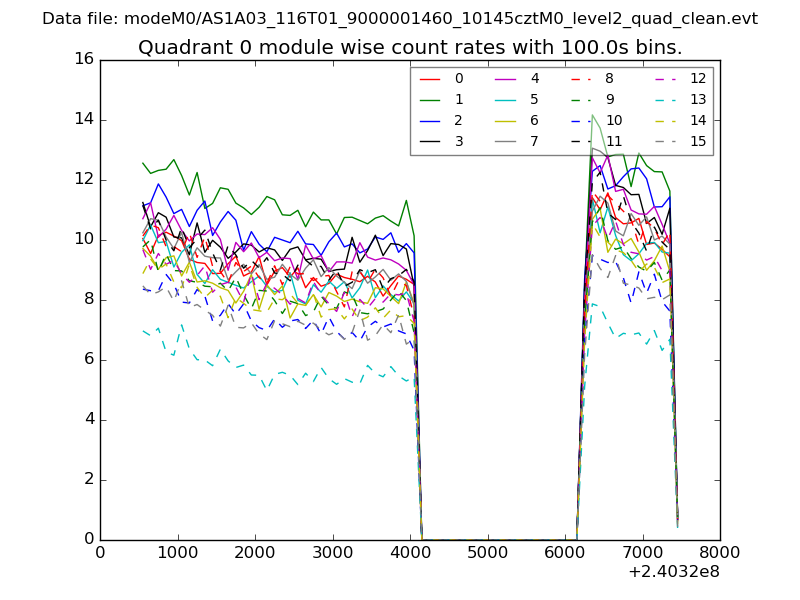

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

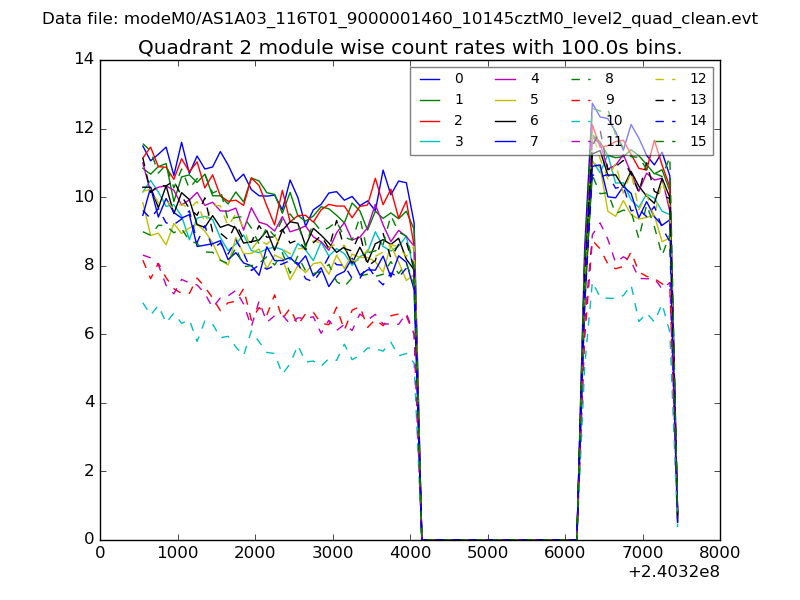

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

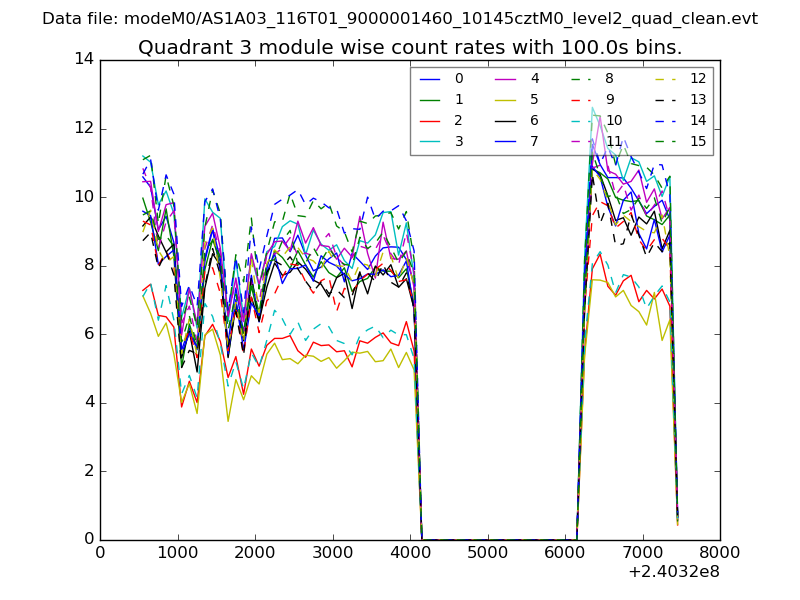

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

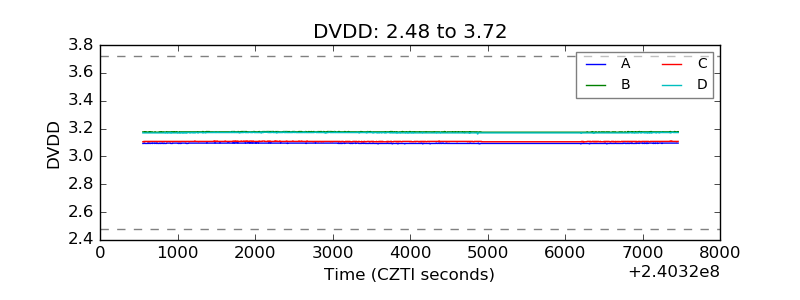

| D_VDD |  |

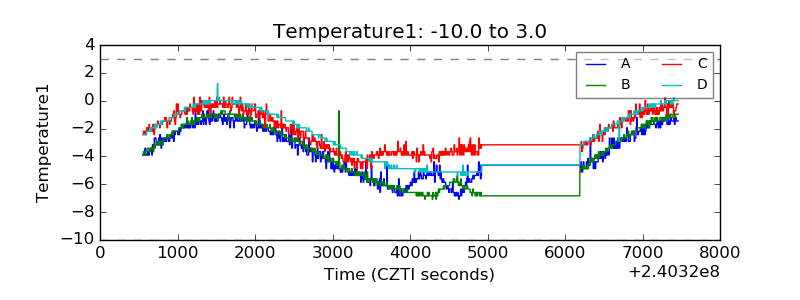

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

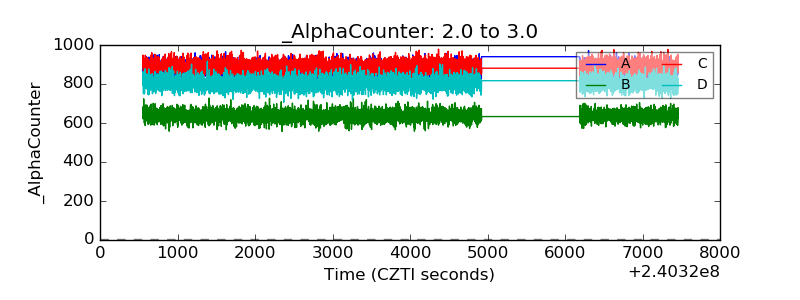

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

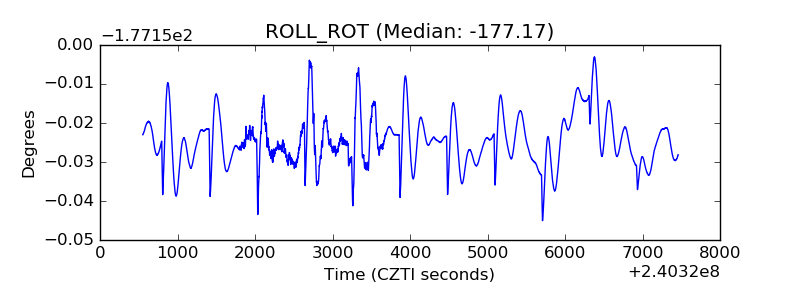

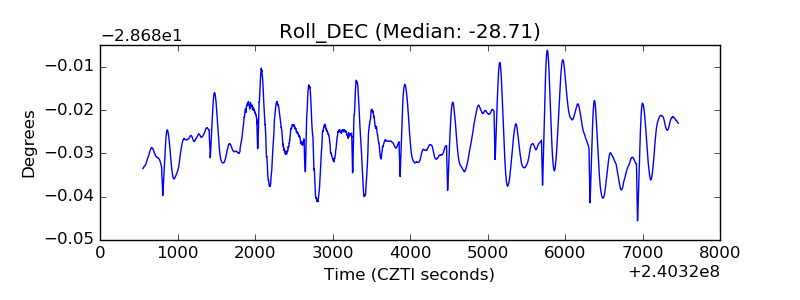

| _ROLL_ROT |  |
| _Roll_DEC |  |

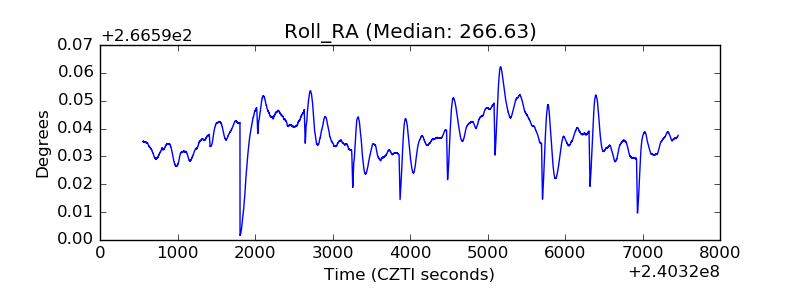

| _Roll_RA |  |

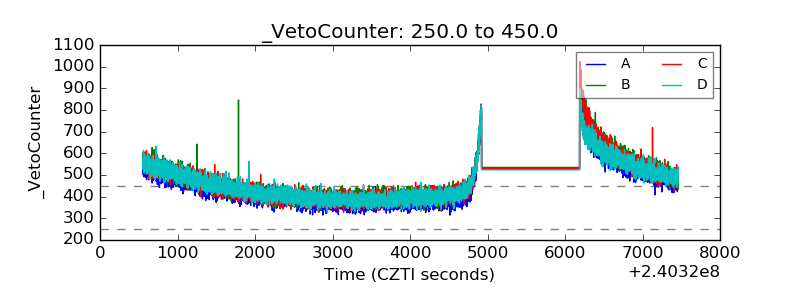

| Veto Counter |  |
