| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_116T01_9000001460_10147cztM0_level2.evt | modeM0/AS1A03_116T01_9000001460_10147cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,077,760 | 104,601,600 |
| Size | 472.1 MB | 99.8 MB |
| Events in quadrant A | 3,581,696 | 691,871 |
| Events in quadrant B | 3,428,341 | 698,765 |
| Events in quadrant C | 3,101,356 | 680,921 |
| Events in quadrant D | 4,440,483 | 642,698 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14920 | 3 |
| B | 0 | 14510 | 2 |
| C | 0 | 13639 | 2 |
| D | 0 | 17925 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6505 | 176 | 2.705611% |
| B | 6505 | 113 | 1.737125% |
| C | 6505 | 71 | 1.091468% |
| D | 6506 | 183 | 2.812788% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7735 | 6505 | 46 | 46 | 0.59% | 0.71% |  |
| B | 7735 | 6505 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7735 | 6506 | 7 | 7 | 0.09% | 0.11% |  |
| D | 7736 | 6506 | 99 | 99 | 1.28% | 1.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 143842 | 860.55 | 826 | 811 | 166.2 |
| A | 15 | 174 | 108060 | 645.27 | 826 | 811 | 166.2 |
| A | 15 | 239 | 63836 | 379.19 | 826 | 811 | 166.2 |
| B | 4 | 81 | 55061 | 346.17 | 824 | 808 | 156.7 |
| B | 0 | 214 | 46775 | 293.3 | 824 | 808 | 156.7 |
| B | 4 | 239 | 44716 | 280.16 | 824 | 808 | 156.7 |
| C | 14 | 234 | 30525 | 163.69 | 786 | 792 | 181.6 |
| C | 14 | 67 | 7003 | 34.19 | 786 | 792 | 181.6 |
| C | 13 | 61 | 5826 | 27.71 | 786 | 792 | 181.6 |
| D | 8 | 195 | 551998 | 2929.24 | 788 | 765 | 188.2 |
| D | 1 | 52 | 475839 | 2524.53 | 788 | 765 | 188.2 |
| D | 7 | 71 | 147309 | 778.73 | 788 | 765 | 188.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

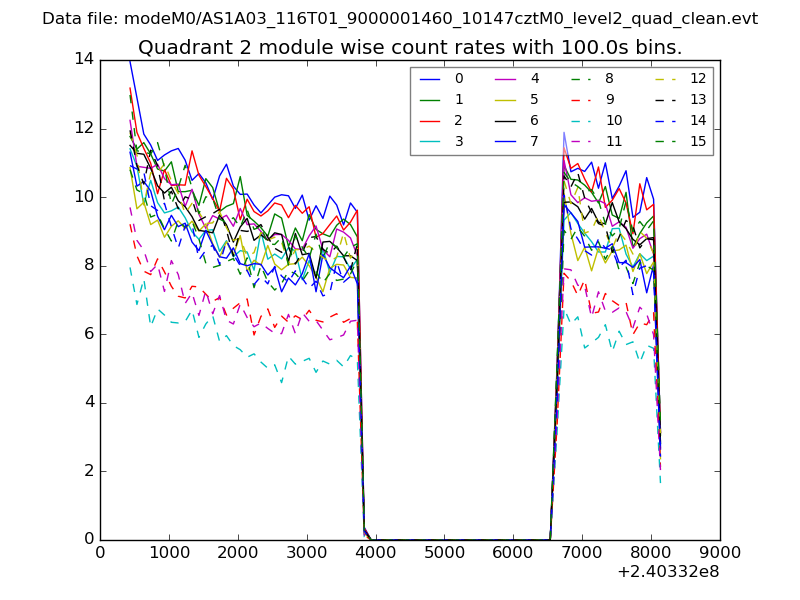

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

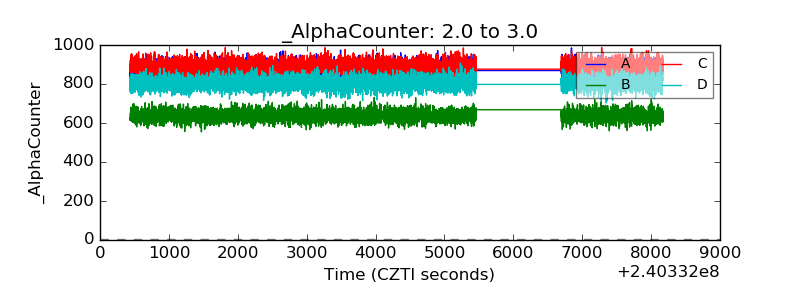

| Alpha Counter |  |

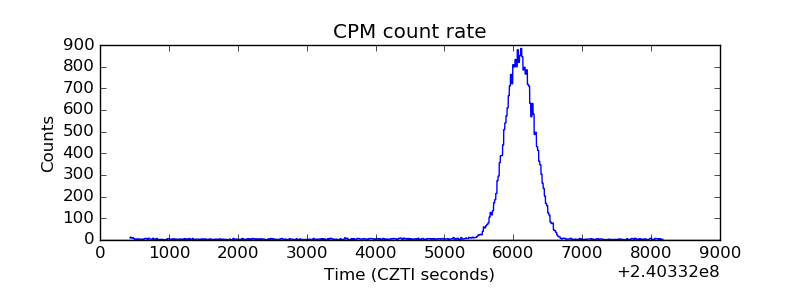

| _CPM_Rate |  |

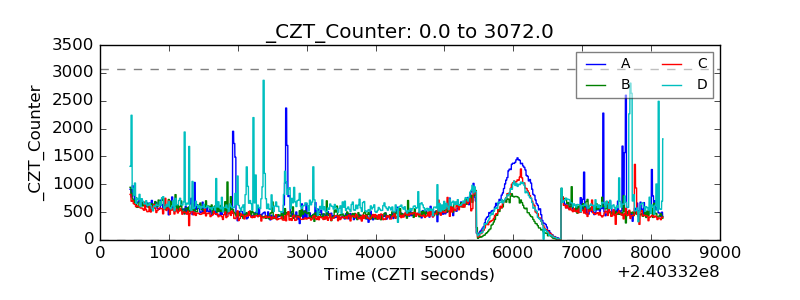

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

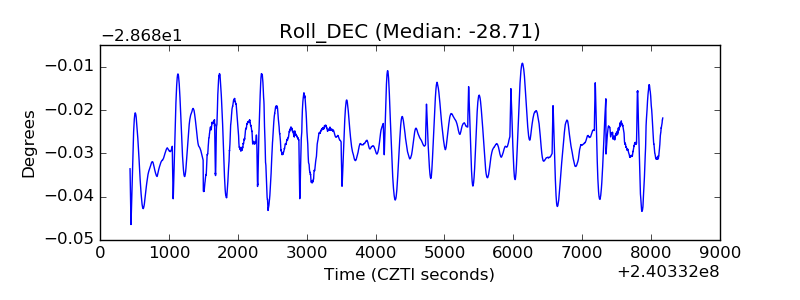

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
