| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_116T01_9000001460_10149cztM0_level2.evt | modeM0/AS1A03_116T01_9000001460_10149cztM0_level2_quad_clean.evt |
| Size (bytes) | 638,334,720 | 90,365,760 |
| Size | 608.8 MB | 86.2 MB |
| Events in quadrant A | 3,177,964 | 600,275 |
| Events in quadrant B | 3,343,558 | 605,903 |
| Events in quadrant C | 3,046,773 | 595,204 |
| Events in quadrant D | 9,303,273 | 461,415 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14077 | 16 |
| B | 0 | 14479 | 24 |
| C | 0 | 13923 | 18 |
| D | 0 | 32284 | 61 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6791 | 21 | 0.309233% |
| B | 6786 | 38 | 0.559976% |
| C | 6789 | 9 | 0.132567% |
| D | 6782 | 2488 | 36.685344% |

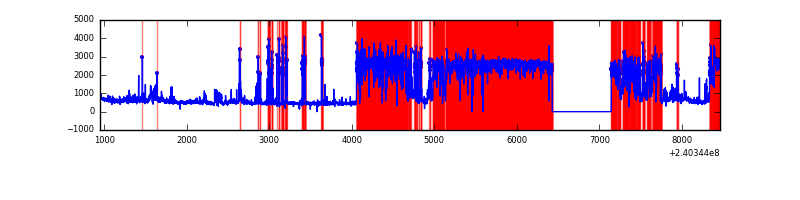

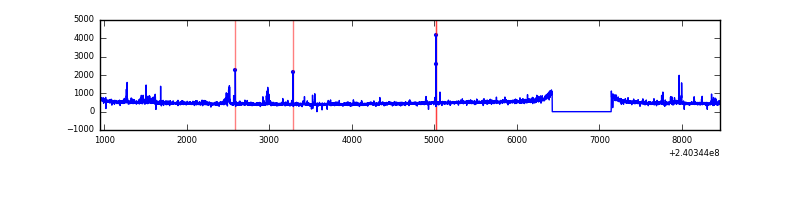

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7513 | 6798 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7513 | 6798 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7513 | 6798 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7512 | 6794 | 2409 | 2409 | 32.07% | 35.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 43627 | 259.05 | 806 | 788 | 165.4 |
| A | 15 | 174 | 22085 | 128.79 | 806 | 788 | 165.4 |
| A | 0 | 226 | 7482 | 40.48 | 806 | 788 | 165.4 |
| B | 4 | 239 | 58327 | 368.75 | 810 | 790 | 156.0 |
| B | 10 | 246 | 31149 | 194.57 | 810 | 790 | 156.0 |
| B | 0 | 189 | 28416 | 177.05 | 810 | 790 | 156.0 |
| C | 14 | 234 | 19068 | 101.51 | 773 | 778 | 180.2 |
| C | 14 | 67 | 7938 | 39.74 | 773 | 778 | 180.2 |
| C | 13 | 61 | 5844 | 28.12 | 773 | 778 | 180.2 |
| D | 1 | 52 | 6178933 | 40924.56 | 620 | 602 | 151.0 |
| D | 8 | 195 | 394959 | 2612.18 | 620 | 602 | 151.0 |
| D | 4 | 95 | 88032 | 579.13 | 620 | 602 | 151.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

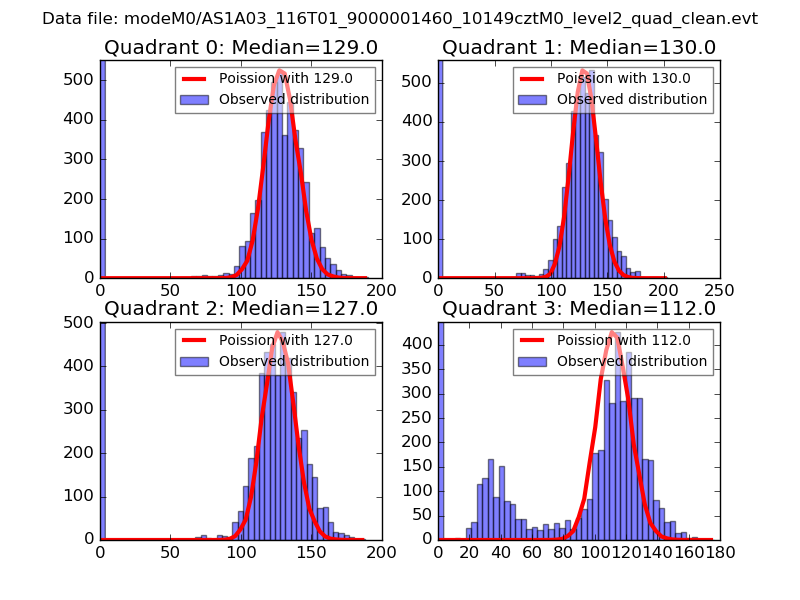

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

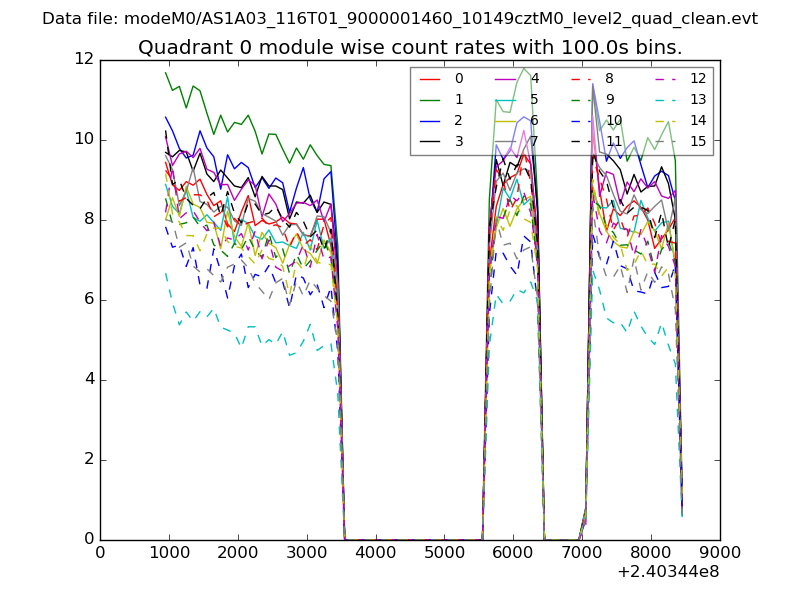

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

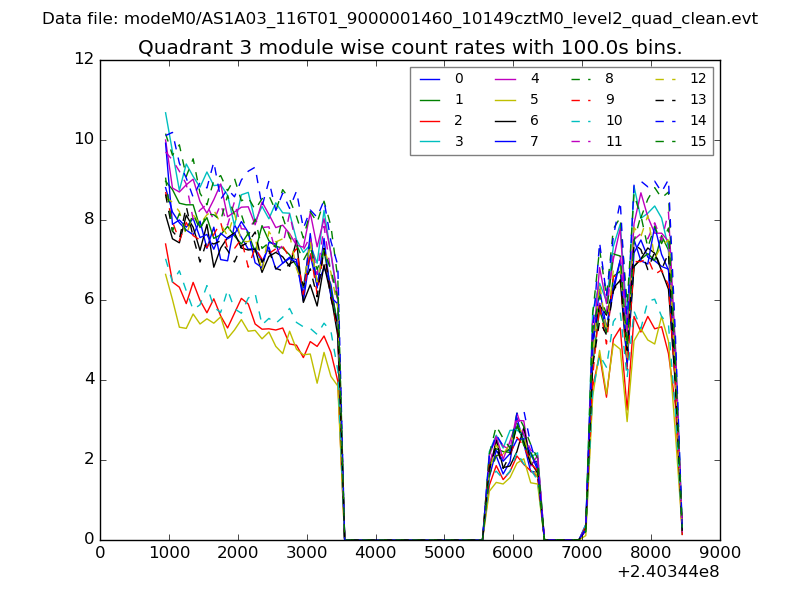

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

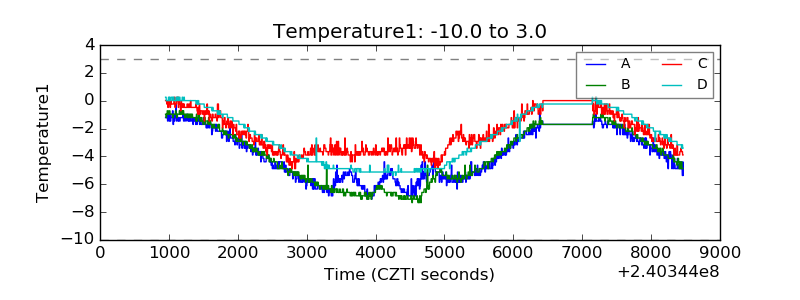

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

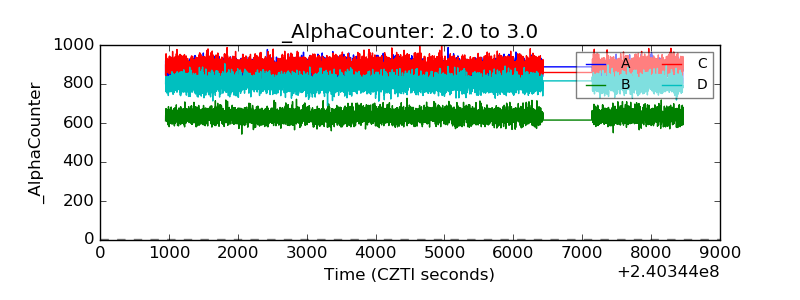

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
