| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_039T01_9000001462_10162cztM0_level2.evt | modeM0/AS1A03_039T01_9000001462_10162cztM0_level2_quad_clean.evt |
| Size (bytes) | 510,071,040 | 101,972,160 |
| Size | 486.4 MB | 97.2 MB |
| Events in quadrant A | 3,252,627 | 666,362 |
| Events in quadrant B | 3,535,846 | 672,150 |
| Events in quadrant C | 3,039,583 | 663,825 |
| Events in quadrant D | 5,166,564 | 620,487 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14210 | 2 |
| B | 0 | 14862 | 1 |
| C | 0 | 13791 | 1 |
| D | 0 | 19691 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6681 | 71 | 1.062715% |
| B | 6681 | 82 | 1.227361% |
| C | 6681 | 28 | 0.419099% |
| D | 6681 | 300 | 4.490346% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7831 | 6682 | 8 | 8 | 0.10% | 0.12% |  |
| B | 7831 | 6682 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7831 | 6682 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7831 | 6682 | 326 | 326 | 4.16% | 4.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 39458 | 234.4 | 818 | 802 | 164.9 |
| A | 15 | 174 | 30664 | 181.08 | 818 | 802 | 164.9 |
| A | 8 | 15 | 15529 | 89.3 | 818 | 802 | 164.9 |
| B | 4 | 239 | 126193 | 818.15 | 816 | 800 | 153.3 |
| B | 0 | 219 | 57169 | 367.79 | 816 | 800 | 153.3 |
| B | 0 | 214 | 36347 | 231.93 | 816 | 800 | 153.3 |
| C | 13 | 61 | 5870 | 28.49 | 778 | 782 | 178.6 |
| C | 14 | 67 | 3396 | 14.64 | 778 | 782 | 178.6 |
| C | 14 | 234 | 2013 | 6.89 | 778 | 782 | 178.6 |
| D | 2 | 16 | 1117648 | 6001.42 | 773 | 752 | 186.1 |
| D | 8 | 195 | 567744 | 3046.62 | 773 | 752 | 186.1 |
| D | 1 | 52 | 243726 | 1305.57 | 773 | 752 | 186.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

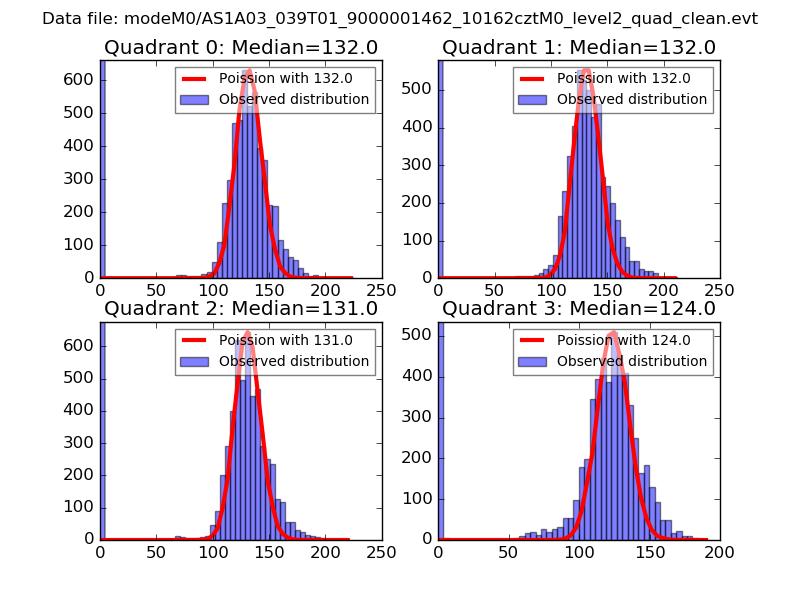

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

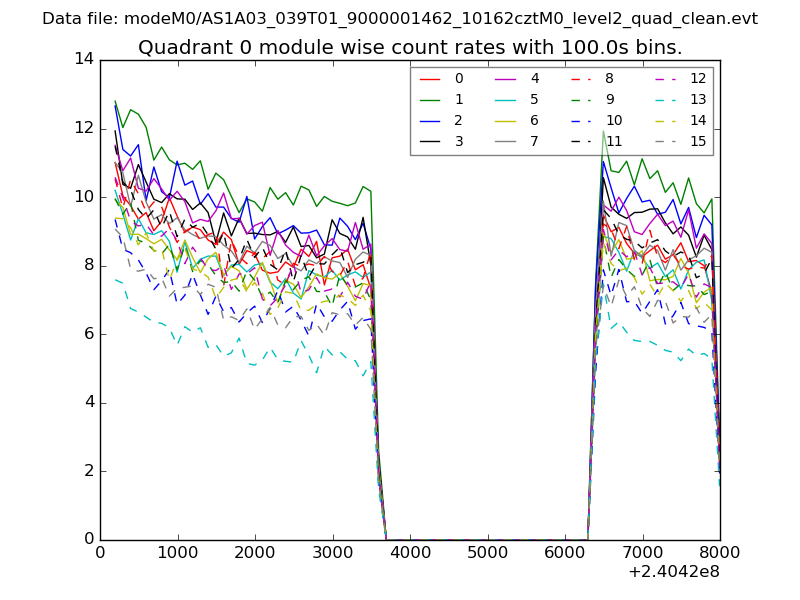

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

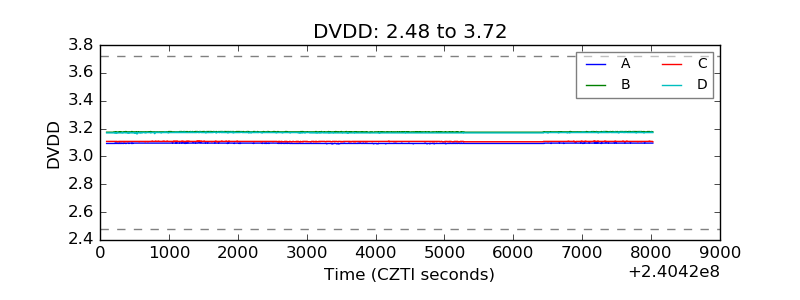

| D_VDD |  |

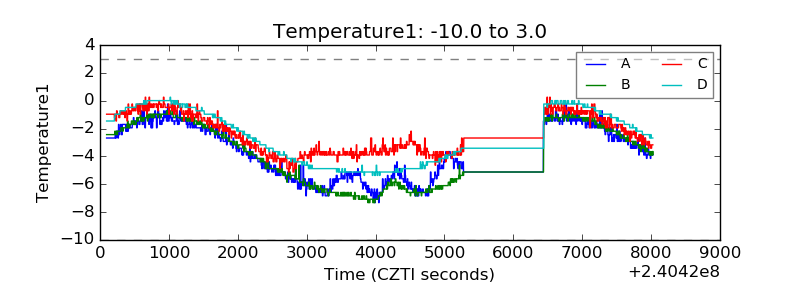

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

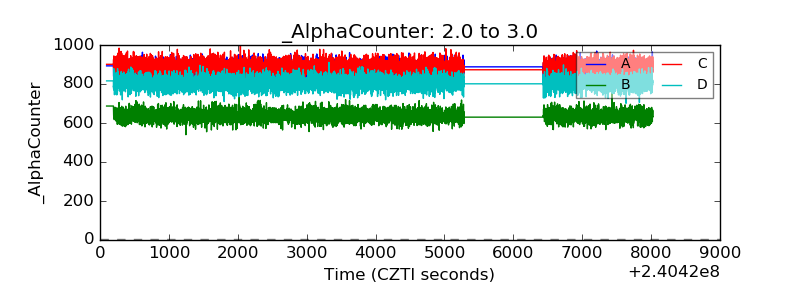

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

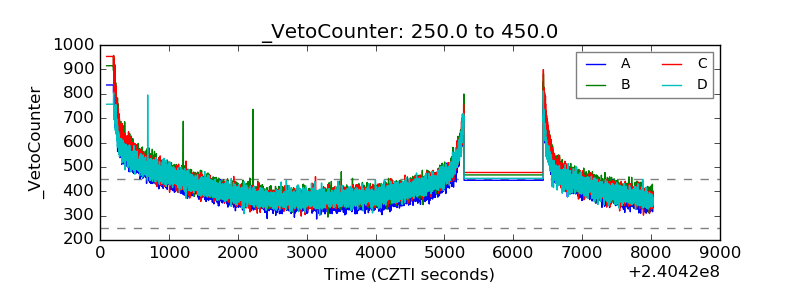

| Veto Counter |  |
