| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_133T01_9000001464_10170cztM0_level2.evt | modeM0/AS1A03_133T01_9000001464_10170cztM0_level2_quad_clean.evt |
| Size (bytes) | 471,407,040 | 78,600,960 |
| Size | 449.6 MB | 75.0 MB |
| Events in quadrant A | 3,337,820 | 483,482 |
| Events in quadrant B | 3,363,121 | 487,341 |
| Events in quadrant C | 3,067,600 | 486,713 |
| Events in quadrant D | 4,055,687 | 458,105 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14152 | 3 |
| B | 0 | 14134 | 2 |
| C | 0 | 13579 | 2 |
| D | 0 | 16197 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6659 | 83 | 1.246433% |
| B | 6659 | 72 | 1.081243% |
| C | 6659 | 59 | 0.886019% |
| D | 6659 | 95 | 1.426641% |

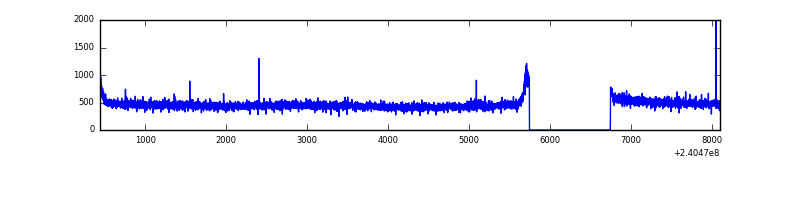

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7659 | 6659 | 18 | 18 | 0.24% | 0.27% |  |
| B | 7659 | 6659 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7659 | 6659 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7659 | 6659 | 33 | 33 | 0.43% | 0.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 143242 | 866.53 | 805 | 789 | 164.4 |
| A | 15 | 239 | 43122 | 257.51 | 805 | 789 | 164.4 |
| A | 8 | 15 | 35290 | 209.87 | 805 | 789 | 164.4 |
| B | 4 | 81 | 69833 | 447.68 | 808 | 790 | 154.2 |
| B | 0 | 214 | 56012 | 358.07 | 808 | 790 | 154.2 |
| B | 0 | 219 | 32466 | 205.39 | 808 | 790 | 154.2 |
| C | 13 | 61 | 5830 | 27.73 | 785 | 791 | 181.7 |
| C | 14 | 67 | 4810 | 22.12 | 785 | 791 | 181.7 |
| C | 14 | 234 | 3355 | 14.11 | 785 | 791 | 181.7 |
| D | 1 | 52 | 696628 | 3399.56 | 770 | 757 | 204.7 |
| D | 8 | 195 | 249390 | 1214.65 | 770 | 757 | 204.7 |
| D | 4 | 95 | 55963 | 269.7 | 770 | 757 | 204.7 |

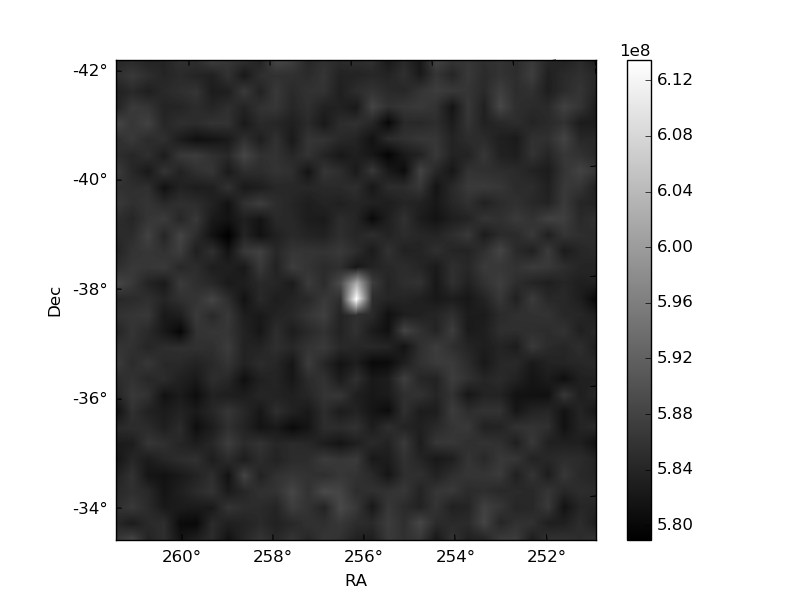

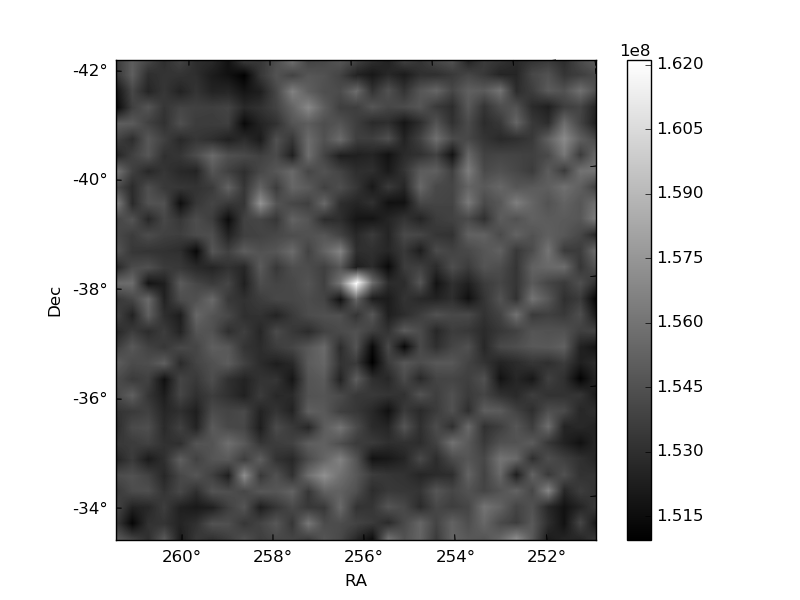

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

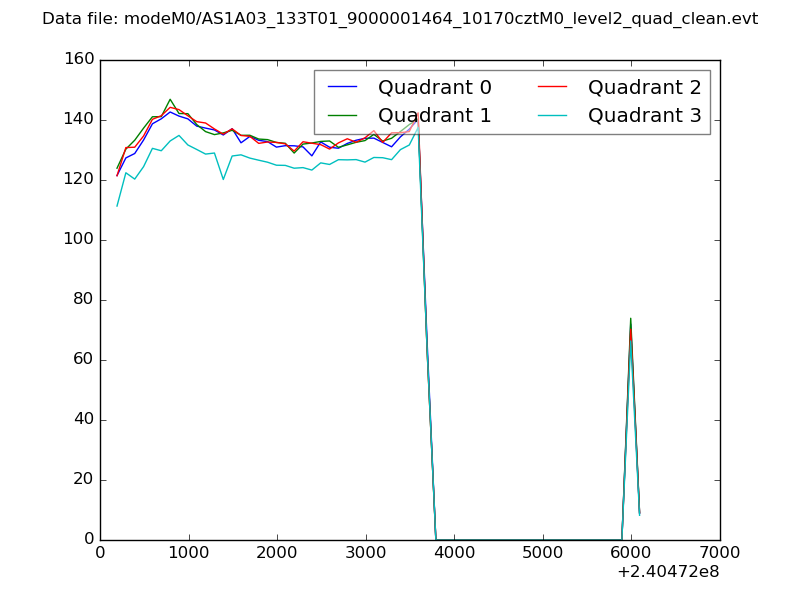

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

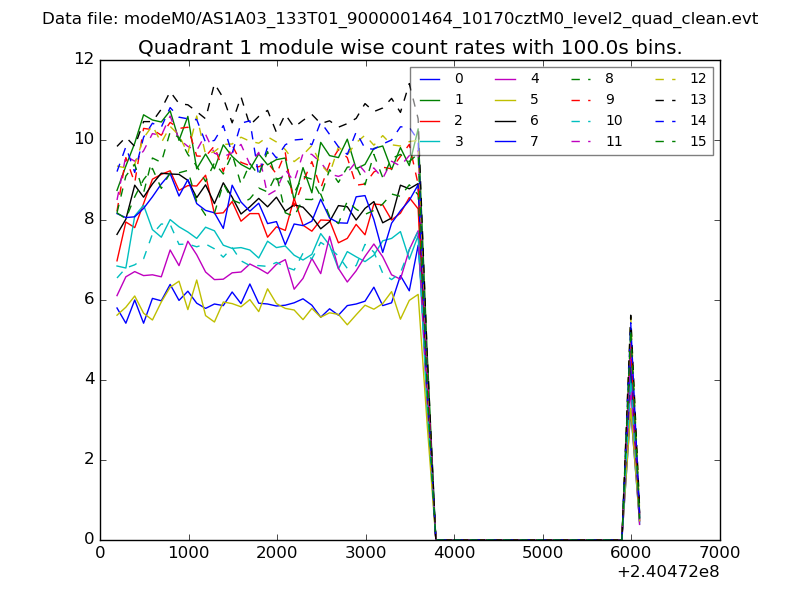

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

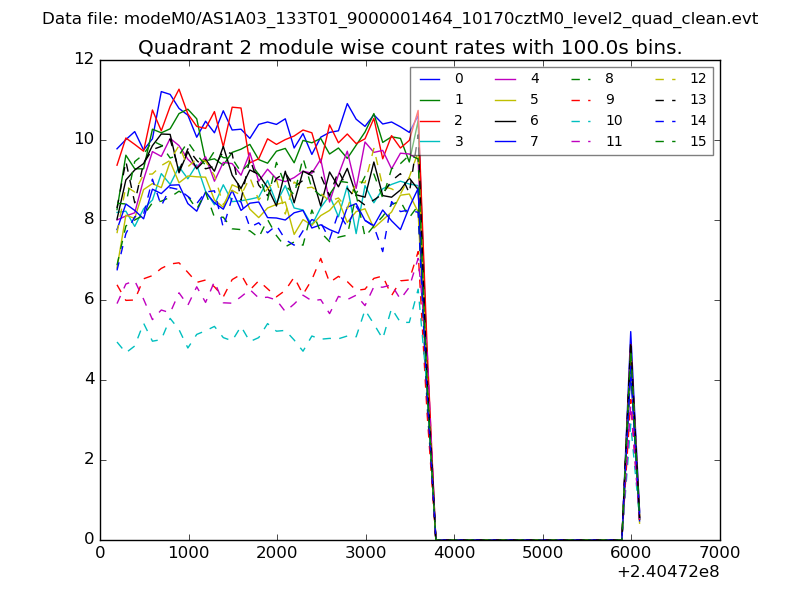

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

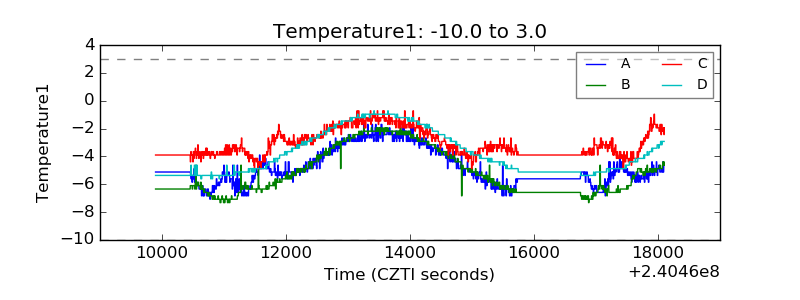

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

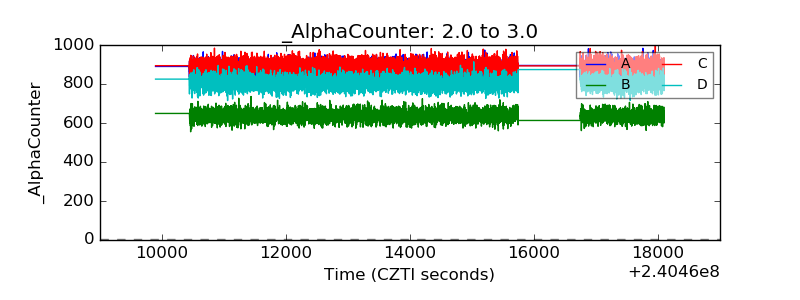

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
