| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_133T01_9000001464_10173cztM0_level2.evt | modeM0/AS1A03_133T01_9000001464_10173cztM0_level2_quad_clean.evt |
| Size (bytes) | 425,744,640 | 98,847,360 |
| Size | 406.0 MB | 94.3 MB |
| Events in quadrant A | 2,957,016 | 654,993 |
| Events in quadrant B | 3,267,748 | 659,921 |
| Events in quadrant C | 2,794,993 | 653,498 |
| Events in quadrant D | 3,481,535 | 621,498 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12418 | 13 |
| B | 0 | 13411 | 12 |
| C | 0 | 12085 | 11 |
| D | 0 | 13891 | 17 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5774 | 84 | 1.454797% |
| B | 5774 | 83 | 1.437478% |
| C | 5774 | 58 | 1.004503% |
| D | 5775 | 118 | 2.043290% |

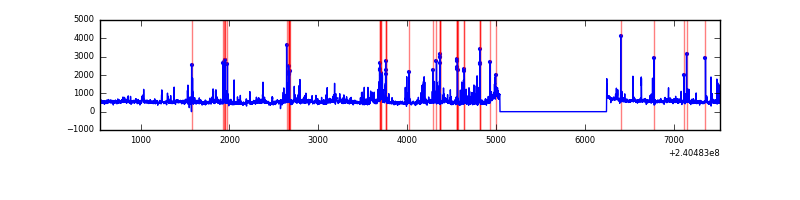

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6979 | 5779 | 6 | 6 | 0.09% | 0.10% |  |
| B | 6979 | 5779 | 9 | 9 | 0.13% | 0.16% |  |
| C | 6979 | 5779 | 0 | 0 | 0.00% | 0.00% |  |
| D | 6979 | 5778 | 46 | 46 | 0.66% | 0.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 44650 | 291.24 | 744 | 733 | 150.8 |
| A | 15 | 239 | 17181 | 109.08 | 744 | 733 | 150.8 |
| A | 3 | 1 | 14375 | 90.47 | 744 | 733 | 150.8 |
| B | 4 | 81 | 140221 | 996.39 | 738 | 722 | 140.0 |
| B | 0 | 214 | 71697 | 506.95 | 738 | 722 | 140.0 |
| B | 4 | 239 | 62409 | 440.61 | 738 | 722 | 140.0 |
| C | 14 | 67 | 8206 | 45.7 | 714 | 721 | 163.8 |
| C | 13 | 61 | 5347 | 28.25 | 714 | 721 | 163.8 |
| C | 14 | 234 | 2718 | 12.19 | 714 | 721 | 163.8 |
| D | 8 | 195 | 199827 | 1170.91 | 715 | 698 | 170.1 |
| D | 1 | 52 | 172255 | 1008.78 | 715 | 698 | 170.1 |
| D | 13 | 104 | 151311 | 885.63 | 715 | 698 | 170.1 |

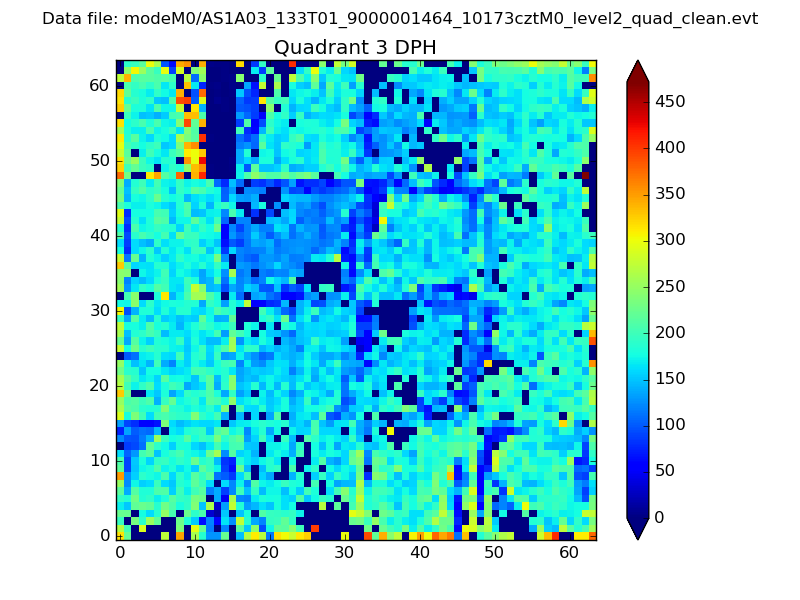

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

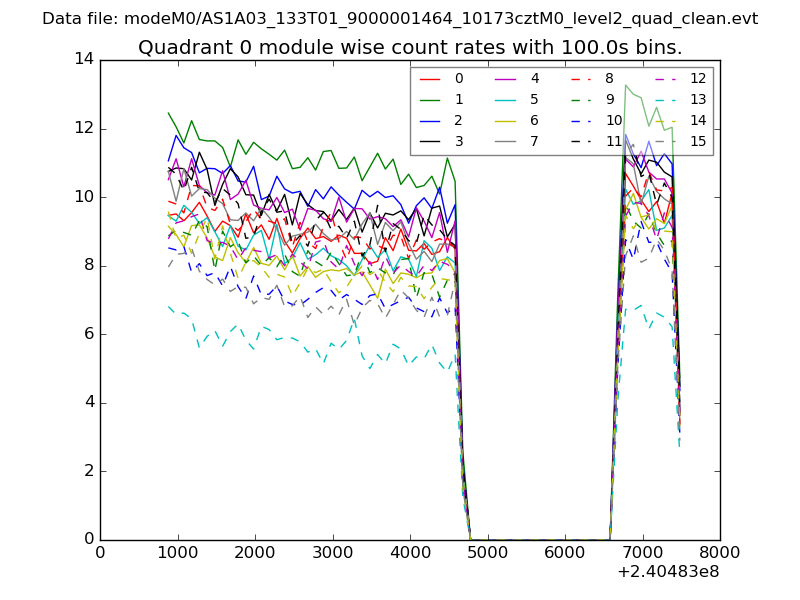

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

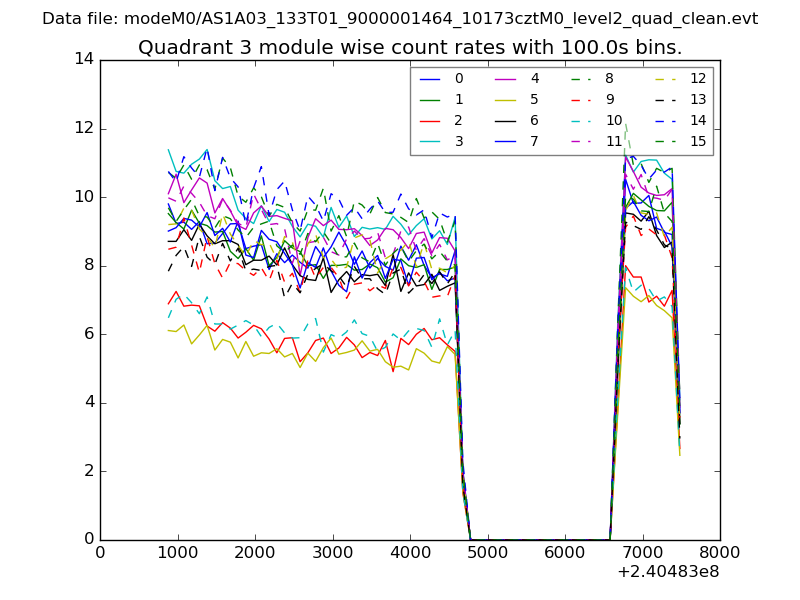

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

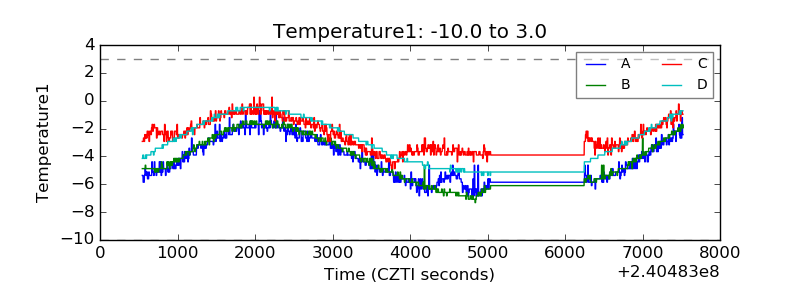

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

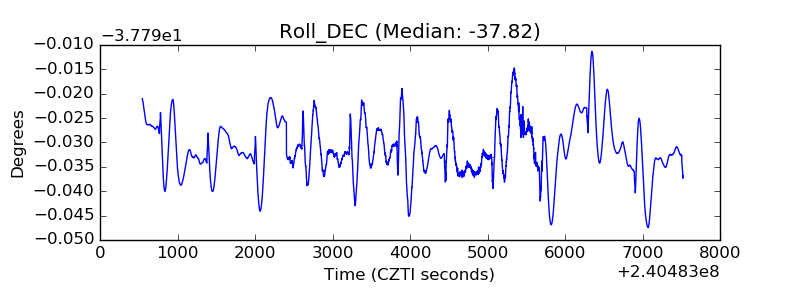

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
