| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_133T01_9000001464_10178cztM0_level2.evt | modeM0/AS1A03_133T01_9000001464_10178cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,771,520 | 91,609,920 |
| Size | 451.8 MB | 87.4 MB |
| Events in quadrant A | 3,054,670 | 592,291 |
| Events in quadrant B | 3,484,902 | 586,506 |
| Events in quadrant C | 2,924,333 | 585,695 |
| Events in quadrant D | 4,436,966 | 550,718 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 8 |
| C | 0 | 136 | 2 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13839 | 229 |
| B | 0 | 15003 | 314 |
| C | 0 | 13706 | 234 |
| D | 0 | 18123 | 438 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6599 | 32 | 0.484922% |
| B | 6568 | 86 | 1.309379% |
| C | 6593 | 21 | 0.318520% |
| D | 6564 | 128 | 1.950030% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7400 | 6708 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7400 | 6708 | 31 | 31 | 0.42% | 0.46% |  |
| C | 7400 | 6710 | 5 | 5 | 0.07% | 0.07% |  |
| D | 7400 | 6699 | 86 | 86 | 1.16% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 34396 | 211.67 | 772 | 755 | 158.9 |
| A | 8 | 15 | 26757 | 163.61 | 772 | 755 | 158.9 |
| A | 3 | 1 | 15837 | 94.9 | 772 | 755 | 158.9 |
| B | 4 | 239 | 201778 | 1369.14 | 768 | 751 | 146.8 |
| B | 0 | 219 | 82592 | 557.4 | 768 | 751 | 146.8 |
| B | 0 | 189 | 46165 | 309.3 | 768 | 751 | 146.8 |
| C | 14 | 234 | 31329 | 178.52 | 738 | 742 | 171.3 |
| C | 14 | 67 | 13946 | 77.07 | 738 | 742 | 171.3 |
| C | 13 | 61 | 5597 | 28.34 | 738 | 742 | 171.3 |
| D | 8 | 195 | 651929 | 3724.16 | 727 | 706 | 174.9 |
| D | 1 | 52 | 451619 | 2578.65 | 727 | 706 | 174.9 |
| D | 2 | 16 | 152694 | 869.18 | 727 | 706 | 174.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

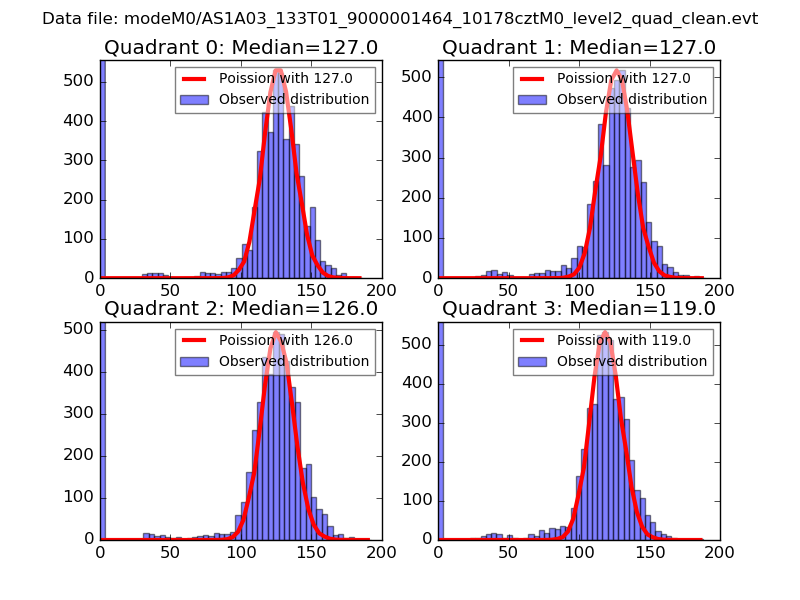

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

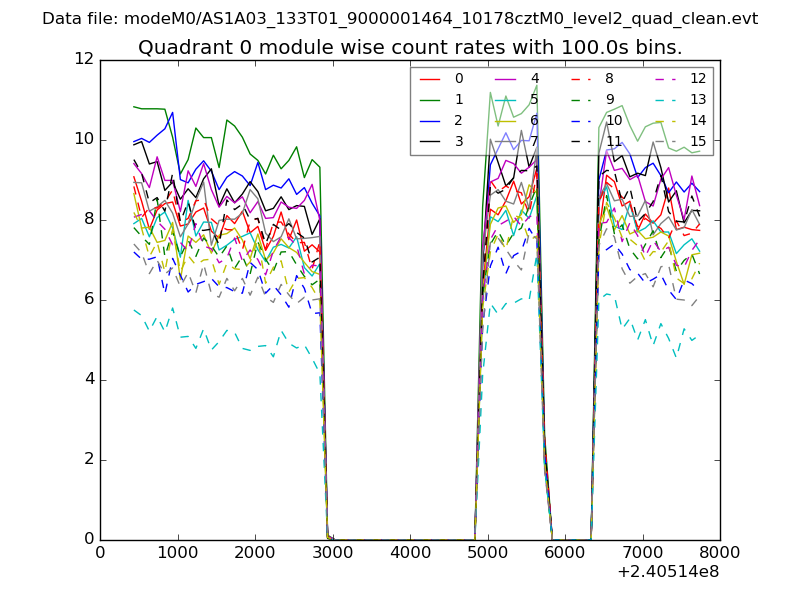

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

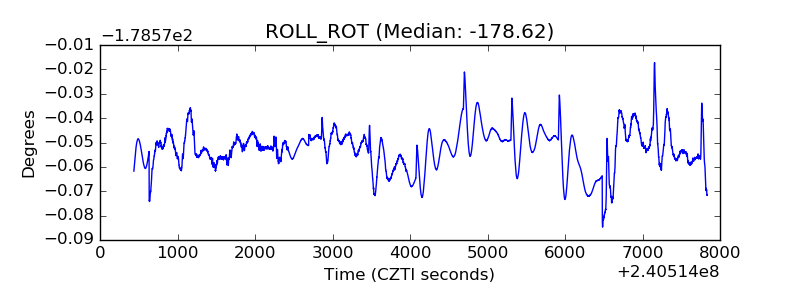

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
