| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_133T01_9000001464_10179cztM0_level2.evt | modeM0/AS1A03_133T01_9000001464_10179cztM0_level2_quad_clean.evt |
| Size (bytes) | 537,292,800 | 105,672,960 |
| Size | 512.4 MB | 100.8 MB |
| Events in quadrant A | 3,905,634 | 681,094 |
| Events in quadrant B | 3,967,863 | 681,942 |
| Events in quadrant C | 3,285,167 | 679,809 |
| Events in quadrant D | 4,611,026 | 642,576 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16679 | 15 |
| B | 0 | 16641 | 7 |
| C | 0 | 15168 | 14 |
| D | 0 | 18663 | 13 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7405 | 111 | 1.498987% |
| B | 7409 | 109 | 1.471184% |
| C | 7405 | 20 | 0.270088% |
| D | 7407 | 103 | 1.390576% |

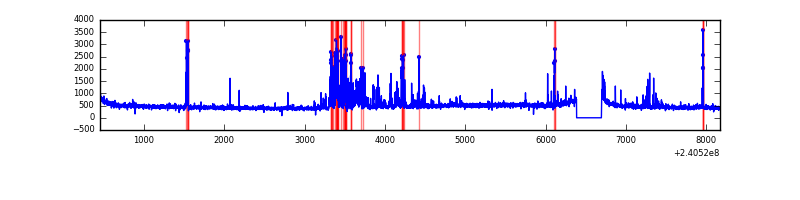

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7721 | 7412 | 57 | 57 | 0.74% | 0.77% |  |
| B | 7721 | 7412 | 31 | 31 | 0.40% | 0.42% |  |
| C | 7721 | 7412 | 5 | 5 | 0.06% | 0.07% |  |
| D | 7721 | 7412 | 64 | 64 | 0.83% | 0.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 315195 | 1783.43 | 861 | 844 | 176.3 |
| A | 15 | 239 | 120183 | 677.06 | 861 | 844 | 176.3 |
| A | 15 | 174 | 90916 | 511.01 | 861 | 844 | 176.3 |
| B | 4 | 239 | 143173 | 861.9 | 864 | 843 | 165.1 |
| B | 11 | 51 | 114037 | 685.46 | 864 | 843 | 165.1 |
| B | 0 | 219 | 98882 | 593.69 | 864 | 843 | 165.1 |
| C | 14 | 234 | 30719 | 154.13 | 829 | 833 | 193.9 |
| C | 14 | 67 | 22308 | 110.75 | 829 | 833 | 193.9 |
| C | 13 | 61 | 6199 | 27.67 | 829 | 833 | 193.9 |
| D | 8 | 195 | 719653 | 3599.46 | 823 | 799 | 199.7 |
| D | 7 | 71 | 189851 | 946.62 | 823 | 799 | 199.7 |
| D | 1 | 52 | 152120 | 757.7 | 823 | 799 | 199.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

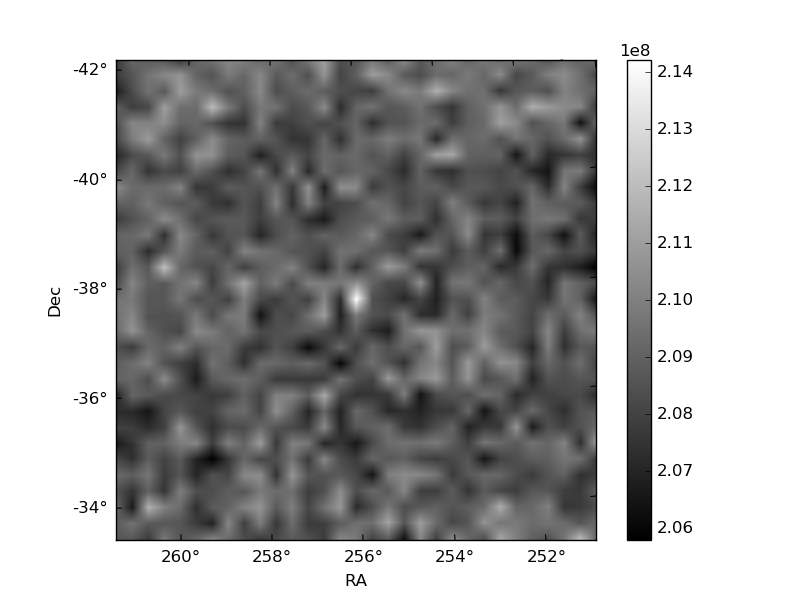

| Quadrant A |  |
 |

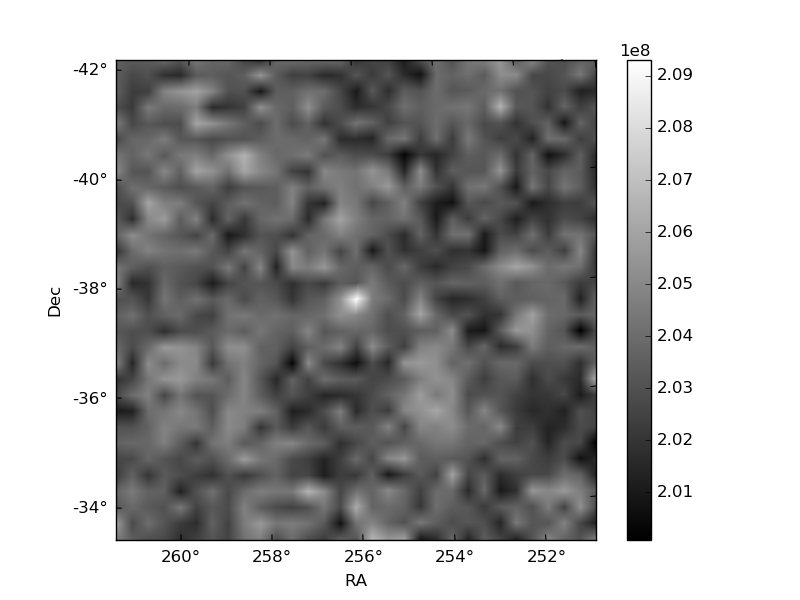

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

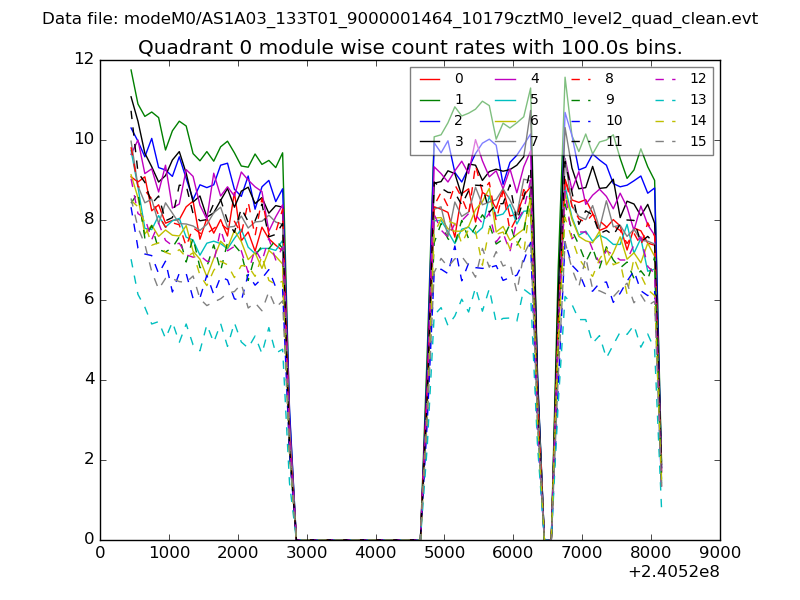

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

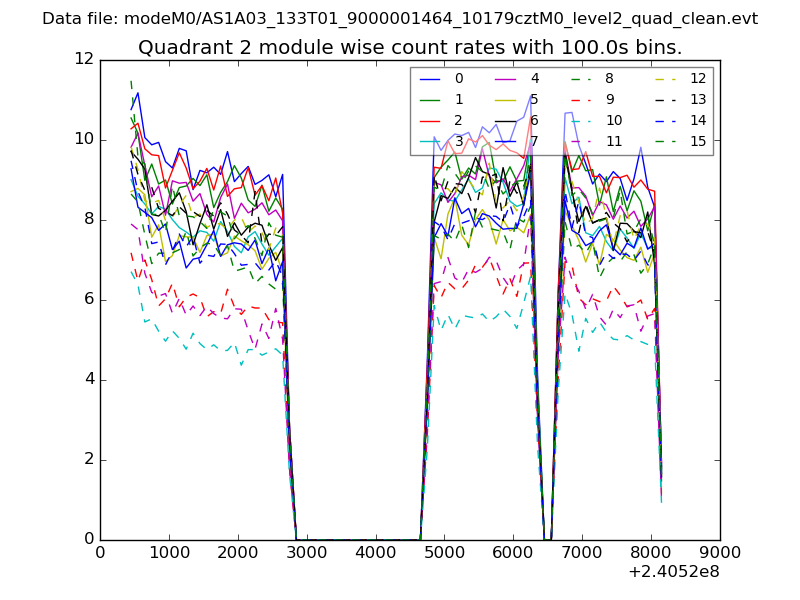

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

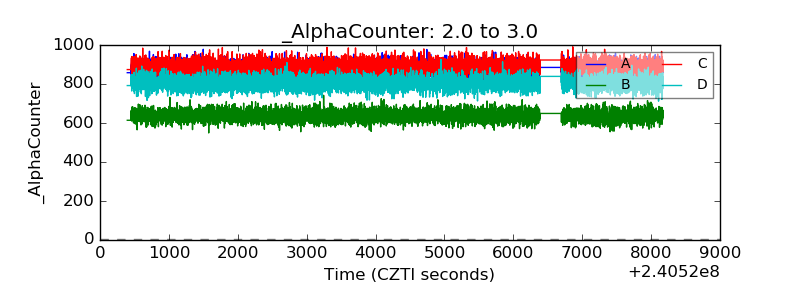

| Alpha Counter |  |

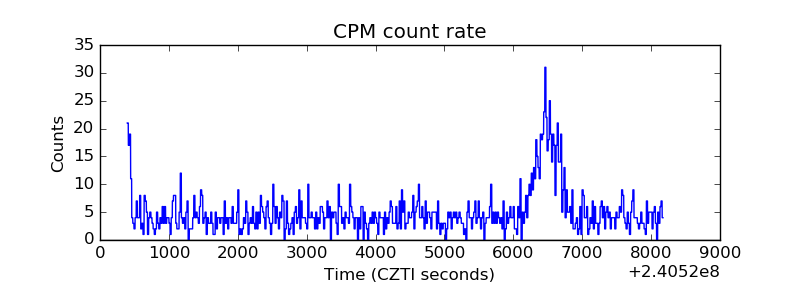

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

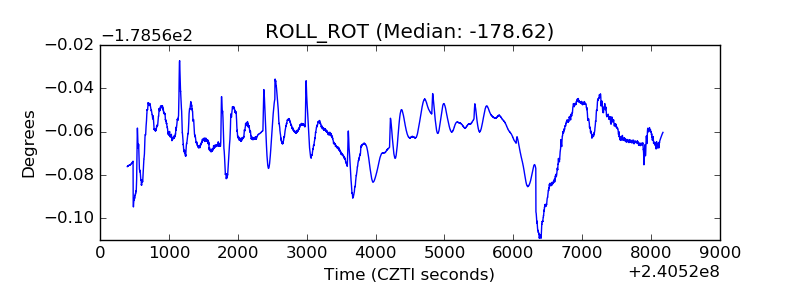

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
