| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_050T01_9000001468_10191cztM0_level2.evt | modeM0/AS1A03_050T01_9000001468_10191cztM0_level2_quad_clean.evt |
| Size (bytes) | 402,379,200 | 100,166,400 |
| Size | 383.7 MB | 95.5 MB |
| Events in quadrant A | 2,764,300 | 660,731 |
| Events in quadrant B | 3,055,482 | 661,268 |
| Events in quadrant C | 2,671,965 | 661,802 |
| Events in quadrant D | 3,288,663 | 633,302 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12332 | 2 |
| B | 0 | 12916 | 1 |
| C | 0 | 12220 | 1 |
| D | 0 | 13574 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5960 | 79 | 1.325503% |
| B | 5960 | 71 | 1.191275% |
| C | 5960 | 29 | 0.486577% |
| D | 5960 | 89 | 1.493289% |

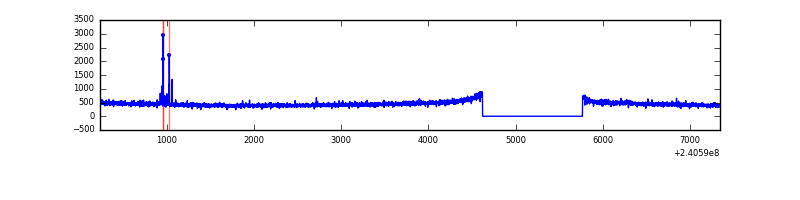

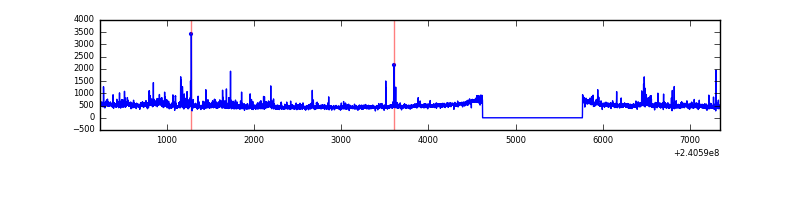

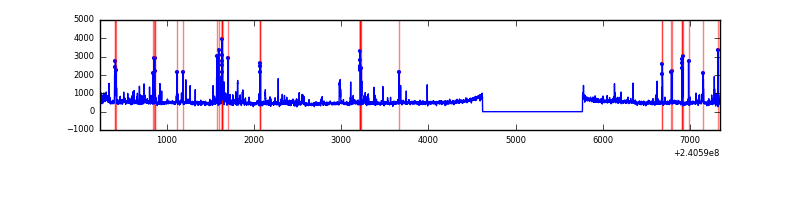

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

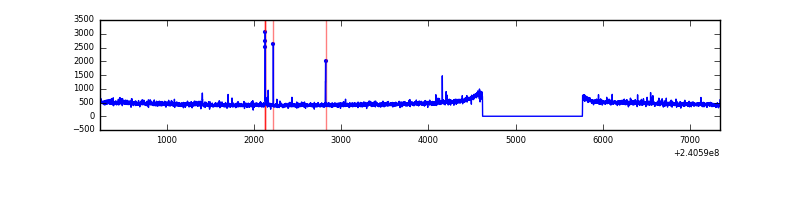

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7105 | 5960 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7105 | 5960 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7105 | 5961 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7105 | 5961 | 38 | 38 | 0.53% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 26867 | 182.43 | 704 | 689 | 143.5 |
| A | 13 | 251 | 16670 | 111.37 | 704 | 689 | 143.5 |
| A | 3 | 1 | 9370 | 60.5 | 704 | 689 | 143.5 |
| B | 11 | 51 | 96979 | 724.88 | 706 | 692 | 132.8 |
| B | 5 | 255 | 51282 | 380.86 | 706 | 692 | 132.8 |
| B | 0 | 189 | 49964 | 370.94 | 706 | 692 | 132.8 |
| C | 14 | 234 | 20206 | 126.84 | 676 | 677 | 154.0 |
| C | 14 | 67 | 12886 | 79.3 | 676 | 677 | 154.0 |
| C | 13 | 61 | 5119 | 28.85 | 676 | 677 | 154.0 |
| D | 8 | 195 | 259845 | 1620.78 | 676 | 658 | 159.9 |
| D | 13 | 104 | 97294 | 604.3 | 676 | 658 | 159.9 |
| D | 7 | 71 | 92294 | 573.03 | 676 | 658 | 159.9 |

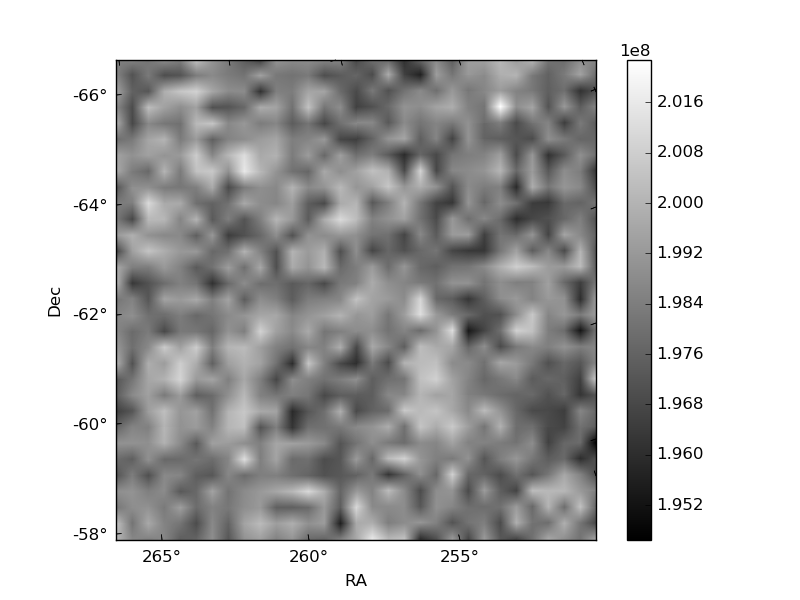

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

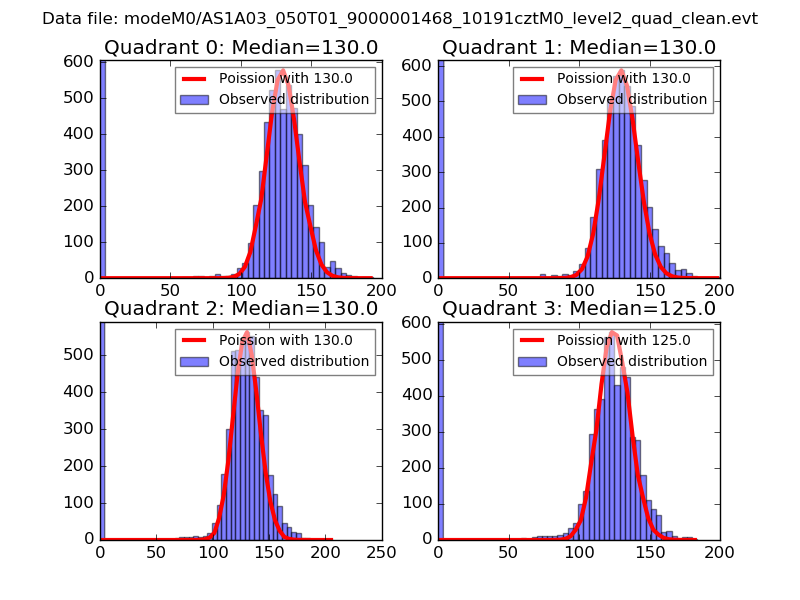

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

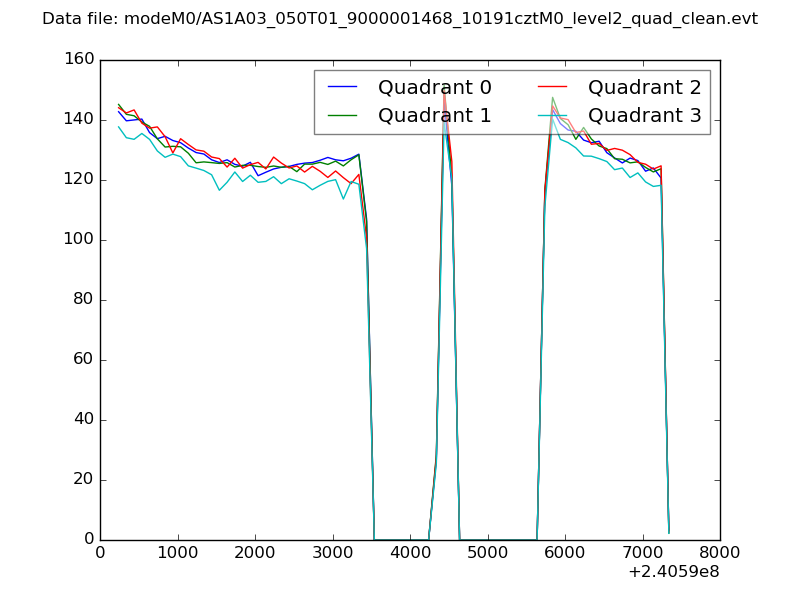

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

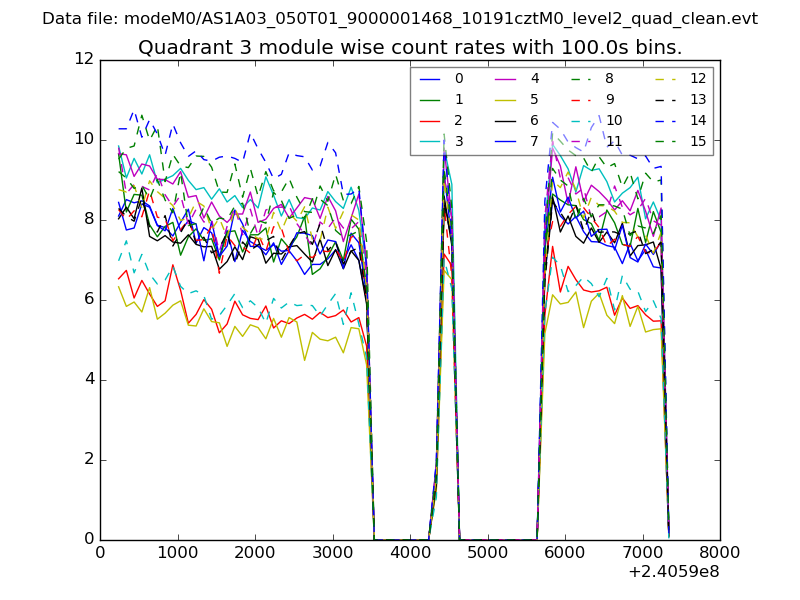

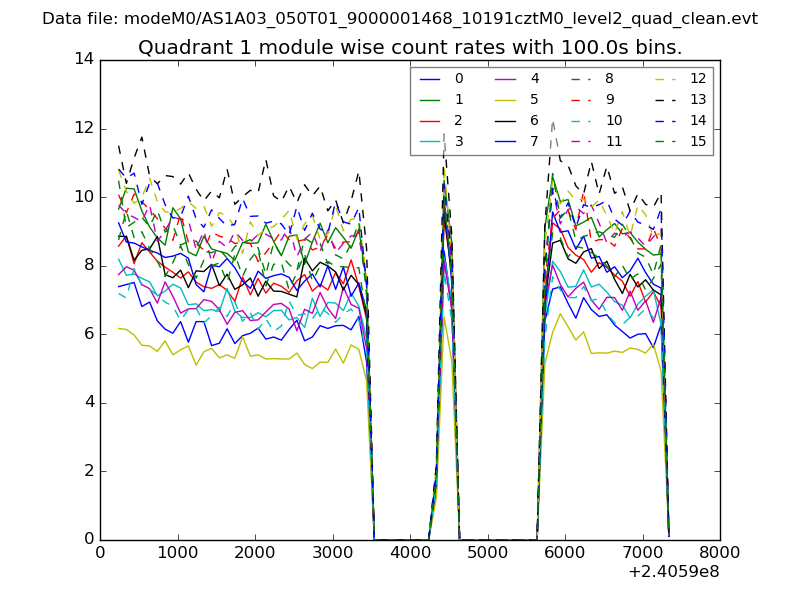

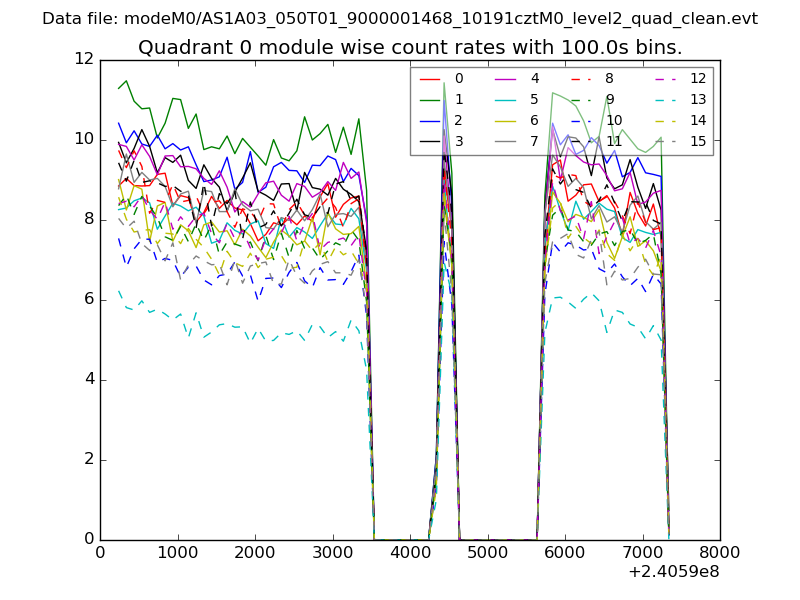

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

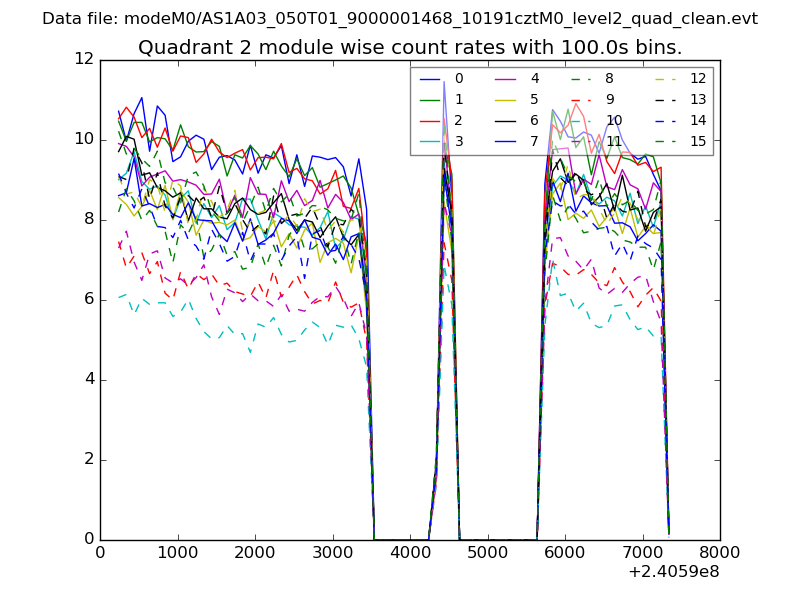

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

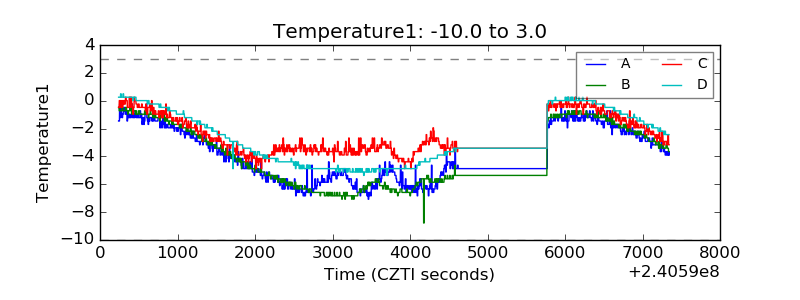

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

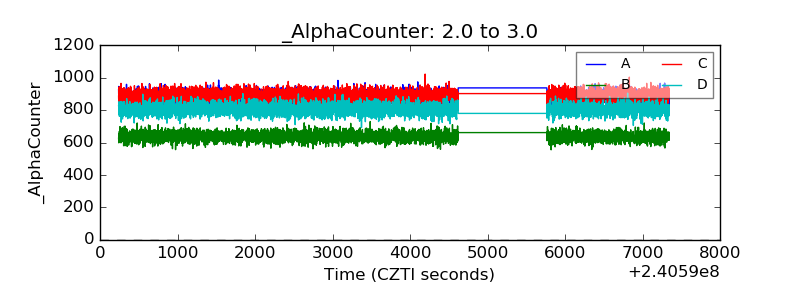

| Alpha Counter |  |

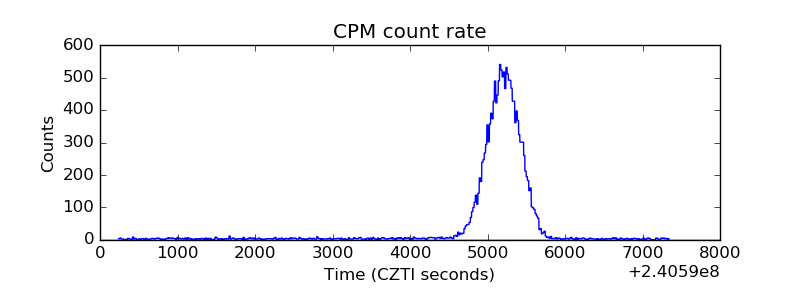

| _CPM_Rate |  |

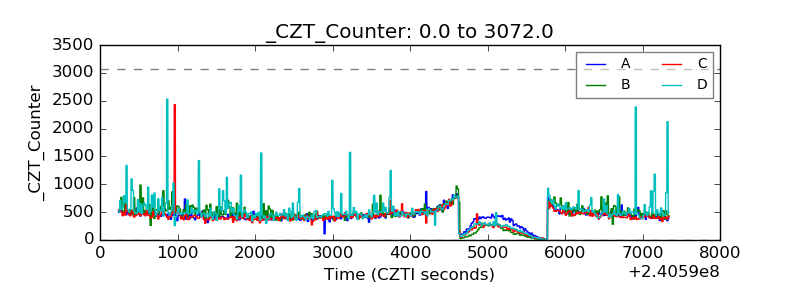

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

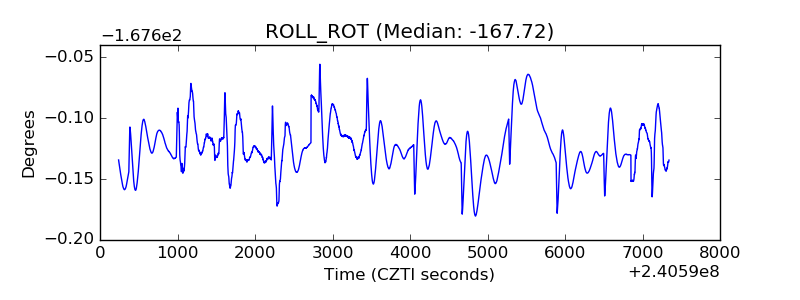

| _ROLL_ROT |  |

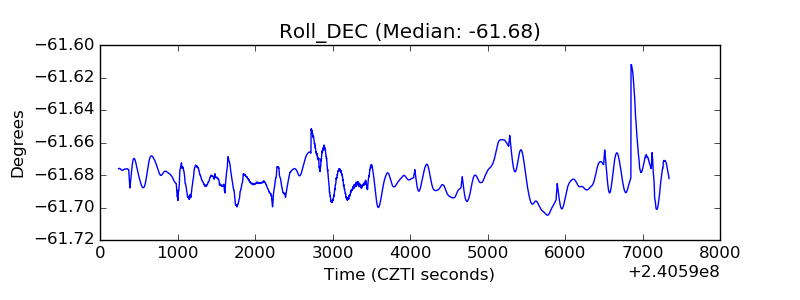

| _Roll_DEC |  |

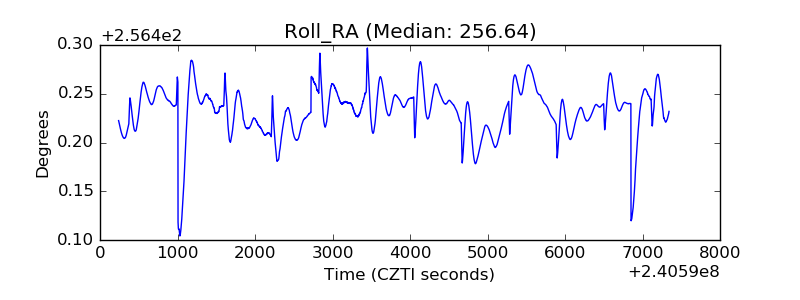

| _Roll_RA |  |

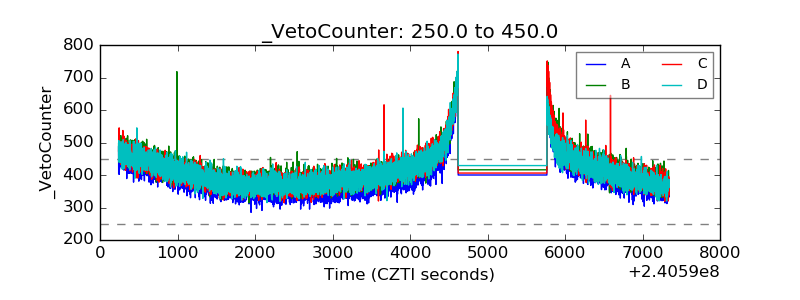

| Veto Counter |  |
