| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_050T01_9000001468_10194cztM0_level2.evt | modeM0/AS1A03_050T01_9000001468_10194cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,728,000 | 120,456,000 |
| Size | 490.9 MB | 114.9 MB |
| Events in quadrant A | 3,373,093 | 784,946 |
| Events in quadrant B | 3,794,996 | 791,269 |
| Events in quadrant C | 3,262,567 | 796,465 |
| Events in quadrant D | 4,651,555 | 756,627 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15412 | 3 |
| B | 0 | 16294 | 2 |
| C | 0 | 15159 | 2 |
| D | 0 | 18733 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7446 | 70 | 0.940102% |
| B | 7446 | 120 | 1.611604% |
| C | 7446 | 40 | 0.537201% |
| D | 7446 | 123 | 1.651894% |

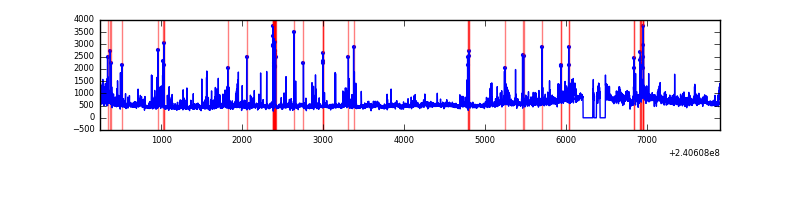

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7661 | 7449 | 3 | 3 | 0.04% | 0.04% |  |
| B | 7661 | 7449 | 11 | 11 | 0.14% | 0.15% |  |
| C | 7661 | 7449 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7661 | 7449 | 55 | 55 | 0.72% | 0.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 59312 | 339.85 | 848 | 828 | 172.1 |
| A | 15 | 223 | 24648 | 138.42 | 848 | 828 | 172.1 |
| A | 15 | 239 | 11221 | 60.39 | 848 | 828 | 172.1 |
| B | 11 | 51 | 188754 | 1155.7 | 854 | 832 | 162.6 |
| B | 5 | 255 | 88470 | 538.96 | 854 | 832 | 162.6 |
| B | 4 | 239 | 63707 | 386.67 | 854 | 832 | 162.6 |
| C | 14 | 67 | 25845 | 130.92 | 823 | 827 | 191.1 |
| C | 8 | 128 | 10414 | 50.17 | 823 | 827 | 191.1 |
| C | 8 | 112 | 6338 | 28.84 | 823 | 827 | 191.1 |
| D | 8 | 195 | 567118 | 2860.58 | 817 | 791 | 198.0 |
| D | 2 | 16 | 293567 | 1478.84 | 817 | 791 | 198.0 |
| D | 5 | 222 | 140015 | 703.23 | 817 | 791 | 198.0 |

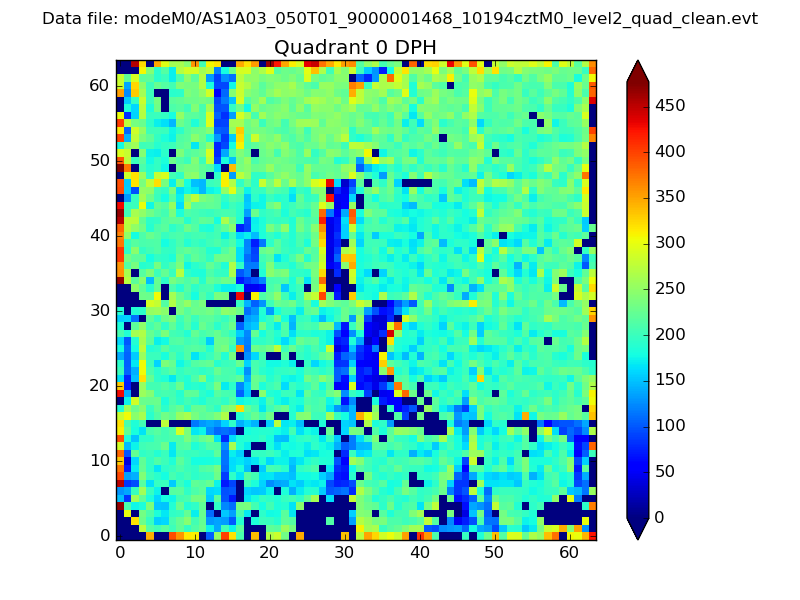

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

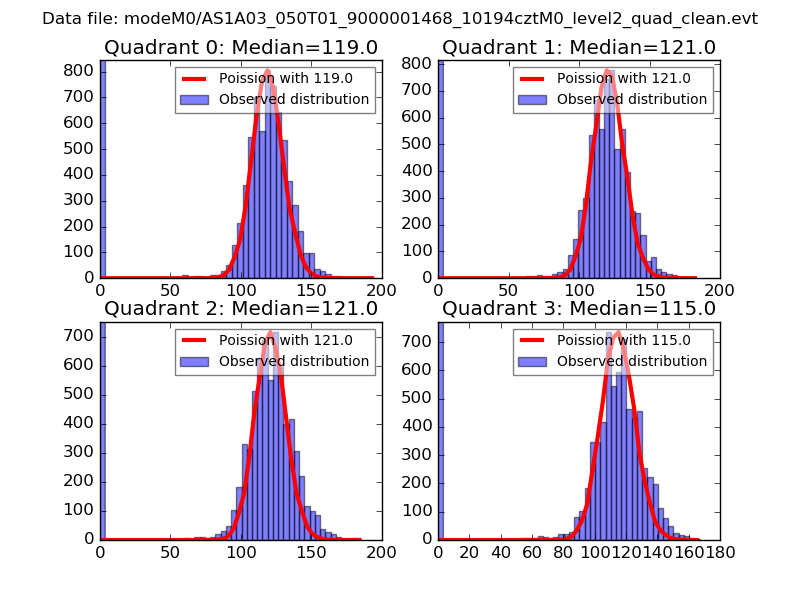

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

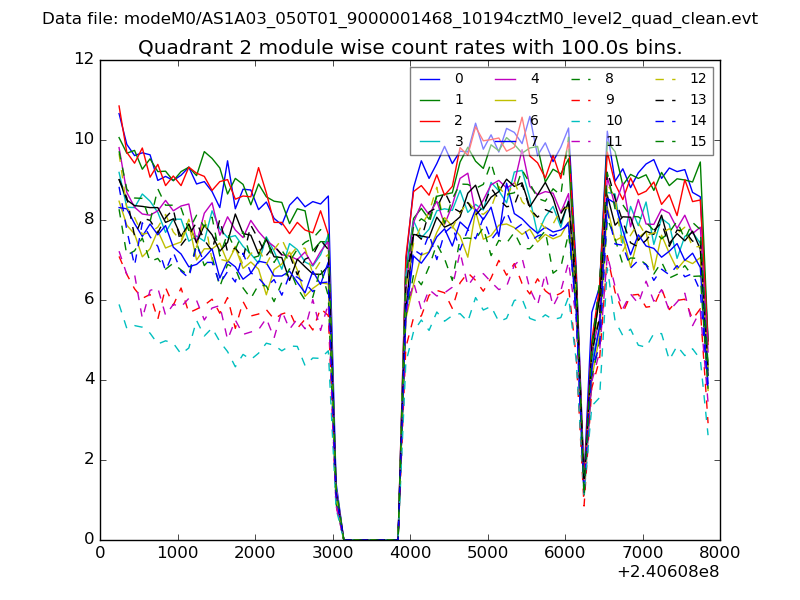

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

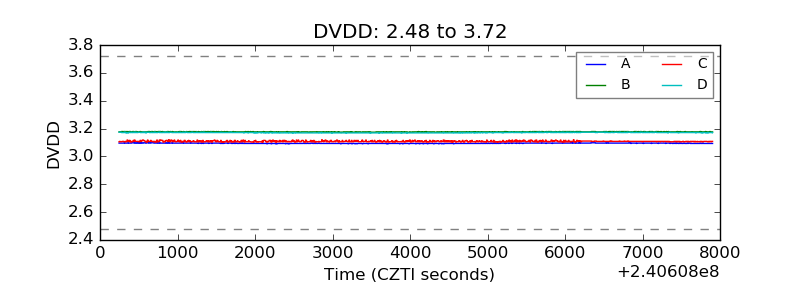

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

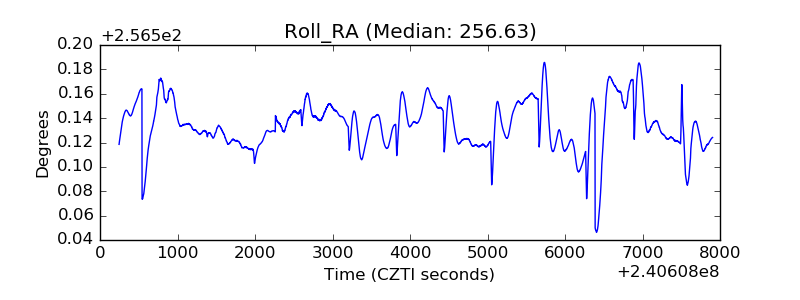

| _Roll_RA |  |
| Veto Counter |  |
