| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_050T01_9000001468_10202cztM0_level2.evt | modeM0/AS1A03_050T01_9000001468_10202cztM0_level2_quad_clean.evt |
| Size (bytes) | 488,001,600 | 113,780,160 |
| Size | 465.4 MB | 108.5 MB |
| Events in quadrant A | 3,128,260 | 760,076 |
| Events in quadrant B | 3,296,890 | 772,628 |
| Events in quadrant C | 2,998,923 | 771,886 |
| Events in quadrant D | 4,936,238 | 710,380 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13312 | 2 |
| B | 0 | 13801 | 6 |
| C | 0 | 13012 | 1 |
| D | 0 | 19062 | 10 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6173 | 84 | 1.360765% |
| B | 6171 | 99 | 1.604278% |
| C | 6173 | 56 | 0.907176% |
| D | 6170 | 392 | 6.353323% |

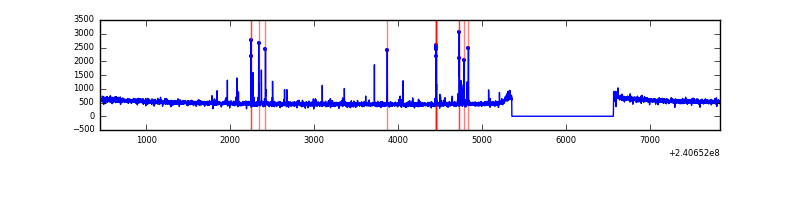

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7383 | 6173 | 14 | 14 | 0.19% | 0.23% |  |
| B | 7383 | 6173 | 16 | 16 | 0.22% | 0.26% |  |
| C | 7383 | 6173 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7382 | 6172 | 330 | 330 | 4.47% | 5.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 68949 | 433.6 | 784 | 769 | 157.2 |
| A | 15 | 239 | 30345 | 188.09 | 784 | 769 | 157.2 |
| A | 15 | 255 | 7116 | 40.36 | 784 | 769 | 157.2 |
| B | 4 | 239 | 93928 | 641.48 | 779 | 763 | 145.2 |
| B | 0 | 214 | 62322 | 423.86 | 779 | 763 | 145.2 |
| B | 5 | 255 | 56061 | 380.75 | 779 | 763 | 145.2 |
| C | 4 | 175 | 13600 | 74.29 | 764 | 768 | 172.7 |
| C | 13 | 61 | 5678 | 28.42 | 764 | 768 | 172.7 |
| C | 14 | 67 | 3774 | 17.4 | 764 | 768 | 172.7 |
| D | 1 | 52 | 1454551 | 8325.8 | 746 | 726 | 174.6 |
| D | 8 | 195 | 415111 | 2373.11 | 746 | 726 | 174.6 |
| D | 6 | 112 | 49746 | 280.73 | 746 | 726 | 174.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

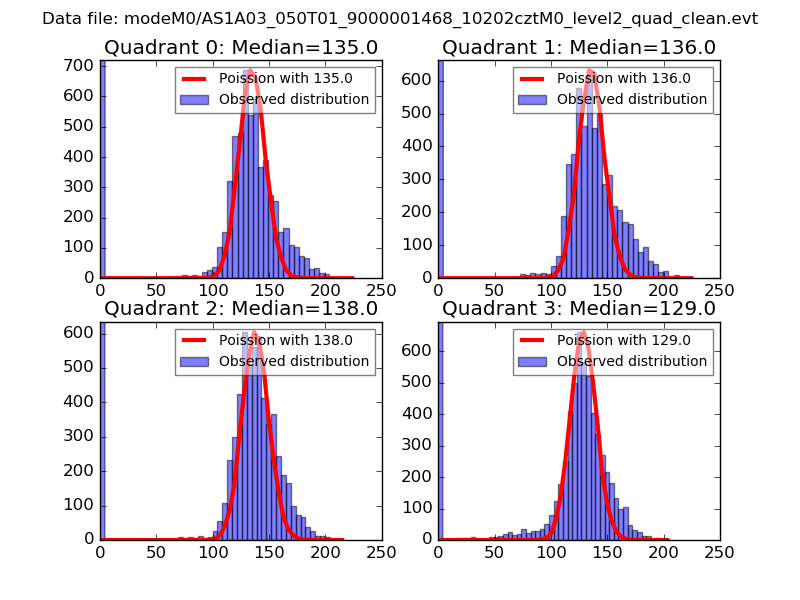

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

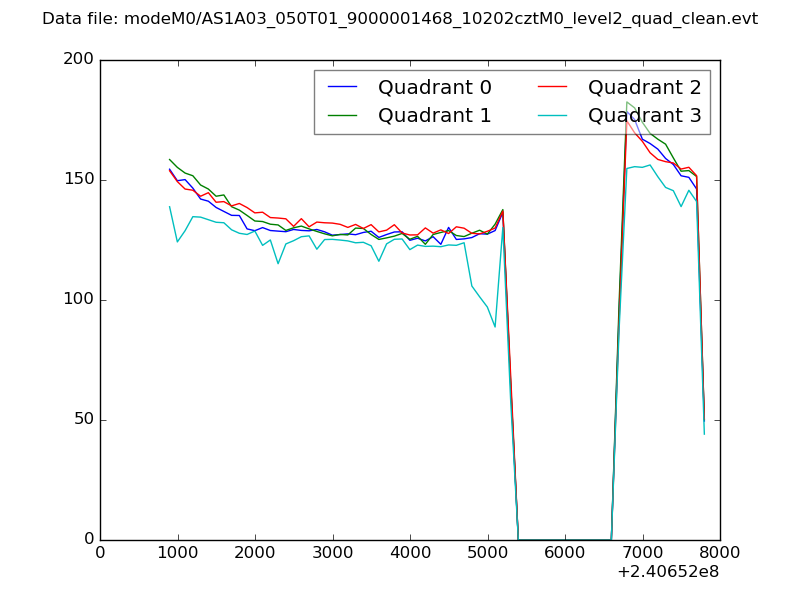

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

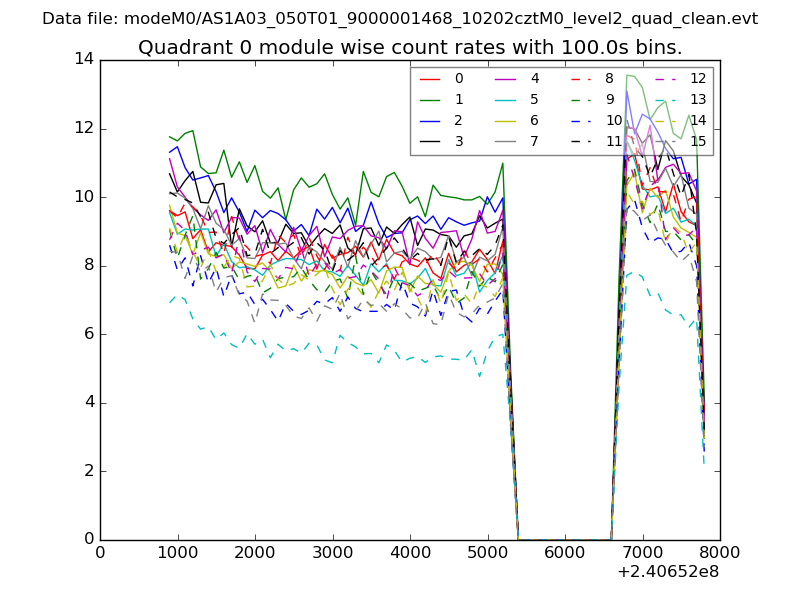

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

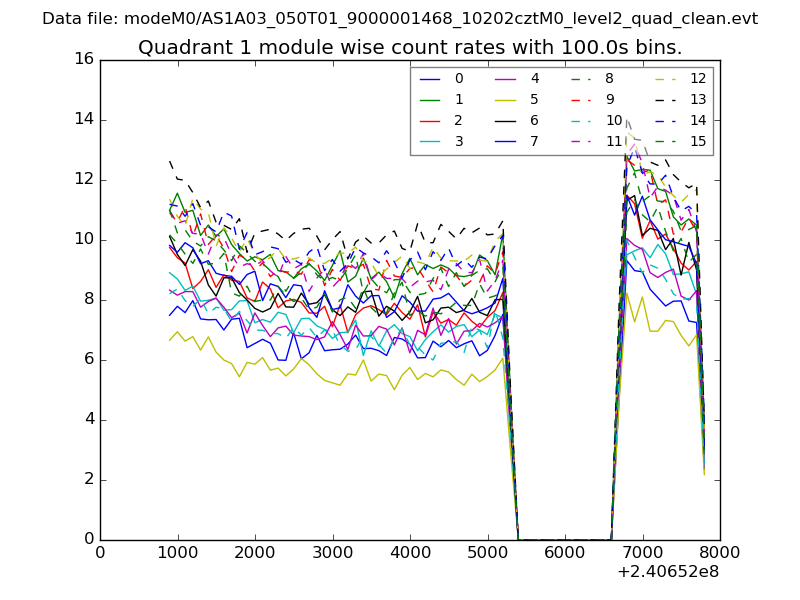

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

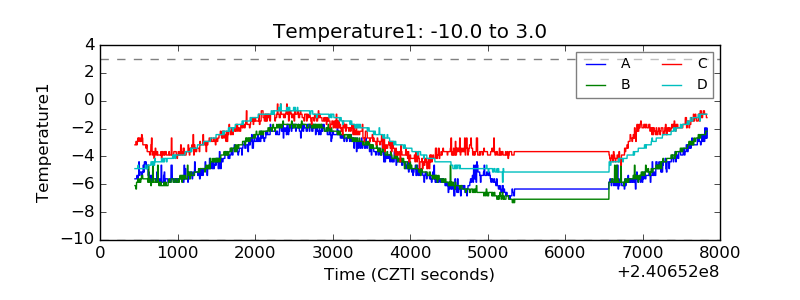

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

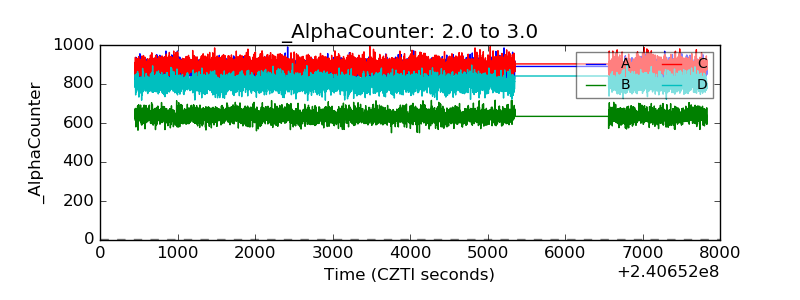

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

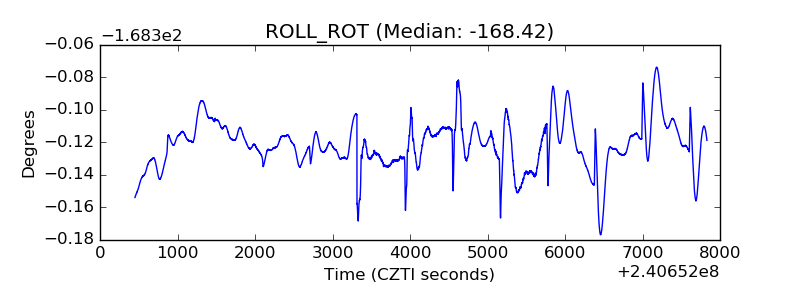

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
