| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_011T04_9000001466_10189cztM0_level2.evt | modeM0/AS1G07_011T04_9000001466_10189cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,176,000 | 67,970,880 |
| Size | 433.1 MB | 64.8 MB |
| Events in quadrant A | 3,220,358 | 411,534 |
| Events in quadrant B | 3,295,393 | 419,849 |
| Events in quadrant C | 3,181,186 | 407,416 |
| Events in quadrant D | 3,643,955 | 393,520 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13297 | 17 |
| B | 0 | 13534 | 4 |
| C | 0 | 13083 | 15 |
| D | 0 | 14948 | 16 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 2 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6096 | 88 | 1.443570% |
| B | 6102 | 105 | 1.720747% |
| C | 6097 | 64 | 1.049697% |
| D | 6097 | 71 | 1.164507% |

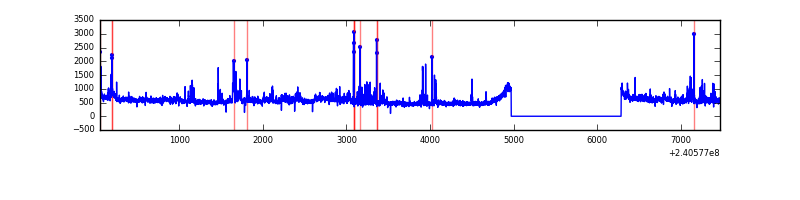

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7418 | 6103 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7418 | 6103 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7418 | 6103 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7418 | 6103 | 13 | 13 | 0.18% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 253 | 7996 | 43.15 | 833 | 819 | 166.3 |
| A | 0 | 226 | 7563 | 40.54 | 833 | 819 | 166.3 |
| A | 3 | 1 | 7110 | 37.82 | 833 | 819 | 166.3 |
| B | 0 | 214 | 26657 | 165.05 | 834 | 817 | 156.6 |
| B | 0 | 219 | 25669 | 158.73 | 834 | 817 | 156.6 |
| B | 12 | 111 | 17012 | 103.44 | 834 | 817 | 156.6 |
| C | 14 | 67 | 22244 | 115.61 | 806 | 814 | 185.4 |
| C | 14 | 234 | 18800 | 97.03 | 806 | 814 | 185.4 |
| C | 13 | 61 | 6004 | 28.0 | 806 | 814 | 185.4 |
| D | 8 | 195 | 174945 | 907.32 | 805 | 785 | 191.9 |
| D | 1 | 52 | 143237 | 742.13 | 805 | 785 | 191.9 |
| D | 4 | 95 | 141660 | 733.92 | 805 | 785 | 191.9 |

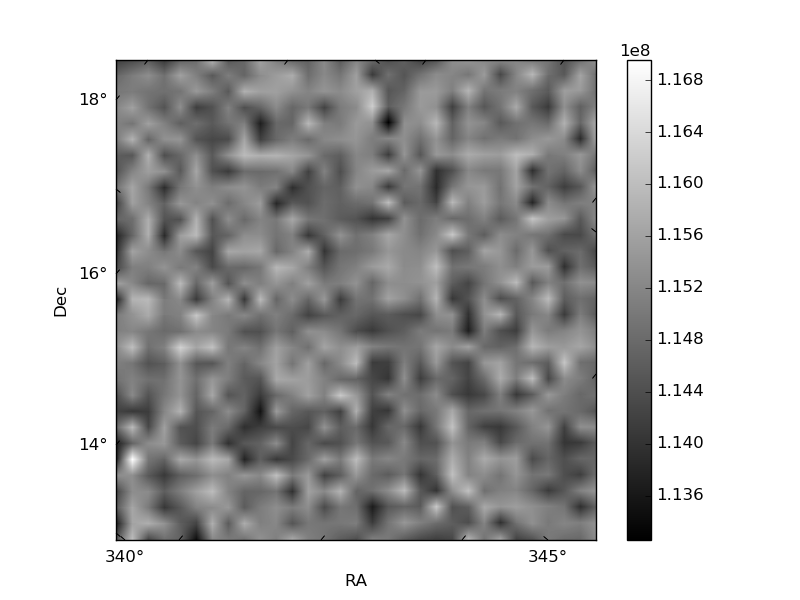

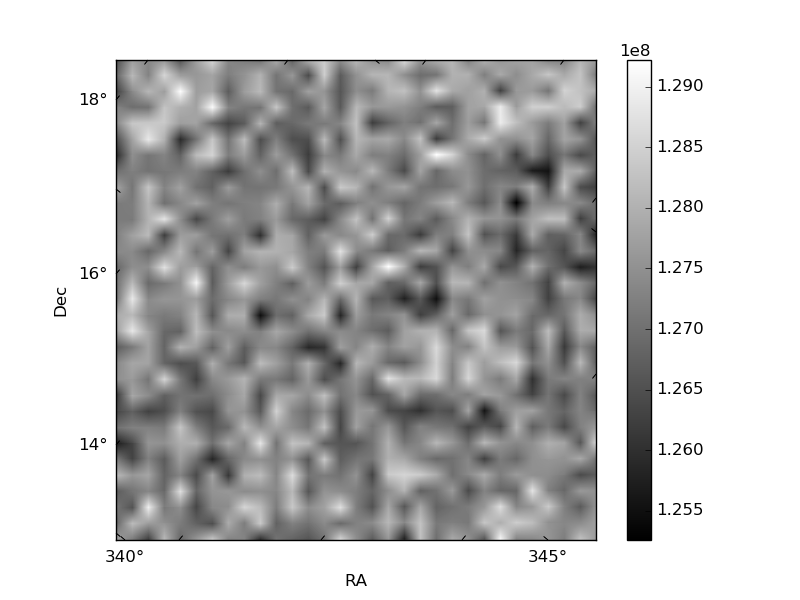

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

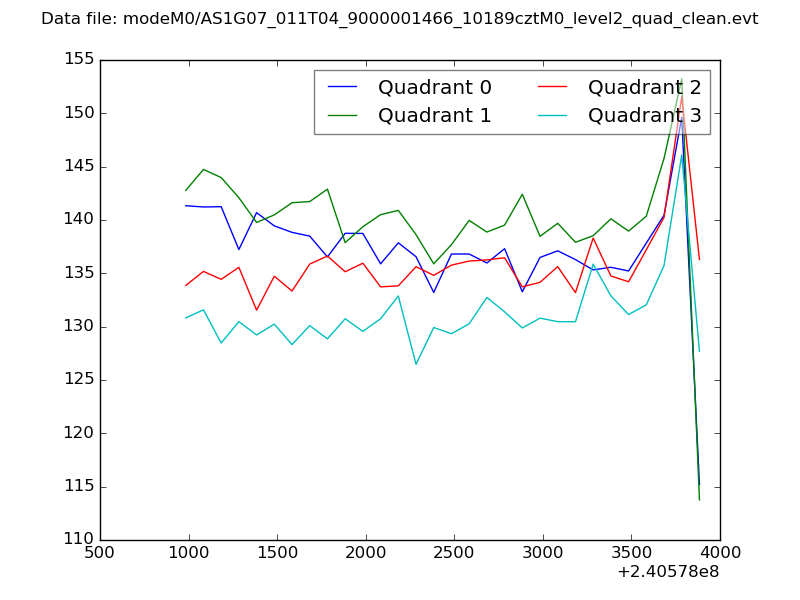

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

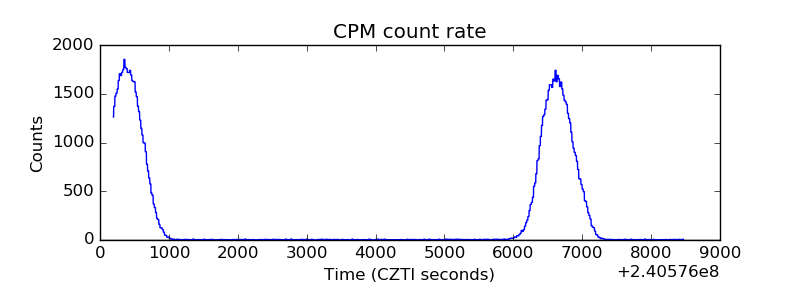

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

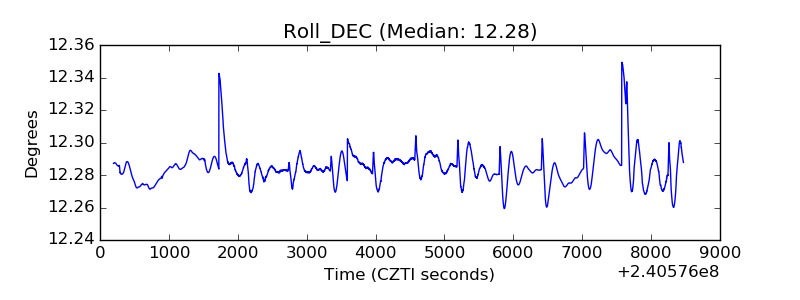

| _Roll_DEC |  |

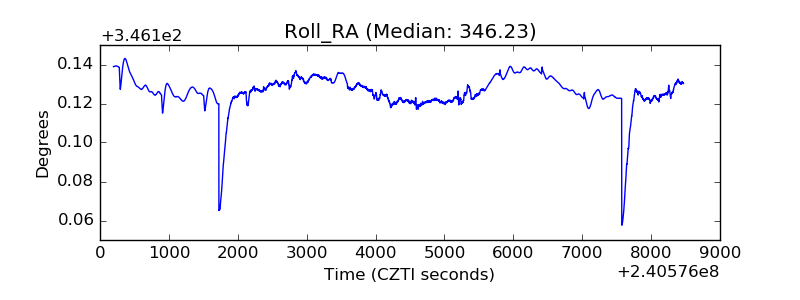

| _Roll_RA |  |

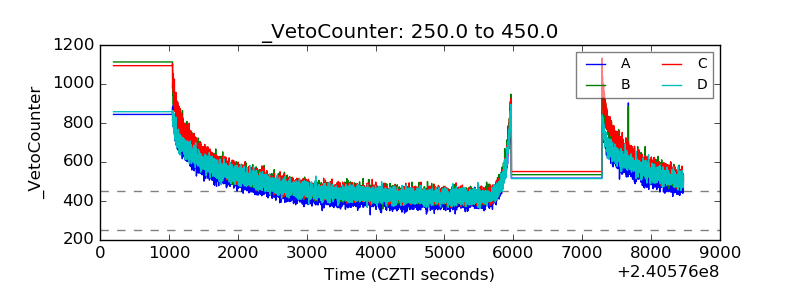

| Veto Counter |  |
