| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_099T01_9000001472_10210cztM0_level2.evt | modeM0/AS1A03_099T01_9000001472_10210cztM0_level2_quad_clean.evt |
| Size (bytes) | 334,296,000 | 64,160,640 |
| Size | 318.8 MB | 61.2 MB |
| Events in quadrant A | 2,575,183 | 407,284 |
| Events in quadrant B | 2,324,352 | 417,313 |
| Events in quadrant C | 2,055,920 | 411,223 |
| Events in quadrant D | 2,863,446 | 392,007 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10560 | 2 |
| B | 0 | 9771 | 1 |
| C | 0 | 9122 | 1 |
| D | 0 | 11648 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 0 |
| B | 0 | 92 | 0 |
| C | 0 | 92 | 0 |
| D | 0 | 92 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4477 | 113 | 2.524012% |
| B | 4477 | 50 | 1.116819% |
| C | 4477 | 15 | 0.335046% |
| D | 4477 | 58 | 1.295510% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4887 | 4478 | 68 | 68 | 1.39% | 1.52% |  |
| B | 4887 | 4478 | 6 | 6 | 0.12% | 0.13% |  |
| C | 4887 | 4478 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4887 | 4478 | 34 | 34 | 0.70% | 0.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 295682 | 2665.08 | 537 | 525 | 110.7 |
| A | 15 | 239 | 121073 | 1088.47 | 537 | 525 | 110.7 |
| A | 4 | 2 | 51055 | 456.25 | 537 | 525 | 110.7 |
| B | 11 | 51 | 54081 | 511.58 | 540 | 526 | 104.7 |
| B | 4 | 239 | 47534 | 449.04 | 540 | 526 | 104.7 |
| B | 0 | 214 | 30872 | 289.88 | 540 | 526 | 104.7 |
| C | 14 | 234 | 10135 | 78.29 | 521 | 525 | 122.8 |
| C | 4 | 175 | 5502 | 40.55 | 521 | 525 | 122.8 |
| C | 0 | 207 | 4566 | 32.92 | 521 | 525 | 122.8 |
| D | 1 | 52 | 396147 | 2990.2 | 516 | 501 | 132.3 |
| D | 8 | 195 | 232514 | 1753.5 | 516 | 501 | 132.3 |
| D | 2 | 152 | 69171 | 518.99 | 516 | 501 | 132.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

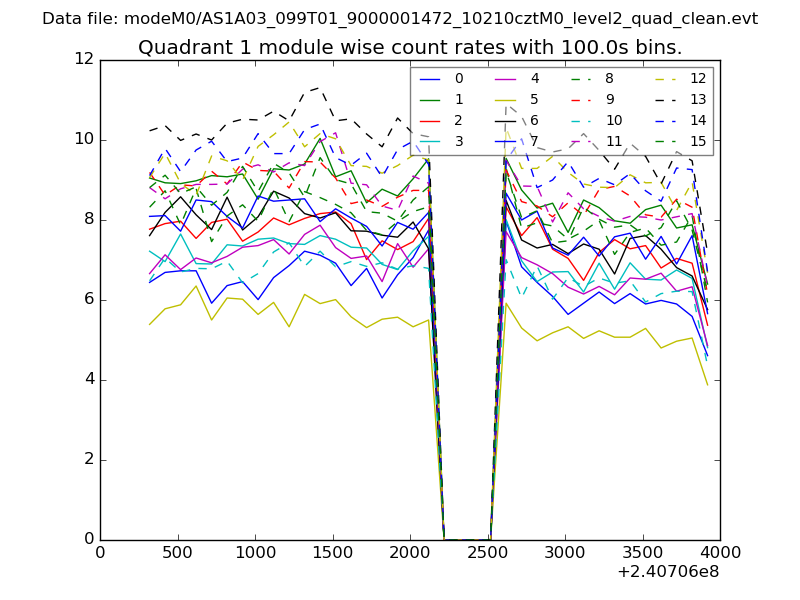

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

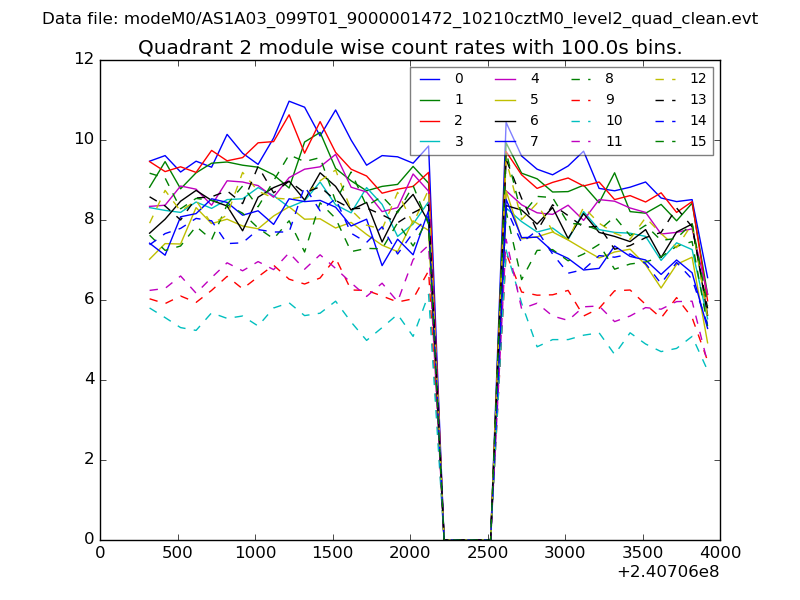

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

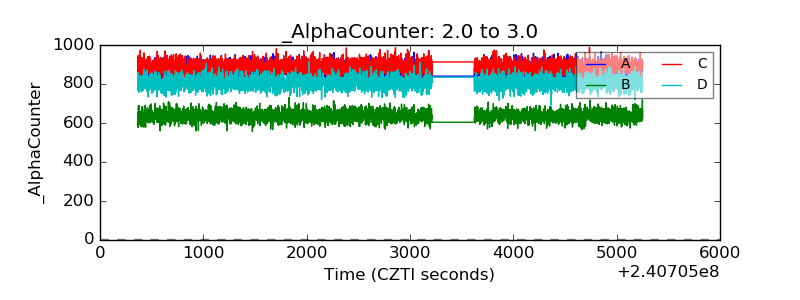

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

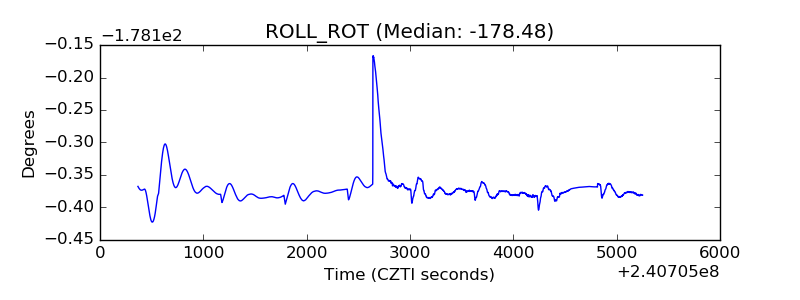

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
