| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_099T01_9000001472_10218cztM0_level2.evt | modeM0/AS1A03_099T01_9000001472_10218cztM0_level2_quad_clean.evt |
| Size (bytes) | 491,212,800 | 97,928,640 |
| Size | 468.5 MB | 93.4 MB |
| Events in quadrant A | 4,442,255 | 637,574 |
| Events in quadrant B | 3,474,322 | 652,729 |
| Events in quadrant C | 2,992,139 | 643,276 |
| Events in quadrant D | 3,564,609 | 616,796 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17739 | 45 |
| B | 0 | 13998 | 26 |
| C | 0 | 12593 | 26 |
| D | 0 | 14438 | 22 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 2 |
| D | 0 | 122 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5943 | 184 | 3.096079% |
| B | 5946 | 121 | 2.034982% |
| C | 5945 | 77 | 1.295206% |
| D | 5949 | 97 | 1.630526% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7266 | 5955 | 51 | 51 | 0.70% | 0.86% |  |
| B | 7267 | 5957 | 21 | 21 | 0.29% | 0.35% |  |
| C | 7267 | 5955 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7267 | 5957 | 13 | 13 | 0.18% | 0.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 990326 | 6245.3 | 791 | 777 | 158.4 |
| A | 8 | 5 | 218812 | 1376.08 | 791 | 777 | 158.4 |
| A | 15 | 223 | 114569 | 718.17 | 791 | 777 | 158.4 |
| B | 4 | 239 | 142755 | 961.92 | 787 | 771 | 147.6 |
| B | 0 | 214 | 135754 | 914.49 | 787 | 771 | 147.6 |
| B | 11 | 51 | 100432 | 675.19 | 787 | 771 | 147.6 |
| C | 0 | 207 | 12274 | 65.82 | 764 | 769 | 174.8 |
| C | 13 | 61 | 5757 | 28.54 | 764 | 769 | 174.8 |
| C | 3 | 202 | 1975 | 6.9 | 764 | 769 | 174.8 |
| D | 8 | 195 | 456315 | 2288.8 | 762 | 748 | 199.0 |
| D | 1 | 52 | 57347 | 284.36 | 762 | 748 | 199.0 |
| D | 13 | 104 | 50938 | 252.16 | 762 | 748 | 199.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

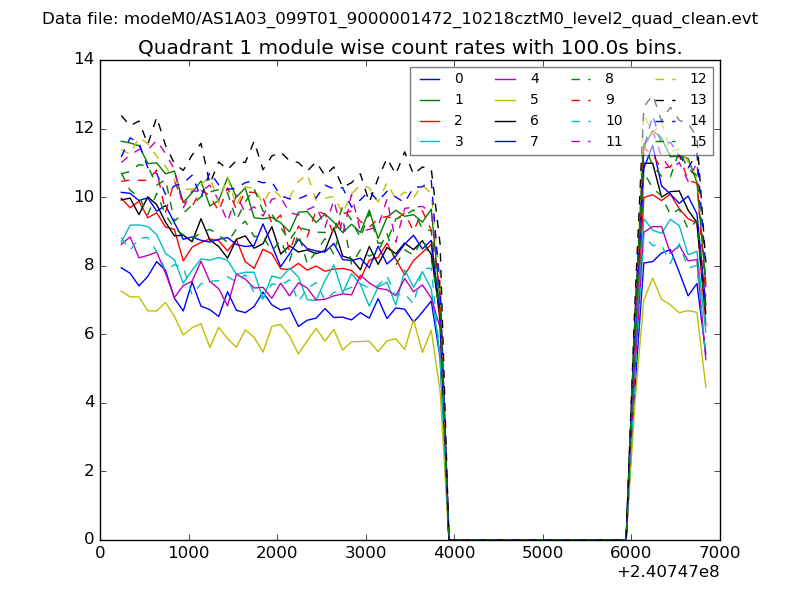

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

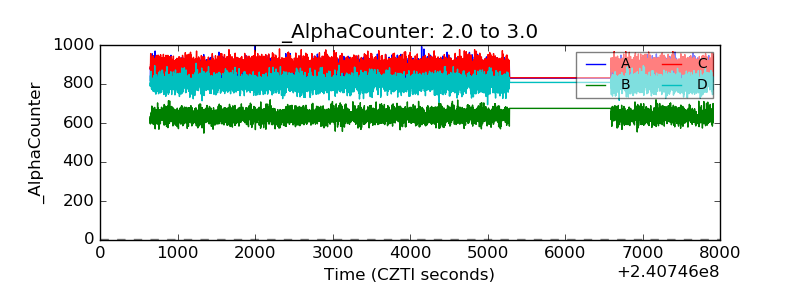

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

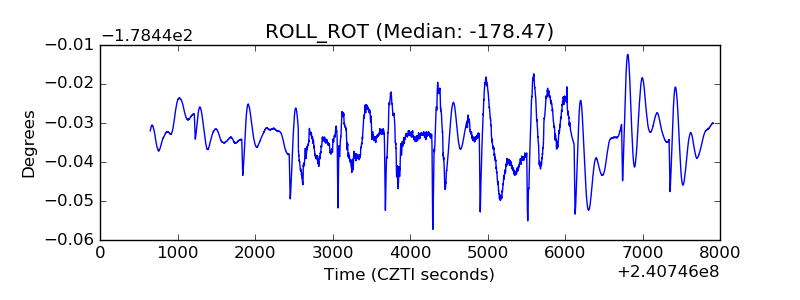

| _ROLL_ROT |  |

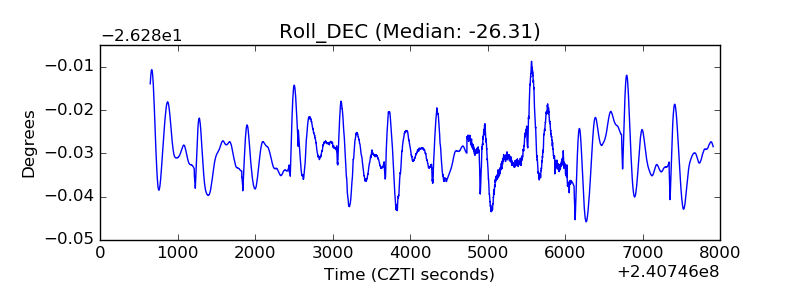

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
