| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_099T01_9000001472_10219cztM0_level2.evt | modeM0/AS1A03_099T01_9000001472_10219cztM0_level2_quad_clean.evt |
| Size (bytes) | 373,078,080 | 79,848,000 |
| Size | 355.8 MB | 76.1 MB |
| Events in quadrant A | 2,720,883 | 452,756 |
| Events in quadrant B | 2,628,099 | 522,748 |
| Events in quadrant C | 2,454,363 | 538,790 |
| Events in quadrant D | 3,165,094 | 563,890 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31568 | 20623 |
| B | 0 | 28404 | 17658 |
| C | 0 | 25476 | 15056 |
| D | 0 | 30275 | 17507 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 247 | 145 |
| B | 0 | 248 | 141 |
| C | 0 | 247 | 135 |
| D | 0 | 238 | 128 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 12 |
| B | 0 | 35 | 13 |
| C | 0 | 35 | 14 |
| D | 0 | 34 | 12 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4261 | 87 | 2.041774% |
| B | 4751 | 65 | 1.368133% |
| C | 4966 | 61 | 1.228353% |
| D | 5308 | 76 | 1.431801% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 5315 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7549 | 5726 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7551 | 5822 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7551 | 5858 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 455009 | 3979.4 | 560 | 551 | 114.2 |
| A | 15 | 223 | 45999 | 397.96 | 560 | 551 | 114.2 |
| A | 15 | 174 | 18905 | 160.71 | 560 | 551 | 114.2 |
| B | 4 | 239 | 67907 | 576.52 | 619 | 608 | 116.7 |
| B | 0 | 214 | 55834 | 473.09 | 619 | 608 | 116.7 |
| B | 11 | 51 | 52695 | 446.2 | 619 | 608 | 116.7 |
| C | 4 | 175 | 12551 | 83.07 | 624 | 629 | 143.5 |
| C | 0 | 207 | 7267 | 46.25 | 624 | 629 | 143.5 |
| C | 13 | 61 | 4760 | 28.78 | 624 | 629 | 143.5 |
| D | 8 | 195 | 406483 | 2315.79 | 663 | 652 | 175.2 |
| D | 12 | 233 | 86985 | 492.64 | 663 | 652 | 175.2 |
| D | 1 | 52 | 51735 | 291.5 | 663 | 652 | 175.2 |

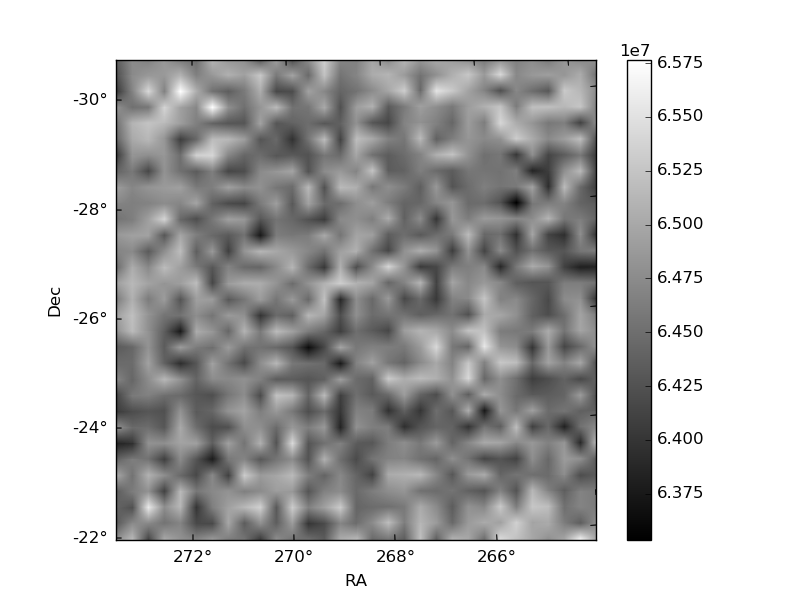

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

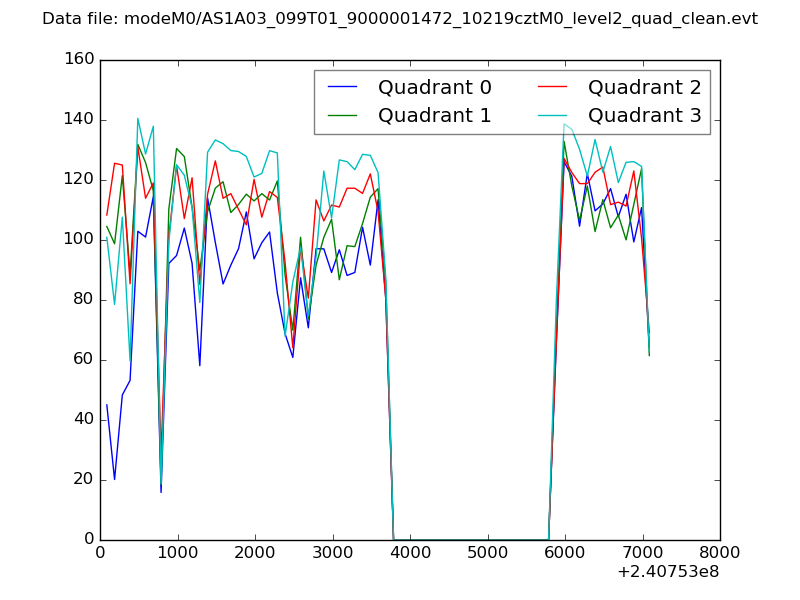

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

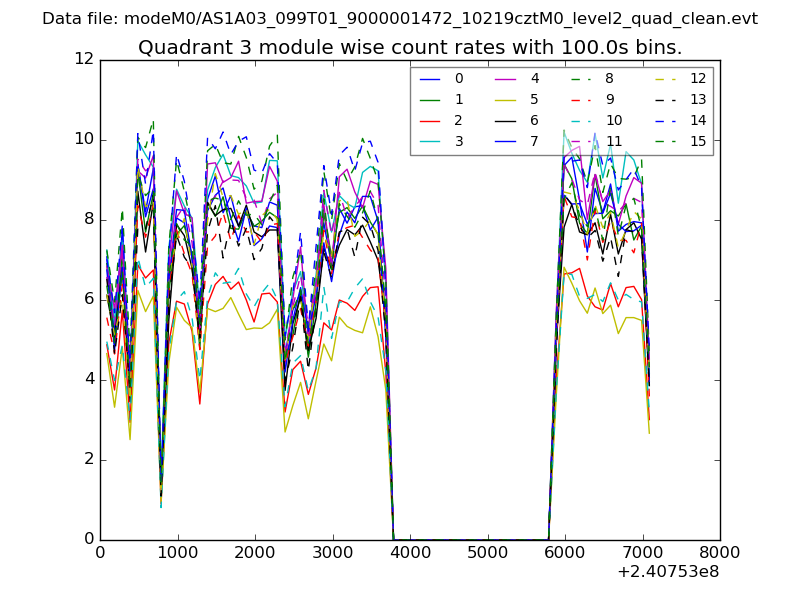

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

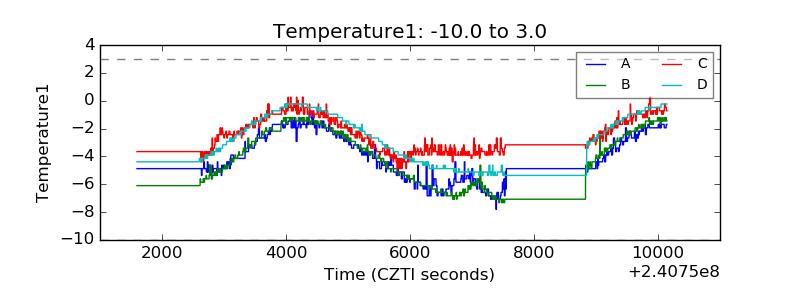

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

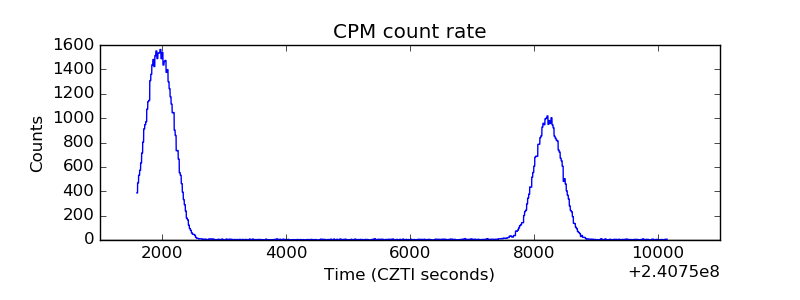

| _CPM_Rate |  |

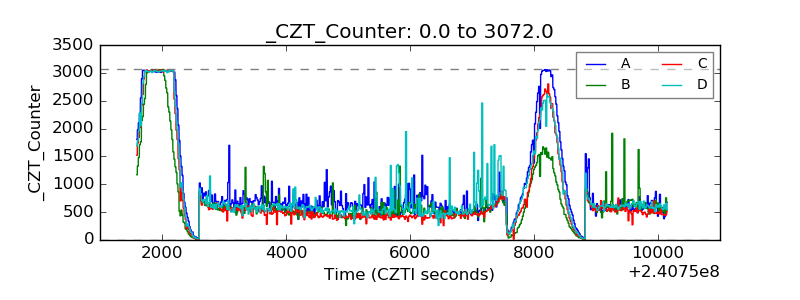

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

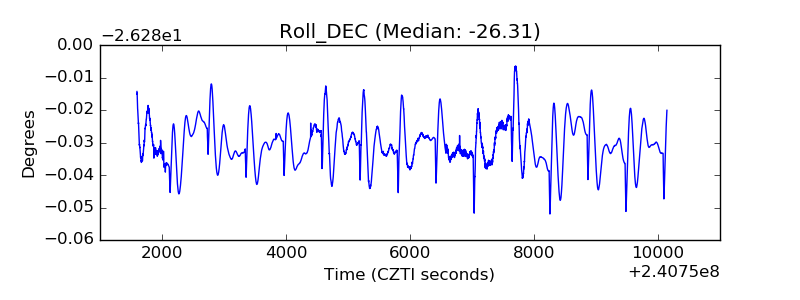

| _Roll_DEC |  |

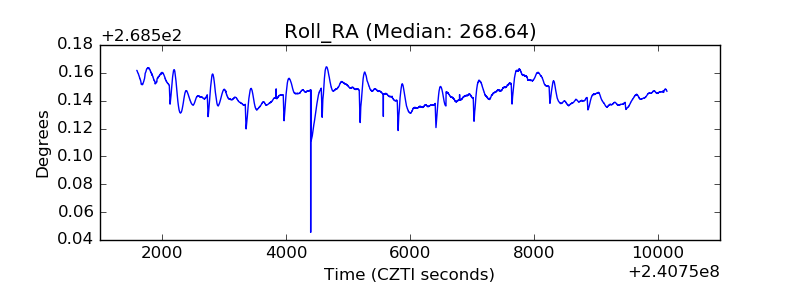

| _Roll_RA |  |
| Veto Counter |  |
