| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_099T01_9000001472_10228cztM0_level2.evt | modeM0/AS1A03_099T01_9000001472_10228cztM0_level2_quad_clean.evt |
| Size (bytes) | 567,852,480 | 80,357,760 |
| Size | 541.5 MB | 76.6 MB |
| Events in quadrant A | 3,920,598 | 475,885 |
| Events in quadrant B | 3,928,555 | 497,321 |
| Events in quadrant C | 3,636,090 | 490,354 |
| Events in quadrant D | 5,215,375 | 459,431 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16541 | 3 |
| B | 0 | 16460 | 2 |
| C | 0 | 15835 | 2 |
| D | 0 | 20435 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7332 | 132 | 1.800327% |
| B | 7332 | 84 | 1.145663% |
| C | 7332 | 53 | 0.722859% |
| D | 7332 | 312 | 4.255319% |

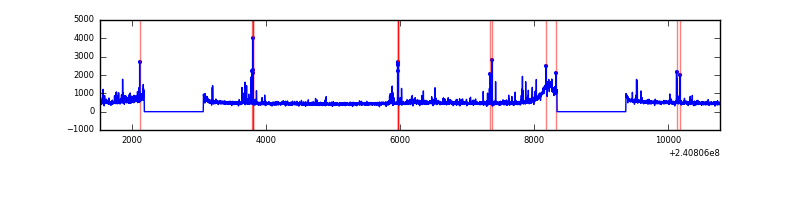

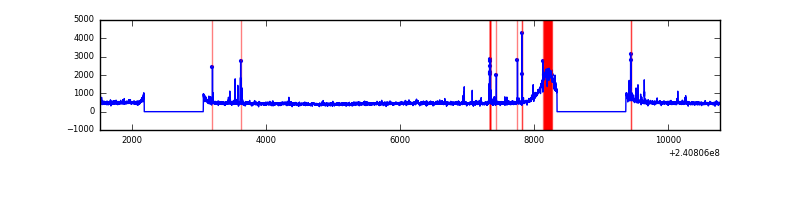

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9237 | 7333 | 102 | 102 | 1.10% | 1.39% |  |
| B | 9237 | 7333 | 15 | 15 | 0.16% | 0.20% |  |
| C | 9237 | 7333 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9237 | 7333 | 273 | 273 | 2.96% | 3.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 97561 | 473.28 | 978 | 963 | 204.1 |
| A | 15 | 239 | 34661 | 165.1 | 978 | 963 | 204.1 |
| A | 3 | 1 | 12738 | 57.69 | 978 | 963 | 204.1 |
| B | 4 | 239 | 99901 | 553.04 | 931 | 911 | 179.0 |
| B | 11 | 51 | 65006 | 358.09 | 931 | 911 | 179.0 |
| B | 10 | 224 | 44924 | 245.89 | 931 | 911 | 179.0 |
| C | 14 | 67 | 9288 | 37.51 | 930 | 940 | 222.6 |
| C | 13 | 61 | 6764 | 26.17 | 930 | 940 | 222.6 |
| C | 3 | 202 | 2391 | 6.52 | 930 | 940 | 222.6 |
| D | 1 | 52 | 944873 | 4015.76 | 949 | 927 | 235.1 |
| D | 8 | 195 | 492195 | 2089.96 | 949 | 927 | 235.1 |
| D | 2 | 152 | 61370 | 257.14 | 949 | 927 | 235.1 |

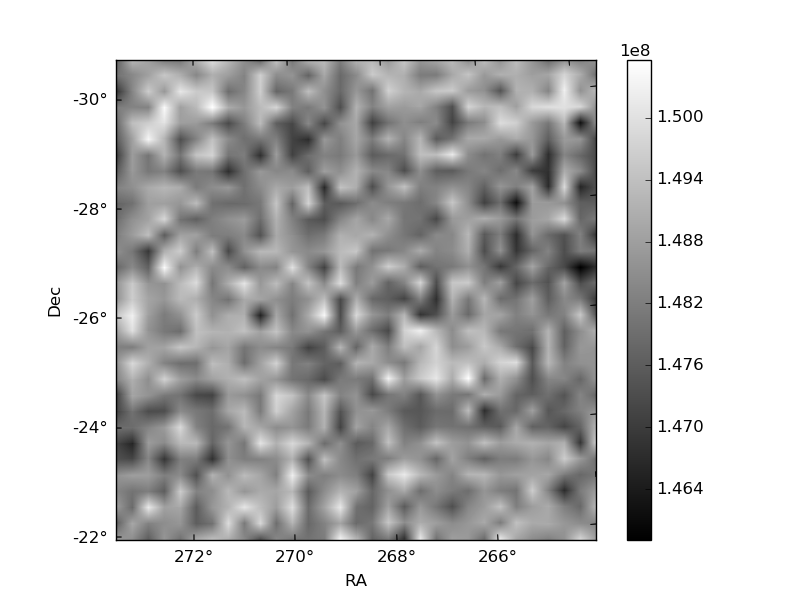

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

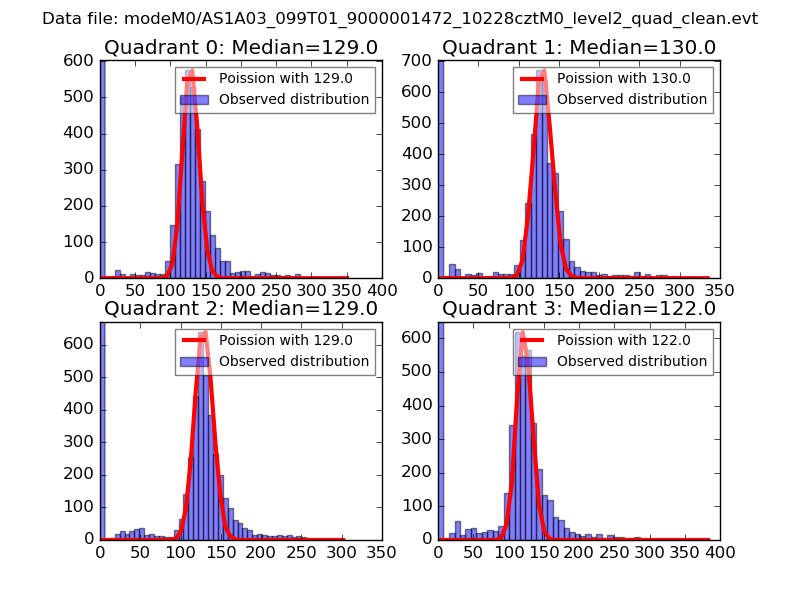

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

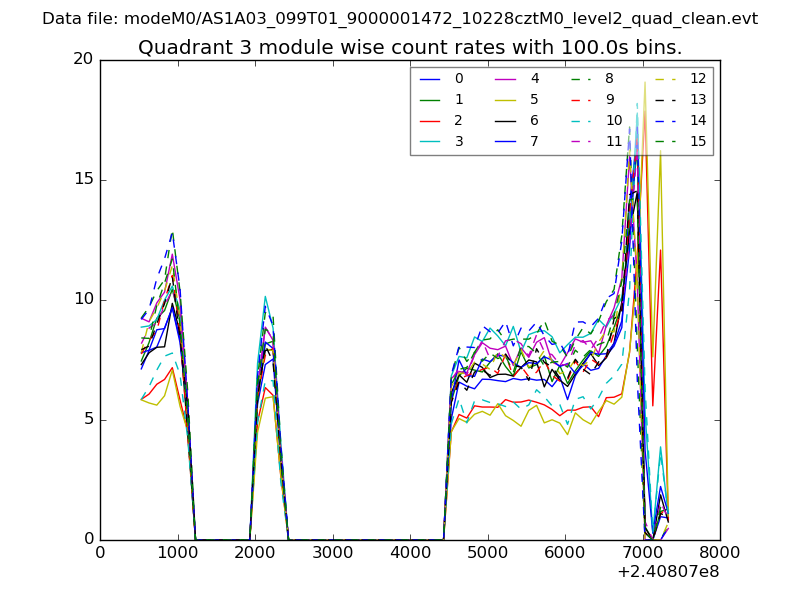

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

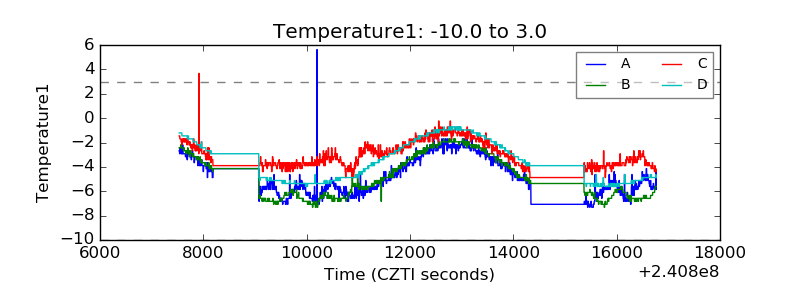

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

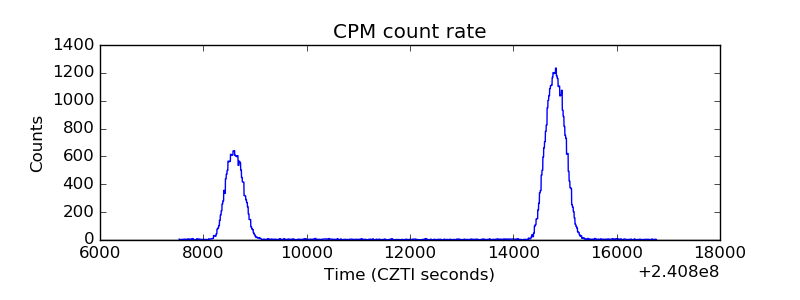

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

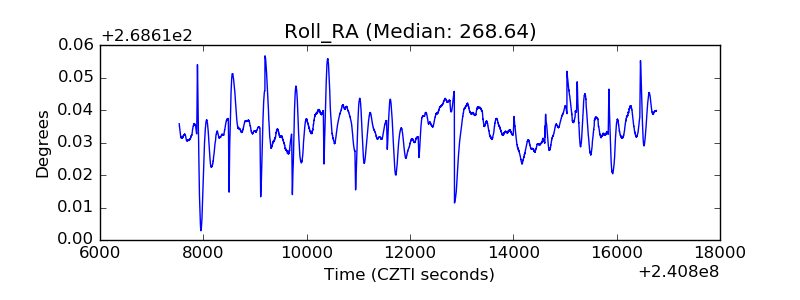

| _Roll_RA |  |
| Veto Counter |  |
