| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_099T01_9000001472_10231cztM0_level2.evt | modeM0/AS1A03_099T01_9000001472_10231cztM0_level2_quad_clean.evt |
| Size (bytes) | 490,965,120 | 78,027,840 |
| Size | 468.2 MB | 74.4 MB |
| Events in quadrant A | 3,536,460 | 485,581 |
| Events in quadrant B | 3,513,566 | 485,075 |
| Events in quadrant C | 3,143,128 | 485,102 |
| Events in quadrant D | 4,245,985 | 464,823 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14362 | 23 |
| B | 0 | 14293 | 15 |
| C | 0 | 13411 | 15 |
| D | 0 | 16626 | 43 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6333 | 106 | 1.673772% |
| B | 6334 | 88 | 1.389327% |
| C | 6333 | 57 | 0.900047% |
| D | 6325 | 138 | 2.181818% |

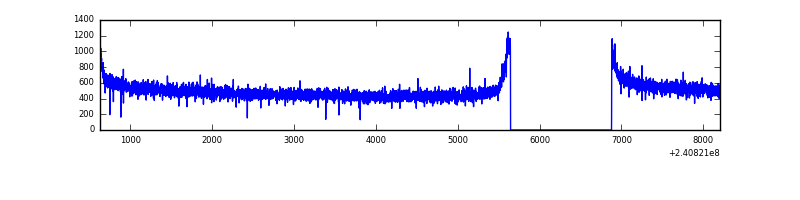

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7574 | 6339 | 42 | 42 | 0.55% | 0.66% |  |
| B | 7574 | 6339 | 22 | 22 | 0.29% | 0.35% |  |
| C | 7574 | 6339 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7574 | 6338 | 101 | 101 | 1.33% | 1.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 223 | 134568 | 805.92 | 832 | 818 | 166.0 |
| A | 8 | 15 | 111209 | 665.17 | 832 | 818 | 166.0 |
| A | 15 | 239 | 52991 | 314.37 | 832 | 818 | 166.0 |
| B | 4 | 239 | 175373 | 1130.83 | 825 | 808 | 154.4 |
| B | 11 | 51 | 60680 | 387.85 | 825 | 808 | 154.4 |
| B | 0 | 214 | 27324 | 171.77 | 825 | 808 | 154.4 |
| C | 14 | 67 | 9026 | 44.75 | 803 | 809 | 183.6 |
| C | 13 | 61 | 5900 | 27.73 | 803 | 809 | 183.6 |
| C | 8 | 222 | 2279 | 8.01 | 803 | 809 | 183.6 |
| D | 1 | 52 | 573667 | 2764.97 | 795 | 782 | 207.2 |
| D | 8 | 195 | 414300 | 1995.8 | 795 | 782 | 207.2 |
| D | 2 | 14 | 126473 | 606.63 | 795 | 782 | 207.2 |

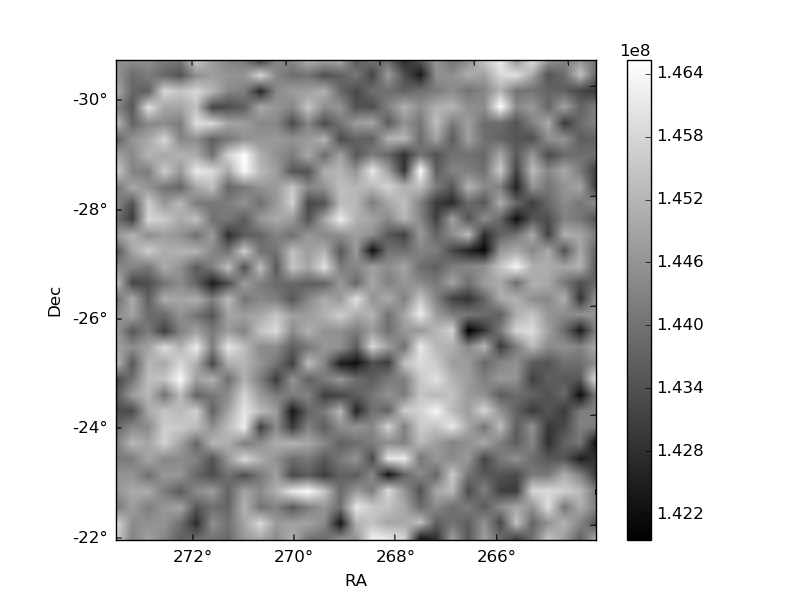

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

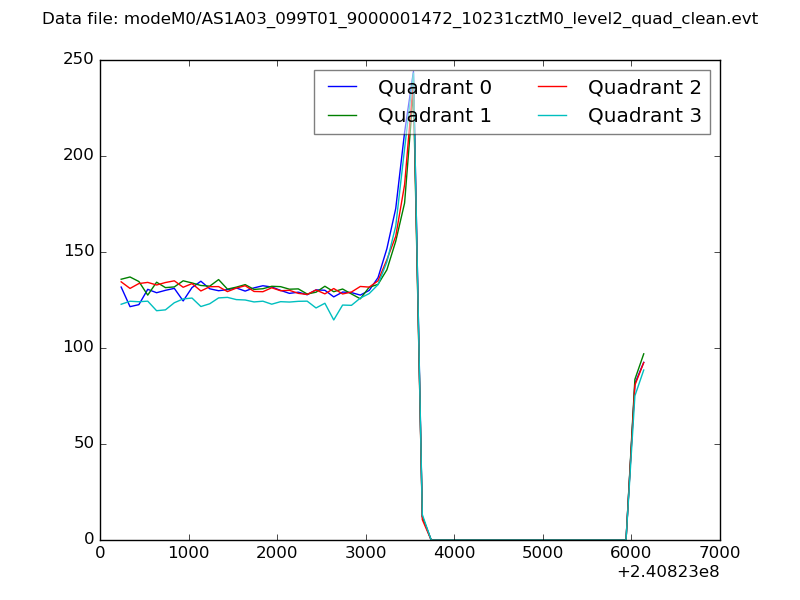

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

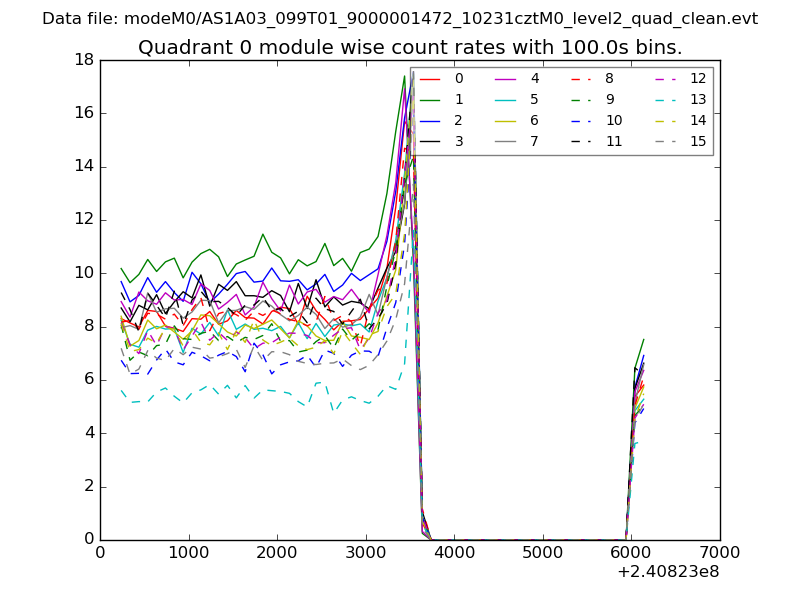

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

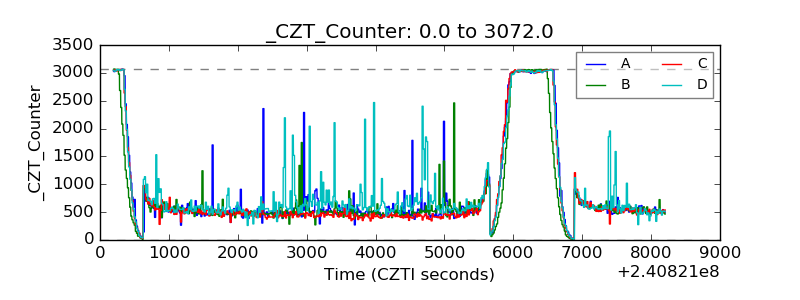

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

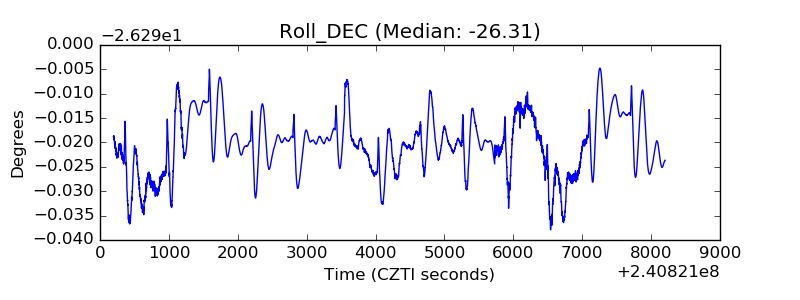

| _Roll_DEC |  |

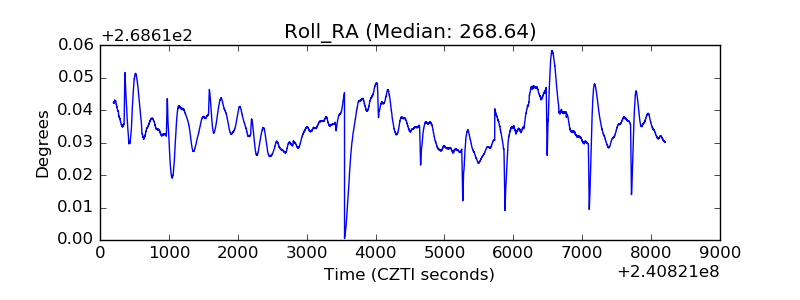

| _Roll_RA |  |

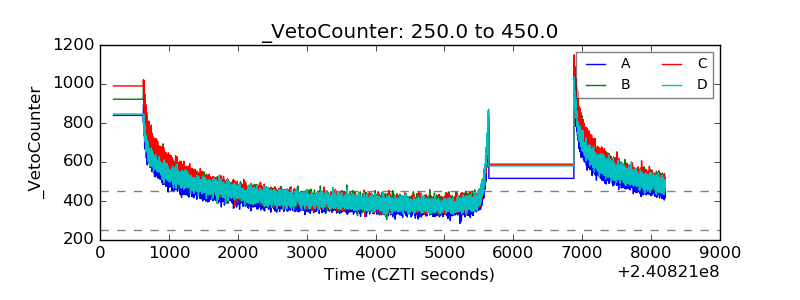

| Veto Counter |  |
