| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_099T01_9000001472_10235cztM0_level2.evt | modeM0/AS1A03_099T01_9000001472_10235cztM0_level2_quad_clean.evt |
| Size (bytes) | 436,417,920 | 92,545,920 |
| Size | 416.2 MB | 88.3 MB |
| Events in quadrant A | 3,226,537 | 601,006 |
| Events in quadrant B | 3,382,790 | 603,844 |
| Events in quadrant C | 2,833,190 | 597,494 |
| Events in quadrant D | 3,355,467 | 570,181 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13339 | 2 |
| B | 0 | 14080 | 3 |
| C | 0 | 12657 | 1 |
| D | 0 | 13976 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6159 | 134 | 2.175678% |
| B | 6158 | 137 | 2.224748% |
| C | 6159 | 74 | 1.201494% |
| D | 6159 | 157 | 2.549115% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7114 | 6159 | 20 | 20 | 0.28% | 0.32% |  |
| B | 7114 | 6159 | 35 | 35 | 0.49% | 0.57% |  |
| C | 7114 | 6159 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7114 | 6159 | 64 | 64 | 0.90% | 1.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 173845 | 1132.66 | 754 | 740 | 152.8 |
| A | 15 | 223 | 89988 | 583.97 | 754 | 740 | 152.8 |
| A | 15 | 239 | 55125 | 355.85 | 754 | 740 | 152.8 |
| B | 4 | 239 | 183888 | 1278.27 | 750 | 734 | 143.3 |
| B | 0 | 214 | 104434 | 723.74 | 750 | 734 | 143.3 |
| B | 4 | 81 | 65048 | 448.86 | 750 | 734 | 143.3 |
| C | 13 | 61 | 5504 | 28.49 | 725 | 728 | 167.6 |
| C | 0 | 207 | 3104 | 14.17 | 725 | 728 | 167.6 |
| C | 14 | 67 | 2301 | 9.38 | 725 | 728 | 167.6 |
| D | 1 | 52 | 419102 | 2395.34 | 724 | 704 | 174.7 |
| D | 8 | 195 | 63165 | 357.59 | 724 | 704 | 174.7 |
| D | 2 | 16 | 35089 | 196.85 | 724 | 704 | 174.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

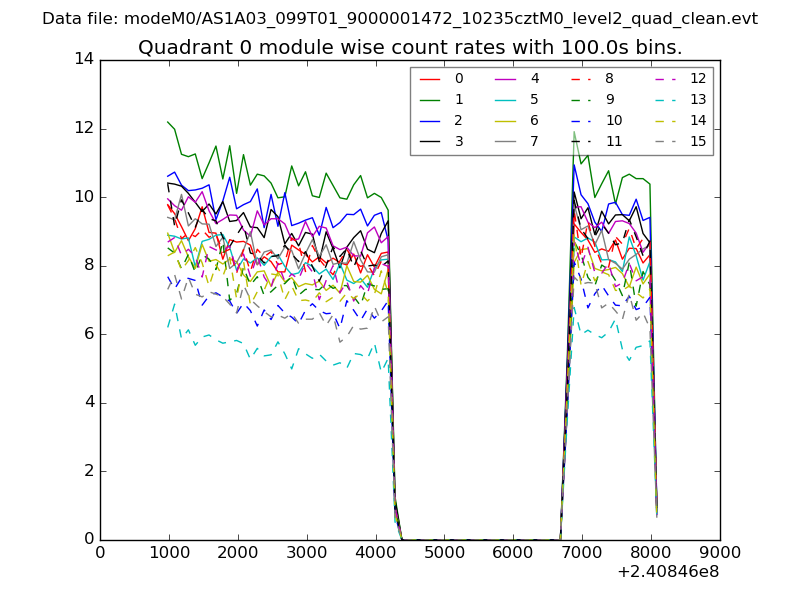

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

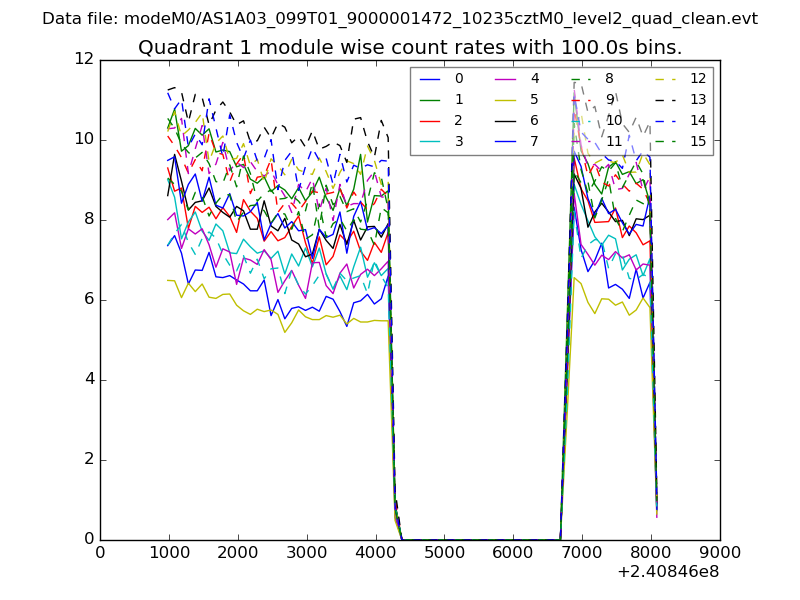

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

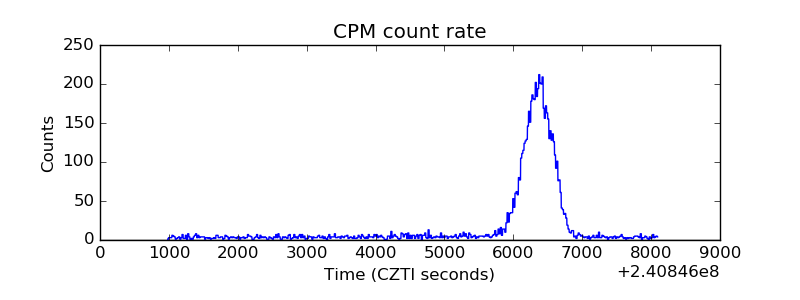

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

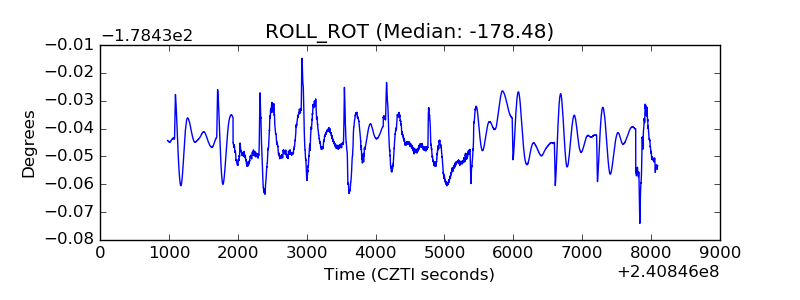

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

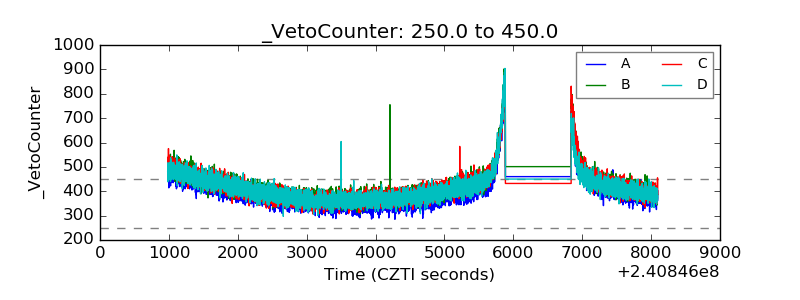

| Veto Counter |  |
