| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_095T03_9000001474_10236cztM0_level2.evt | modeM0/AS1A03_095T03_9000001474_10236cztM0_level2_quad_clean.evt |
| Size (bytes) | 346,501,440 | 61,355,520 |
| Size | 330.4 MB | 58.5 MB |
| Events in quadrant A | 2,334,390 | 385,145 |
| Events in quadrant B | 2,576,872 | 380,821 |
| Events in quadrant C | 2,250,345 | 380,762 |
| Events in quadrant D | 2,996,262 | 365,106 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10373 | 3 |
| B | 0 | 10820 | 2 |
| C | 0 | 10255 | 2 |
| D | 0 | 12227 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4925 | 68 | 1.380711% |
| B | 4925 | 105 | 2.131980% |
| C | 4925 | 37 | 0.751269% |
| D | 4925 | 121 | 2.456853% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5485 | 4927 | 1 | 1 | 0.02% | 0.02% |  |
| B | 5485 | 4927 | 19 | 19 | 0.35% | 0.39% |  |
| C | 5485 | 4927 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5485 | 4927 | 64 | 64 | 1.17% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 22334 | 177.2 | 594 | 581 | 122.8 |
| A | 8 | 15 | 15674 | 122.95 | 594 | 581 | 122.8 |
| A | 0 | 226 | 5475 | 39.87 | 594 | 581 | 122.8 |
| B | 4 | 239 | 149170 | 1279.04 | 594 | 578 | 116.2 |
| B | 11 | 51 | 52255 | 444.82 | 594 | 578 | 116.2 |
| B | 0 | 214 | 29981 | 253.09 | 594 | 578 | 116.2 |
| C | 14 | 234 | 8047 | 55.86 | 573 | 576 | 133.7 |
| C | 13 | 61 | 4273 | 27.64 | 573 | 576 | 133.7 |
| C | 0 | 207 | 3086 | 18.77 | 573 | 576 | 133.7 |
| D | 8 | 195 | 237226 | 1710.43 | 570 | 554 | 138.4 |
| D | 13 | 104 | 231639 | 1670.05 | 570 | 554 | 138.4 |
| D | 1 | 52 | 177163 | 1276.35 | 570 | 554 | 138.4 |

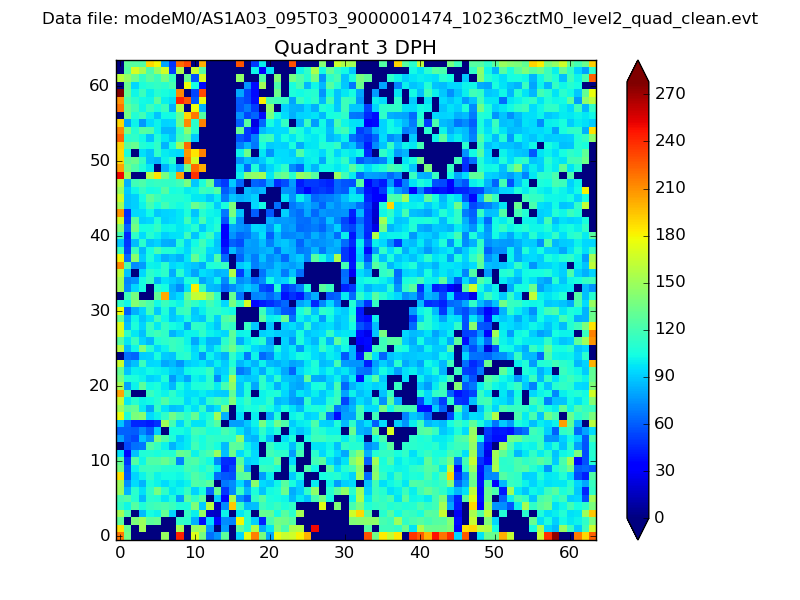

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

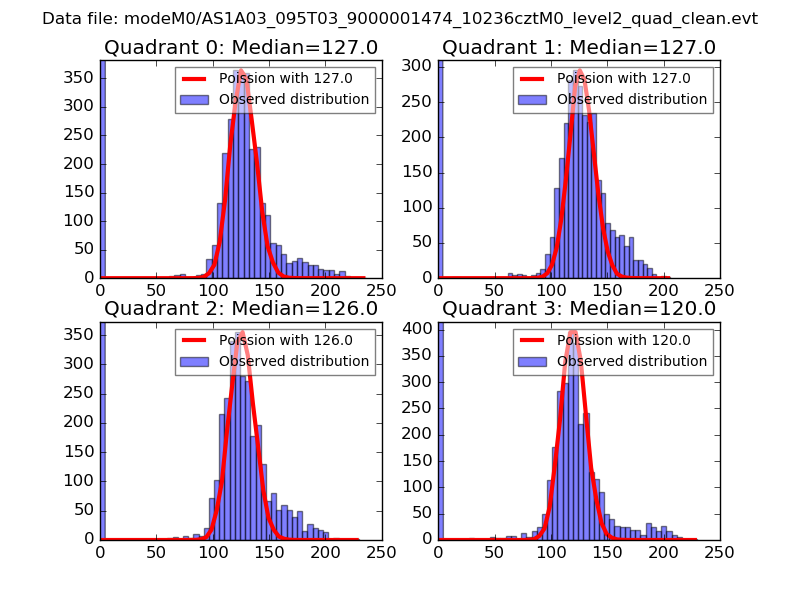

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

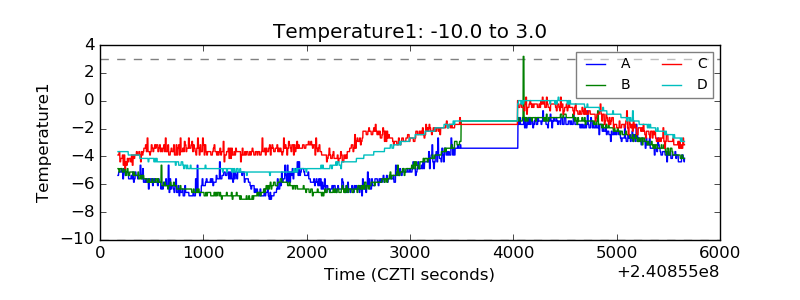

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

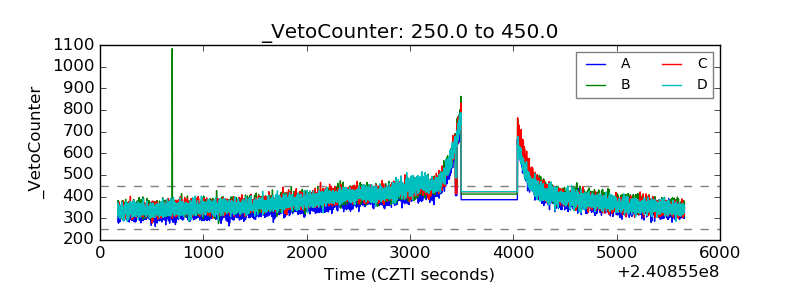

| Veto Counter |  |
