| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_052T01_9000001480_10260cztM0_level2.evt | modeM0/AS1A03_052T01_9000001480_10260cztM0_level2_quad_clean.evt |
| Size (bytes) | 377,873,280 | 57,006,720 |
| Size | 360.4 MB | 54.4 MB |
| Events in quadrant A | 2,688,027 | 335,522 |
| Events in quadrant B | 2,590,922 | 331,939 |
| Events in quadrant C | 2,468,833 | 351,115 |
| Events in quadrant D | 3,353,032 | 355,091 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 250 | 143 |
| B | 0 | 250 | 139 |
| C | 0 | 250 | 141 |
| D | 0 | 235 | 126 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27085 | 16354 |
| B | 0 | 31310 | 20834 |
| C | 0 | 26115 | 15565 |
| D | 0 | 30842 | 17341 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 12 |
| B | 0 | 29 | 14 |
| C | 0 | 29 | 13 |
| D | 0 | 26 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4896 | 47 | 0.959967% |
| B | 4627 | 51 | 1.102226% |
| C | 5091 | 34 | 0.667845% |
| D | 5477 | 41 | 0.748585% |

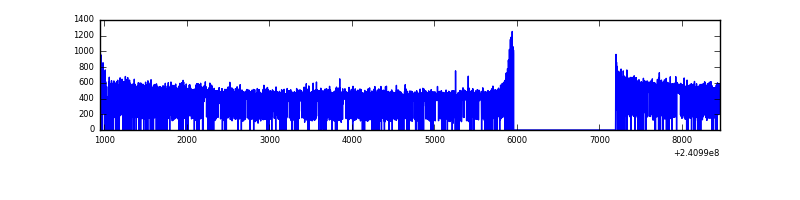

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 5893 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7514 | 5585 | 3 | 3 | 0.04% | 0.05% |  |
| C | 7515 | 5980 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7515 | 6087 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 163484 | 1270.87 | 632 | 620 | 128.2 |
| A | 15 | 239 | 83458 | 646.41 | 632 | 620 | 128.2 |
| A | 0 | 226 | 5774 | 40.22 | 632 | 620 | 128.2 |
| B | 10 | 247 | 126750 | 1140.43 | 591 | 579 | 110.6 |
| B | 11 | 51 | 66055 | 591.82 | 591 | 579 | 110.6 |
| B | 0 | 214 | 55641 | 497.69 | 591 | 579 | 110.6 |
| C | 13 | 61 | 4679 | 28.05 | 631 | 636 | 144.1 |
| C | 14 | 67 | 4454 | 26.49 | 631 | 636 | 144.1 |
| C | 3 | 202 | 1678 | 7.23 | 631 | 636 | 144.1 |
| D | 8 | 195 | 406192 | 2461.96 | 674 | 658 | 164.7 |
| D | 1 | 52 | 183125 | 1107.74 | 674 | 658 | 164.7 |
| D | 10 | 172 | 67118 | 403.47 | 674 | 658 | 164.7 |

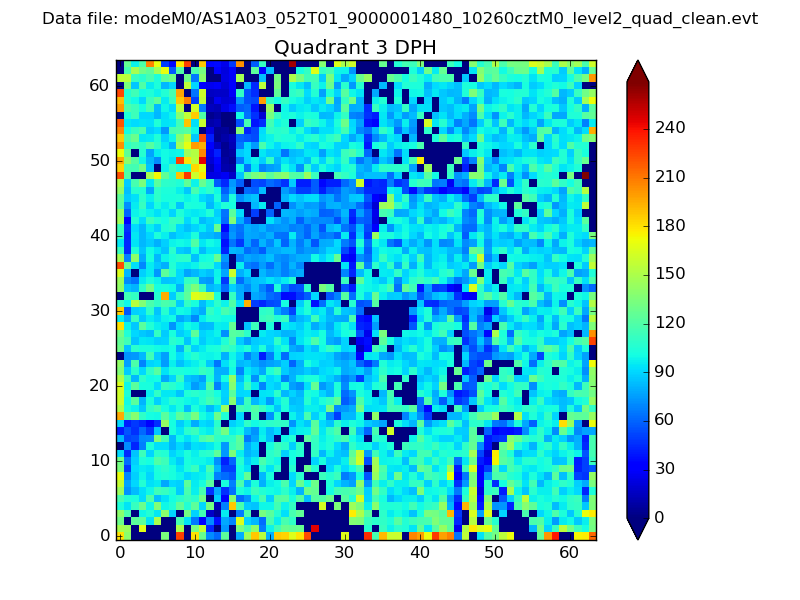

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

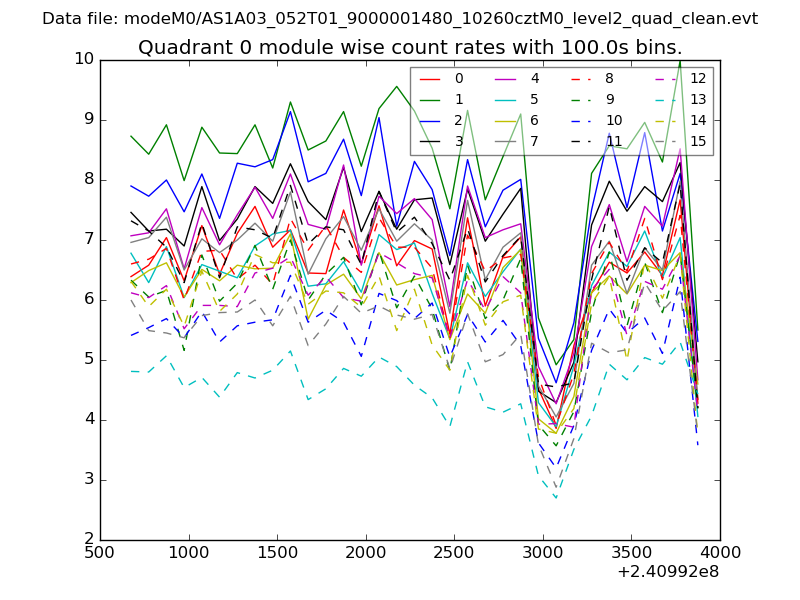

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

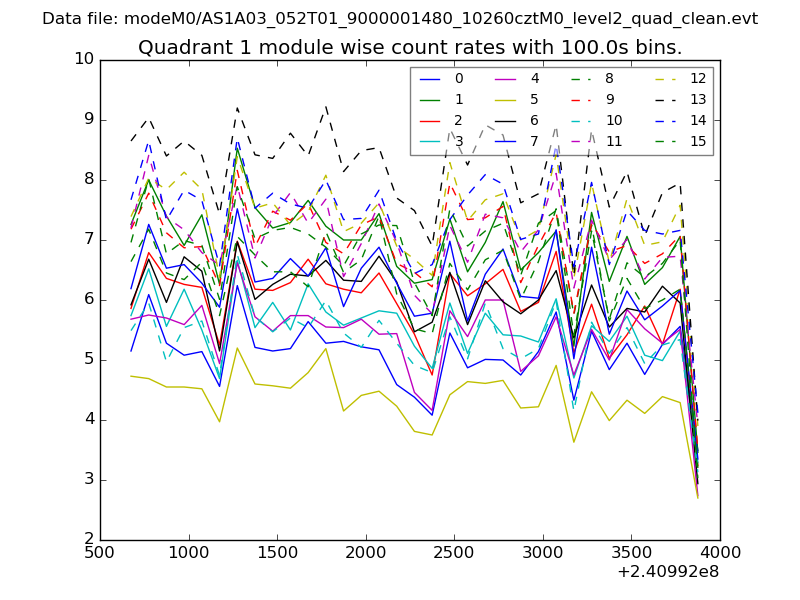

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

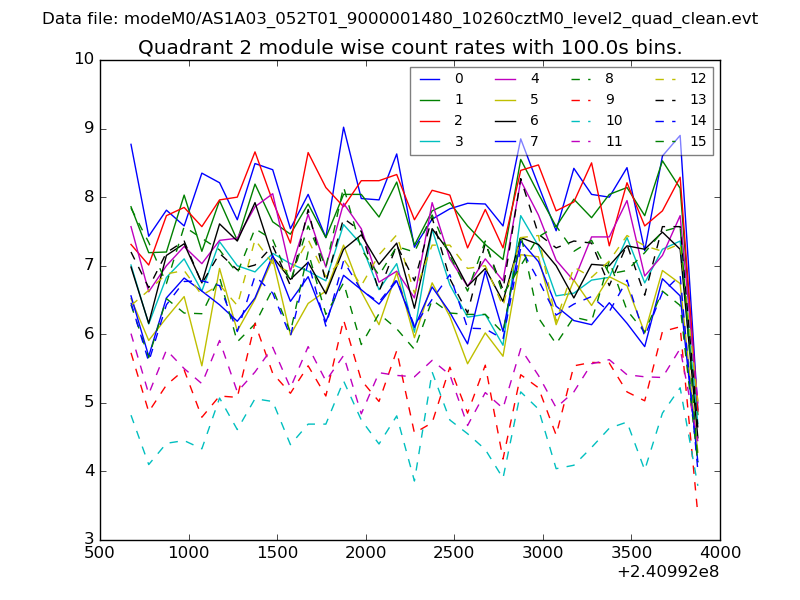

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

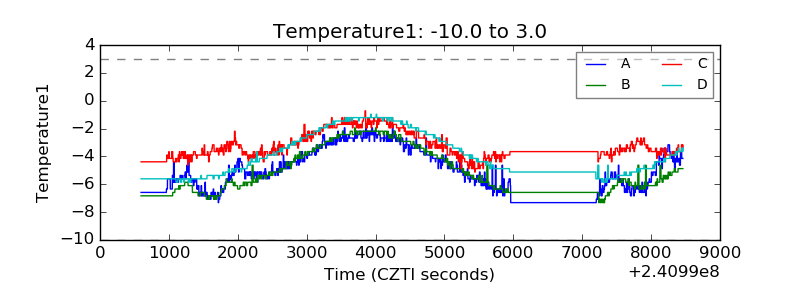

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

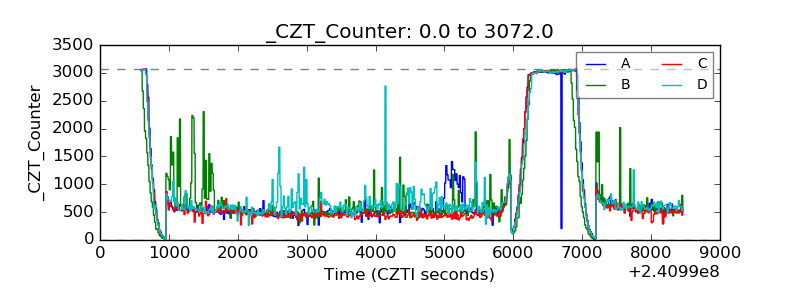

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

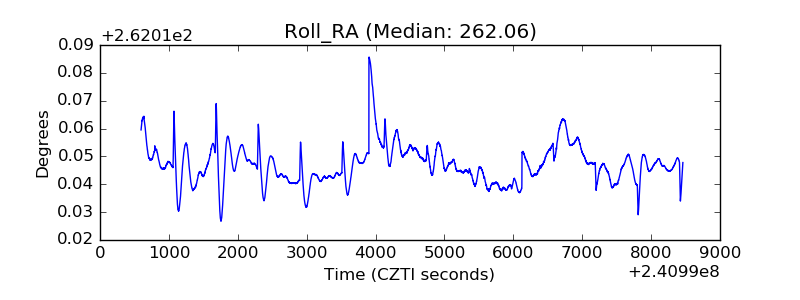

| _Roll_RA |  |
| Veto Counter |  |
