| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_069T03_9000001478_10251cztM0_level2.evt | modeM0/AS1A03_069T03_9000001478_10251cztM0_level2_quad_clean.evt |
| Size (bytes) | 208,468,800 | 22,366,080 |
| Size | 198.8 MB | 21.3 MB |
| Events in quadrant A | 1,337,731 | 120,537 |
| Events in quadrant B | 1,569,508 | 119,762 |
| Events in quadrant C | 1,288,371 | 118,462 |
| Events in quadrant D | 1,921,505 | 113,390 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5938 | 1 |
| B | 0 | 6471 | 1 |
| C | 0 | 5909 | 1 |
| D | 0 | 7668 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 58 | 0 |
| B | 0 | 58 | 0 |
| C | 0 | 58 | 0 |
| D | 0 | 58 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2864 | 59 | 2.060056% |
| B | 2864 | 88 | 3.072626% |
| C | 2864 | 42 | 1.466480% |
| D | 2864 | 93 | 3.247207% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

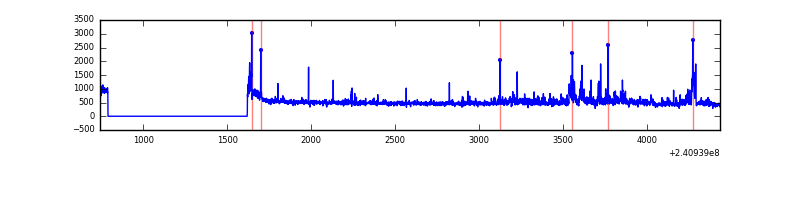

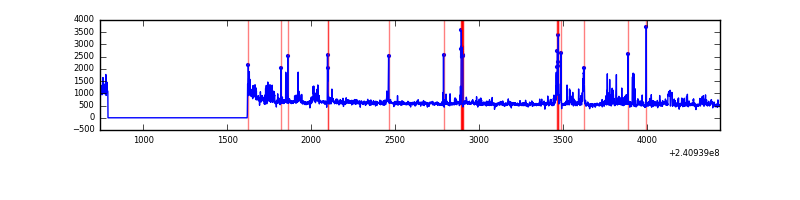

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3694 | 2864 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3694 | 2864 | 6 | 6 | 0.16% | 0.21% |  |
| C | 3694 | 2864 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3694 | 2864 | 26 | 26 | 0.70% | 0.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 10380 | 141.31 | 341 | 332 | 71.1 |
| A | 3 | 1 | 10273 | 139.8 | 341 | 332 | 71.1 |
| A | 0 | 226 | 3113 | 39.11 | 341 | 332 | 71.1 |
| B | 11 | 51 | 106719 | 1583.02 | 339 | 330 | 67.2 |
| B | 4 | 239 | 69705 | 1032.27 | 339 | 330 | 67.2 |
| B | 0 | 197 | 28542 | 419.78 | 339 | 330 | 67.2 |
| C | 0 | 207 | 10373 | 130.06 | 326 | 327 | 77.2 |
| C | 13 | 61 | 2432 | 27.25 | 326 | 327 | 77.2 |
| C | 14 | 67 | 2101 | 22.97 | 326 | 327 | 77.2 |
| D | 8 | 195 | 387292 | 4817.26 | 325 | 315 | 80.3 |
| D | 7 | 71 | 91459 | 1134.6 | 325 | 315 | 80.3 |
| D | 1 | 52 | 91345 | 1133.18 | 325 | 315 | 80.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

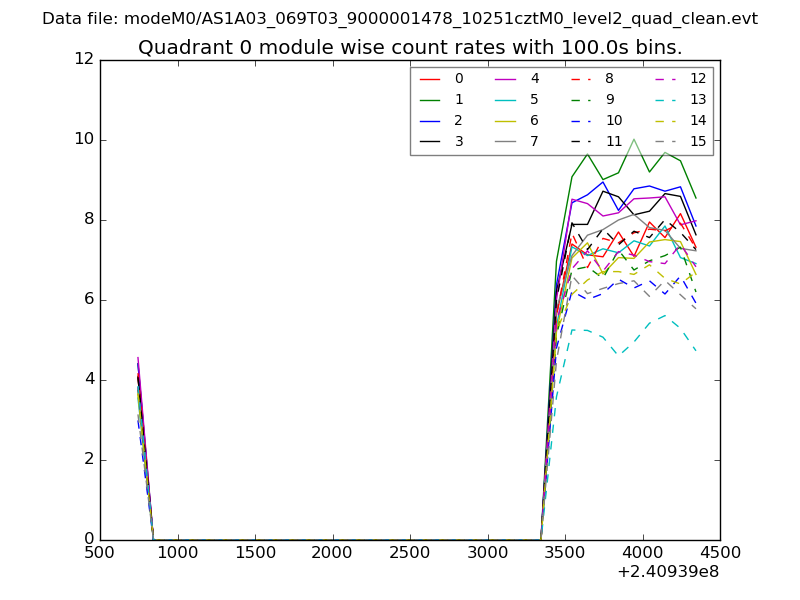

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

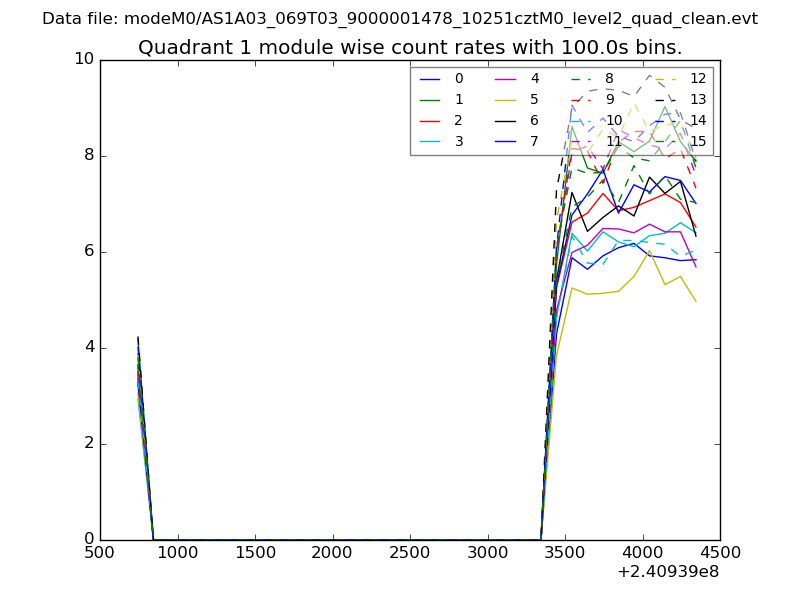

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

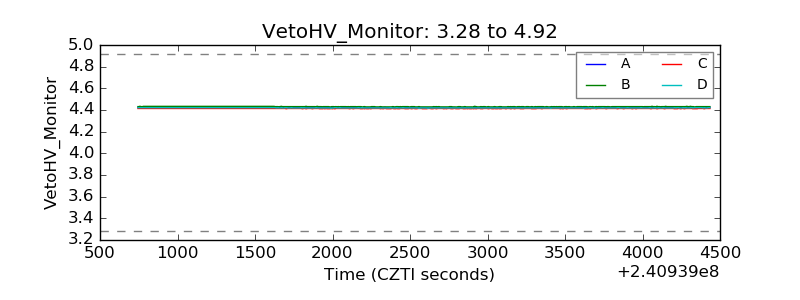

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

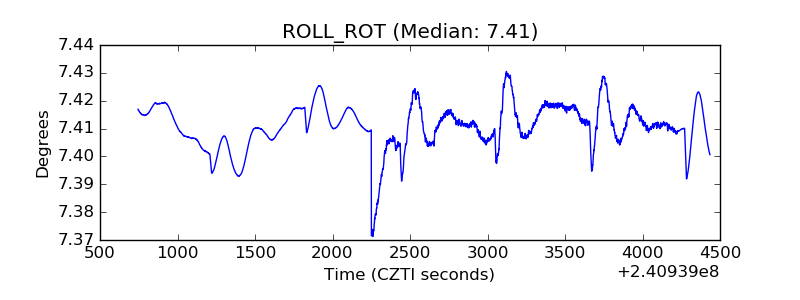

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

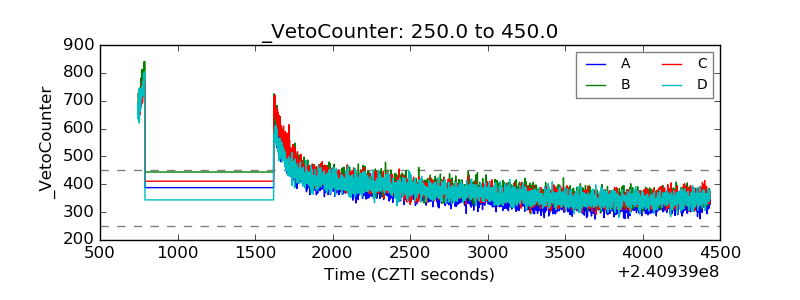

| Veto Counter |  |
