| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_021T01_9000001482_10279cztM0_level2.evt | modeM0/AS1C02_021T01_9000001482_10279cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,612,800 | 106,418,880 |
| Size | 447.9 MB | 101.5 MB |
| Events in quadrant A | 3,201,961 | 702,601 |
| Events in quadrant B | 3,578,690 | 693,295 |
| Events in quadrant C | 2,956,535 | 686,841 |
| Events in quadrant D | 4,026,029 | 669,180 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14221 | 2 |
| B | 0 | 14972 | 1 |
| C | 0 | 13699 | 1 |
| D | 0 | 16112 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6755 | 48 | 0.710585% |
| B | 6755 | 62 | 0.917839% |
| C | 6755 | 26 | 0.384900% |
| D | 6755 | 112 | 1.658031% |

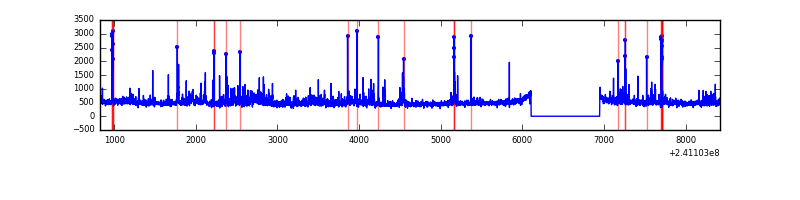

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7595 | 6756 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7595 | 6756 | 31 | 31 | 0.41% | 0.46% |  |
| C | 7595 | 6756 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7595 | 6756 | 75 | 75 | 0.99% | 1.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 176664 | 1123.27 | 779 | 761 | 156.6 |
| A | 3 | 1 | 11291 | 67.24 | 779 | 761 | 156.6 |
| A | 8 | 15 | 9963 | 58.76 | 779 | 761 | 156.6 |
| B | 11 | 51 | 170729 | 1169.72 | 773 | 755 | 145.3 |
| B | 4 | 239 | 102886 | 702.84 | 773 | 755 | 145.3 |
| B | 0 | 219 | 58857 | 399.85 | 773 | 755 | 145.3 |
| C | 14 | 67 | 8937 | 46.95 | 754 | 758 | 174.2 |
| C | 9 | 68 | 7055 | 36.14 | 754 | 758 | 174.2 |
| C | 13 | 61 | 5763 | 28.73 | 754 | 758 | 174.2 |
| D | 12 | 233 | 441408 | 2441.8 | 756 | 734 | 180.5 |
| D | 8 | 195 | 369872 | 2045.41 | 756 | 734 | 180.5 |
| D | 7 | 71 | 133146 | 733.7 | 756 | 734 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

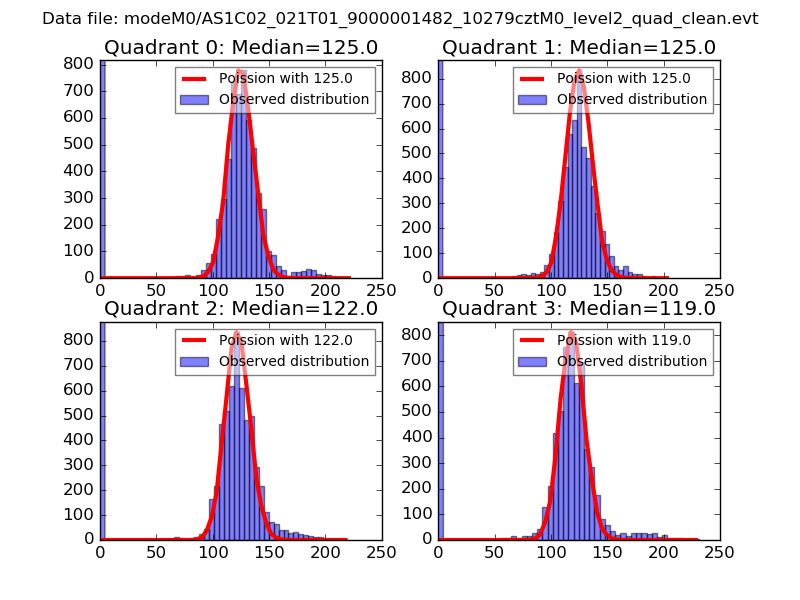

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

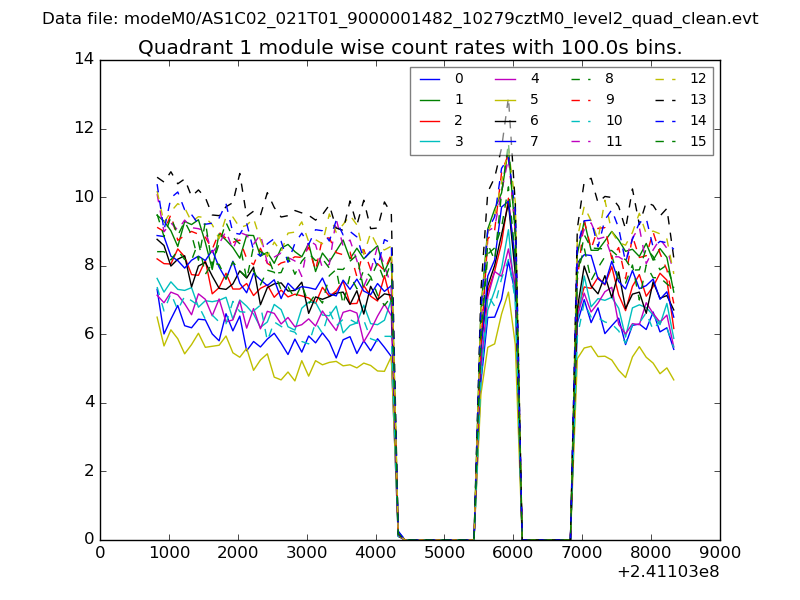

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

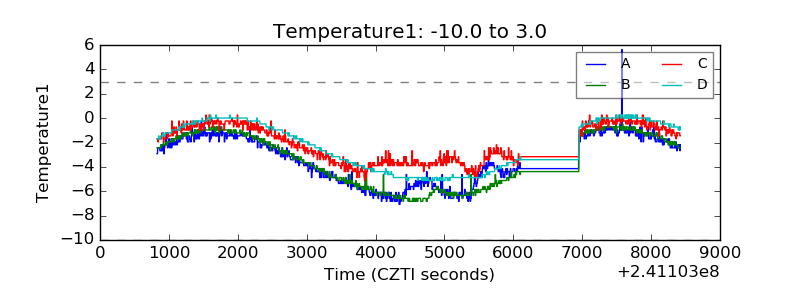

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

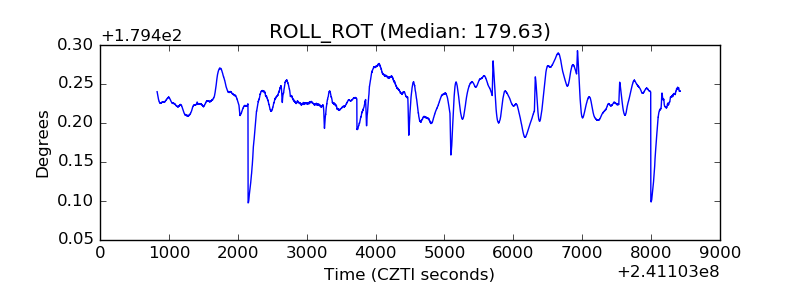

| _ROLL_ROT |  |
| _Roll_DEC |  |

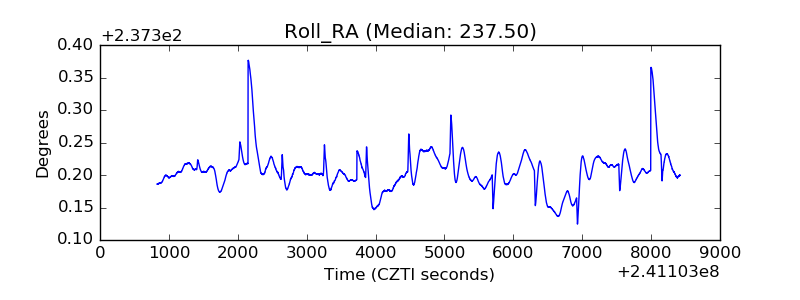

| _Roll_RA |  |

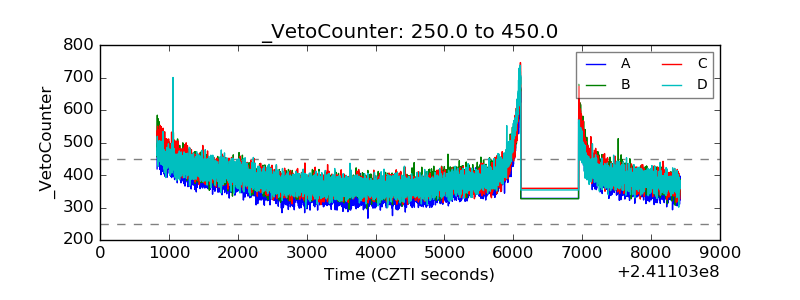

| Veto Counter |  |
