| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_021T01_9000001482_10282cztM0_level2.evt | modeM0/AS1C02_021T01_9000001482_10282cztM0_level2_quad_clean.evt |
| Size (bytes) | 565,395,840 | 121,392,000 |
| Size | 539.2 MB | 115.8 MB |
| Events in quadrant A | 3,963,745 | 795,801 |
| Events in quadrant B | 4,120,458 | 799,389 |
| Events in quadrant C | 3,482,276 | 789,545 |
| Events in quadrant D | 5,025,312 | 747,238 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 160 | 0 |
| B | 0 | 160 | 0 |
| C | 0 | 160 | 0 |
| D | 0 | 160 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17064 | 12 |
| B | 0 | 17563 | 9 |
| C | 0 | 16140 | 10 |
| D | 0 | 20283 | 8 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7831 | 57 | 0.727876% |
| B | 7832 | 155 | 1.979060% |
| C | 7831 | 38 | 0.485251% |
| D | 7833 | 342 | 4.366143% |

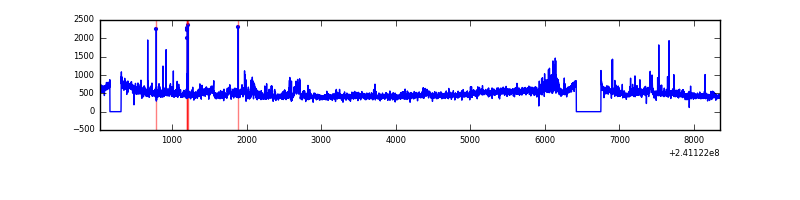

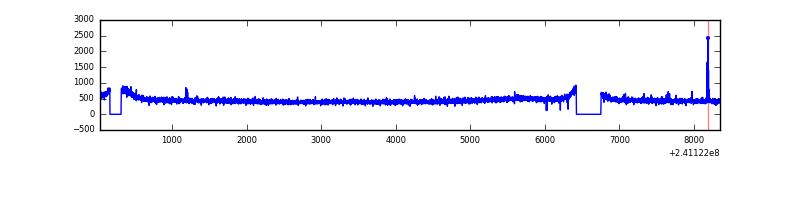

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8315 | 7837 | 6 | 6 | 0.07% | 0.08% |  |
| B | 8315 | 7837 | 46 | 46 | 0.55% | 0.59% |  |
| C | 8315 | 7837 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8315 | 7837 | 270 | 270 | 3.25% | 3.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 439478 | 2387.71 | 898 | 877 | 183.7 |
| A | 8 | 5 | 28413 | 149.9 | 898 | 877 | 183.7 |
| A | 3 | 1 | 16751 | 86.42 | 898 | 877 | 183.7 |
| B | 11 | 51 | 220431 | 1268.92 | 904 | 882 | 173.0 |
| B | 4 | 239 | 160226 | 920.95 | 904 | 882 | 173.0 |
| B | 6 | 51 | 69849 | 398.6 | 904 | 882 | 173.0 |
| C | 4 | 254 | 20153 | 94.12 | 881 | 884 | 204.7 |
| C | 8 | 128 | 9491 | 42.04 | 881 | 884 | 204.7 |
| C | 13 | 61 | 6631 | 28.07 | 881 | 884 | 204.7 |
| D | 2 | 136 | 508446 | 2423.96 | 871 | 847 | 209.4 |
| D | 1 | 52 | 364056 | 1734.45 | 871 | 847 | 209.4 |
| D | 8 | 195 | 355988 | 1695.92 | 871 | 847 | 209.4 |

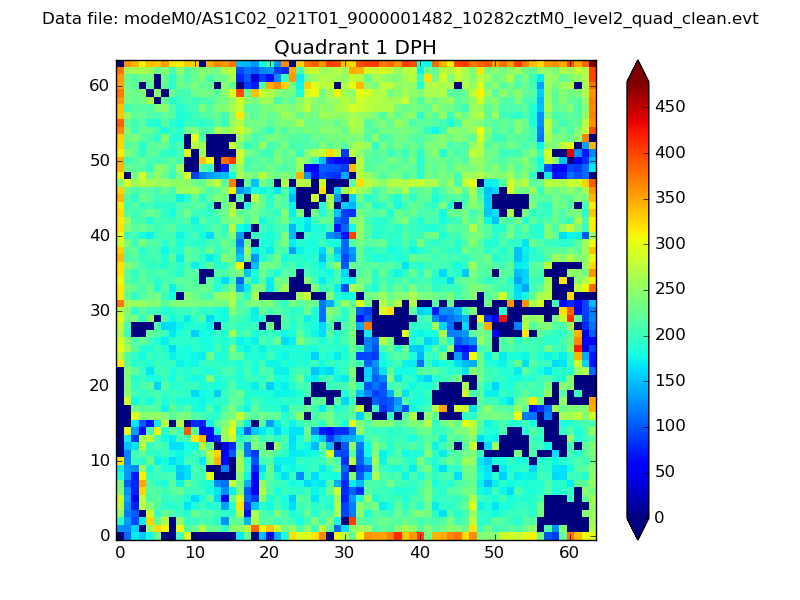

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

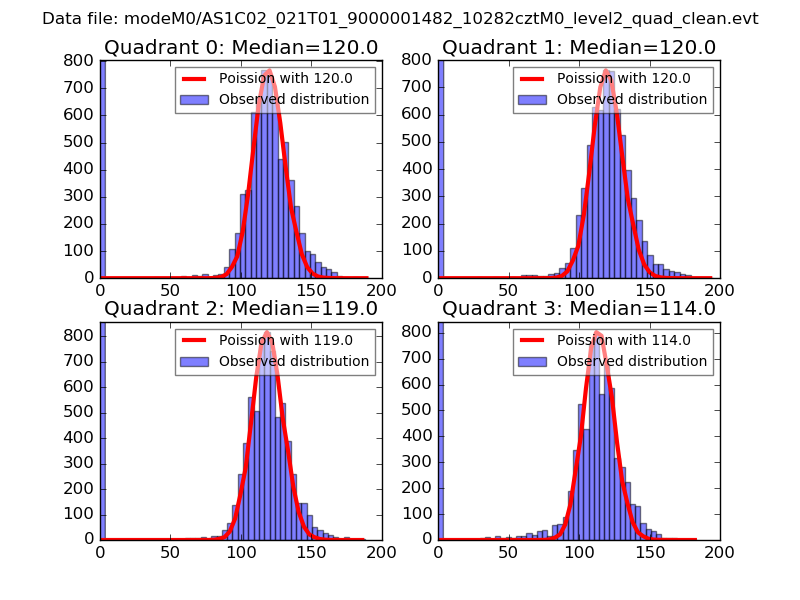

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

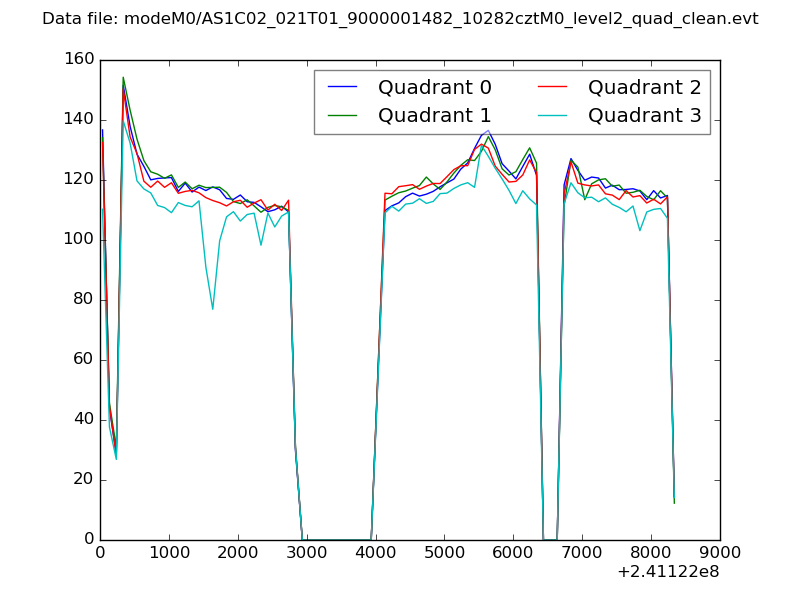

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

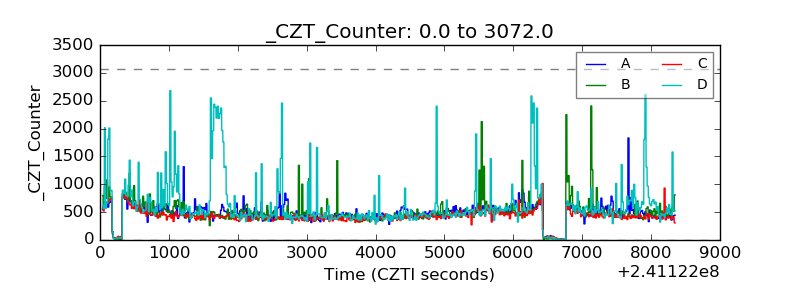

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

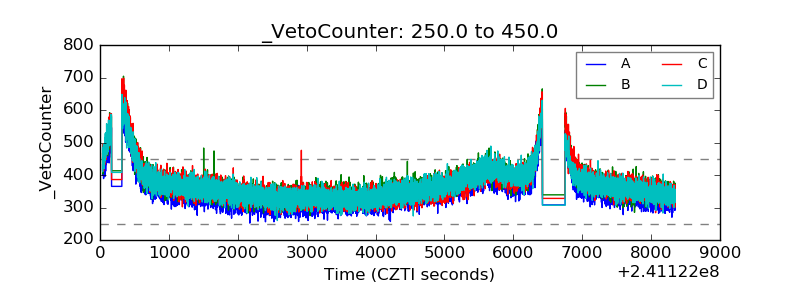

| Veto Counter |  |
