| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_072T01_9000001484_10294cztM0_level2.evt | modeM0/AS1A03_072T01_9000001484_10294cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,968,000 | 101,286,720 |
| Size | 485.4 MB | 96.6 MB |
| Events in quadrant A | 3,577,493 | 652,293 |
| Events in quadrant B | 4,038,556 | 658,645 |
| Events in quadrant C | 3,337,403 | 644,551 |
| Events in quadrant D | 3,978,075 | 617,110 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15301 | 2 |
| B | 0 | 16591 | 1 |
| C | 0 | 14840 | 1 |
| D | 0 | 16445 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7099 | 117 | 1.648119% |
| B | 7099 | 197 | 2.775039% |
| C | 7099 | 55 | 0.774757% |
| D | 7099 | 58 | 0.817016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

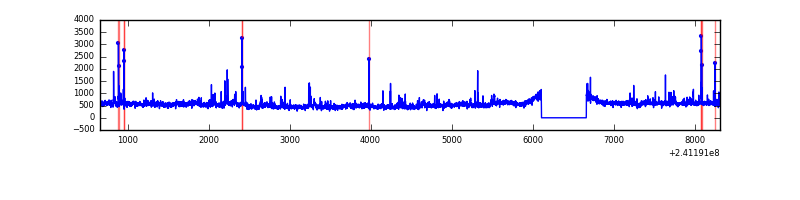

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7654 | 7100 | 19 | 19 | 0.25% | 0.27% |  |
| B | 7654 | 7100 | 61 | 61 | 0.80% | 0.86% |  |
| C | 7654 | 7100 | 11 | 11 | 0.14% | 0.15% |  |
| D | 7654 | 7100 | 11 | 11 | 0.14% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 5 | 128054 | 717.19 | 865 | 848 | 177.4 |
| A | 5 | 16 | 69097 | 384.79 | 865 | 848 | 177.4 |
| A | 3 | 1 | 34654 | 190.6 | 865 | 848 | 177.4 |
| B | 4 | 239 | 482328 | 2920.11 | 857 | 836 | 164.9 |
| B | 11 | 51 | 94619 | 568.77 | 857 | 836 | 164.9 |
| B | 0 | 214 | 54698 | 326.66 | 857 | 836 | 164.9 |
| C | 4 | 254 | 92183 | 476.13 | 829 | 836 | 191.9 |
| C | 13 | 61 | 6213 | 28.03 | 829 | 836 | 191.9 |
| C | 14 | 234 | 6017 | 27.0 | 829 | 836 | 191.9 |
| D | 8 | 195 | 501603 | 2528.25 | 831 | 810 | 198.1 |
| D | 2 | 14 | 61312 | 305.44 | 831 | 810 | 198.1 |
| D | 2 | 16 | 54244 | 269.76 | 831 | 810 | 198.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

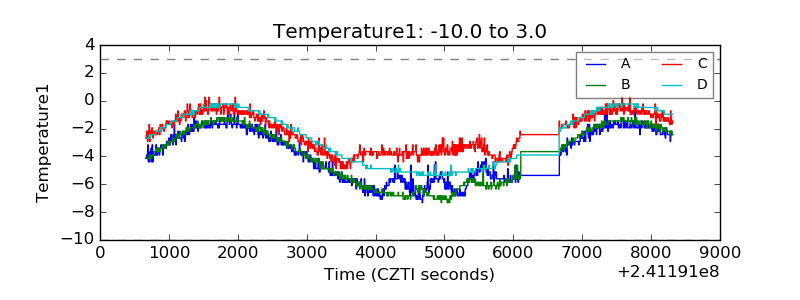

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

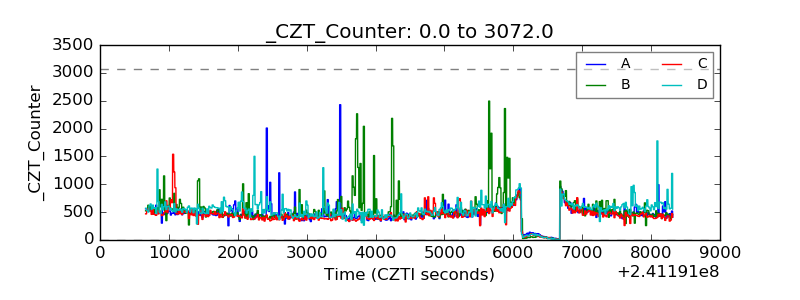

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

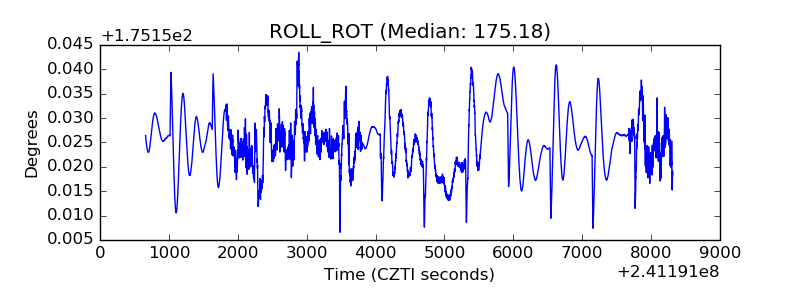

| _ROLL_ROT |  |

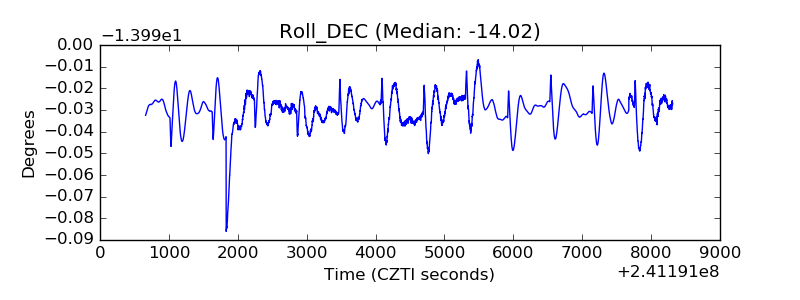

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
