| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_072T01_9000001484_10296cztM0_level2.evt | modeM0/AS1A03_072T01_9000001484_10296cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,291,840 | 86,837,760 |
| Size | 423.7 MB | 82.8 MB |
| Events in quadrant A | 3,013,135 | 551,963 |
| Events in quadrant B | 3,192,219 | 535,802 |
| Events in quadrant C | 2,976,833 | 539,380 |
| Events in quadrant D | 3,840,098 | 559,147 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30953 | 17806 |
| B | 0 | 36712 | 23435 |
| C | 0 | 33492 | 20305 |
| D | 0 | 40110 | 24629 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 314 | 172 |
| B | 0 | 314 | 170 |
| C | 0 | 314 | 171 |
| D | 0 | 304 | 160 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 1 |
| B | 0 | 4 | 2 |
| C | 0 | 4 | 2 |
| D | 0 | 4 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6315 | 72 | 1.140143% |
| B | 6013 | 93 | 1.546649% |
| C | 6213 | 44 | 0.708192% |
| D | 6796 | 60 | 0.882872% |

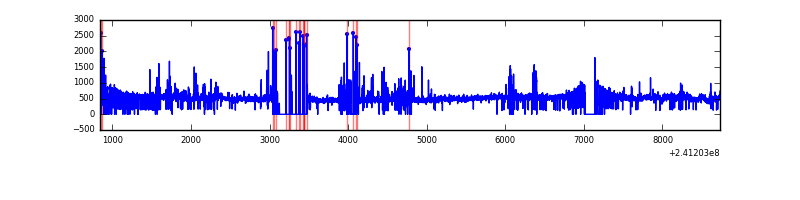

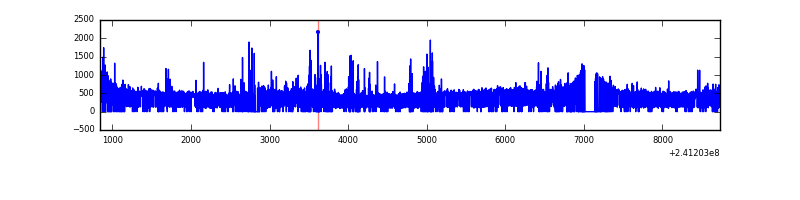

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7891 | 7451 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7891 | 7177 | 1 | 1 | 0.01% | 0.01% |  |
| C | 7890 | 7358 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7891 | 7186 | 22 | 22 | 0.28% | 0.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 49216 | 306.64 | 765 | 749 | 158.1 |
| A | 8 | 5 | 12761 | 76.0 | 765 | 749 | 158.1 |
| A | 0 | 226 | 7045 | 39.83 | 765 | 749 | 158.1 |
| B | 4 | 239 | 141855 | 985.96 | 733 | 716 | 143.1 |
| B | 11 | 51 | 78941 | 546.46 | 733 | 716 | 143.1 |
| B | 0 | 214 | 57939 | 399.74 | 733 | 716 | 143.1 |
| C | 4 | 254 | 151974 | 894.55 | 723 | 727 | 169.1 |
| C | 13 | 61 | 5626 | 28.98 | 723 | 727 | 169.1 |
| C | 8 | 222 | 2543 | 10.74 | 723 | 727 | 169.1 |
| D | 8 | 195 | 415928 | 2156.13 | 797 | 773 | 192.5 |
| D | 2 | 33 | 116789 | 602.53 | 797 | 773 | 192.5 |
| D | 12 | 233 | 106947 | 551.42 | 797 | 773 | 192.5 |

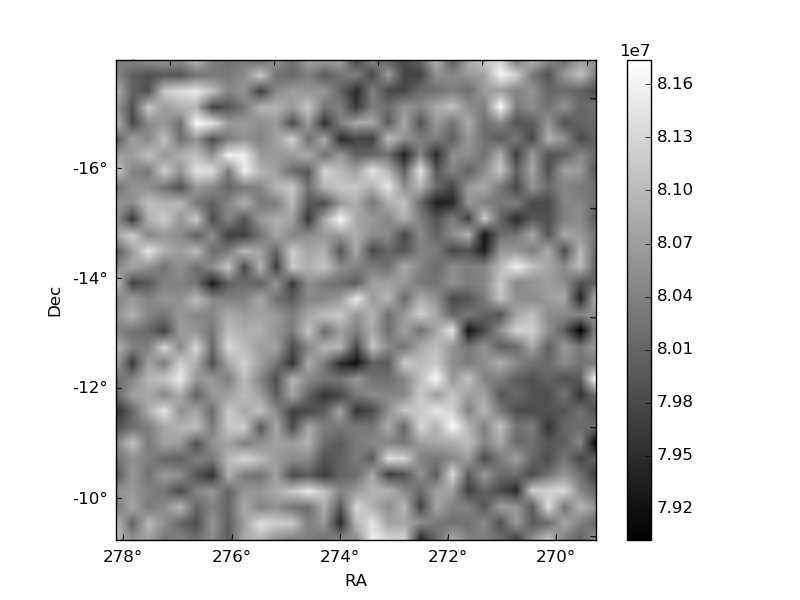

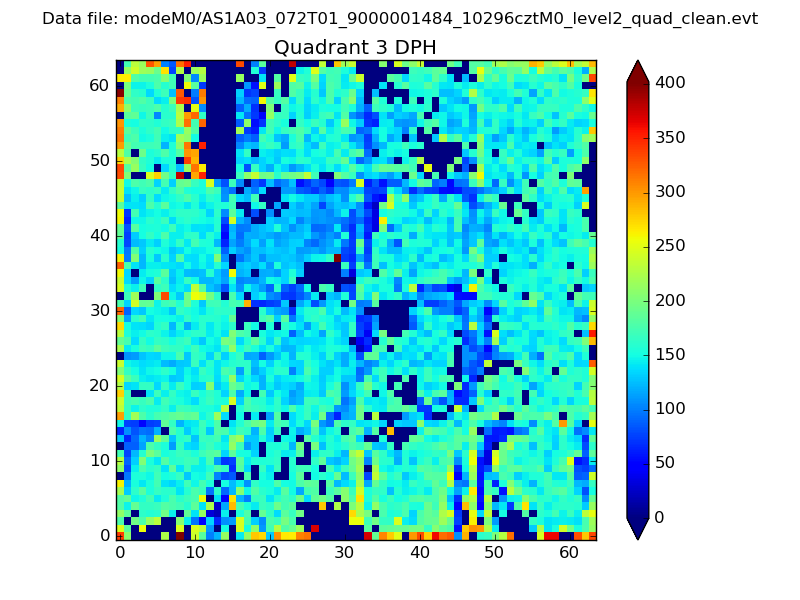

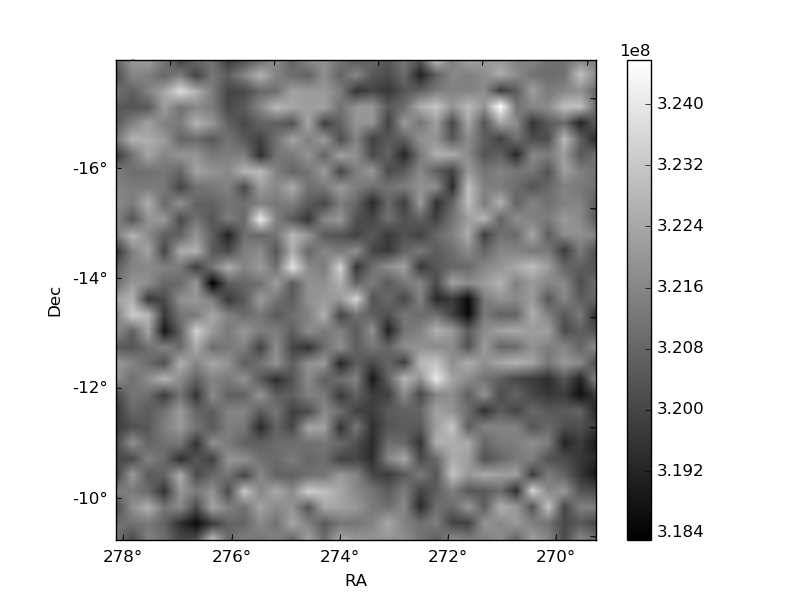

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

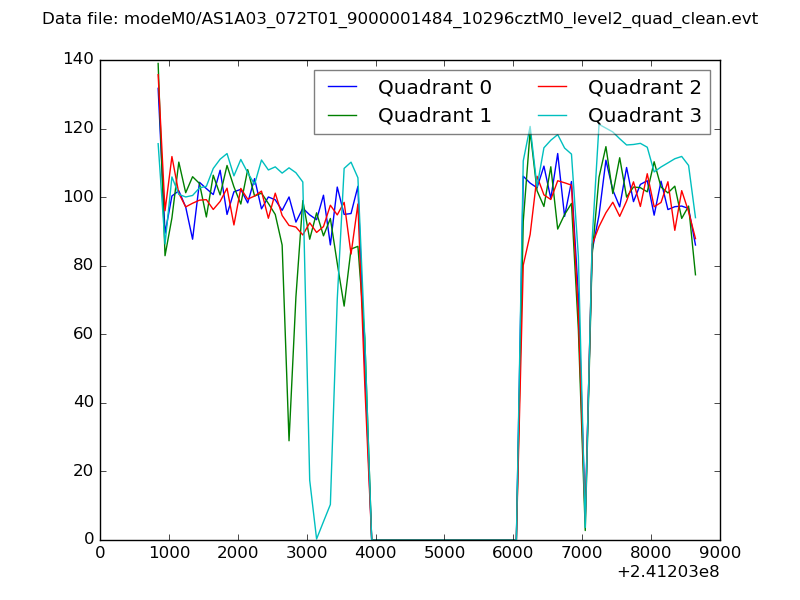

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

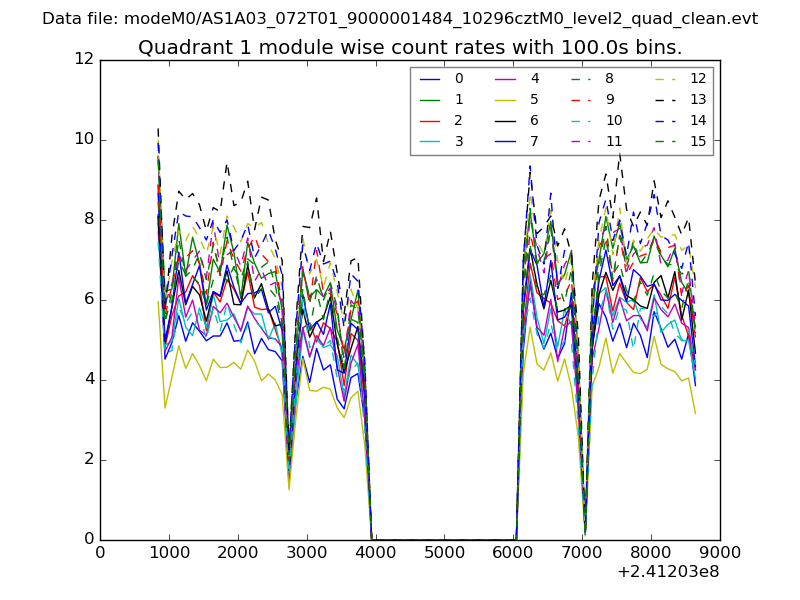

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

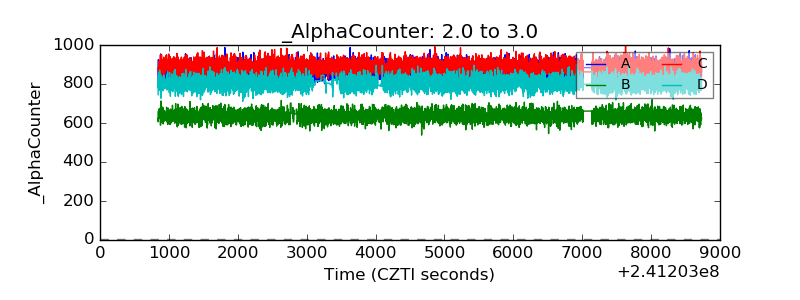

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
