| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_124T01_9000001486_10300cztM0_level2.evt | modeM0/AS1A03_124T01_9000001486_10300cztM0_level2_quad_clean.evt |
| Size (bytes) | 110,082,240 | 26,392,320 |
| Size | 105.0 MB | 25.2 MB |
| Events in quadrant A | 738,551 | 174,694 |
| Events in quadrant B | 1,001,773 | 173,225 |
| Events in quadrant C | 717,388 | 172,338 |
| Events in quadrant D | 769,371 | 165,435 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3183 | 2 |
| B | 0 | 3993 | 1 |
| C | 0 | 3182 | 1 |
| D | 0 | 3307 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1530 | 1 | 0.065359% |
| B | 1530 | 65 | 4.248366% |
| C | 1530 | 3 | 0.196078% |
| D | 1530 | 10 | 0.653595% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

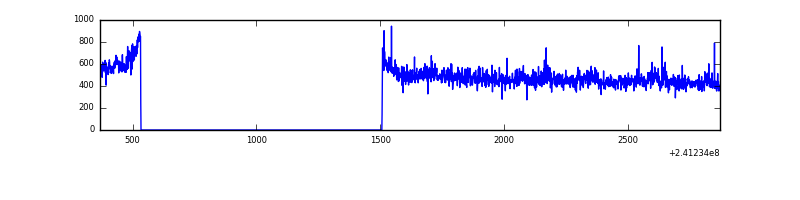

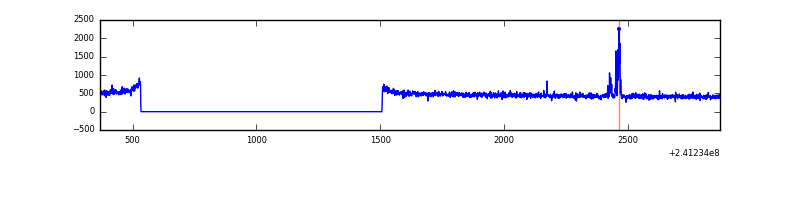

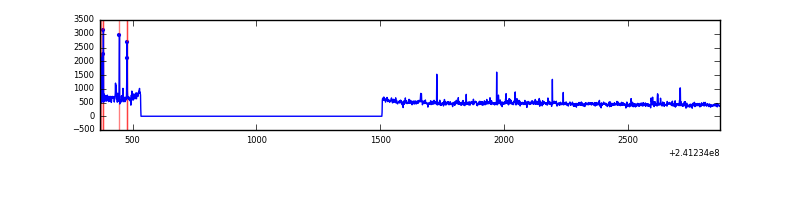

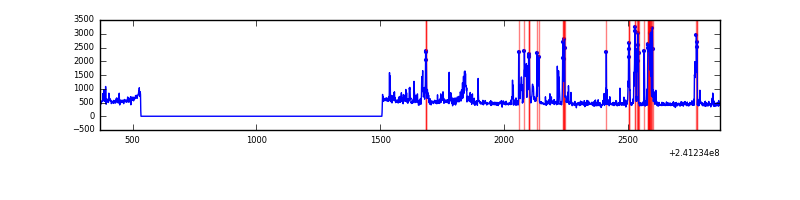

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2505 | 1531 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2505 | 1531 | 44 | 44 | 1.76% | 2.87% |  |
| C | 2505 | 1531 | 1 | 1 | 0.04% | 0.07% |  |
| D | 2505 | 1531 | 6 | 6 | 0.24% | 0.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 29335 | 747.24 | 182 | 178 | 39.0 |
| A | 3 | 1 | 2011 | 46.98 | 182 | 178 | 39.0 |
| A | 4 | 2 | 1932 | 44.95 | 182 | 178 | 39.0 |
| B | 4 | 239 | 265388 | 7181.0 | 183 | 179 | 36.9 |
| B | 0 | 197 | 8332 | 220.76 | 183 | 179 | 36.9 |
| B | 11 | 51 | 7705 | 203.78 | 183 | 179 | 36.9 |
| C | 12 | 4 | 18339 | 415.86 | 179 | 179 | 43.7 |
| C | 13 | 61 | 1343 | 26.64 | 179 | 179 | 43.7 |
| C | 7 | 159 | 492 | 7.16 | 179 | 179 | 43.7 |
| D | 8 | 195 | 51801 | 1175.03 | 175 | 170 | 43.9 |
| D | 7 | 71 | 14381 | 323.42 | 175 | 170 | 43.9 |
| D | 13 | 104 | 13463 | 302.52 | 175 | 170 | 43.9 |

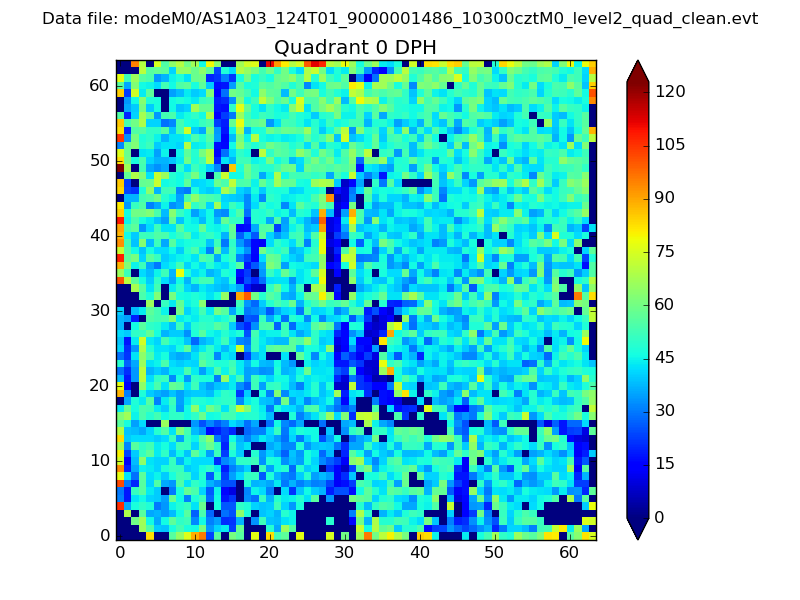

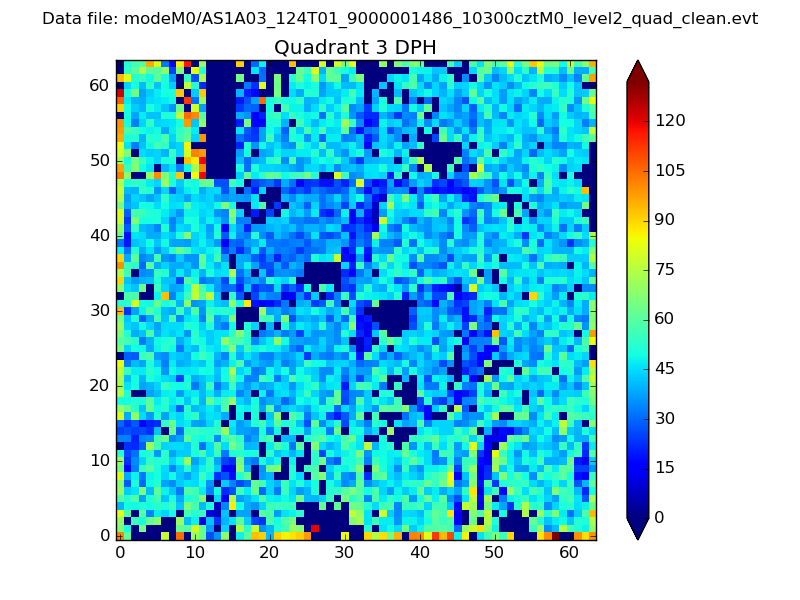

Histogram calculated using DETX and DETY for each event in the final _common_clean file

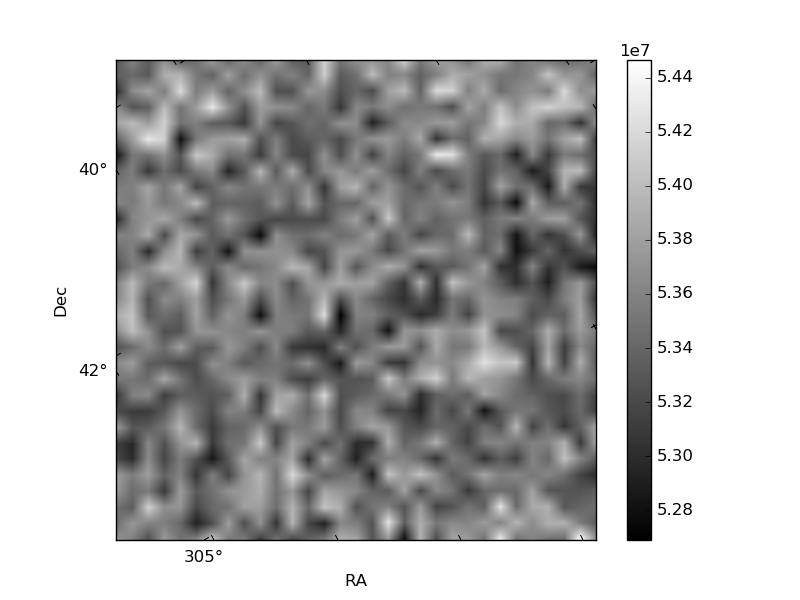

| Quadrant A |  |
 |

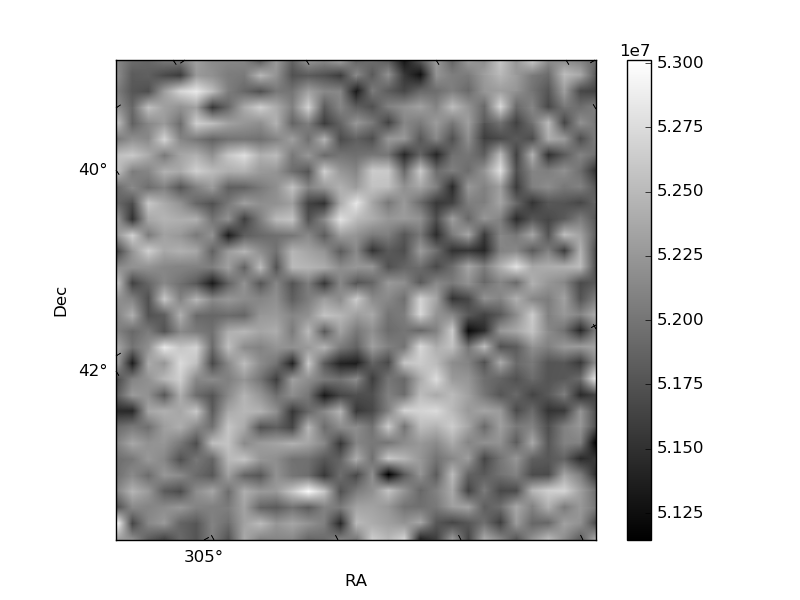

Quadrant B |
|---|---|---|---|

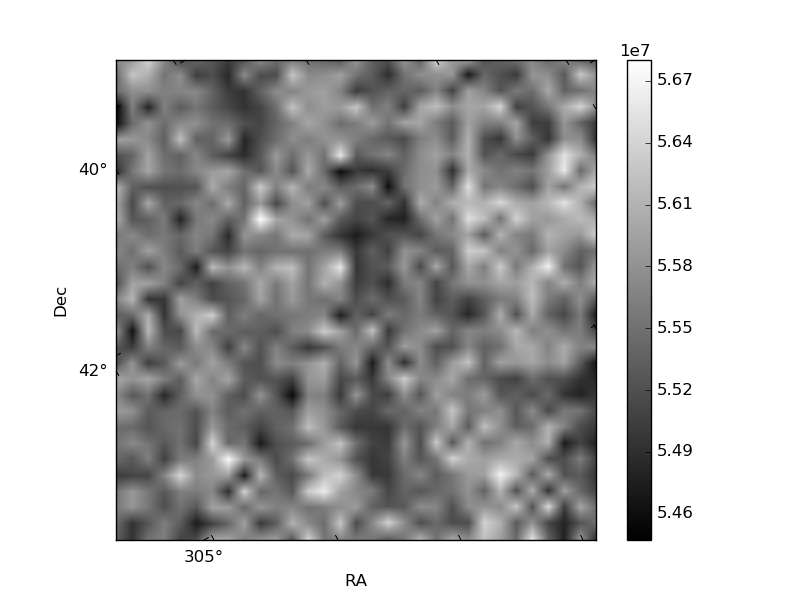

| Quadrant D |  |
 |

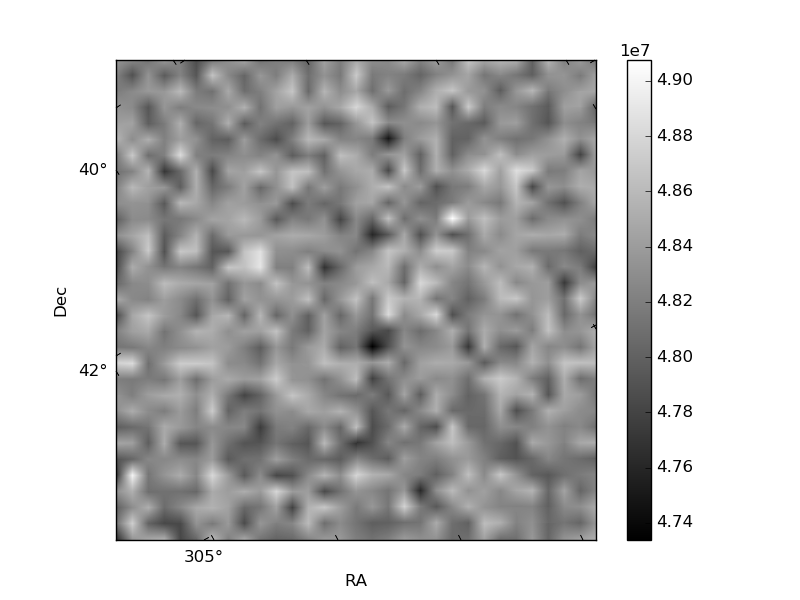

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

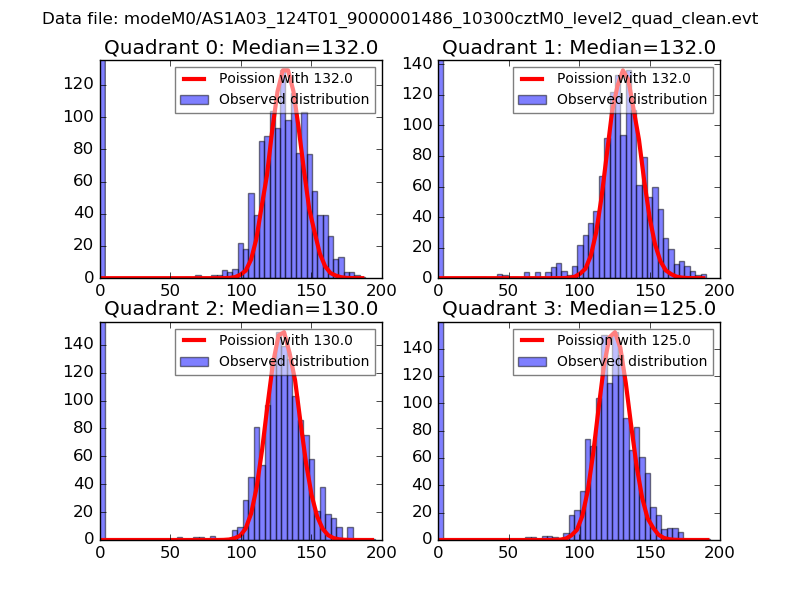

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

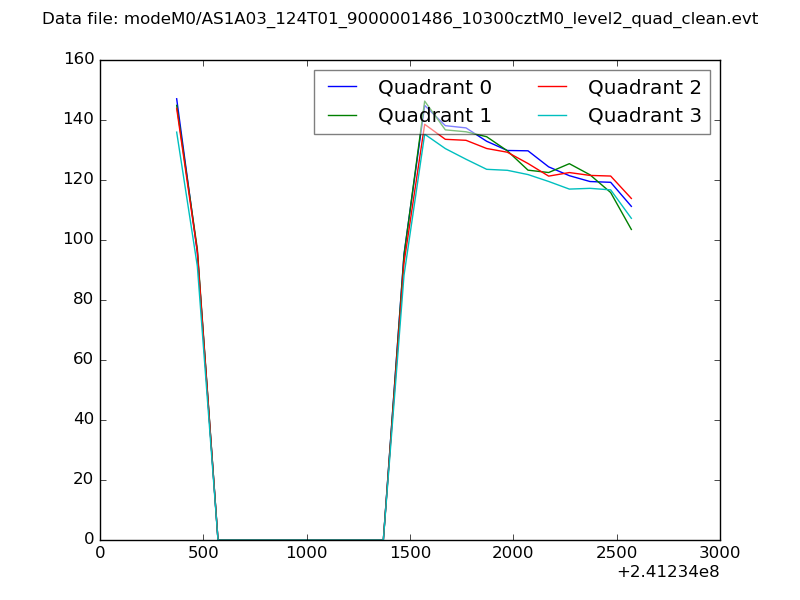

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

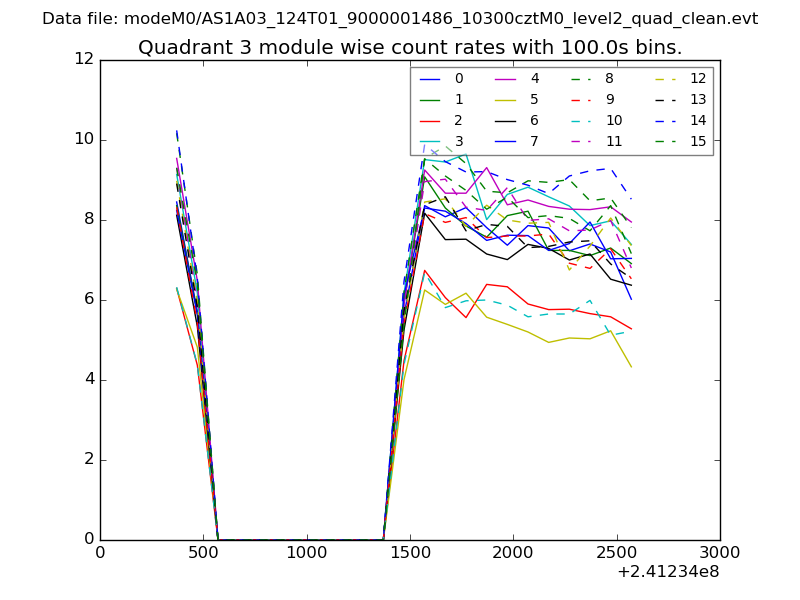

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

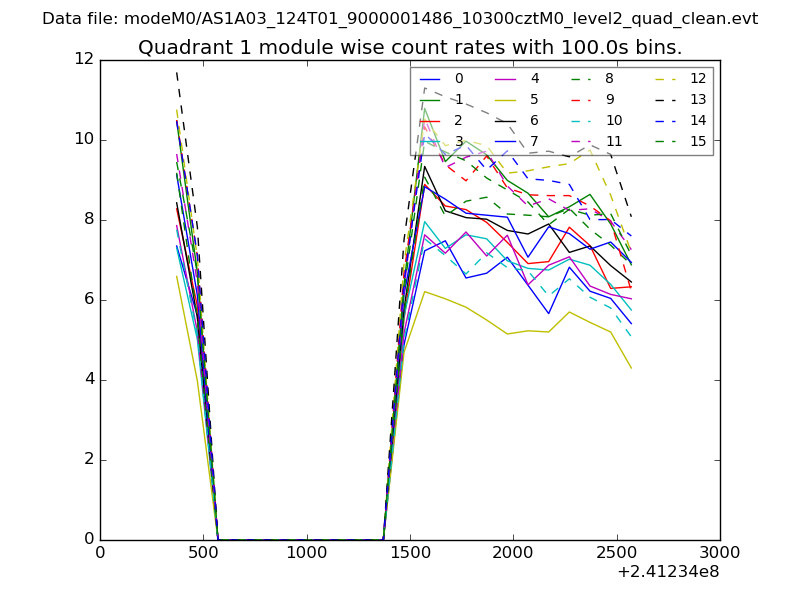

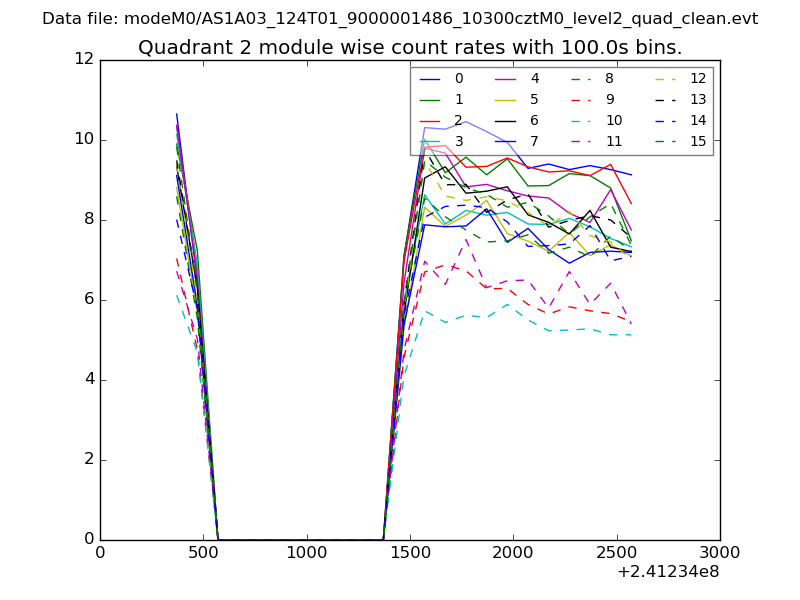

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

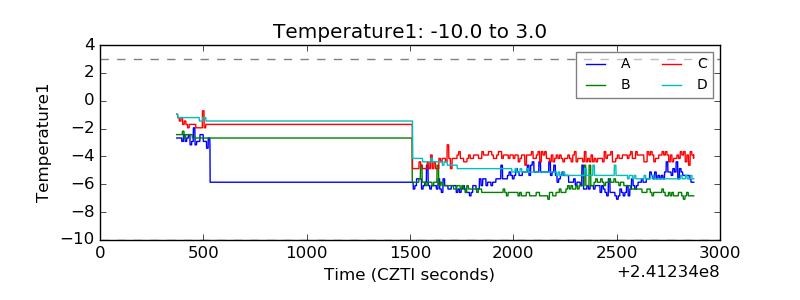

| Temperature 1 |  |
| Veto HV Monitor |  |

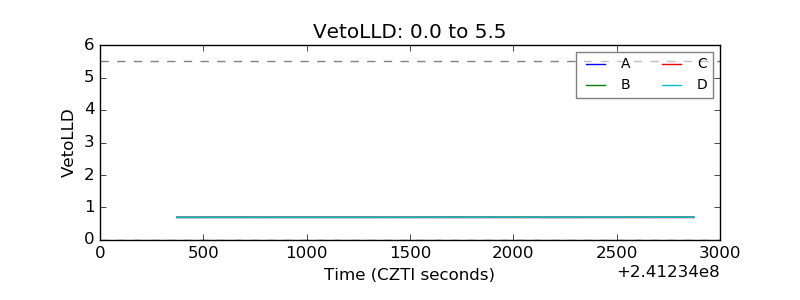

| Veto LLD |  |

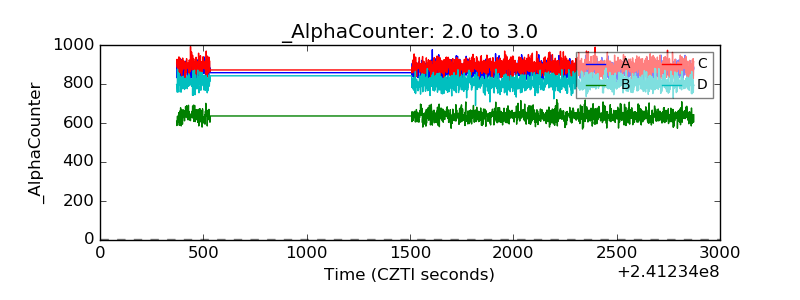

| Alpha Counter |  |

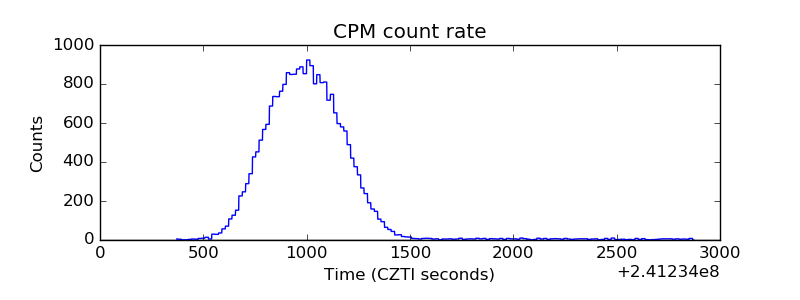

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

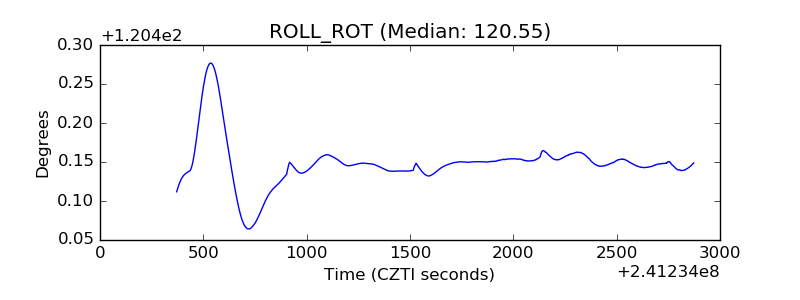

| _ROLL_ROT |  |

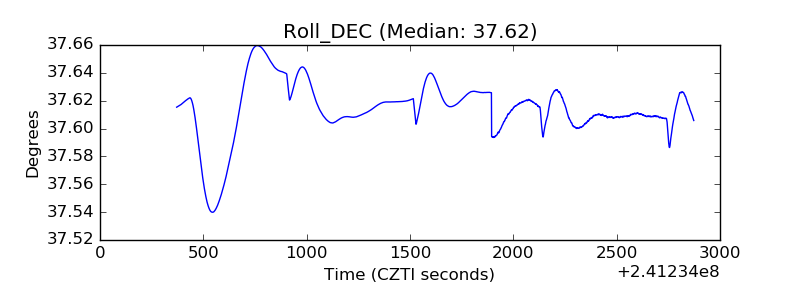

| _Roll_DEC |  |
| _Roll_RA |  |

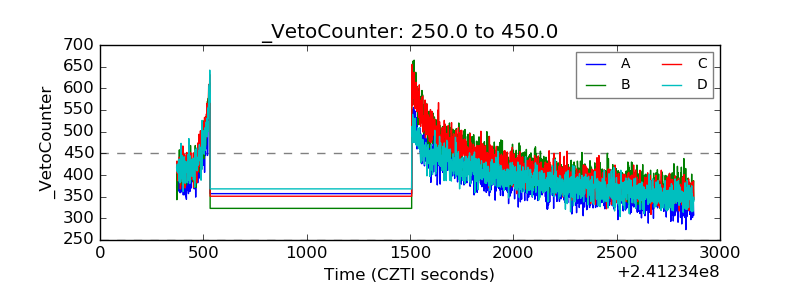

| Veto Counter |  |
