| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_124T01_9000001486_10311cztM0_level2.evt | modeM0/AS1A03_124T01_9000001486_10311cztM0_level2_quad_clean.evt |
| Size (bytes) | 991,941,120 | 187,205,760 |
| Size | 946.0 MB | 178.5 MB |
| Events in quadrant A | 6,999,532 | 1,150,919 |
| Events in quadrant B | 7,017,790 | 1,106,253 |
| Events in quadrant C | 6,611,321 | 1,145,984 |
| Events in quadrant D | 8,403,970 | 1,241,773 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 105022 | 74727 |
| B | 0 | 125461 | 95388 |
| C | 0 | 109316 | 79201 |
| D | 0 | 113379 | 77725 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 12 |
| B | 0 | 20 | 13 |
| C | 0 | 20 | 13 |
| D | 0 | 20 | 13 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1063 | 735 |
| B | 0 | 1064 | 751 |
| C | 0 | 1064 | 739 |
| D | 0 | 1016 | 696 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 14505 | 185 | 1.275422% |
| B | 13709 | 195 | 1.422423% |
| C | 14556 | 106 | 0.728222% |
| D | 16549 | 137 | 0.827845% |

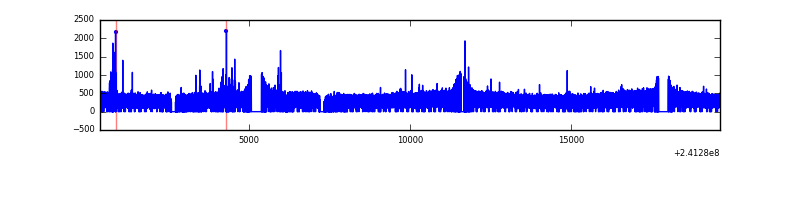

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19260 | 17314 | 0 | 0 | 0.00% | 0.00% |  |
| B | 19259 | 16566 | 6 | 6 | 0.03% | 0.04% |  |
| C | 19259 | 17290 | 2 | 2 | 0.01% | 0.01% |  |
| D | 19260 | 17586 | 15 | 15 | 0.08% | 0.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 316009 | 913.64 | 1697 | 1657 | 344.1 |
| A | 8 | 5 | 105846 | 302.82 | 1697 | 1657 | 344.1 |
| A | 3 | 1 | 25720 | 69.94 | 1697 | 1657 | 344.1 |
| B | 4 | 239 | 630817 | 2060.23 | 1603 | 1561 | 305.4 |
| B | 11 | 51 | 71829 | 230.06 | 1603 | 1561 | 305.4 |
| B | 0 | 214 | 50920 | 161.6 | 1603 | 1561 | 305.4 |
| C | 4 | 254 | 104086 | 265.5 | 1662 | 1672 | 385.7 |
| C | 13 | 61 | 12584 | 28.29 | 1662 | 1672 | 385.7 |
| C | 14 | 234 | 7544 | 15.22 | 1662 | 1672 | 385.7 |
| D | 8 | 195 | 466700 | 1029.87 | 1876 | 1823 | 451.4 |
| D | 2 | 16 | 214814 | 471.85 | 1876 | 1823 | 451.4 |
| D | 12 | 233 | 159295 | 348.86 | 1876 | 1823 | 451.4 |

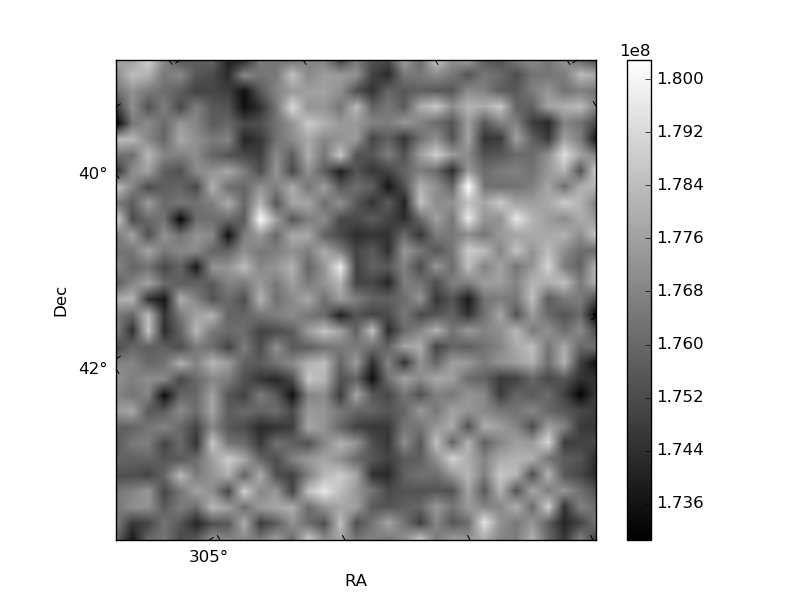

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

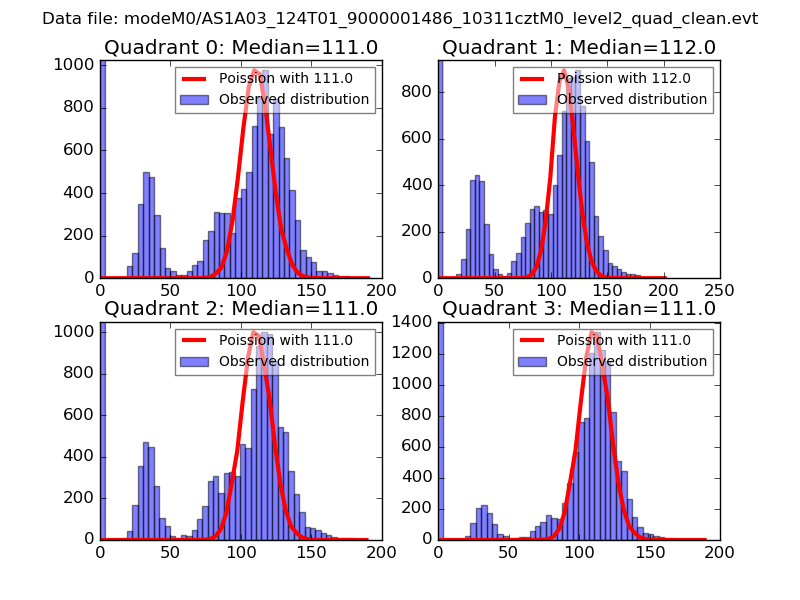

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

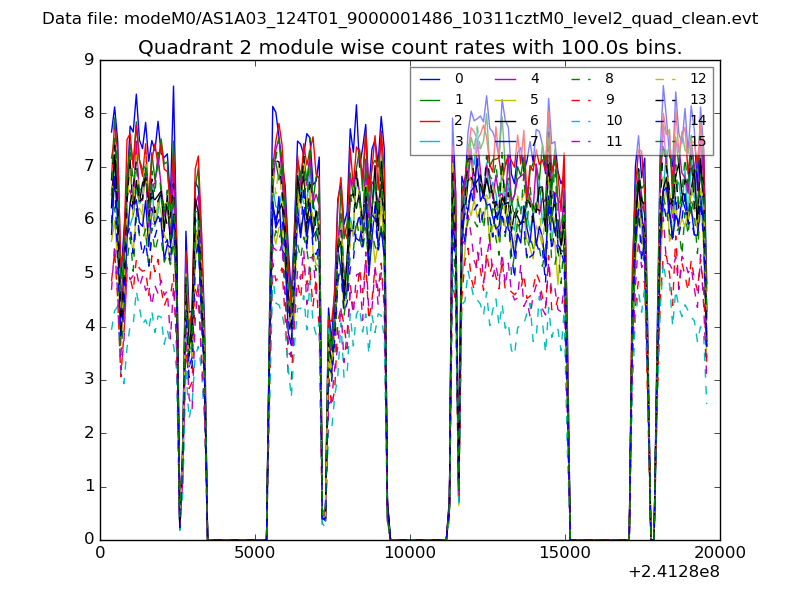

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

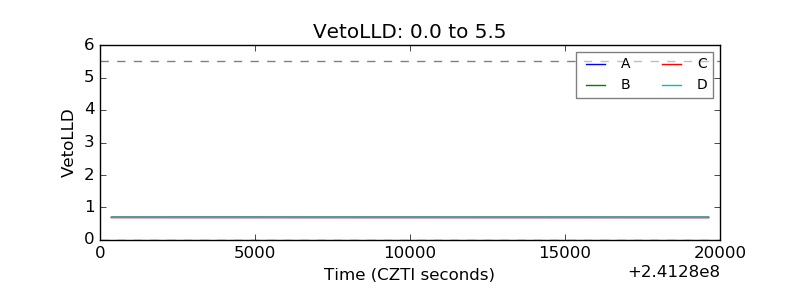

| Veto LLD |  |

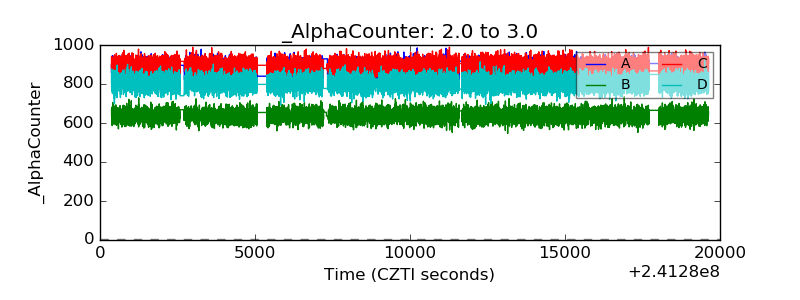

| Alpha Counter |  |
| _CPM_Rate |  |

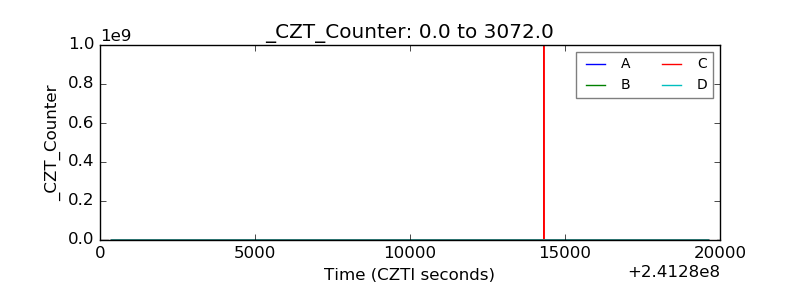

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

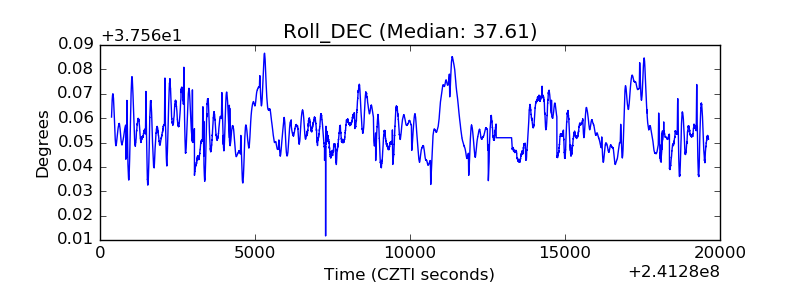

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
