| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_124T01_9000001486_10320cztM0_level2.evt | modeM0/AS1A03_124T01_9000001486_10320cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,420,480 | 67,236,480 |
| Size | 446.7 MB | 64.1 MB |
| Events in quadrant A | 3,283,200 | 412,741 |
| Events in quadrant B | 3,634,932 | 414,260 |
| Events in quadrant C | 3,064,449 | 399,872 |
| Events in quadrant D | 3,790,239 | 383,803 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13294 | 7 |
| B | 0 | 14411 | 4 |
| C | 0 | 12843 | 2 |
| D | 0 | 15118 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6086 | 90 | 1.478804% |
| B | 6087 | 190 | 3.121406% |
| C | 6088 | 49 | 0.804862% |
| D | 6086 | 135 | 2.218206% |

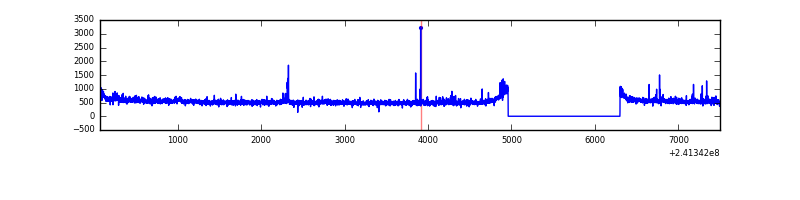

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7428 | 6089 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7428 | 6088 | 53 | 53 | 0.71% | 0.87% |  |
| C | 7428 | 6089 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7428 | 6089 | 135 | 135 | 1.82% | 2.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 88380 | 547.36 | 809 | 797 | 160.0 |
| A | 8 | 5 | 42204 | 258.78 | 809 | 797 | 160.0 |
| A | 13 | 251 | 27880 | 169.26 | 809 | 797 | 160.0 |
| B | 4 | 239 | 319948 | 2150.05 | 801 | 784 | 148.4 |
| B | 11 | 51 | 93742 | 626.21 | 801 | 784 | 148.4 |
| B | 0 | 214 | 46620 | 308.77 | 801 | 784 | 148.4 |
| C | 4 | 254 | 38922 | 217.18 | 769 | 775 | 175.6 |
| C | 14 | 234 | 28708 | 159.03 | 769 | 775 | 175.6 |
| C | 13 | 61 | 5736 | 28.24 | 769 | 775 | 175.6 |
| D | 1 | 52 | 590248 | 3259.98 | 766 | 747 | 180.8 |
| D | 8 | 195 | 157571 | 867.25 | 766 | 747 | 180.8 |
| D | 2 | 136 | 47369 | 257.82 | 766 | 747 | 180.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

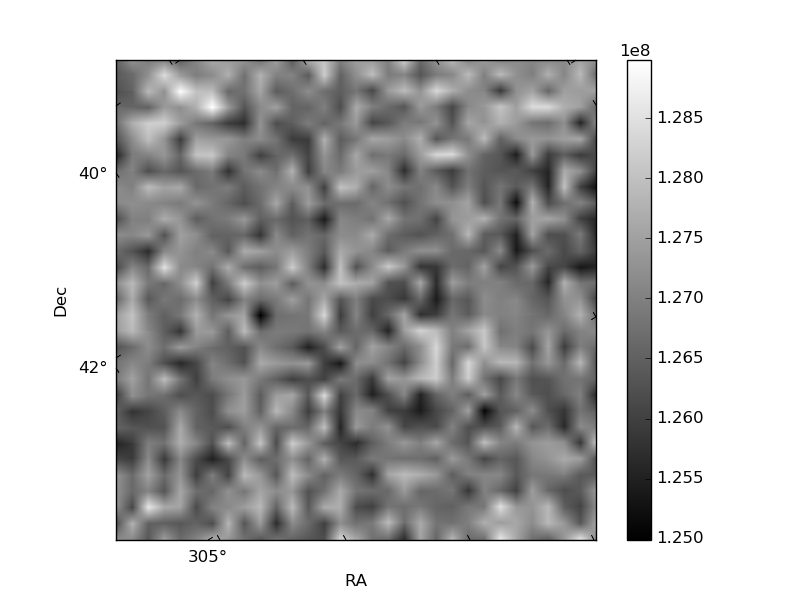

| Quadrant D |  |
 |

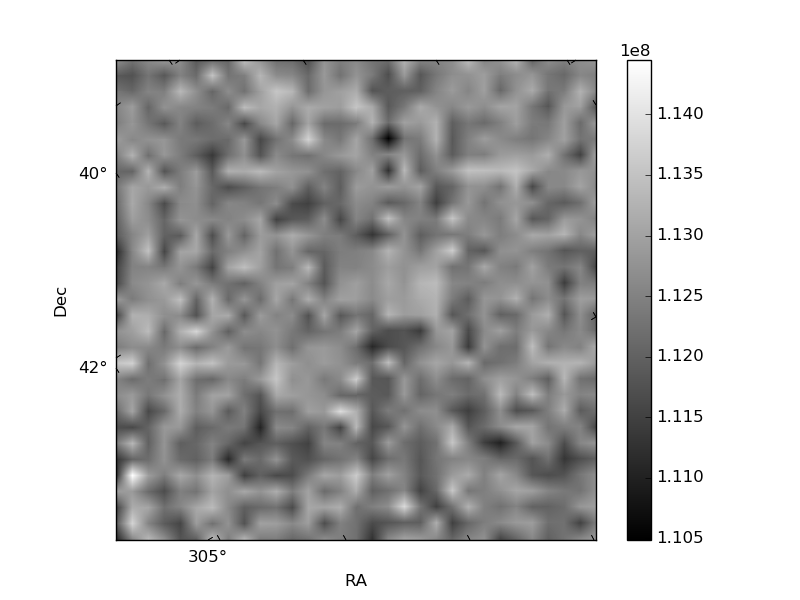

Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

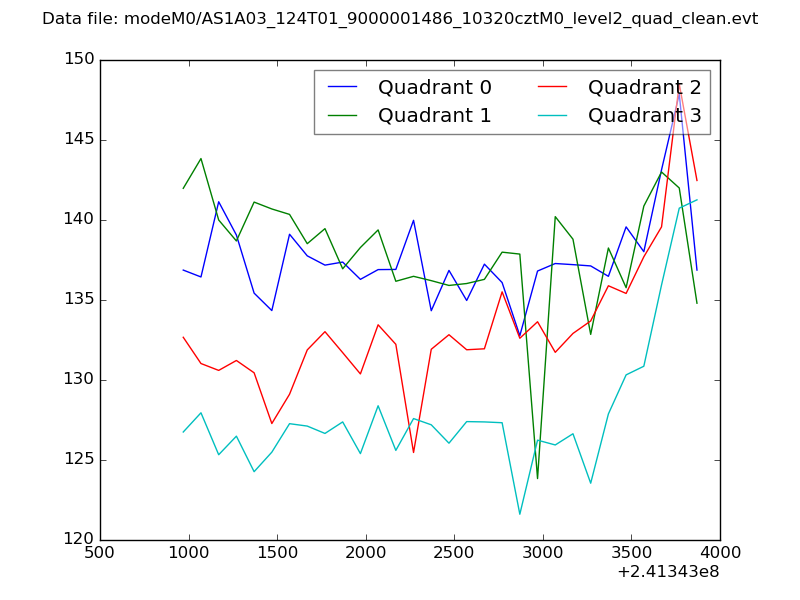

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

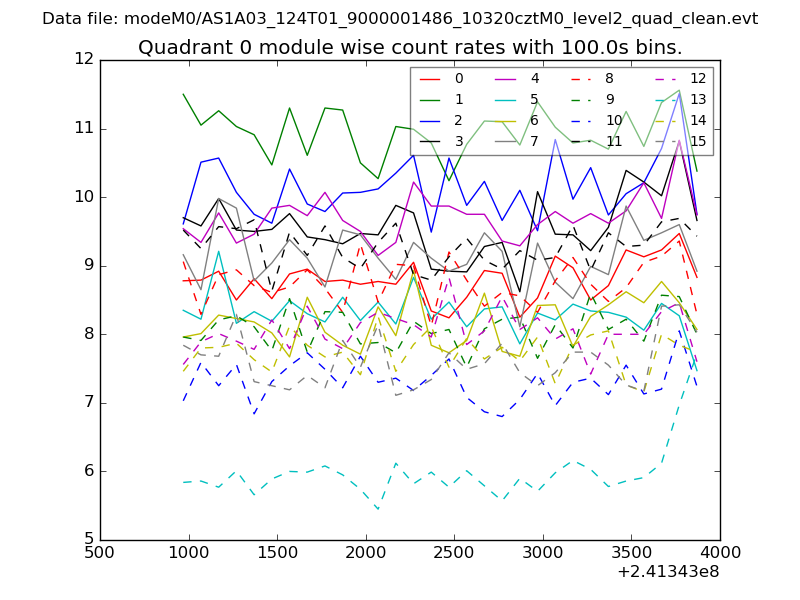

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

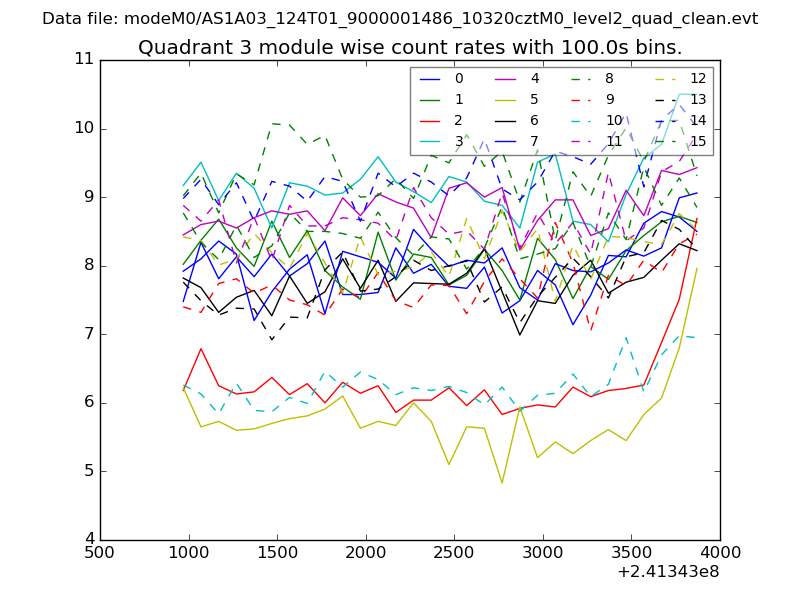

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

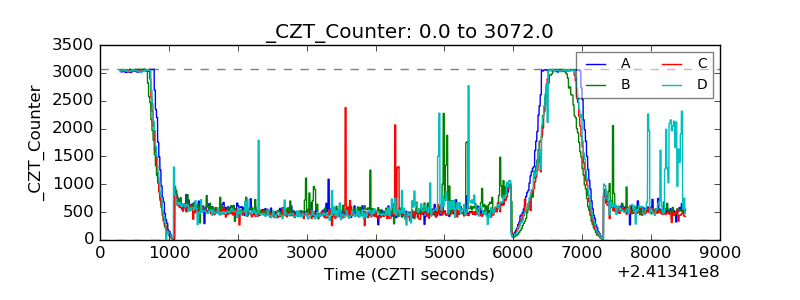

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

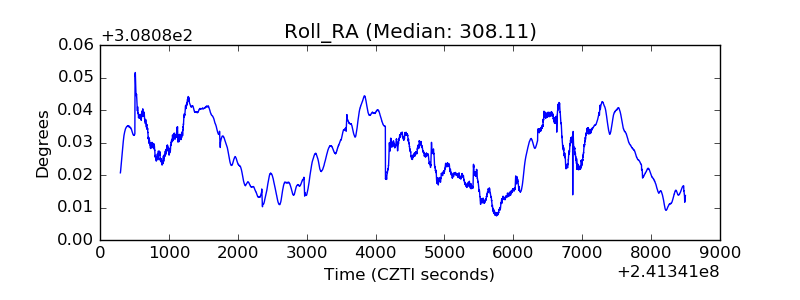

| _Roll_RA |  |
| Veto Counter |  |
