| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_112T01_9000001488_10334cztM0_level2.evt | modeM0/AS1A03_112T01_9000001488_10334cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,474,240 | 98,769,600 |
| Size | 461.1 MB | 94.2 MB |
| Events in quadrant A | 3,572,069 | 644,937 |
| Events in quadrant B | 3,405,509 | 654,747 |
| Events in quadrant C | 3,135,721 | 650,943 |
| Events in quadrant D | 4,107,503 | 607,295 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14444 | 45 |
| B | 0 | 13912 | 40 |
| C | 0 | 13200 | 59 |
| D | 0 | 16029 | 37 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6207 | 90 | 1.449976% |
| B | 6209 | 133 | 2.142052% |
| C | 6199 | 77 | 1.242136% |
| D | 6211 | 249 | 4.009016% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7515 | 6224 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7515 | 6225 | 19 | 19 | 0.25% | 0.31% |  |
| C | 7515 | 6224 | 8 | 8 | 0.11% | 0.13% |  |
| D | 7515 | 6225 | 146 | 146 | 1.94% | 2.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 442155 | 2758.89 | 802 | 785 | 160.0 |
| A | 13 | 251 | 33122 | 202.13 | 802 | 785 | 160.0 |
| A | 3 | 1 | 10585 | 61.26 | 802 | 785 | 160.0 |
| B | 4 | 239 | 176441 | 1194.21 | 791 | 775 | 147.1 |
| B | 11 | 51 | 72612 | 488.36 | 791 | 775 | 147.1 |
| B | 0 | 214 | 32689 | 216.96 | 791 | 775 | 147.1 |
| C | 4 | 254 | 33173 | 179.76 | 790 | 796 | 180.1 |
| C | 14 | 234 | 20531 | 109.57 | 790 | 796 | 180.1 |
| C | 13 | 61 | 5917 | 28.43 | 790 | 796 | 180.1 |
| D | 1 | 52 | 307693 | 1693.2 | 773 | 754 | 181.3 |
| D | 14 | 34 | 197737 | 1086.64 | 773 | 754 | 181.3 |
| D | 1 | 20 | 176958 | 972.01 | 773 | 754 | 181.3 |

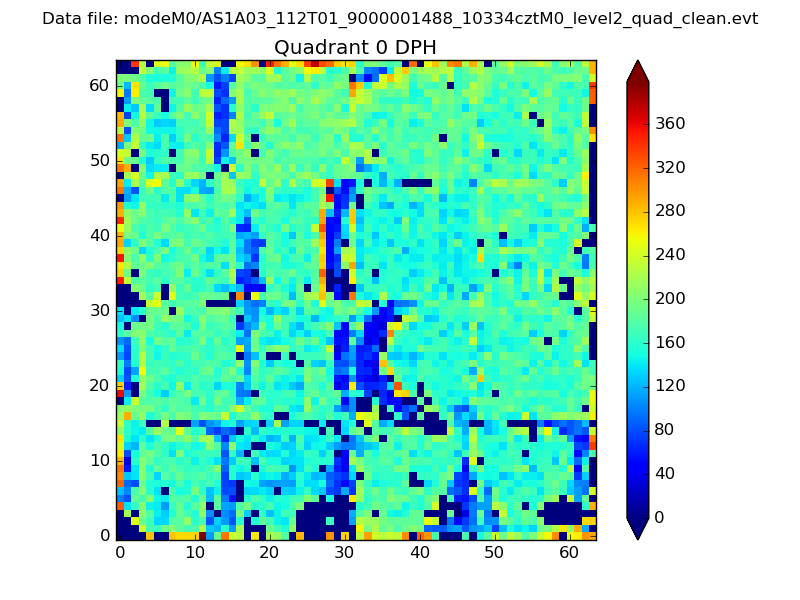

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

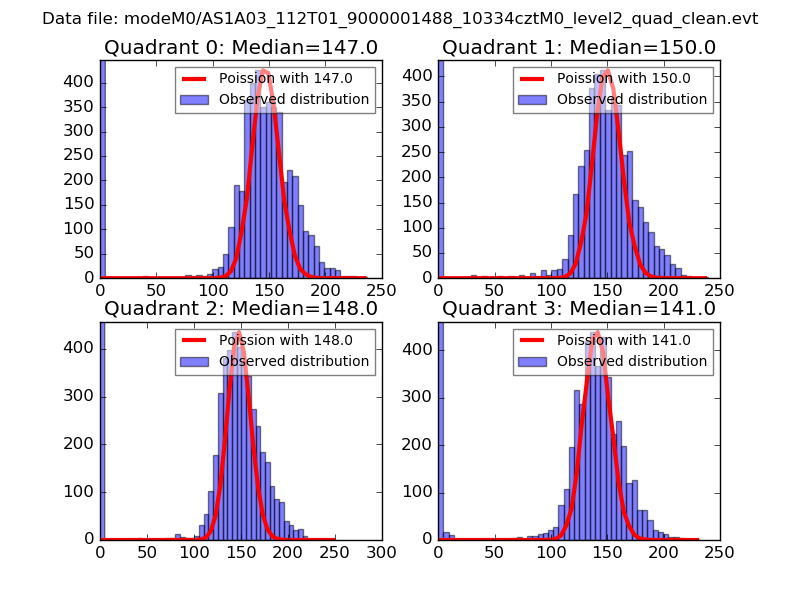

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

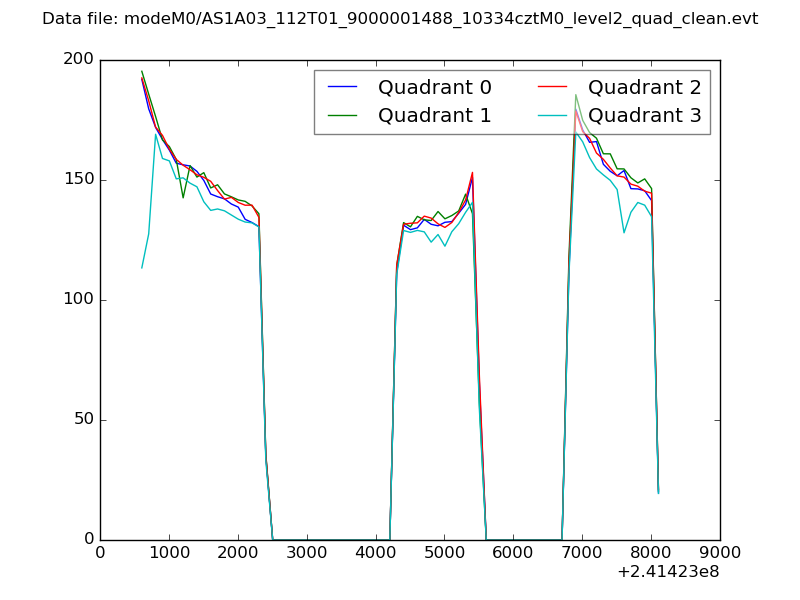

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

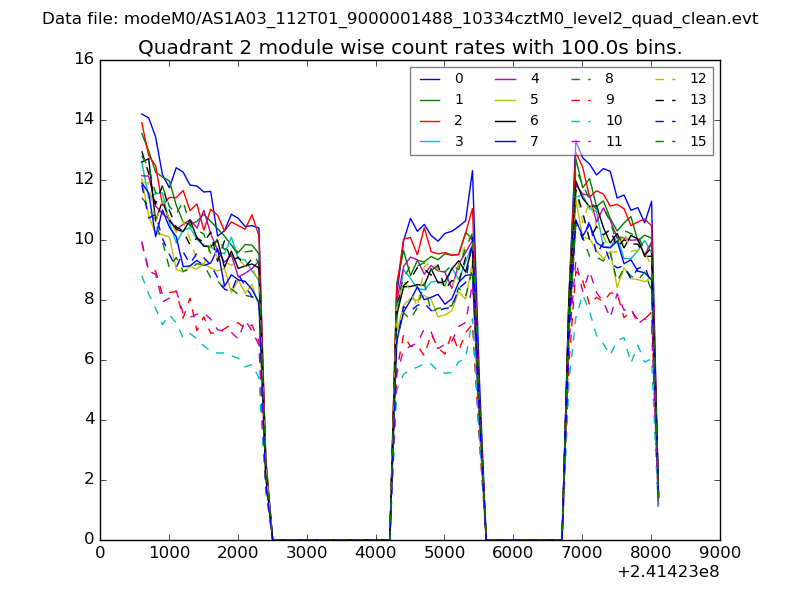

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

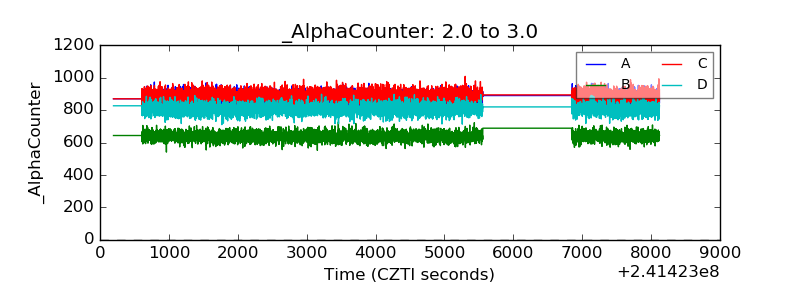

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

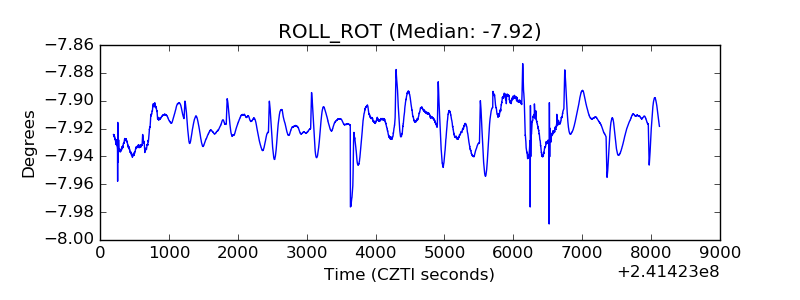

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

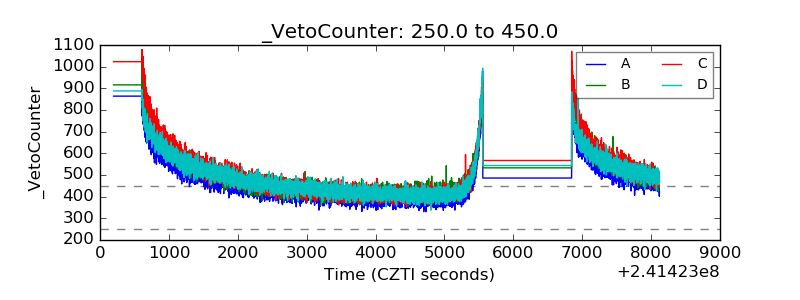

| Veto Counter |  |
