| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_045T02_9000001492_10353cztM0_level2.evt | modeM0/AS1C02_045T02_9000001492_10353cztM0_level2_quad_clean.evt |
| Size (bytes) | 126,518,400 | 21,568,320 |
| Size | 120.7 MB | 20.6 MB |
| Events in quadrant A | 867,719 | 127,244 |
| Events in quadrant B | 934,041 | 127,459 |
| Events in quadrant C | 855,055 | 132,137 |
| Events in quadrant D | 1,052,869 | 137,782 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10253 | 6607 |
| B | 0 | 11927 | 8166 |
| C | 0 | 10354 | 6669 |
| D | 0 | 11655 | 7414 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 1 |
| B | 0 | 4 | 2 |
| C | 0 | 4 | 2 |
| D | 0 | 4 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 103 | 66 |
| B | 0 | 104 | 73 |
| C | 0 | 104 | 67 |
| D | 0 | 101 | 60 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1722 | 43 | 2.497096% |
| B | 1635 | 68 | 4.159021% |
| C | 1758 | 19 | 1.080774% |
| D | 1876 | 47 | 2.505330% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2726 | 2204 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2732 | 2116 | 3 | 3 | 0.11% | 0.14% |  |
| C | 2734 | 2221 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2733 | 2232 | 3 | 3 | 0.11% | 0.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 12389 | 260.55 | 219 | 214 | 46.7 |
| A | 4 | 2 | 4586 | 93.56 | 219 | 214 | 46.7 |
| A | 13 | 251 | 2874 | 56.93 | 219 | 214 | 46.7 |
| B | 4 | 239 | 53309 | 1269.83 | 204 | 199 | 41.8 |
| B | 3 | 208 | 40666 | 967.55 | 204 | 199 | 41.8 |
| B | 11 | 51 | 31630 | 751.5 | 204 | 199 | 41.8 |
| C | 13 | 61 | 1578 | 26.16 | 218 | 219 | 52.0 |
| C | 4 | 175 | 1008 | 15.19 | 218 | 219 | 52.0 |
| C | 14 | 234 | 905 | 13.2 | 218 | 219 | 52.0 |
| D | 8 | 195 | 85541 | 1530.19 | 230 | 223 | 55.8 |
| D | 2 | 33 | 46895 | 837.07 | 230 | 223 | 55.8 |
| D | 13 | 104 | 15791 | 279.21 | 230 | 223 | 55.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

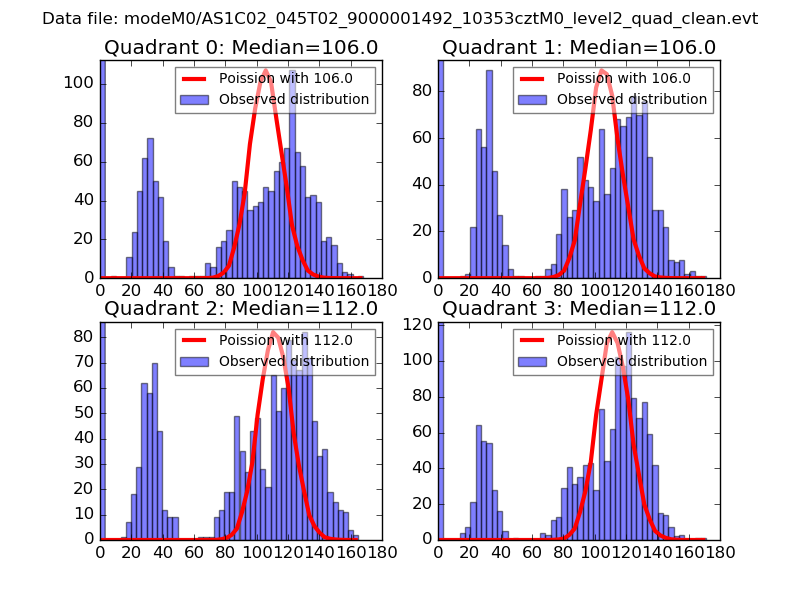

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

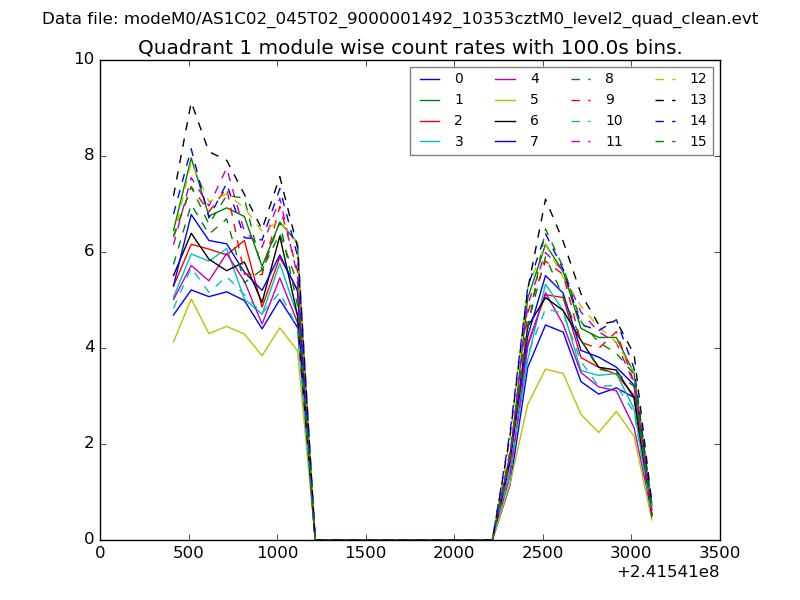

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

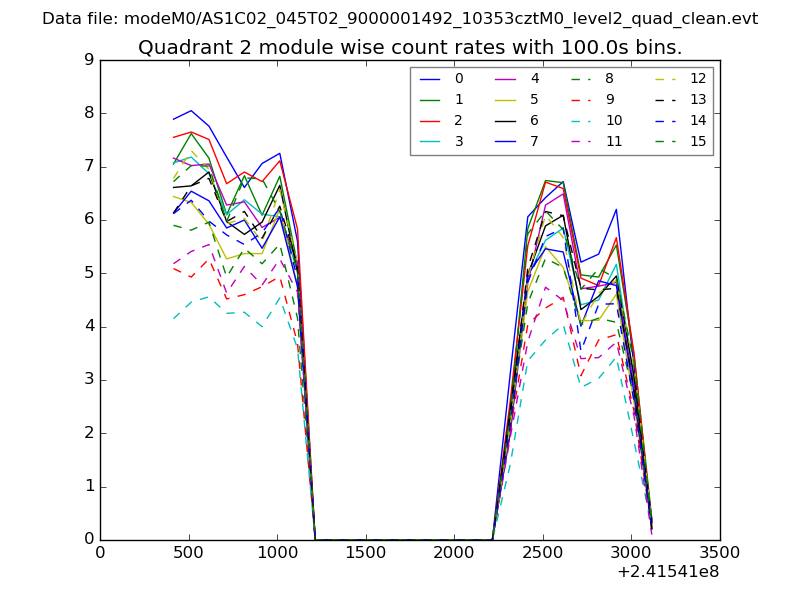

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

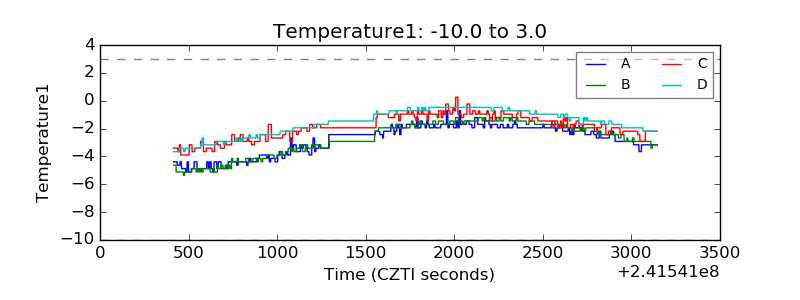

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

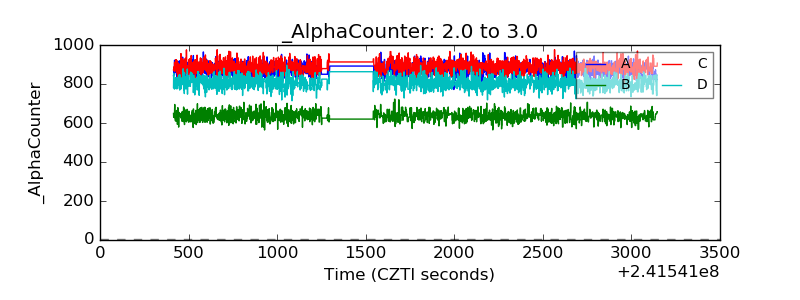

| Alpha Counter |  |

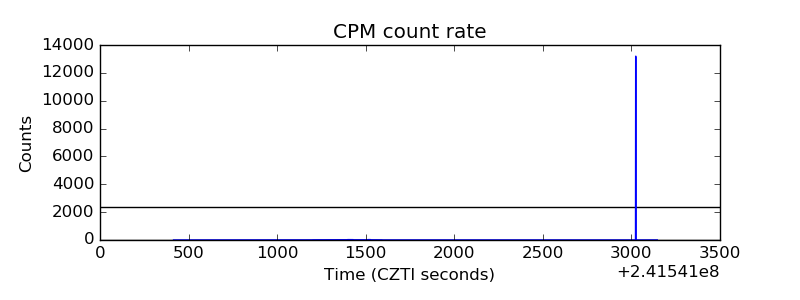

| _CPM_Rate |  |

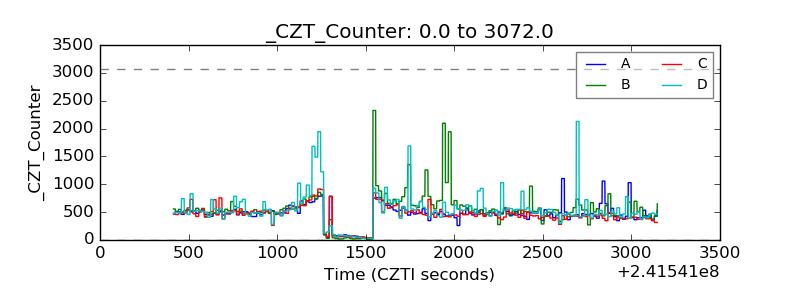

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

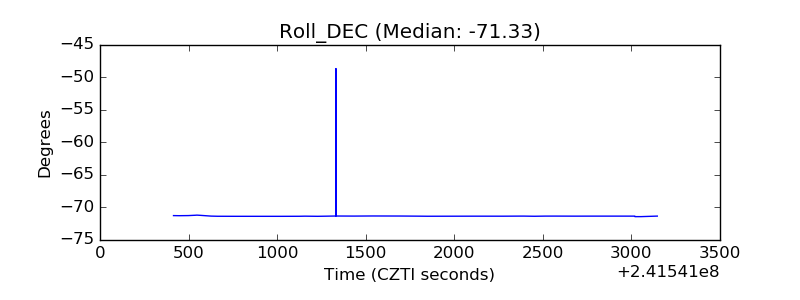

| _Roll_RA |  |
| Veto Counter |  |
