| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_048T01_9000001494_10358cztM0_level2.evt | modeM0/AS1G07_048T01_9000001494_10358cztM0_level2_quad_clean.evt |
| Size (bytes) | 243,884,160 | 50,189,760 |
| Size | 232.6 MB | 47.9 MB |
| Events in quadrant A | 1,666,059 | 328,591 |
| Events in quadrant B | 1,719,856 | 307,086 |
| Events in quadrant C | 1,678,980 | 326,226 |
| Events in quadrant D | 2,069,722 | 298,793 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25606 | 18136 |
| B | 0 | 29695 | 22224 |
| C | 0 | 26681 | 19168 |
| D | 0 | 30792 | 22302 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 16 |
| B | 0 | 30 | 18 |
| C | 0 | 30 | 19 |
| D | 0 | 26 | 14 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 260 | 177 |
| B | 0 | 262 | 190 |
| C | 0 | 262 | 198 |
| D | 0 | 251 | 192 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3694 | 18 | 0.487277% |
| B | 3534 | 15 | 0.424448% |
| C | 3724 | 10 | 0.268528% |
| D | 3721 | 10 | 0.268745% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7551 | 5015 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7570 | 4823 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7553 | 5020 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7570 | 4943 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 3878 | 38.9 | 431 | 422 | 88.9 |
| A | 12 | 194 | 3491 | 34.54 | 431 | 422 | 88.9 |
| A | 13 | 253 | 2993 | 28.94 | 431 | 422 | 88.9 |
| B | 0 | 214 | 34154 | 415.17 | 413 | 401 | 81.3 |
| B | 4 | 239 | 31765 | 385.79 | 413 | 401 | 81.3 |
| B | 11 | 51 | 24217 | 292.94 | 413 | 401 | 81.3 |
| C | 14 | 234 | 5134 | 46.92 | 426 | 430 | 100.3 |
| C | 8 | 128 | 5047 | 46.05 | 426 | 430 | 100.3 |
| C | 13 | 61 | 3170 | 27.33 | 426 | 430 | 100.3 |
| D | 8 | 195 | 262742 | 2617.53 | 416 | 406 | 100.2 |
| D | 12 | 233 | 55838 | 553.09 | 416 | 406 | 100.2 |
| D | 1 | 52 | 47735 | 472.24 | 416 | 406 | 100.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

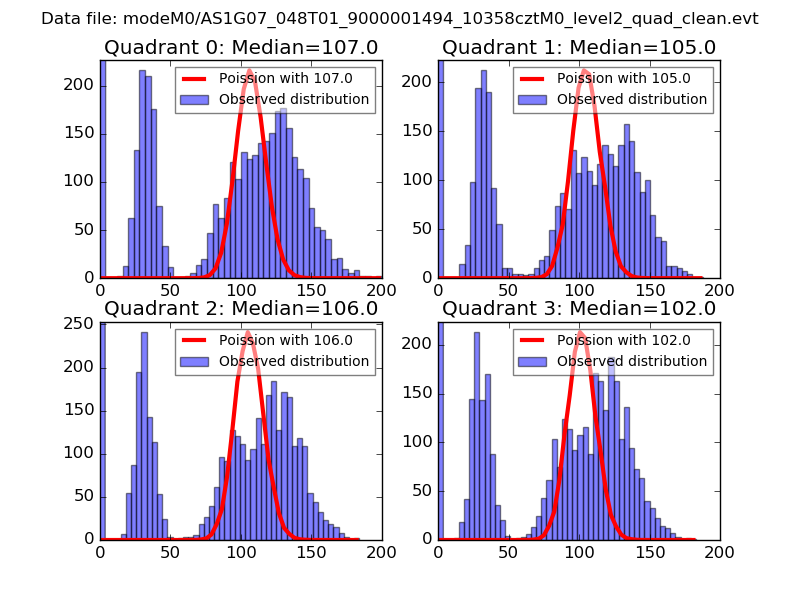

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

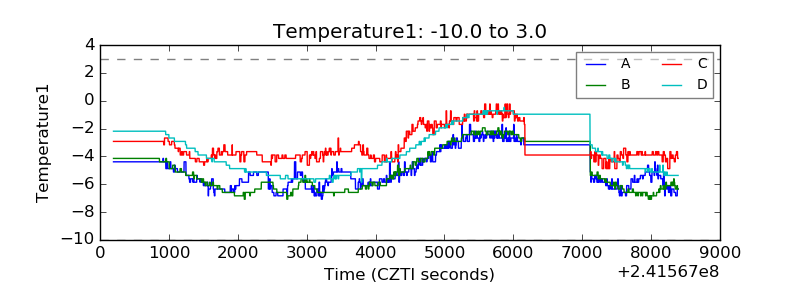

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

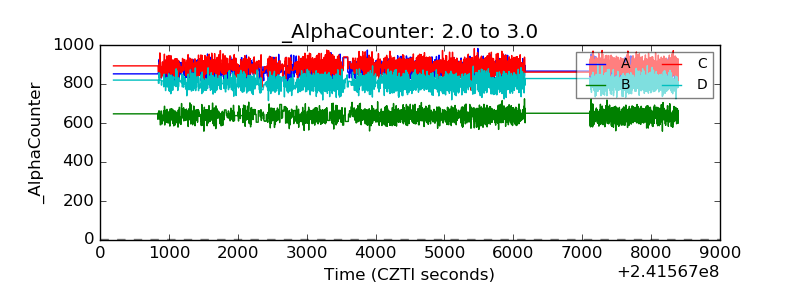

| Alpha Counter |  |
| _CPM_Rate |  |

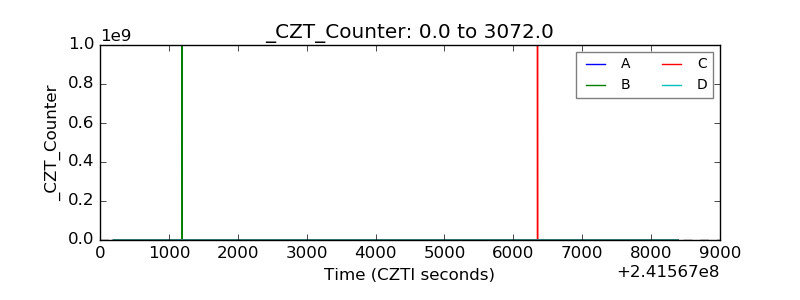

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

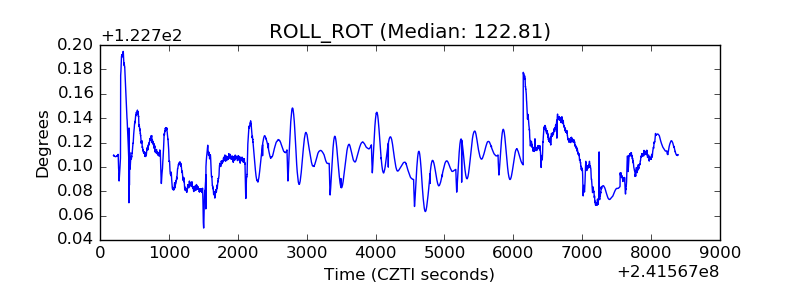

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
