| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_048T01_9000001494_10360cztM0_level2.evt | modeM0/AS1G07_048T01_9000001494_10360cztM0_level2_quad_clean.evt |
| Size (bytes) | 334,272,960 | 63,198,720 |
| Size | 318.8 MB | 60.3 MB |
| Events in quadrant A | 2,146,920 | 410,536 |
| Events in quadrant B | 2,271,743 | 393,320 |
| Events in quadrant C | 2,190,445 | 420,259 |
| Events in quadrant D | 3,193,442 | 360,045 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25310 | 15589 |
| B | 0 | 28899 | 19001 |
| C | 0 | 26384 | 16400 |
| D | 0 | 41556 | 29187 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 15 |
| B | 0 | 33 | 22 |
| C | 0 | 33 | 21 |
| D | 0 | 30 | 17 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 263 | 161 |
| B | 0 | 264 | 167 |
| C | 0 | 263 | 158 |
| D | 0 | 256 | 151 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4815 | 10 | 0.207684% |
| B | 4646 | 20 | 0.430478% |
| C | 4951 | 6 | 0.121188% |
| D | 4269 | 78 | 1.827126% |

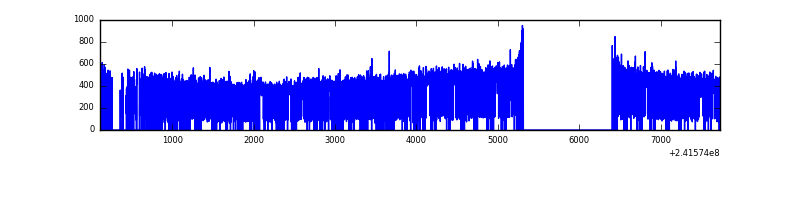

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7616 | 5889 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7616 | 5862 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7616 | 6054 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7616 | 5396 | 22 | 22 | 0.29% | 0.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 5057 | 39.03 | 557 | 547 | 115.6 |
| A | 12 | 194 | 4468 | 33.93 | 557 | 547 | 115.6 |
| A | 13 | 253 | 3500 | 25.56 | 557 | 547 | 115.6 |
| B | 4 | 239 | 61816 | 592.3 | 539 | 526 | 103.5 |
| B | 0 | 214 | 51410 | 491.74 | 539 | 526 | 103.5 |
| B | 11 | 51 | 32551 | 309.49 | 539 | 526 | 103.5 |
| C | 14 | 234 | 6616 | 46.1 | 559 | 563 | 131.3 |
| C | 13 | 61 | 4121 | 27.1 | 559 | 563 | 131.3 |
| C | 14 | 67 | 2428 | 14.2 | 559 | 563 | 131.3 |
| D | 1 | 52 | 565211 | 4655.73 | 468 | 457 | 121.3 |
| D | 1 | 20 | 375277 | 3089.95 | 468 | 457 | 121.3 |
| D | 8 | 195 | 329256 | 2710.56 | 468 | 457 | 121.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

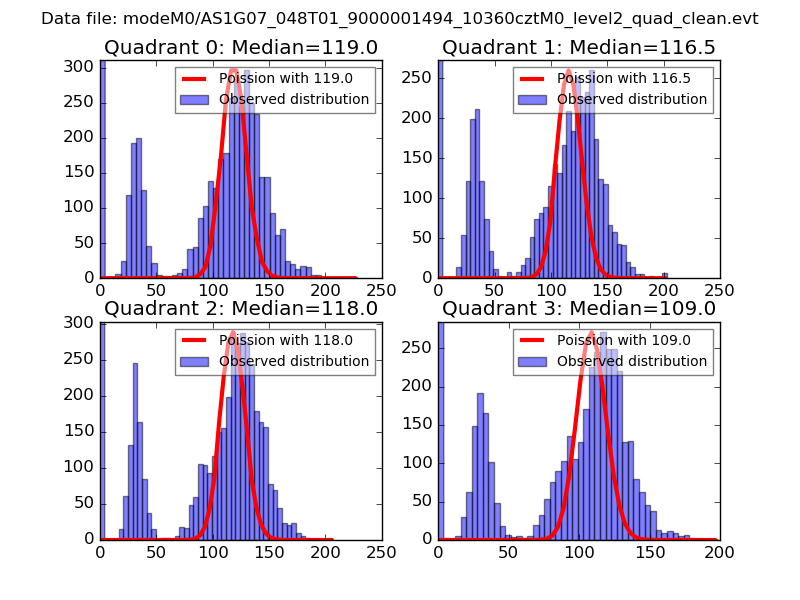

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

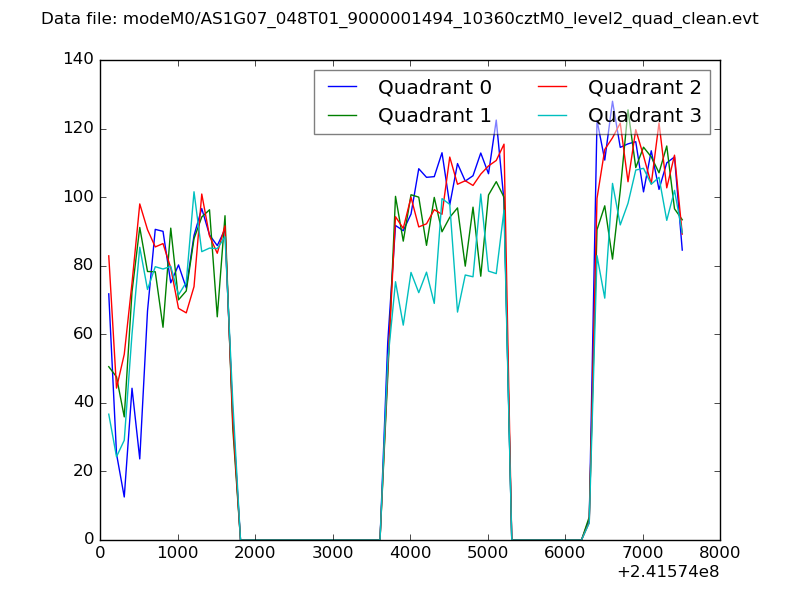

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

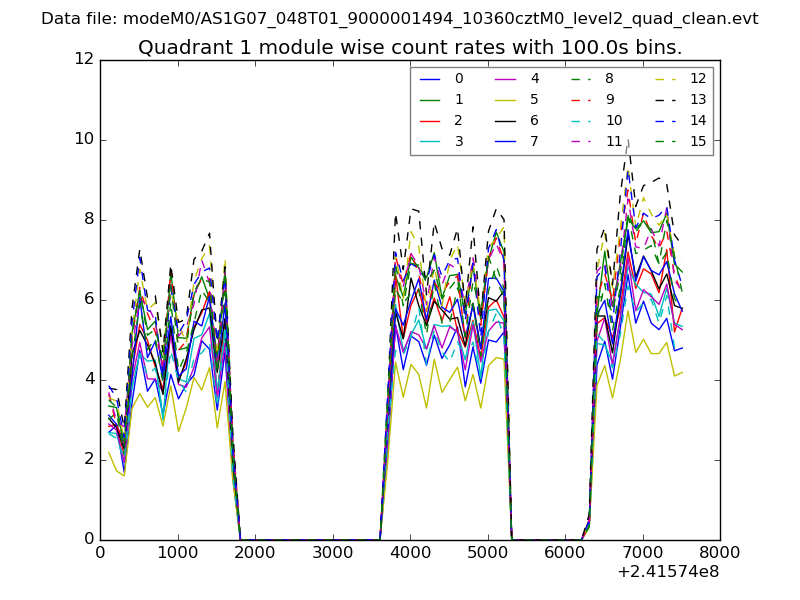

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

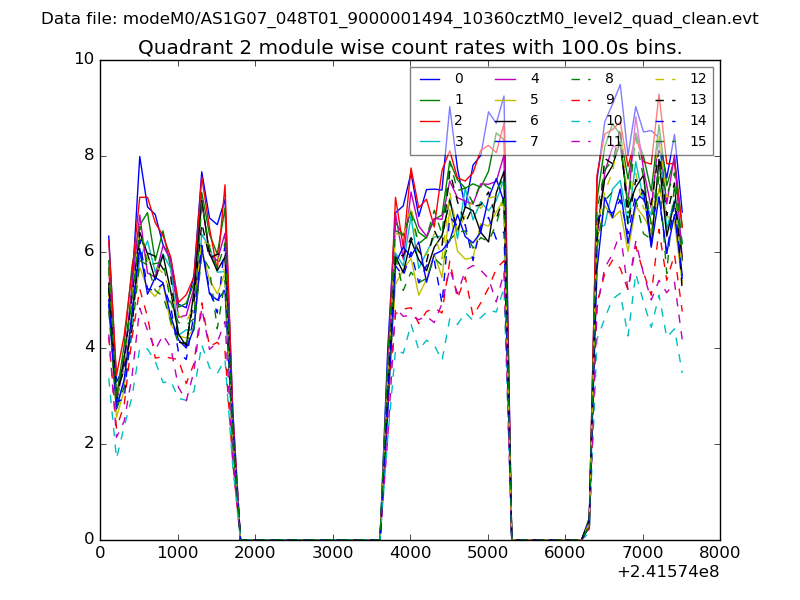

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

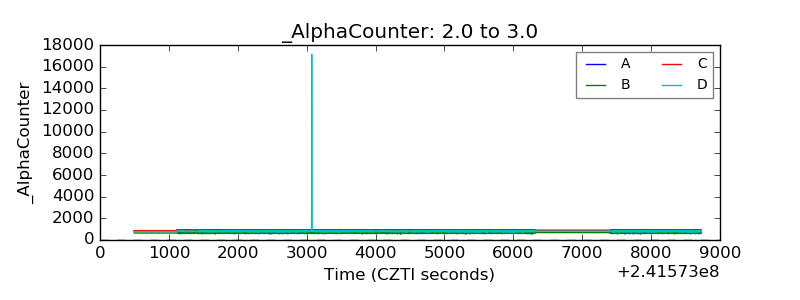

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

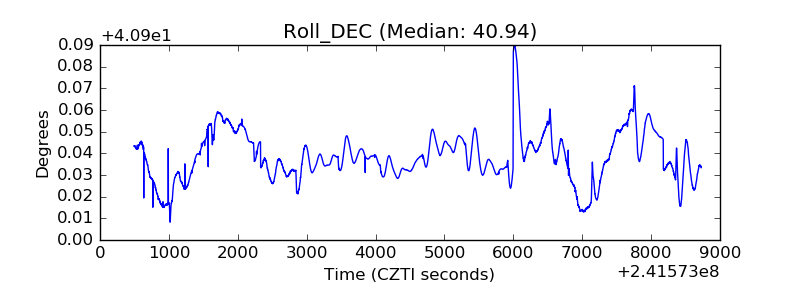

| _Roll_DEC |  |
| _Roll_RA |  |

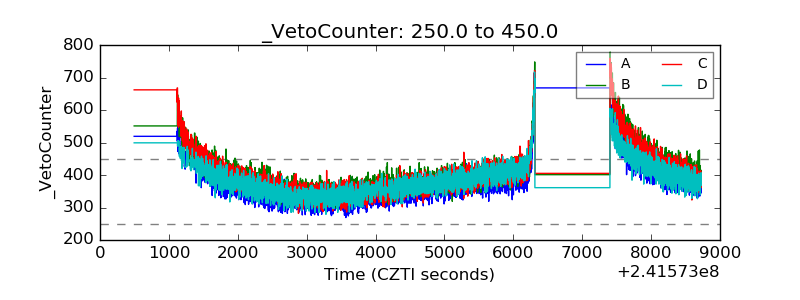

| Veto Counter |  |
