| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_119T02_9000001496_10371cztM0_level2.evt | modeM0/AS1A03_119T02_9000001496_10371cztM0_level2_quad_clean.evt |
| Size (bytes) | 213,690,240 | 59,307,840 |
| Size | 203.8 MB | 56.6 MB |
| Events in quadrant A | 1,480,373 | 382,386 |
| Events in quadrant B | 1,516,869 | 374,233 |
| Events in quadrant C | 1,446,221 | 392,760 |
| Events in quadrant D | 1,803,551 | 414,326 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 6 |
| B | 0 | 12 | 6 |
| C | 0 | 12 | 6 |
| D | 0 | 11 | 5 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15266 | 8759 |
| B | 0 | 16965 | 10454 |
| C | 0 | 15727 | 9268 |
| D | 0 | 17504 | 9793 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 87 |
| B | 0 | 164 | 88 |
| C | 0 | 164 | 87 |
| D | 0 | 156 | 82 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3187 | 22 | 0.690304% |
| B | 3064 | 31 | 1.011749% |
| C | 3191 | 13 | 0.407396% |
| D | 3539 | 14 | 0.395592% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

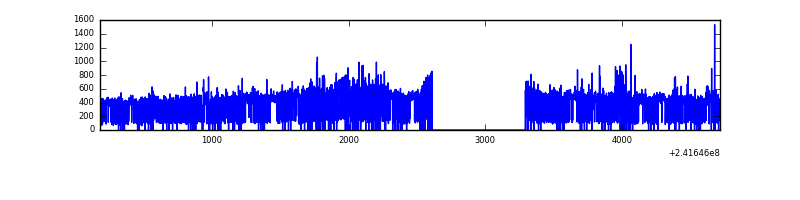

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4535 | 3730 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4535 | 3653 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4535 | 3725 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4533 | 3721 | 2 | 2 | 0.04% | 0.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 18557 | 230.79 | 377 | 367 | 78.8 |
| A | 13 | 251 | 5633 | 66.81 | 377 | 367 | 78.8 |
| A | 0 | 226 | 3423 | 38.77 | 377 | 367 | 78.8 |
| B | 0 | 214 | 49479 | 680.57 | 363 | 353 | 72.2 |
| B | 4 | 239 | 32852 | 450.23 | 363 | 353 | 72.2 |
| B | 0 | 219 | 11334 | 152.13 | 363 | 353 | 72.2 |
| C | 14 | 234 | 7144 | 78.63 | 368 | 369 | 86.2 |
| C | 13 | 61 | 2721 | 27.3 | 368 | 369 | 86.2 |
| C | 15 | 48 | 1680 | 15.22 | 368 | 369 | 86.2 |
| D | 1 | 52 | 78894 | 792.65 | 408 | 396 | 99.0 |
| D | 5 | 222 | 57397 | 575.58 | 408 | 396 | 99.0 |
| D | 2 | 33 | 31452 | 313.59 | 408 | 396 | 99.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

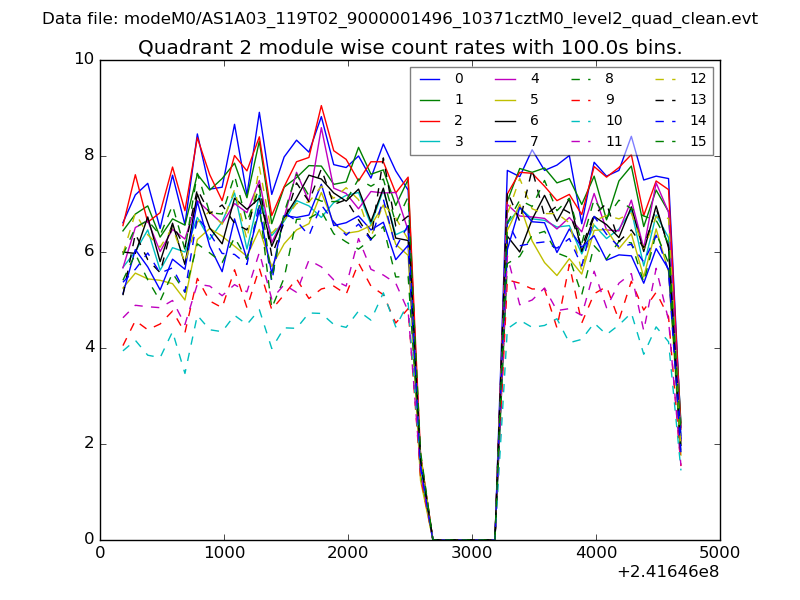

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

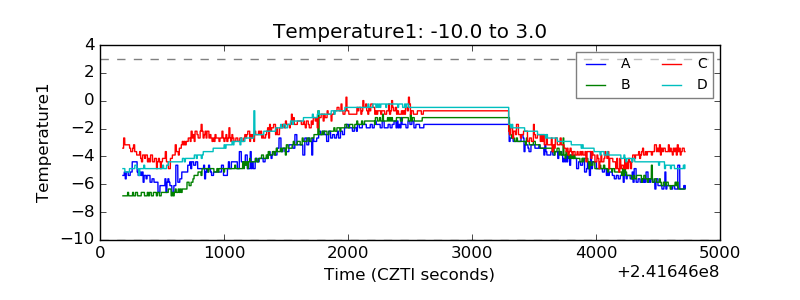

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

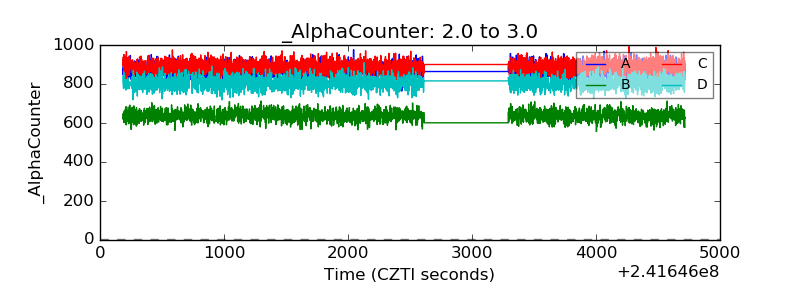

| Alpha Counter |  |

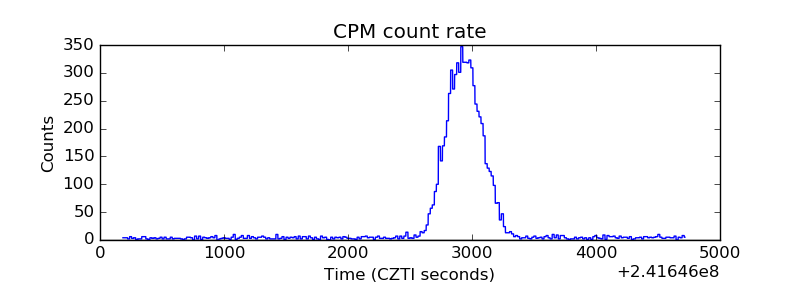

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

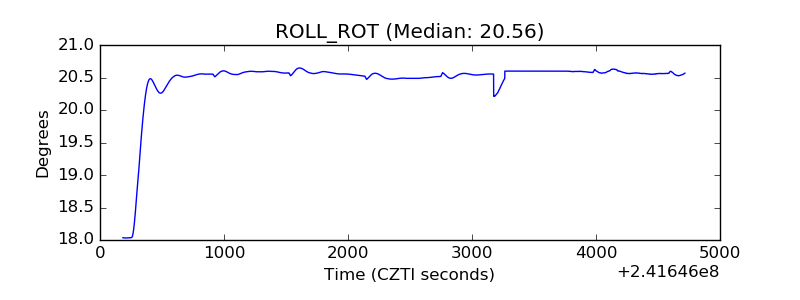

| _ROLL_ROT |  |
| _Roll_DEC |  |

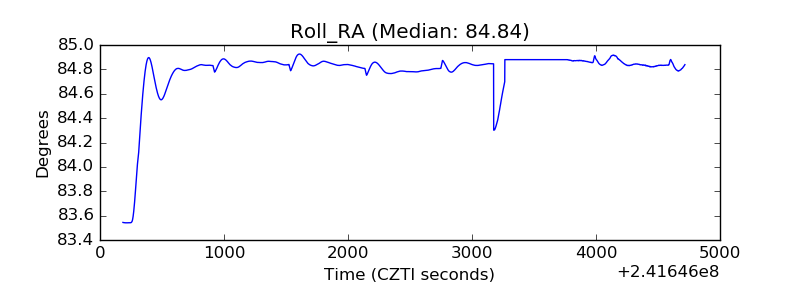

| _Roll_RA |  |

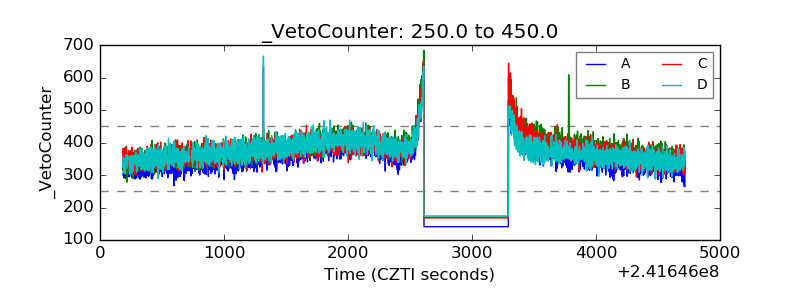

| Veto Counter |  |
