| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_028T01_9000001500_10391cztM0_level2.evt | modeM0/AS1G07_028T01_9000001500_10391cztM0_level2_quad_clean.evt |
| Size (bytes) | 503,913,600 | 69,217,920 |
| Size | 480.6 MB | 66.0 MB |
| Events in quadrant A | 3,316,712 | 417,590 |
| Events in quadrant B | 3,771,156 | 432,339 |
| Events in quadrant C | 3,209,210 | 414,688 |
| Events in quadrant D | 4,518,166 | 372,914 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13772 | 3 |
| B | 0 | 15254 | 2 |
| C | 0 | 13568 | 2 |
| D | 0 | 17744 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6569 | 32 | 0.487137% |
| B | 6569 | 104 | 1.583194% |
| C | 6569 | 16 | 0.243568% |
| D | 6569 | 274 | 4.171107% |

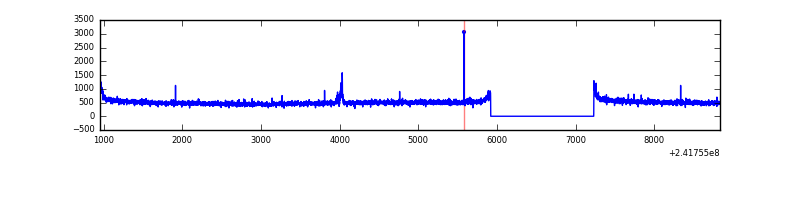

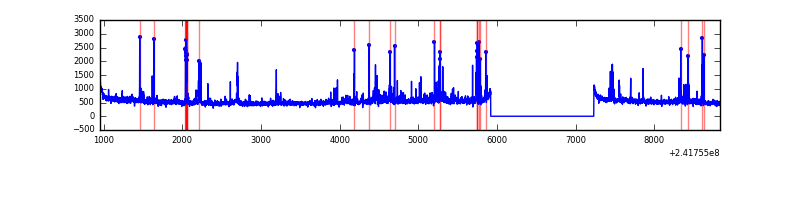

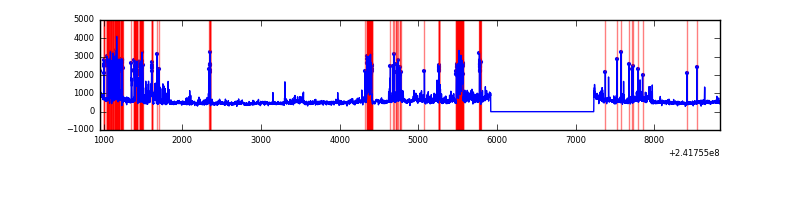

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7879 | 6570 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7879 | 6570 | 32 | 32 | 0.41% | 0.49% |  |
| C | 7879 | 6570 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7879 | 6570 | 274 | 274 | 3.48% | 4.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 16 | 30741 | 172.8 | 849 | 832 | 173.1 |
| A | 8 | 15 | 12016 | 64.62 | 849 | 832 | 173.1 |
| A | 0 | 226 | 7828 | 40.42 | 849 | 832 | 173.1 |
| B | 4 | 239 | 265197 | 1650.37 | 855 | 838 | 160.2 |
| B | 0 | 214 | 54392 | 334.33 | 855 | 838 | 160.2 |
| B | 11 | 51 | 53906 | 331.3 | 855 | 838 | 160.2 |
| C | 14 | 234 | 11441 | 56.63 | 817 | 825 | 187.5 |
| C | 0 | 207 | 8337 | 40.07 | 817 | 825 | 187.5 |
| C | 13 | 61 | 6174 | 28.53 | 817 | 825 | 187.5 |
| D | 13 | 122 | 429963 | 2268.5 | 792 | 773 | 189.2 |
| D | 13 | 105 | 273157 | 1439.7 | 792 | 773 | 189.2 |
| D | 8 | 195 | 248708 | 1310.47 | 792 | 773 | 189.2 |

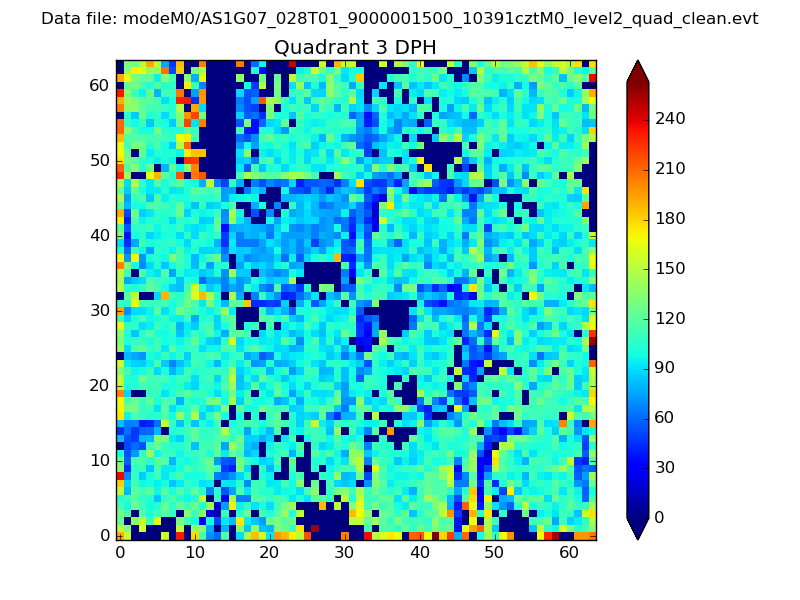

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

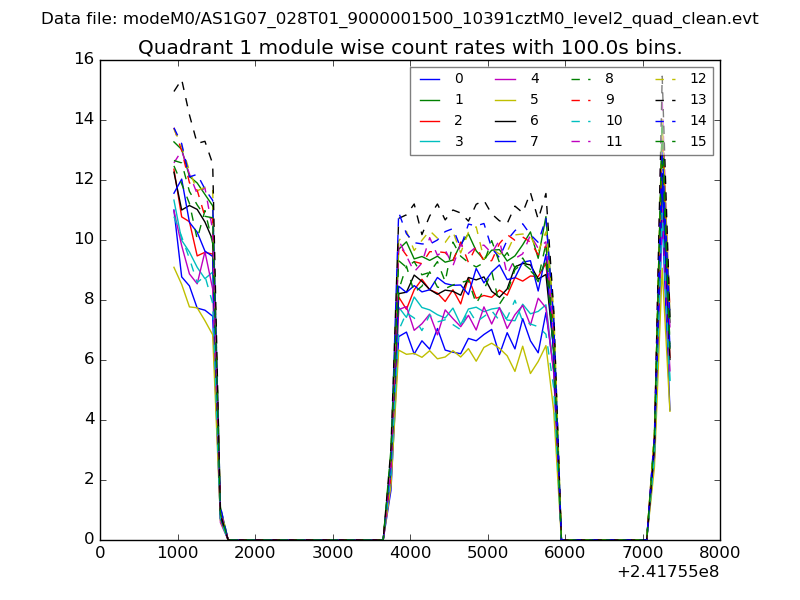

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
