| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_028T01_9000001500_10393cztM0_level2.evt | modeM0/AS1G07_028T01_9000001500_10393cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,464,960 | 66,980,160 |
| Size | 453.4 MB | 63.9 MB |
| Events in quadrant A | 3,312,275 | 402,569 |
| Events in quadrant B | 3,795,686 | 411,815 |
| Events in quadrant C | 3,180,320 | 396,280 |
| Events in quadrant D | 3,679,559 | 373,748 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13481 | 3 |
| B | 0 | 15039 | 2 |
| C | 0 | 13304 | 2 |
| D | 0 | 14758 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6354 | 95 | 1.495121% |
| B | 6354 | 201 | 3.163362% |
| C | 6354 | 73 | 1.148883% |
| D | 6354 | 96 | 1.510859% |

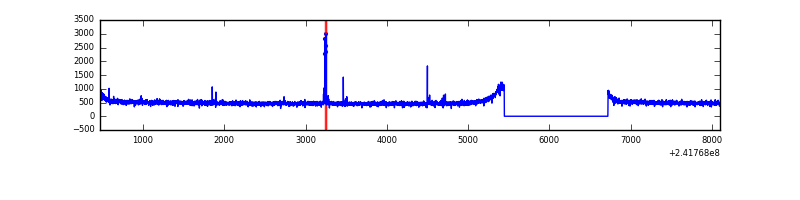

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7629 | 6354 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7629 | 6354 | 49 | 49 | 0.64% | 0.77% |  |
| C | 7629 | 6354 | 5 | 5 | 0.07% | 0.08% |  |
| D | 7629 | 6354 | 16 | 16 | 0.21% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 43545 | 249.7 | 842 | 827 | 171.1 |
| A | 14 | 254 | 9629 | 51.45 | 842 | 827 | 171.1 |
| A | 0 | 226 | 7633 | 39.78 | 842 | 827 | 171.1 |
| B | 4 | 239 | 306929 | 1917.07 | 842 | 824 | 159.7 |
| B | 11 | 51 | 61896 | 382.48 | 842 | 824 | 159.7 |
| B | 4 | 81 | 56944 | 351.47 | 842 | 824 | 159.7 |
| C | 14 | 234 | 27580 | 144.52 | 806 | 812 | 185.2 |
| C | 13 | 61 | 5933 | 27.65 | 806 | 812 | 185.2 |
| C | 8 | 128 | 4122 | 17.87 | 806 | 812 | 185.2 |
| D | 1 | 20 | 277485 | 1460.58 | 799 | 780 | 189.4 |
| D | 8 | 195 | 177873 | 934.78 | 799 | 780 | 189.4 |
| D | 2 | 14 | 55555 | 289.13 | 799 | 780 | 189.4 |

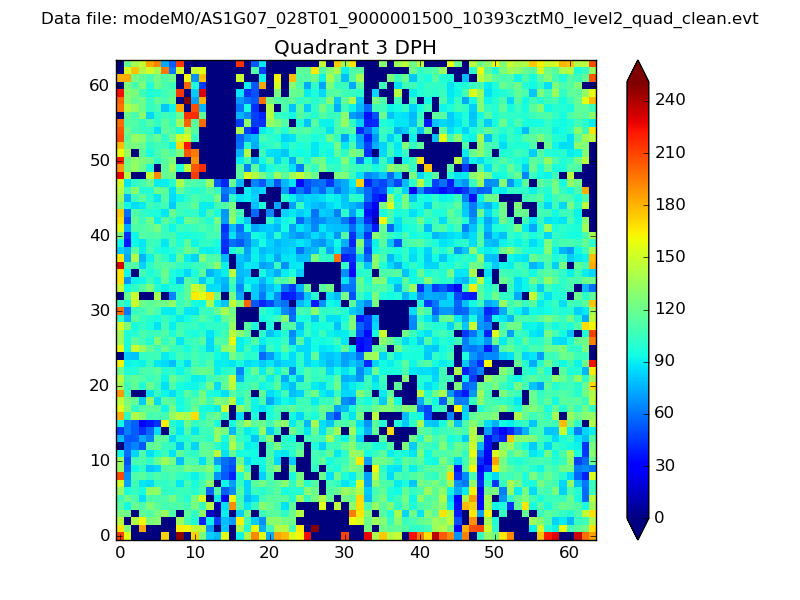

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

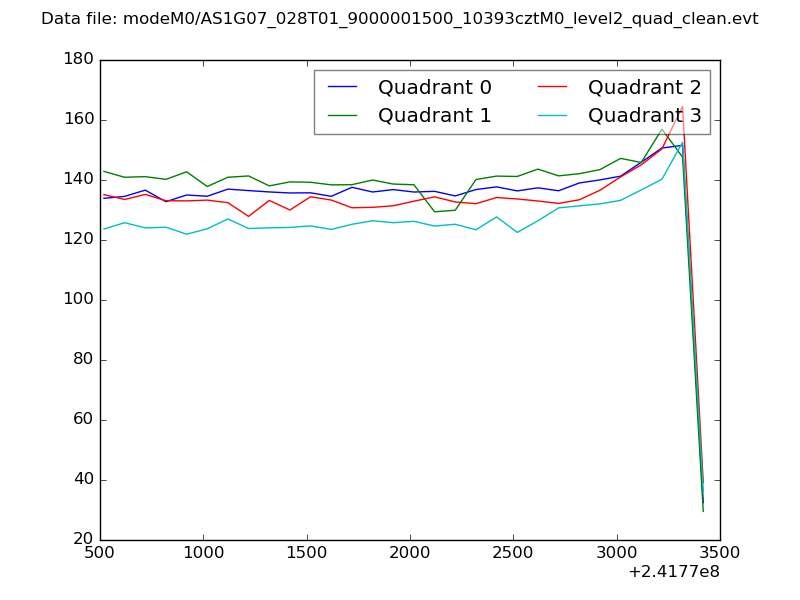

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

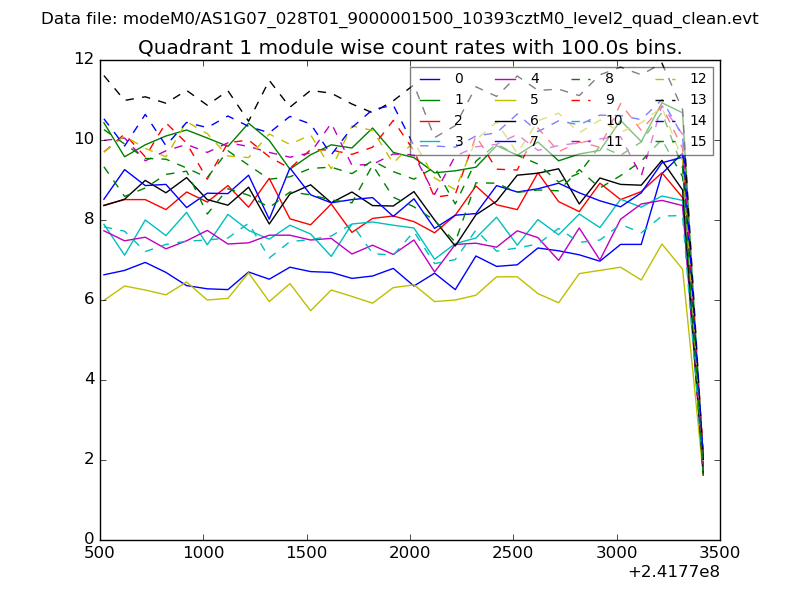

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

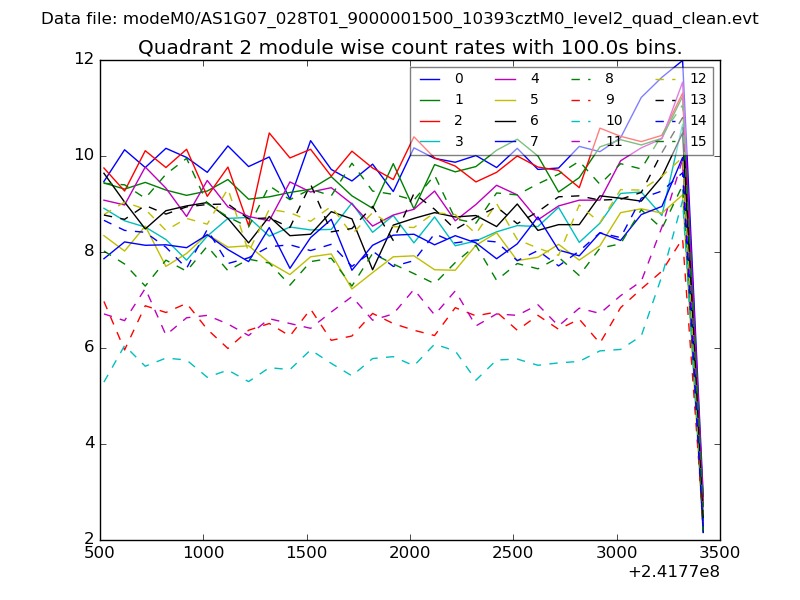

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

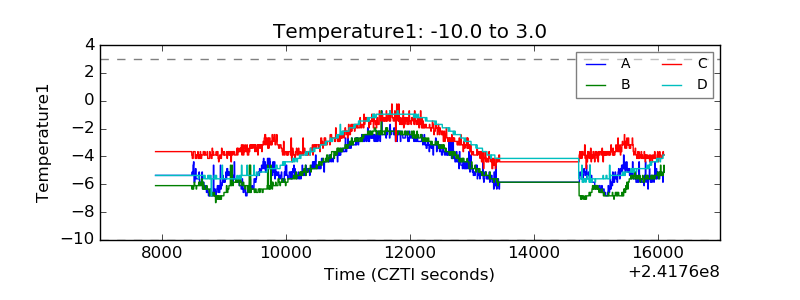

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

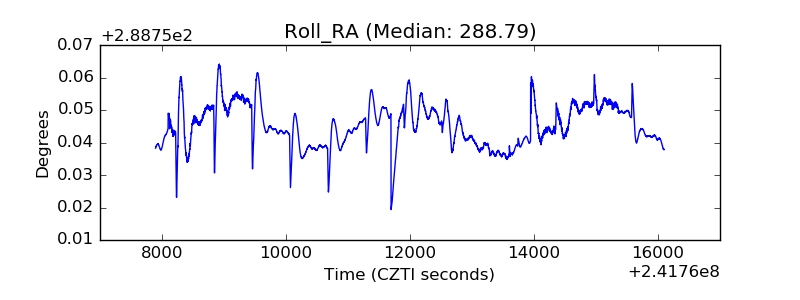

| _Roll_RA |  |

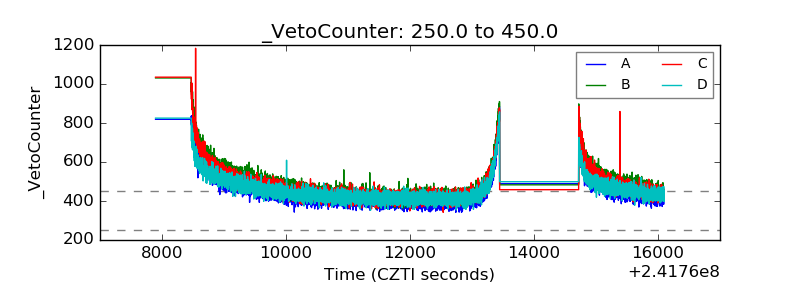

| Veto Counter |  |
