| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_057T02_9000001504_10404cztM0_level2.evt | modeM0/AS1G07_057T02_9000001504_10404cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,068,800 | 91,437,120 |
| Size | 494.1 MB | 87.2 MB |
| Events in quadrant A | 2,930,298 | 589,133 |
| Events in quadrant B | 3,769,621 | 596,214 |
| Events in quadrant C | 2,935,970 | 598,727 |
| Events in quadrant D | 5,629,445 | 548,263 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12890 | 29 |
| B | 0 | 15331 | 67 |
| C | 0 | 12895 | 51 |
| D | 0 | 21069 | 43 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 2 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6270 | 10 | 0.159490% |
| B | 6259 | 136 | 2.172871% |
| C | 6258 | 11 | 0.175775% |
| D | 6263 | 505 | 8.063228% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7446 | 6280 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7446 | 6275 | 79 | 79 | 1.06% | 1.26% |  |
| C | 7446 | 6274 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7446 | 6277 | 507 | 507 | 6.81% | 8.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 1 | 10814 | 66.04 | 752 | 736 | 152.6 |
| A | 4 | 2 | 9857 | 59.77 | 752 | 736 | 152.6 |
| A | 8 | 15 | 7767 | 46.07 | 752 | 736 | 152.6 |
| B | 4 | 239 | 627218 | 4406.86 | 754 | 736 | 142.2 |
| B | 11 | 51 | 57148 | 396.82 | 754 | 736 | 142.2 |
| B | 4 | 81 | 54074 | 375.2 | 754 | 736 | 142.2 |
| C | 14 | 234 | 19796 | 109.77 | 747 | 754 | 173.5 |
| C | 13 | 61 | 5631 | 28.11 | 747 | 754 | 173.5 |
| C | 14 | 67 | 3290 | 14.62 | 747 | 754 | 173.5 |
| D | 1 | 52 | 1918927 | 11170.81 | 717 | 696 | 171.7 |
| D | 8 | 195 | 572257 | 3328.48 | 717 | 696 | 171.7 |
| D | 12 | 233 | 305692 | 1776.14 | 717 | 696 | 171.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

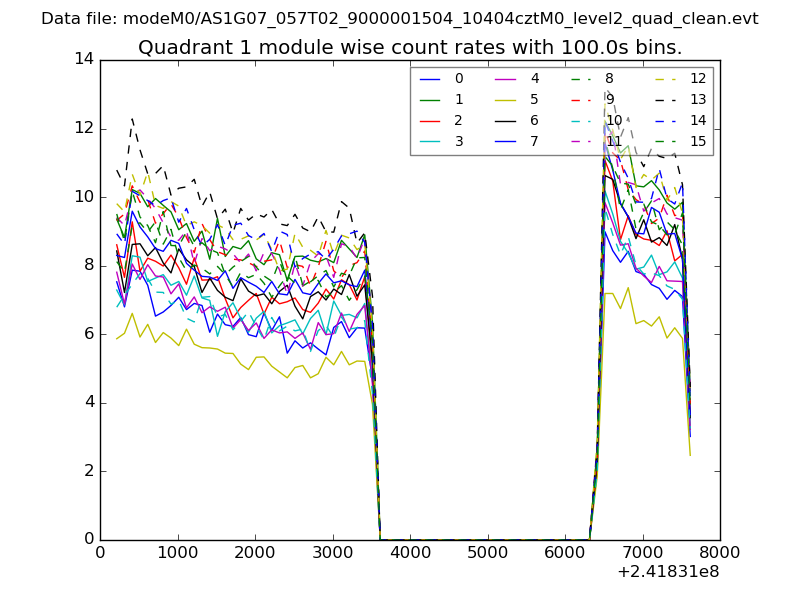

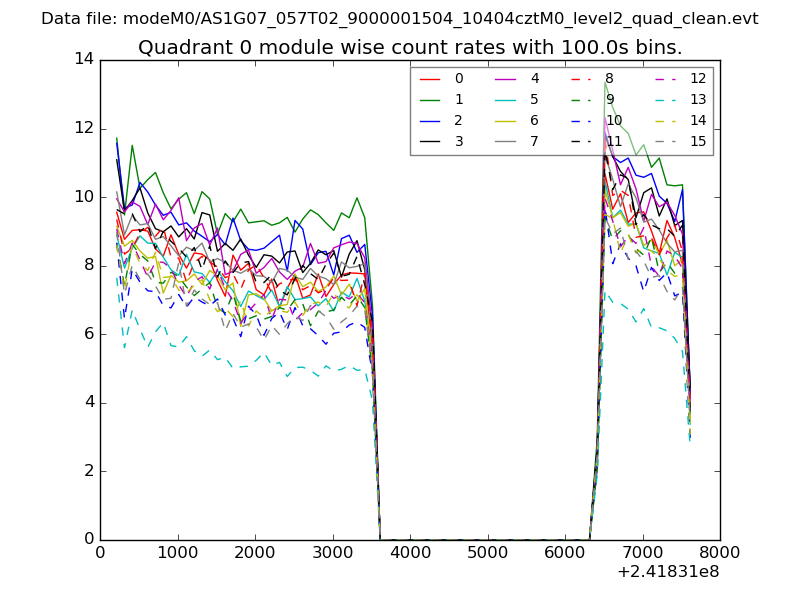

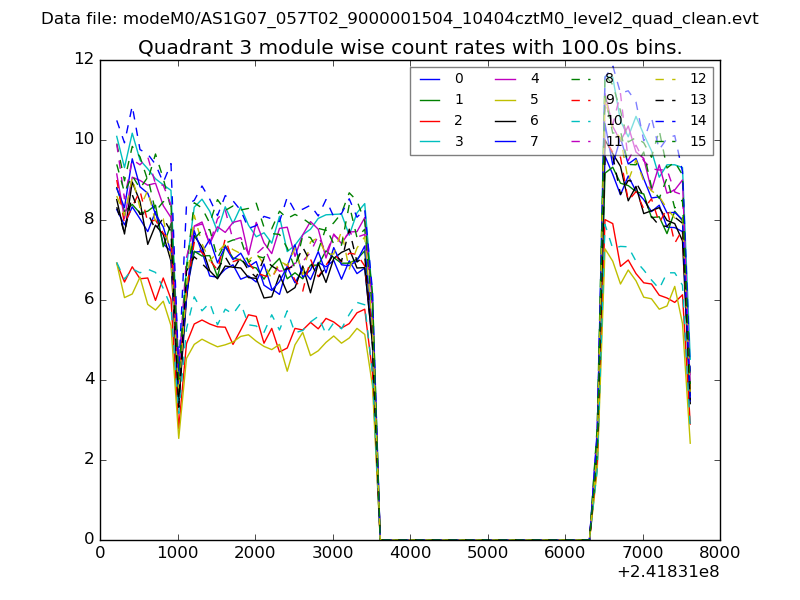

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

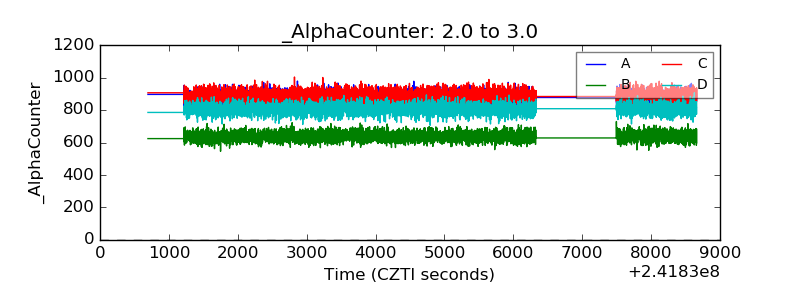

| Alpha Counter |  |

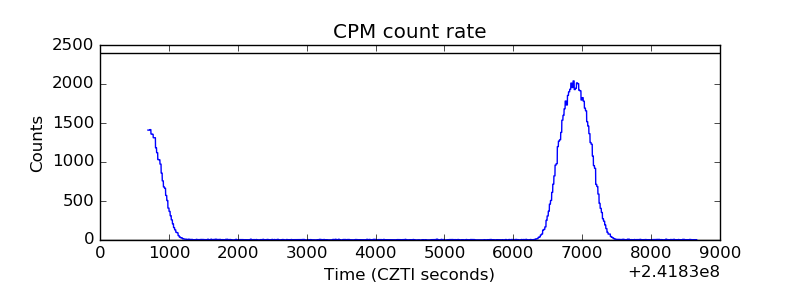

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

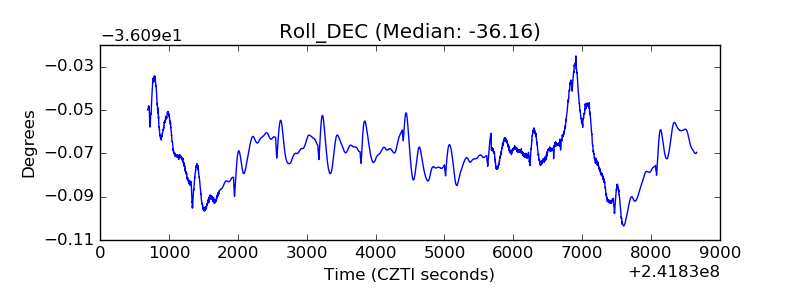

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
