| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_057T02_9000001504_10407cztM0_level2.evt | modeM0/AS1G07_057T02_9000001504_10407cztM0_level2_quad_clean.evt |
| Size (bytes) | 127,736,640 | 26,913,600 |
| Size | 121.8 MB | 25.7 MB |
| Events in quadrant A | 940,401 | 183,155 |
| Events in quadrant B | 895,907 | 172,679 |
| Events in quadrant C | 907,147 | 185,384 |
| Events in quadrant D | 1,001,166 | 143,352 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24144 | 20260 |
| B | 0 | 30026 | 26360 |
| C | 0 | 24997 | 21158 |
| D | 0 | 33343 | 29336 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 15 |
| B | 0 | 26 | 19 |
| C | 0 | 26 | 18 |
| D | 0 | 25 | 15 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 245 | 214 |
| B | 0 | 243 | 200 |
| C | 0 | 246 | 206 |
| D | 0 | 228 | 187 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1900 | 3 | 0.157895% |
| B | 1684 | 5 | 0.296912% |
| C | 1903 | 2 | 0.105097% |
| D | 1526 | 3 | 0.196592% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7390 | 2784 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7399 | 2499 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7387 | 2784 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7372 | 2238 | 0 | 0 | 0.00% | 0.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 31224 | 628.79 | 235 | 230 | 49.3 |
| A | 0 | 226 | 2236 | 40.7 | 235 | 230 | 49.3 |
| A | 13 | 253 | 1819 | 32.24 | 235 | 230 | 49.3 |
| B | 4 | 239 | 64311 | 1588.89 | 206 | 202 | 40.3 |
| B | 11 | 51 | 13770 | 336.27 | 206 | 202 | 40.3 |
| B | 0 | 219 | 8989 | 217.78 | 206 | 202 | 40.3 |
| C | 14 | 234 | 2629 | 43.91 | 231 | 233 | 54.6 |
| C | 13 | 61 | 1741 | 27.64 | 231 | 233 | 54.6 |
| C | 11 | 7 | 980 | 13.69 | 231 | 233 | 54.6 |
| D | 1 | 20 | 149367 | 3343.71 | 182 | 178 | 44.6 |
| D | 8 | 195 | 149112 | 3337.99 | 182 | 178 | 44.6 |
| D | 1 | 52 | 5210 | 112.78 | 182 | 178 | 44.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

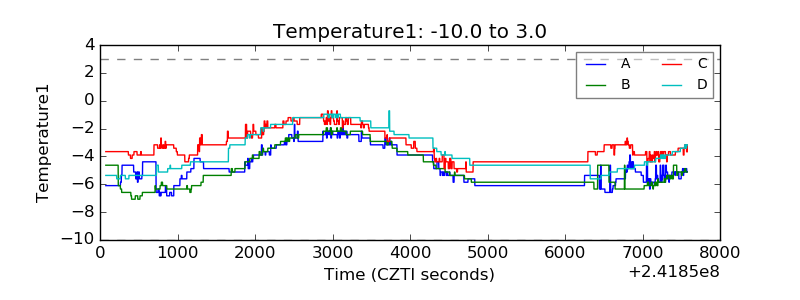

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

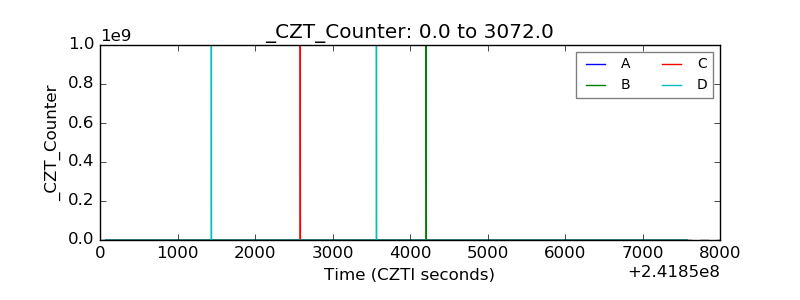

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

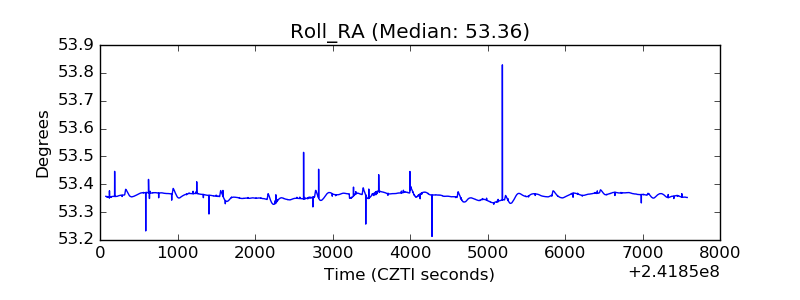

| _Roll_RA |  |
| Veto Counter |  |
