| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_068T01_9000001502_10395cztM0_level2.evt | modeM0/AS1G07_068T01_9000001502_10395cztM0_level2_quad_clean.evt |
| Size (bytes) | 280,817,280 | 56,439,360 |
| Size | 267.8 MB | 53.8 MB |
| Events in quadrant A | 1,779,867 | 365,823 |
| Events in quadrant B | 2,428,451 | 361,935 |
| Events in quadrant C | 1,775,049 | 367,322 |
| Events in quadrant D | 2,265,149 | 348,887 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7741 | 0 |
| B | 0 | 9562 | 0 |
| C | 0 | 7779 | 0 |
| D | 0 | 8956 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3742 | 103 | 2.752539% |
| B | 3742 | 275 | 7.349011% |
| C | 3742 | 83 | 2.218065% |
| D | 3742 | 105 | 2.805986% |

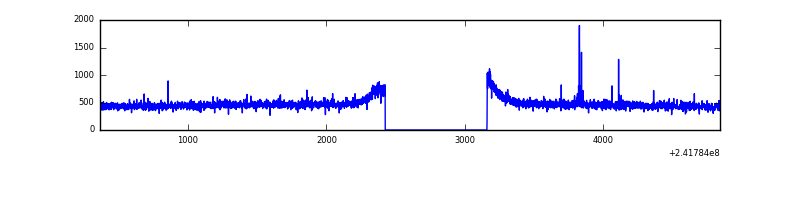

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4477 | 3742 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4477 | 3742 | 124 | 124 | 2.77% | 3.31% |  |
| C | 4477 | 3742 | 0 | 0 | 0.00% | 0.00% |  |
| D | 4477 | 3742 | 29 | 29 | 0.65% | 0.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 226 | 4129 | 38.76 | 458 | 447 | 95.0 |
| A | 1 | 162 | 4091 | 38.36 | 458 | 447 | 95.0 |
| A | 12 | 194 | 3765 | 34.93 | 458 | 447 | 95.0 |
| B | 4 | 239 | 498954 | 5651.92 | 454 | 441 | 88.2 |
| B | 0 | 219 | 54645 | 614.54 | 454 | 441 | 88.2 |
| B | 11 | 51 | 34720 | 388.64 | 454 | 441 | 88.2 |
| C | 14 | 234 | 11905 | 108.1 | 451 | 453 | 105.9 |
| C | 13 | 61 | 3321 | 27.07 | 451 | 453 | 105.9 |
| C | 14 | 67 | 2446 | 18.81 | 451 | 453 | 105.9 |
| D | 8 | 195 | 344700 | 3182.69 | 447 | 434 | 108.2 |
| D | 1 | 20 | 110196 | 1014.73 | 447 | 434 | 108.2 |
| D | 2 | 33 | 82881 | 762.21 | 447 | 434 | 108.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

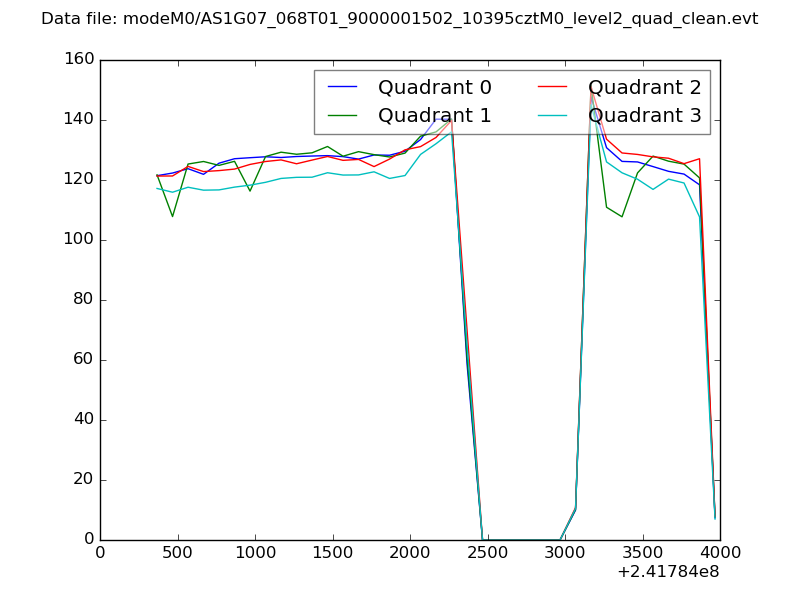

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

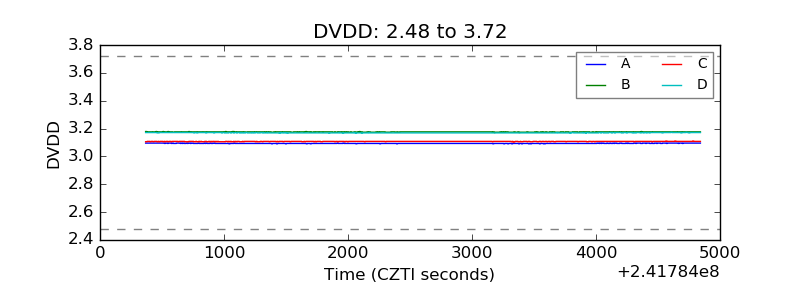

| D_VDD |  |

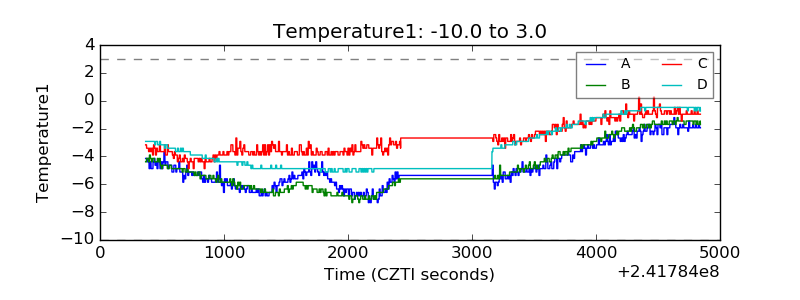

| Temperature 1 |  |

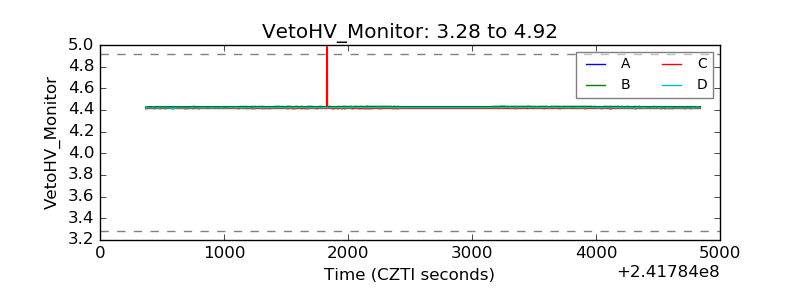

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

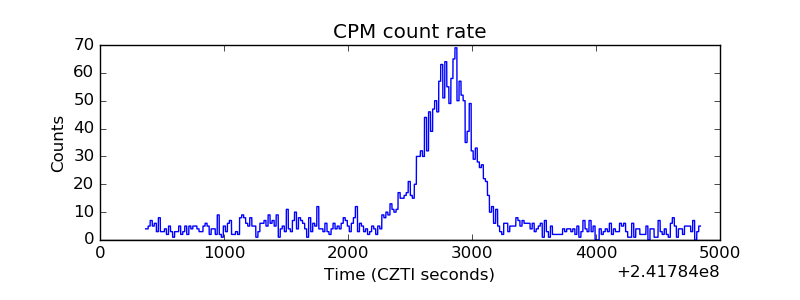

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

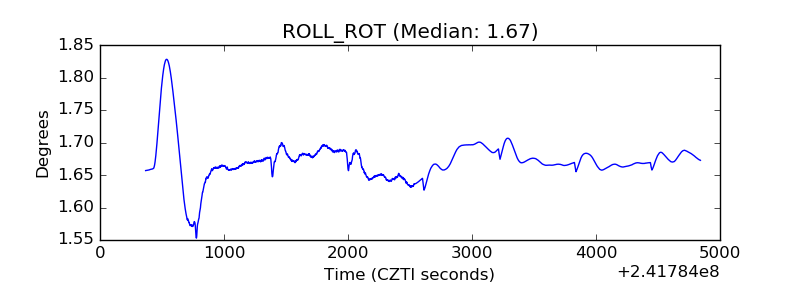

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
