| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_126T01_9000001512_10452cztM0_level2.evt | modeM0/AS1A03_126T01_9000001512_10452cztM0_level2_quad_clean.evt |
| Size (bytes) | 420,796,800 | 78,992,640 |
| Size | 401.3 MB | 75.3 MB |
| Events in quadrant A | 3,125,607 | 462,235 |
| Events in quadrant B | 3,000,901 | 493,282 |
| Events in quadrant C | 2,772,800 | 512,786 |
| Events in quadrant D | 3,445,460 | 514,257 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 95 |
| B | 0 | 220 | 96 |
| C | 0 | 220 | 97 |
| D | 0 | 214 | 86 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25895 | 13035 |
| B | 0 | 26562 | 14043 |
| C | 0 | 22563 | 10288 |
| D | 0 | 26583 | 12736 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 9 |
| B | 0 | 20 | 10 |
| C | 0 | 20 | 10 |
| D | 0 | 20 | 10 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5684 | 55 | 0.967628% |
| B | 5615 | 93 | 1.656278% |
| C | 6033 | 30 | 0.497265% |
| D | 6070 | 52 | 0.856672% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7848 | 6420 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7848 | 6263 | 38 | 38 | 0.48% | 0.61% |  |
| C | 7848 | 6649 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7848 | 6483 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 415668 | 3000.96 | 675 | 661 | 138.3 |
| A | 3 | 80 | 78424 | 562.31 | 675 | 661 | 138.3 |
| A | 8 | 5 | 11847 | 80.89 | 675 | 661 | 138.3 |
| B | 4 | 239 | 306376 | 2410.66 | 665 | 650 | 126.8 |
| B | 0 | 214 | 68856 | 537.81 | 665 | 650 | 126.8 |
| B | 10 | 245 | 15270 | 115.28 | 665 | 650 | 126.8 |
| C | 14 | 234 | 10323 | 58.84 | 707 | 713 | 163.3 |
| C | 13 | 61 | 5263 | 27.86 | 707 | 713 | 163.3 |
| C | 14 | 67 | 4160 | 21.1 | 707 | 713 | 163.3 |
| D | 8 | 195 | 467149 | 2733.67 | 709 | 689 | 170.6 |
| D | 1 | 20 | 150620 | 878.67 | 709 | 689 | 170.6 |
| D | 12 | 233 | 82030 | 476.7 | 709 | 689 | 170.6 |

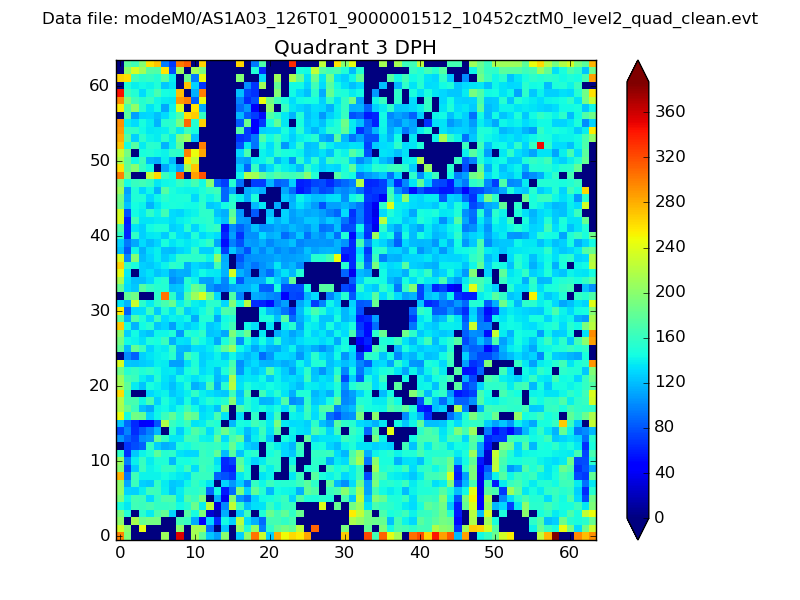

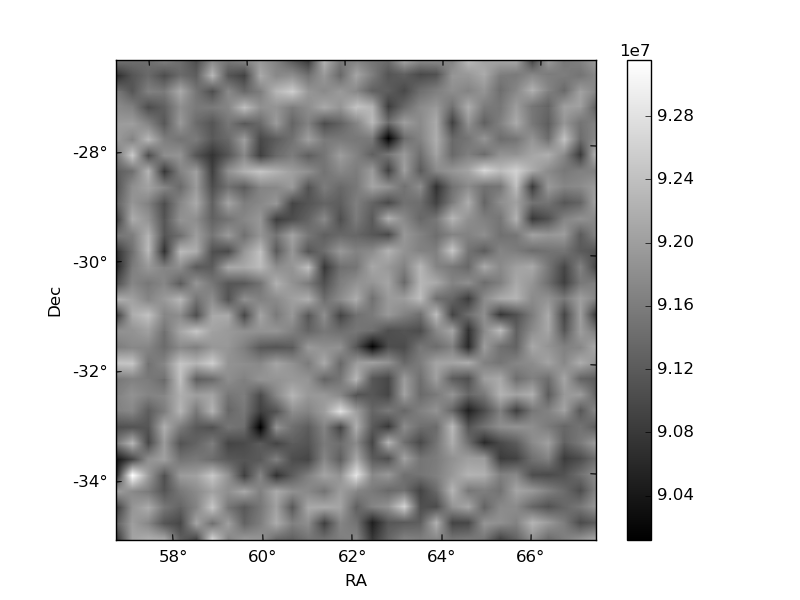

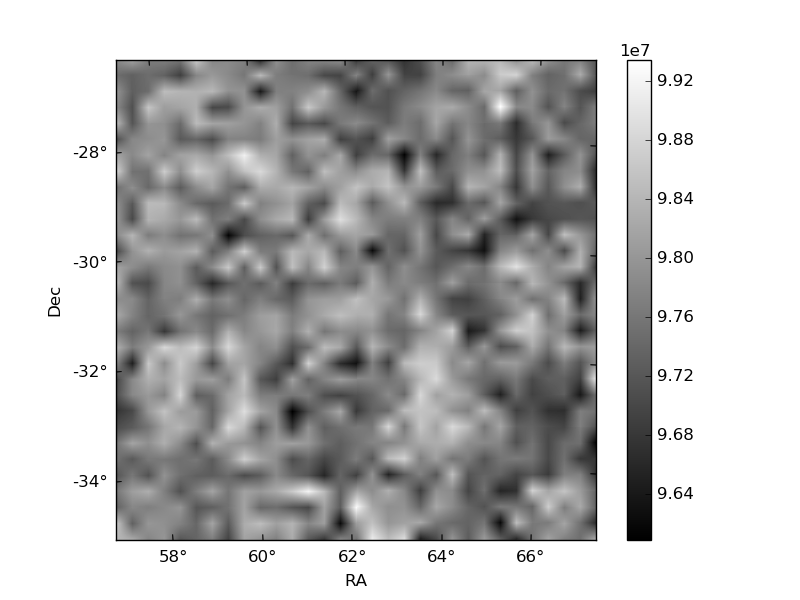

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

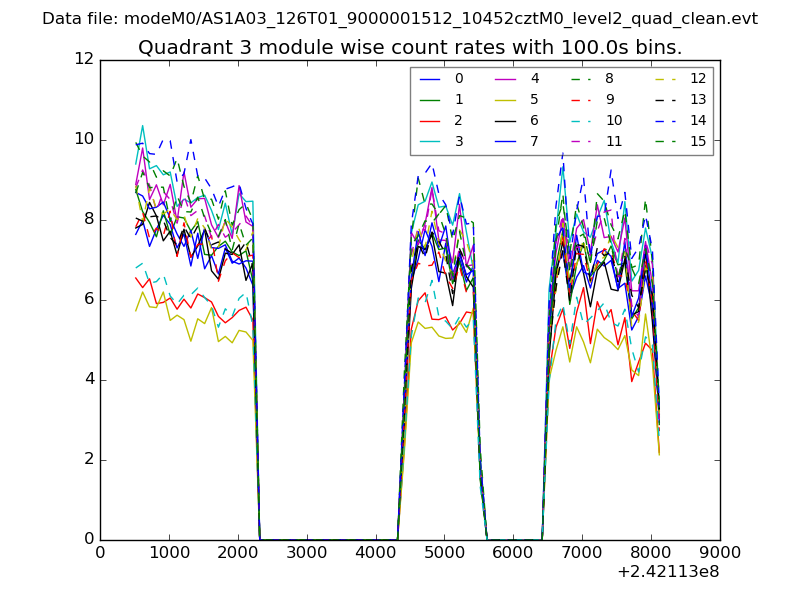

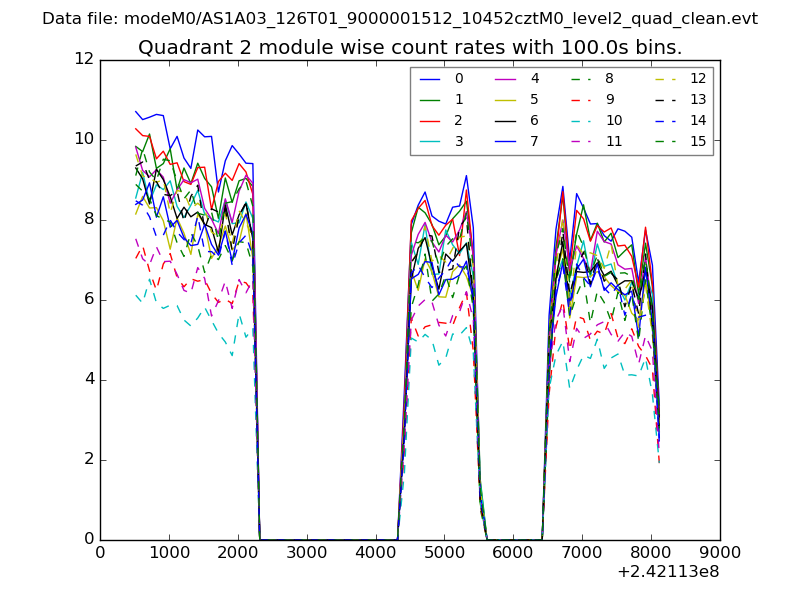

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

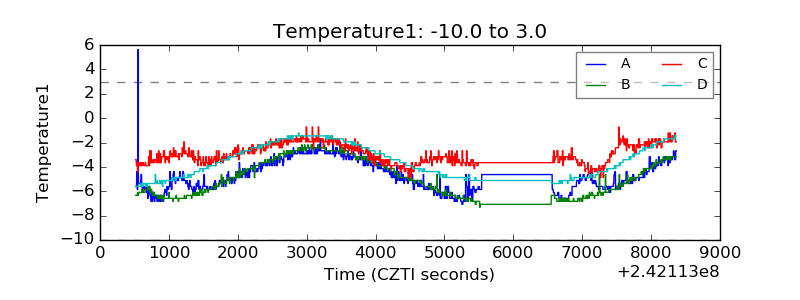

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

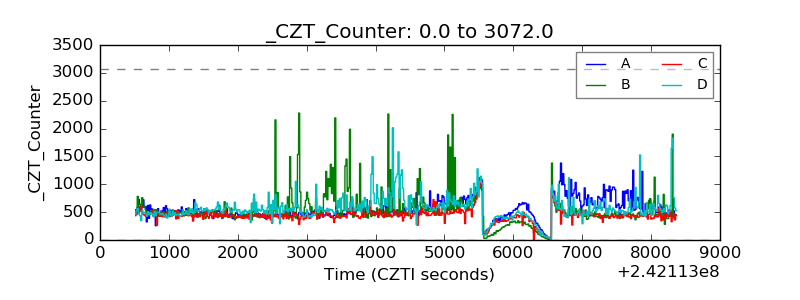

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

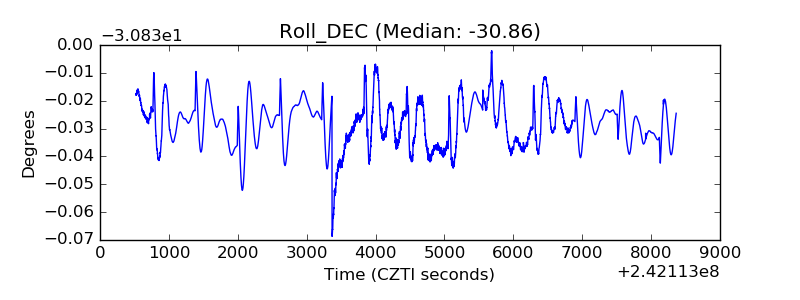

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
