| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_126T01_9000001512_10462cztM0_level2.evt | modeM0/AS1A03_126T01_9000001512_10462cztM0_level2_quad_clean.evt |
| Size (bytes) | 361,117,440 | 74,381,760 |
| Size | 344.4 MB | 70.9 MB |
| Events in quadrant A | 2,430,354 | 321,973 |
| Events in quadrant B | 2,563,739 | 508,902 |
| Events in quadrant C | 2,430,845 | 528,794 |
| Events in quadrant D | 3,184,887 | 556,377 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 256 | 143 |
| B | 0 | 256 | 144 |
| C | 0 | 256 | 155 |
| D | 0 | 249 | 133 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51930 | 42680 |
| B | 0 | 28482 | 17723 |
| C | 0 | 25643 | 14975 |
| D | 0 | 27476 | 14521 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 9 |
| B | 0 | 29 | 12 |
| C | 0 | 29 | 13 |
| D | 0 | 28 | 12 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3031 | 97 | 3.200264% |
| B | 4952 | 21 | 0.424071% |
| C | 5236 | 6 | 0.114591% |
| D | 5821 | 12 | 0.206150% |

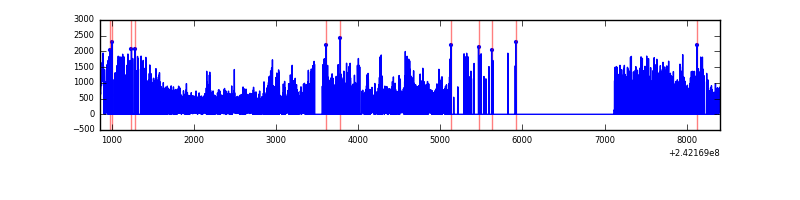

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7545 | 3960 | 11 | 11 | 0.15% | 0.28% |  |
| B | 7546 | 5917 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7546 | 6101 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7546 | 6224 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1016476 | 14007.26 | 351 | 344 | 72.5 |
| A | 3 | 80 | 38364 | 524.1 | 351 | 344 | 72.5 |
| A | 1 | 162 | 9414 | 125.03 | 351 | 344 | 72.5 |
| B | 4 | 239 | 108009 | 933.44 | 600 | 586 | 115.1 |
| B | 0 | 214 | 33654 | 287.34 | 600 | 586 | 115.1 |
| B | 0 | 219 | 22244 | 188.19 | 600 | 586 | 115.1 |
| C | 13 | 61 | 4548 | 27.13 | 623 | 626 | 144.6 |
| C | 8 | 222 | 1632 | 6.96 | 623 | 626 | 144.6 |
| C | 14 | 67 | 1593 | 6.69 | 623 | 626 | 144.6 |
| D | 8 | 195 | 381525 | 2331.64 | 677 | 660 | 163.3 |
| D | 1 | 52 | 114541 | 697.17 | 677 | 660 | 163.3 |
| D | 1 | 20 | 81549 | 495.2 | 677 | 660 | 163.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

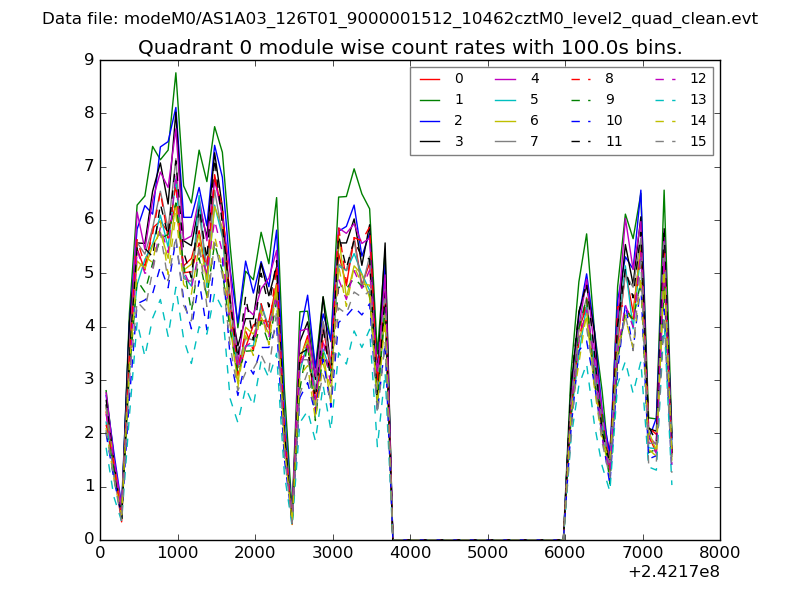

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

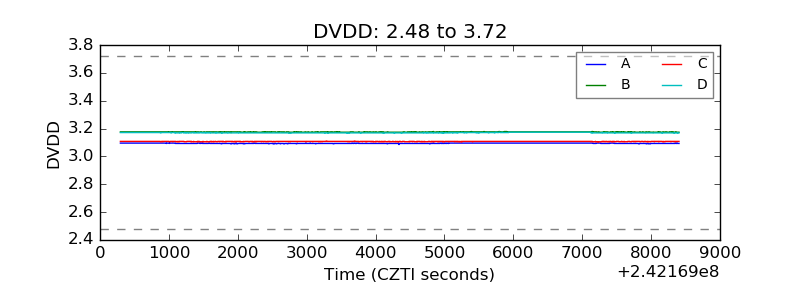

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

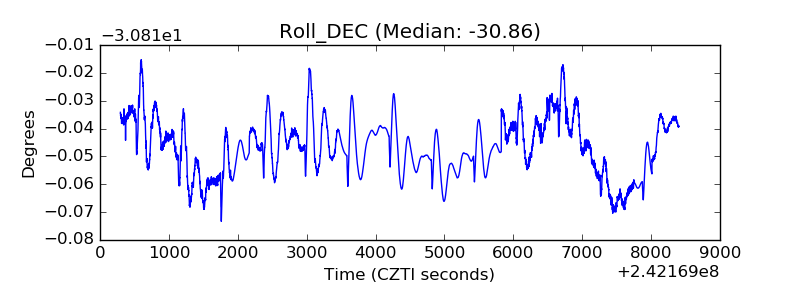

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
