| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_126T01_9000001512_10469cztM0_level2.evt | modeM0/AS1A03_126T01_9000001512_10469cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,334,720 | 79,439,040 |
| Size | 462.9 MB | 75.8 MB |
| Events in quadrant A | 3,339,778 | 479,654 |
| Events in quadrant B | 3,470,769 | 479,051 |
| Events in quadrant C | 3,074,755 | 495,146 |
| Events in quadrant D | 4,360,915 | 488,488 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 270 | 124 |
| B | 0 | 270 | 123 |
| C | 0 | 270 | 119 |
| D | 0 | 259 | 116 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28176 | 14239 |
| B | 0 | 30884 | 16506 |
| C | 0 | 27516 | 13642 |
| D | 0 | 37038 | 19556 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 2 |
| B | 0 | 4 | 2 |
| C | 0 | 4 | 2 |
| D | 0 | 4 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6586 | 121 | 1.837230% |
| B | 6441 | 163 | 2.530663% |
| C | 6721 | 75 | 1.115905% |
| D | 6708 | 127 | 1.893262% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

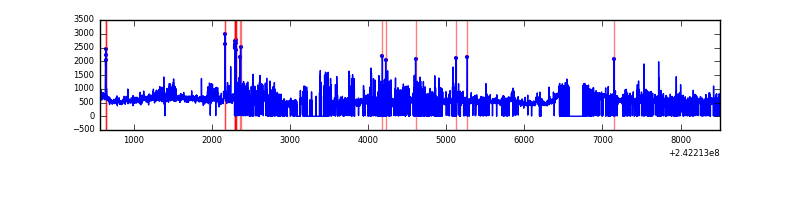

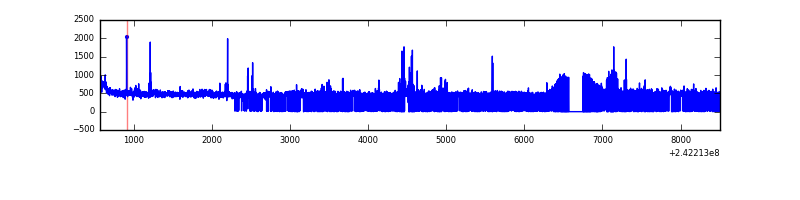

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7933 | 7424 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7933 | 7301 | 26 | 26 | 0.33% | 0.36% |  |
| C | 7931 | 7521 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7933 | 7259 | 21 | 21 | 0.26% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 101087 | 620.74 | 783 | 763 | 161.6 |
| A | 3 | 80 | 99772 | 612.6 | 783 | 763 | 161.6 |
| A | 5 | 16 | 80167 | 491.3 | 783 | 763 | 161.6 |
| B | 4 | 239 | 330182 | 2226.3 | 762 | 742 | 148.0 |
| B | 0 | 214 | 69930 | 467.56 | 762 | 742 | 148.0 |
| B | 11 | 51 | 49929 | 332.4 | 762 | 742 | 148.0 |
| C | 14 | 234 | 14970 | 77.79 | 783 | 789 | 182.3 |
| C | 13 | 61 | 5756 | 27.25 | 783 | 789 | 182.3 |
| C | 14 | 67 | 3357 | 14.09 | 783 | 789 | 182.3 |
| D | 1 | 20 | 758880 | 4041.06 | 781 | 759 | 187.6 |
| D | 8 | 195 | 304491 | 1619.0 | 781 | 759 | 187.6 |
| D | 1 | 52 | 213481 | 1133.89 | 781 | 759 | 187.6 |

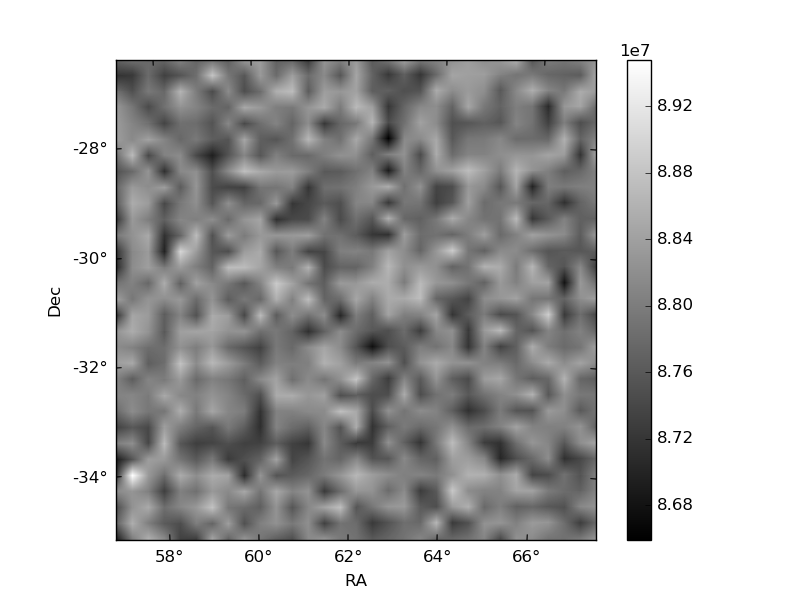

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

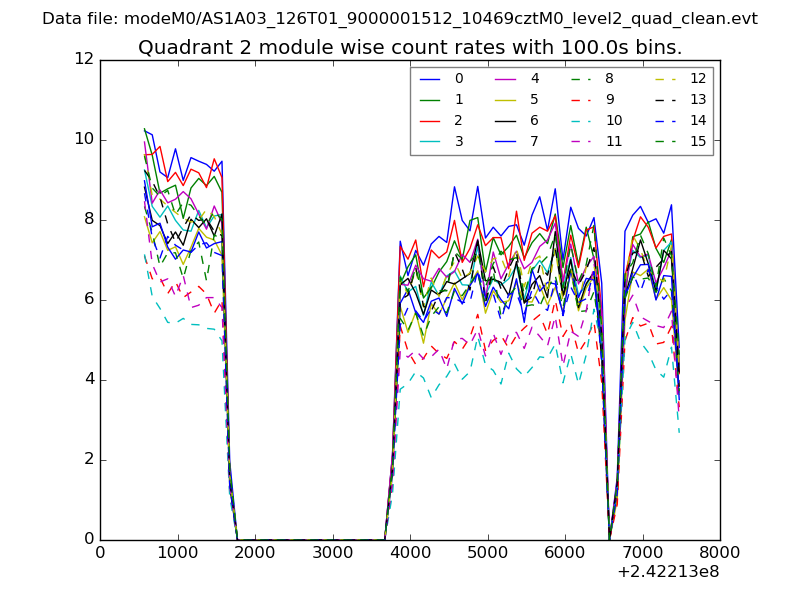

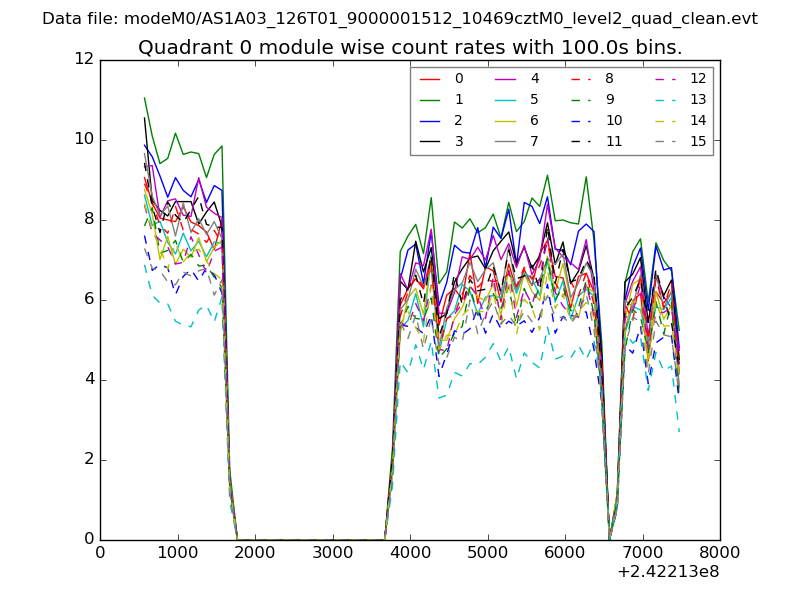

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

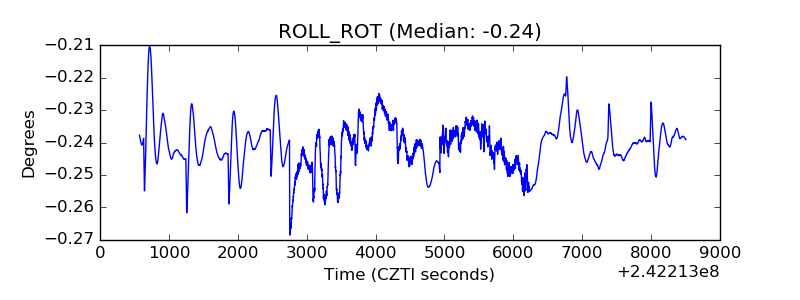

| _ROLL_ROT |  |
| _Roll_DEC |  |

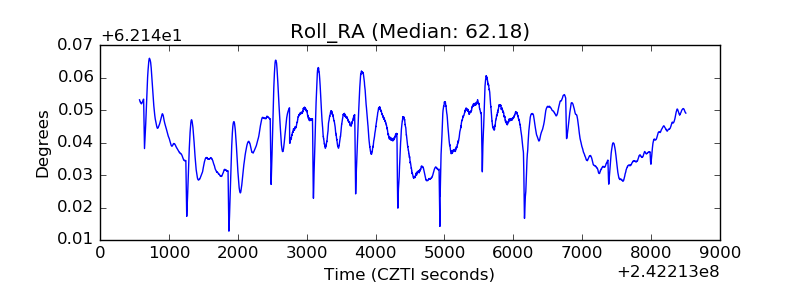

| _Roll_RA |  |

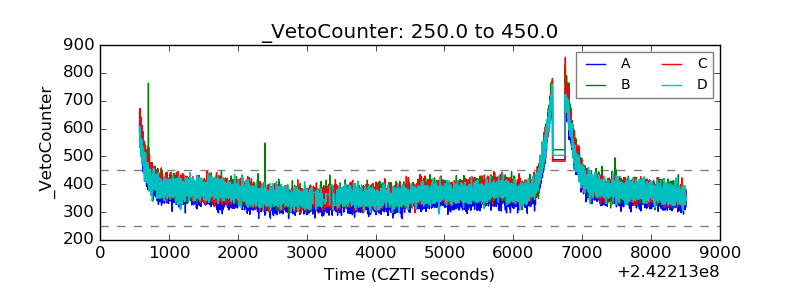

| Veto Counter |  |
