| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_126T01_9000001512_10474cztM0_level2.evt | modeM0/AS1A03_126T01_9000001512_10474cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,896,640 | 83,537,280 |
| Size | 432.9 MB | 79.7 MB |
| Events in quadrant A | 3,320,758 | 529,054 |
| Events in quadrant B | 3,540,521 | 533,219 |
| Events in quadrant C | 2,846,463 | 529,130 |
| Events in quadrant D | 3,611,397 | 499,678 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 4 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13919 | 130 |
| B | 0 | 14813 | 183 |
| C | 0 | 12849 | 107 |
| D | 0 | 15207 | 232 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6297 | 45 | 0.714626% |
| B | 6279 | 151 | 2.404842% |
| C | 6297 | 19 | 0.301731% |
| D | 6274 | 61 | 0.972266% |

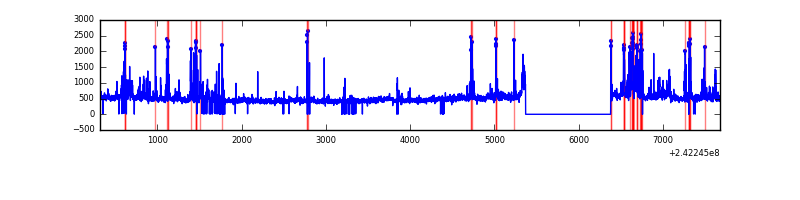

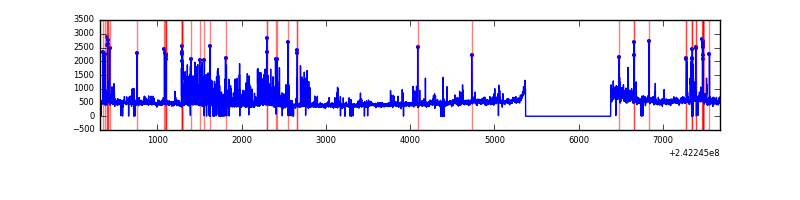

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7360 | 6344 | 11 | 11 | 0.15% | 0.17% |  |
| B | 7360 | 6344 | 58 | 58 | 0.79% | 0.91% |  |
| C | 7360 | 6349 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7360 | 6341 | 52 | 52 | 0.71% | 0.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 171769 | 1121.98 | 742 | 726 | 152.4 |
| A | 3 | 80 | 107947 | 703.33 | 742 | 726 | 152.4 |
| A | 8 | 5 | 95817 | 623.76 | 742 | 726 | 152.4 |
| B | 4 | 239 | 508881 | 3556.88 | 740 | 720 | 142.9 |
| B | 4 | 81 | 53180 | 367.19 | 740 | 720 | 142.9 |
| B | 0 | 214 | 35462 | 243.18 | 740 | 720 | 142.9 |
| C | 14 | 67 | 10481 | 57.78 | 725 | 728 | 168.8 |
| C | 13 | 61 | 5420 | 27.8 | 725 | 728 | 168.8 |
| C | 14 | 234 | 5026 | 25.46 | 725 | 728 | 168.8 |
| D | 1 | 52 | 461606 | 2685.06 | 713 | 693 | 171.7 |
| D | 1 | 20 | 140132 | 812.3 | 713 | 693 | 171.7 |
| D | 8 | 195 | 98994 | 572.65 | 713 | 693 | 171.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

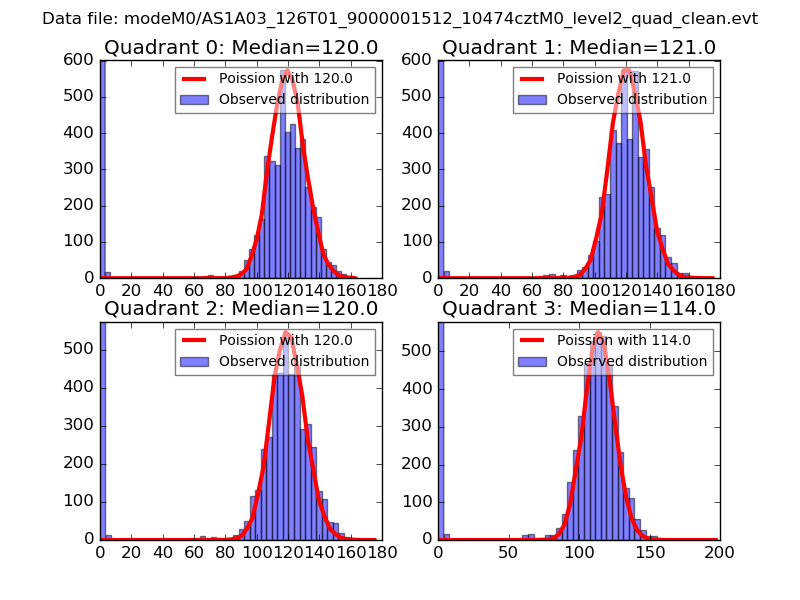

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

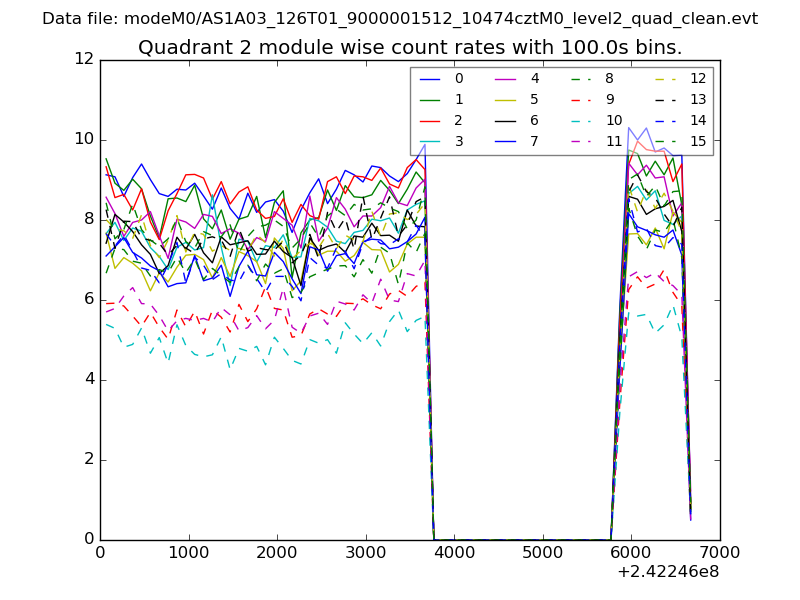

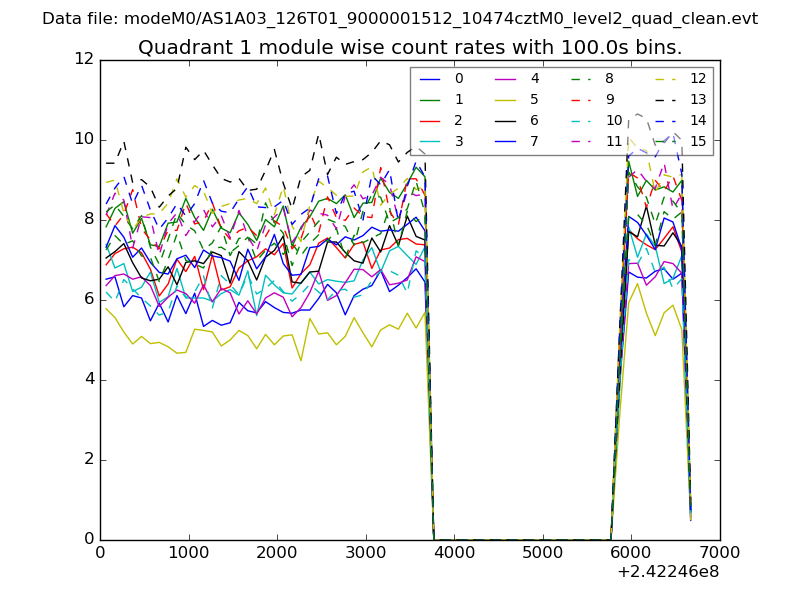

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

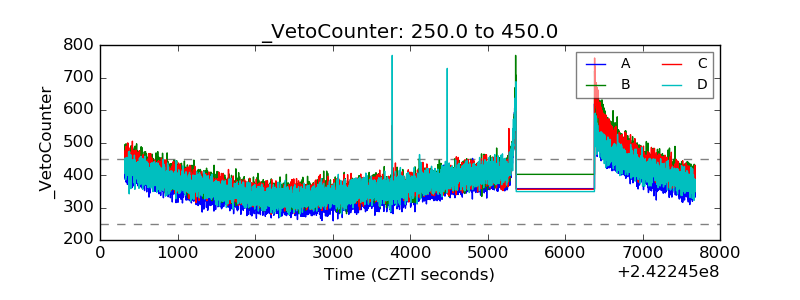

| Veto Counter |  |
