| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_068T02_9000001508_10421cztM0_level2.evt | modeM0/AS1G07_068T02_9000001508_10421cztM0_level2_quad_clean.evt |
| Size (bytes) | 367,721,280 | 72,875,520 |
| Size | 350.7 MB | 69.5 MB |
| Events in quadrant A | 2,700,162 | 422,752 |
| Events in quadrant B | 2,628,402 | 453,650 |
| Events in quadrant C | 2,393,365 | 465,680 |
| Events in quadrant D | 3,071,909 | 512,735 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 246 | 141 |
| B | 0 | 246 | 137 |
| C | 0 | 246 | 135 |
| D | 0 | 233 | 128 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 9 |
| B | 0 | 26 | 13 |
| C | 0 | 26 | 13 |
| D | 0 | 24 | 11 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27429 | 16650 |
| B | 0 | 29689 | 18924 |
| C | 0 | 25206 | 15045 |
| D | 0 | 26896 | 14260 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4733 | 25 | 0.528206% |
| B | 4699 | 55 | 1.170462% |
| C | 4967 | 14 | 0.281860% |
| D | 5682 | 22 | 0.387188% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

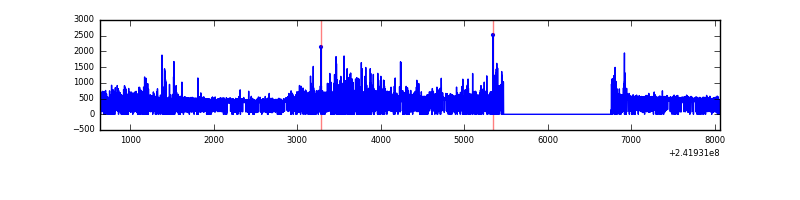

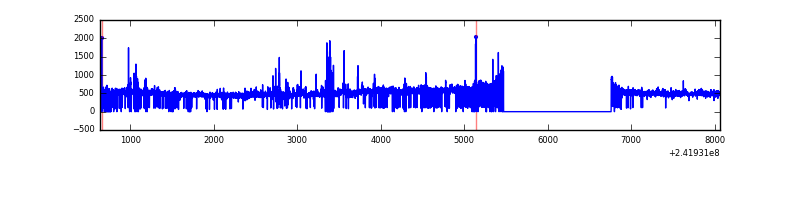

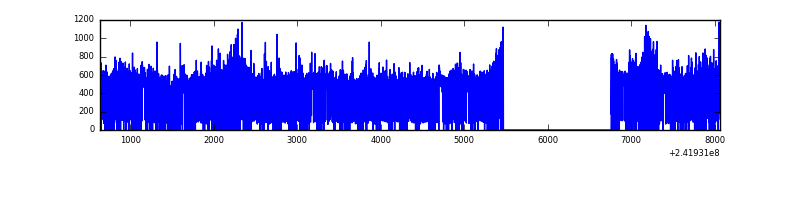

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7429 | 5712 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7429 | 5637 | 2 | 2 | 0.03% | 0.04% |  |
| C | 7430 | 5849 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7430 | 6036 | 2 | 2 | 0.03% | 0.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 451485 | 3812.35 | 583 | 570 | 118.3 |
| A | 0 | 226 | 5212 | 39.25 | 583 | 570 | 118.3 |
| A | 12 | 194 | 4772 | 35.53 | 583 | 570 | 118.3 |
| B | 4 | 239 | 195184 | 1766.29 | 581 | 568 | 110.2 |
| B | 4 | 81 | 119554 | 1079.89 | 581 | 568 | 110.2 |
| B | 0 | 214 | 25664 | 227.77 | 581 | 568 | 110.2 |
| C | 14 | 234 | 6780 | 43.61 | 611 | 616 | 141.3 |
| C | 13 | 61 | 4387 | 26.68 | 611 | 616 | 141.3 |
| C | 14 | 67 | 3152 | 17.94 | 611 | 616 | 141.3 |
| D | 8 | 195 | 273796 | 1661.91 | 690 | 672 | 164.3 |
| D | 1 | 52 | 54463 | 327.31 | 690 | 672 | 164.3 |
| D | 1 | 20 | 45664 | 273.77 | 690 | 672 | 164.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

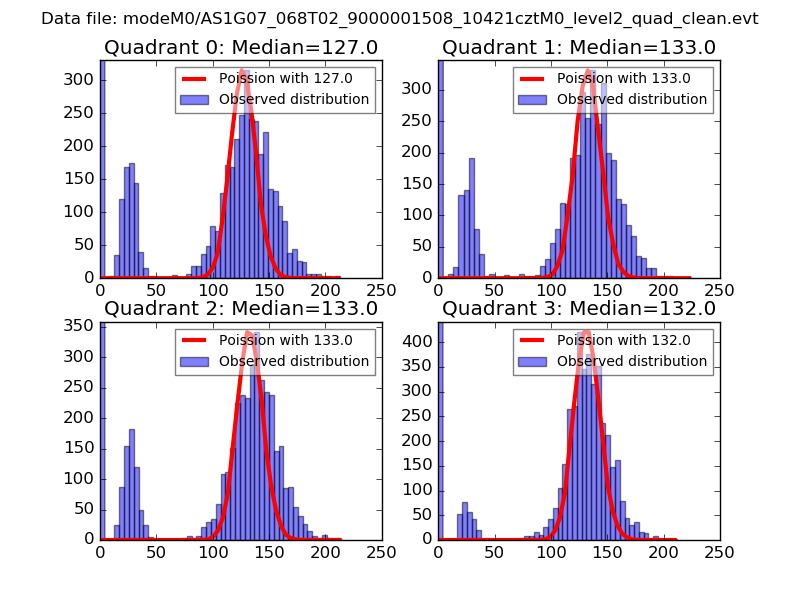

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

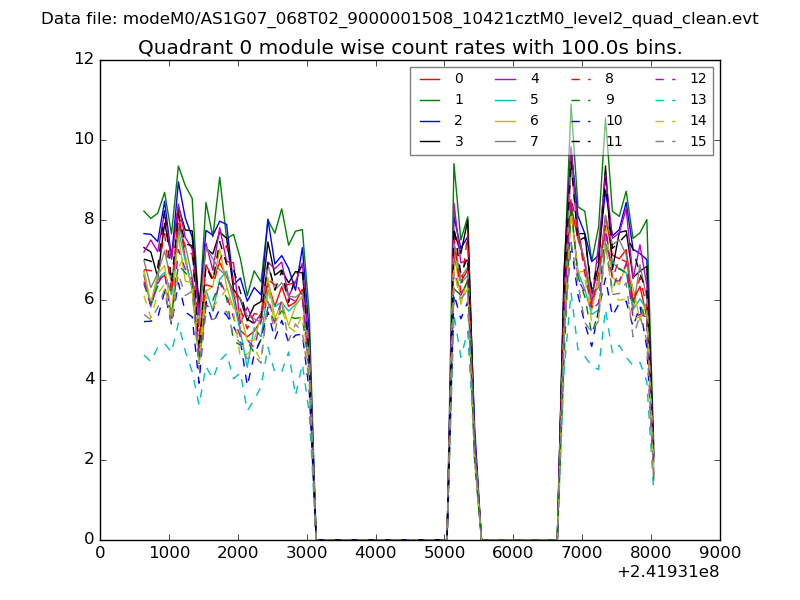

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

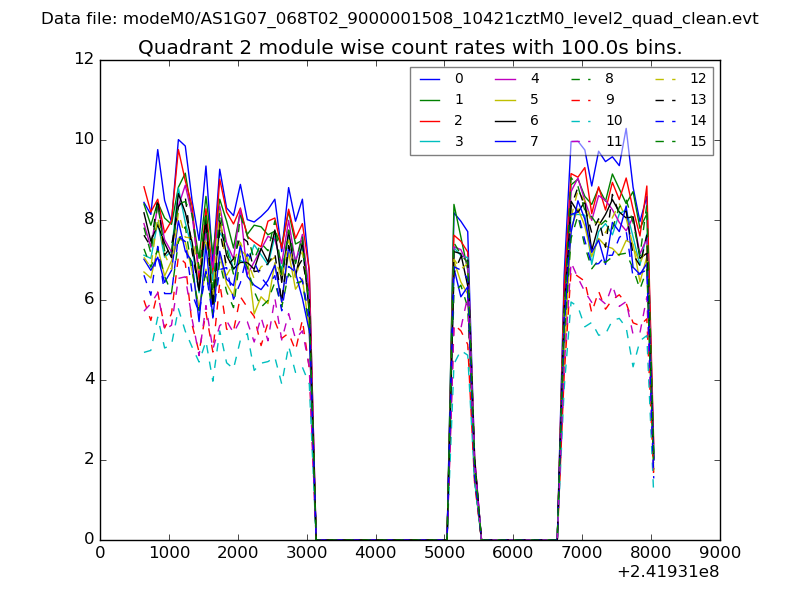

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

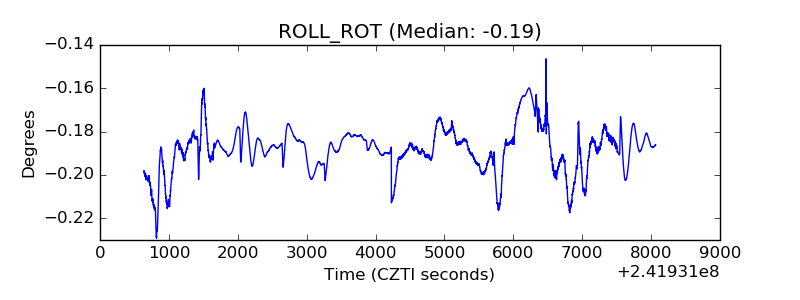

| _ROLL_ROT |  |

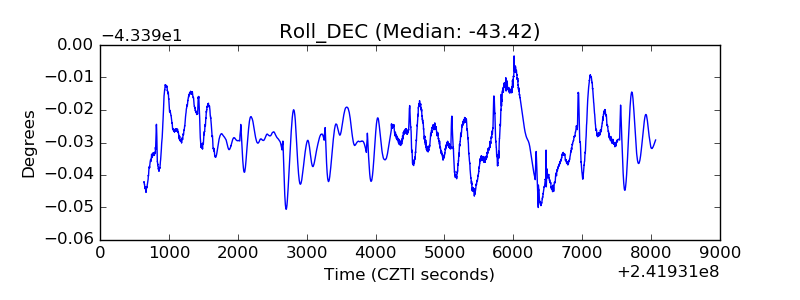

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
