| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_027T01_9000001516_10483cztM0_level2.evt | modeM0/AS1G07_027T01_9000001516_10483cztM0_level2_quad_clean.evt |
| Size (bytes) | 174,159,360 | 14,777,280 |
| Size | 166.1 MB | 14.1 MB |
| Events in quadrant A | 1,282,043 | 68,093 |
| Events in quadrant B | 1,305,113 | 69,059 |
| Events in quadrant C | 1,213,515 | 68,101 |
| Events in quadrant D | 1,304,402 | 65,092 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52 | 0 |
| B | 0 | 52 | 0 |
| C | 0 | 52 | 0 |
| D | 0 | 52 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5344 | 6 |
| B | 0 | 5480 | 4 |
| C | 0 | 5289 | 5 |
| D | 0 | 5558 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2454 | 244 | 9.942950% |
| B | 2454 | 272 | 11.083945% |
| C | 2454 | 213 | 8.679707% |
| D | 2455 | 228 | 9.287169% |

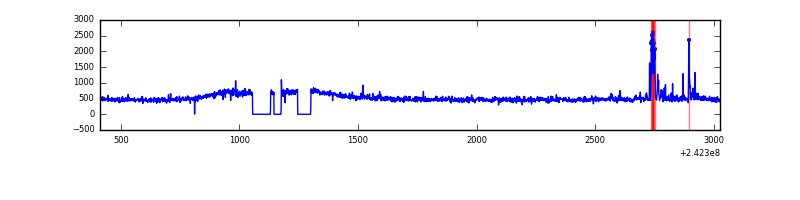

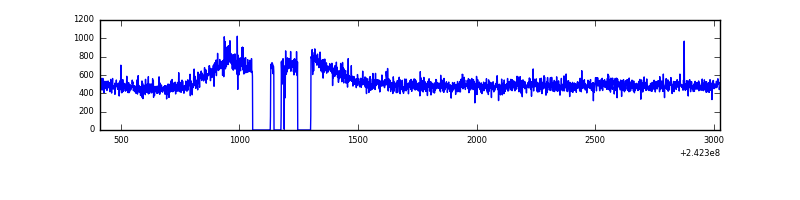

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 2614 | 2456 | 0 | 0 | 0.00% | 0.00% |  |
| B | 2614 | 2454 | 11 | 11 | 0.42% | 0.45% |  |
| C | 2615 | 2456 | 0 | 0 | 0.00% | 0.00% |  |
| D | 2615 | 2457 | 2 | 2 | 0.08% | 0.08% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 33079 | 490.28 | 315 | 305 | 66.8 |
| A | 15 | 239 | 19197 | 282.61 | 315 | 305 | 66.8 |
| A | 13 | 251 | 9470 | 137.1 | 315 | 305 | 66.8 |
| B | 4 | 239 | 54165 | 842.12 | 315 | 306 | 64.0 |
| B | 0 | 214 | 9549 | 144.52 | 315 | 306 | 64.0 |
| B | 12 | 111 | 7448 | 111.67 | 315 | 306 | 64.0 |
| C | 14 | 234 | 3449 | 42.59 | 309 | 308 | 73.8 |
| C | 13 | 61 | 2361 | 27.84 | 309 | 308 | 73.8 |
| C | 14 | 67 | 1188 | 11.93 | 309 | 308 | 73.8 |
| D | 12 | 233 | 56419 | 750.67 | 304 | 293 | 74.8 |
| D | 1 | 52 | 51459 | 684.33 | 304 | 293 | 74.8 |
| D | 1 | 20 | 22742 | 300.25 | 304 | 293 | 74.8 |

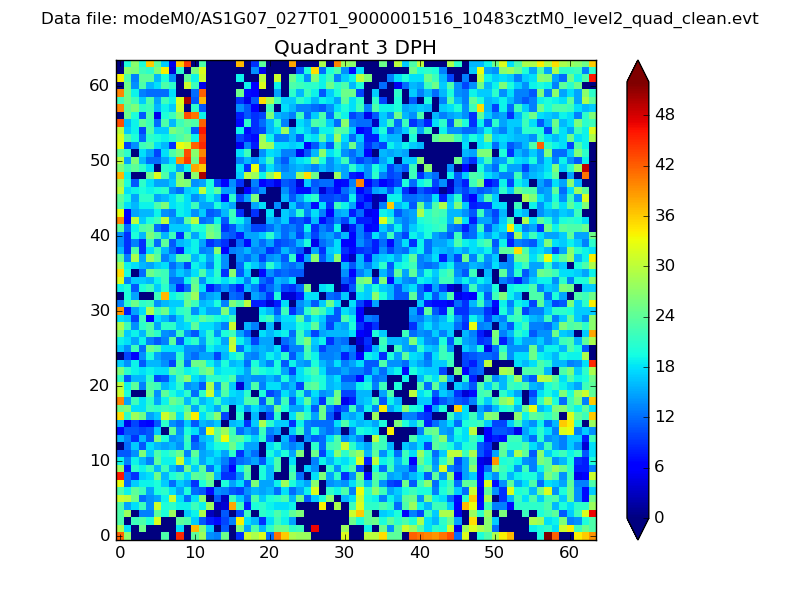

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

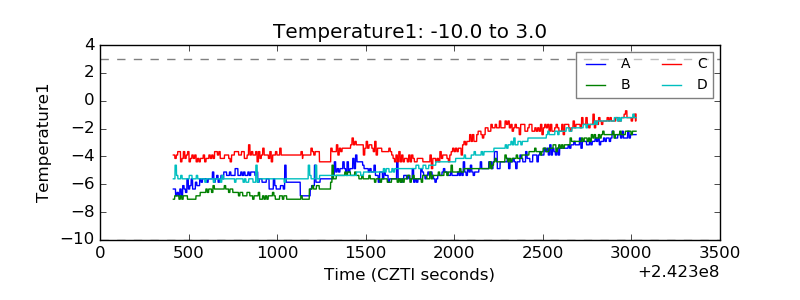

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

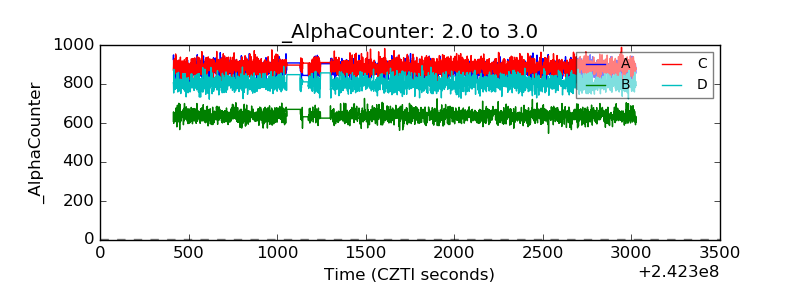

| Alpha Counter |  |
| _CPM_Rate |  |

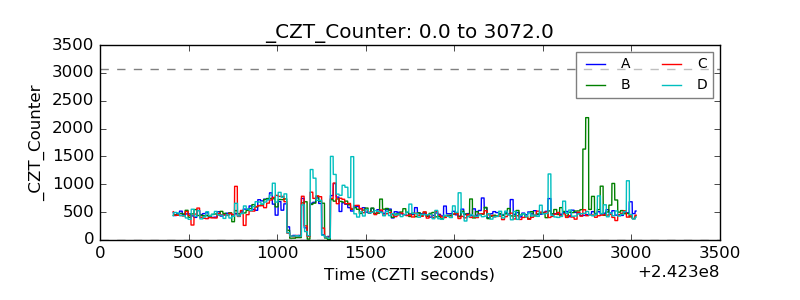

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

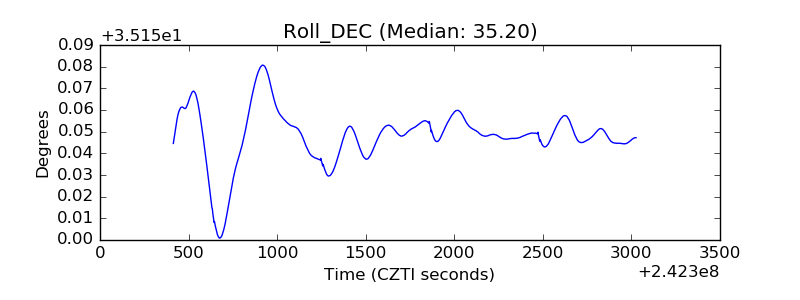

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
