| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G07_057T01_9000001520_10495cztM0_level2.evt | modeM0/AS1G07_057T01_9000001520_10495cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,525,120 | 90,478,080 |
| Size | 466.8 MB | 86.3 MB |
| Events in quadrant A | 3,227,843 | 573,044 |
| Events in quadrant B | 3,856,230 | 582,670 |
| Events in quadrant C | 3,074,227 | 572,342 |
| Events in quadrant D | 4,212,715 | 545,452 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13794 | 3 |
| B | 0 | 15801 | 2 |
| C | 0 | 13745 | 2 |
| D | 0 | 17107 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6690 | 26 | 0.388640% |
| B | 6690 | 219 | 3.273543% |
| C | 6690 | 13 | 0.194320% |
| D | 6690 | 112 | 1.674141% |

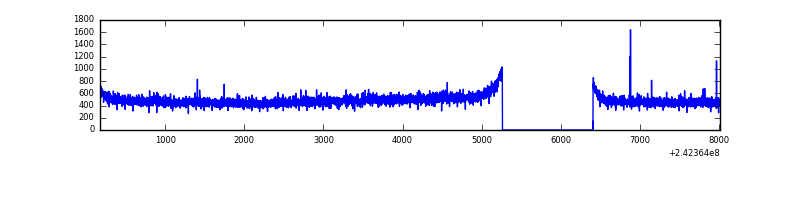

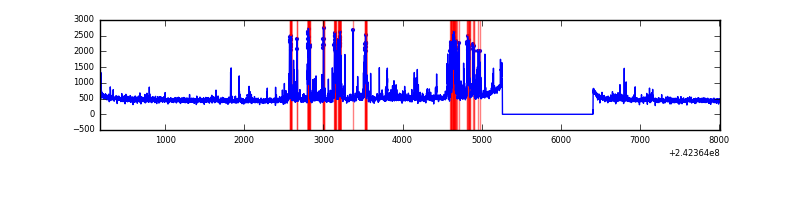

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7835 | 6691 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7835 | 6691 | 118 | 118 | 1.51% | 1.76% |  |
| C | 7835 | 6691 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7835 | 6691 | 67 | 67 | 0.86% | 1.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 75989 | 453.46 | 813 | 795 | 165.8 |
| A | 8 | 5 | 10939 | 61.17 | 813 | 795 | 165.8 |
| A | 13 | 14 | 8093 | 44.01 | 813 | 795 | 165.8 |
| B | 4 | 239 | 618470 | 3989.11 | 805 | 785 | 154.8 |
| B | 4 | 81 | 33493 | 211.23 | 805 | 785 | 154.8 |
| B | 0 | 187 | 26133 | 163.7 | 805 | 785 | 154.8 |
| C | 14 | 234 | 17352 | 90.21 | 783 | 786 | 183.6 |
| C | 13 | 61 | 5964 | 28.2 | 783 | 786 | 183.6 |
| C | 1 | 3 | 4213 | 18.66 | 783 | 786 | 183.6 |
| D | 2 | 16 | 333880 | 1809.9 | 775 | 754 | 184.1 |
| D | 8 | 195 | 298448 | 1617.39 | 775 | 754 | 184.1 |
| D | 1 | 52 | 192593 | 1042.27 | 775 | 754 | 184.1 |

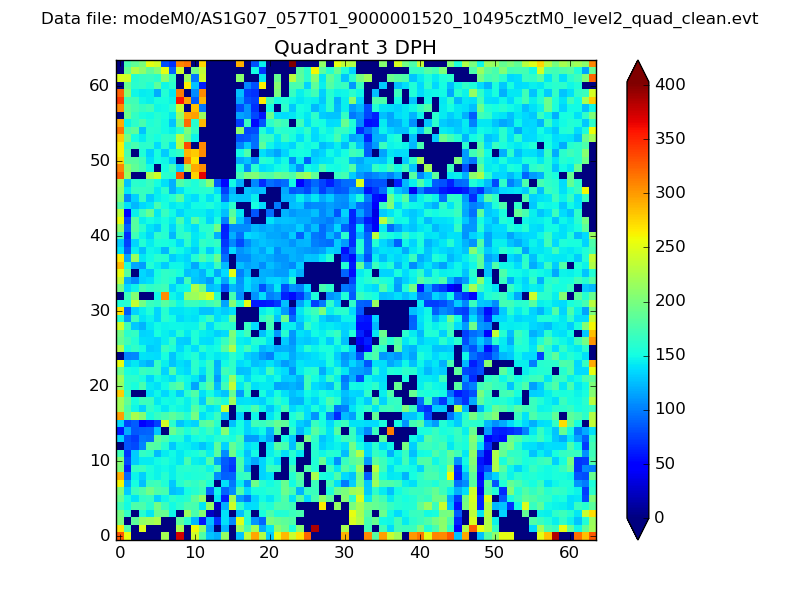

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

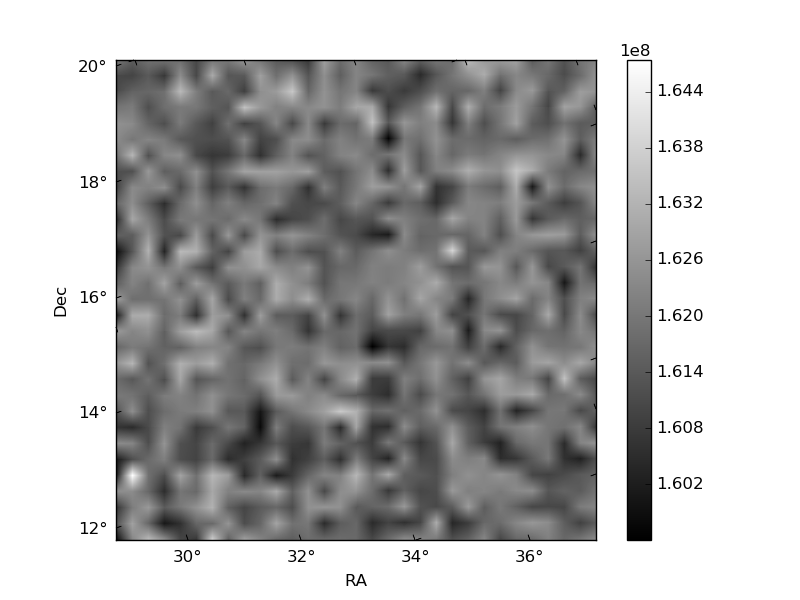

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

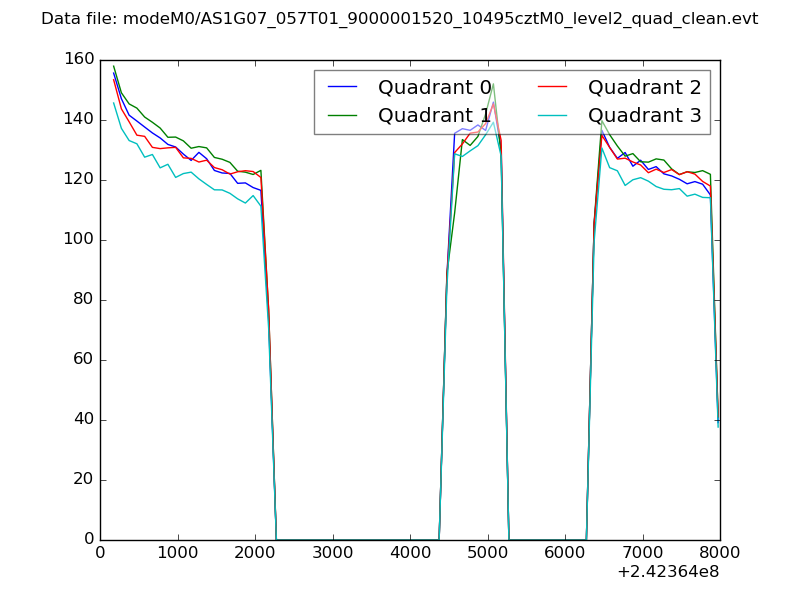

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

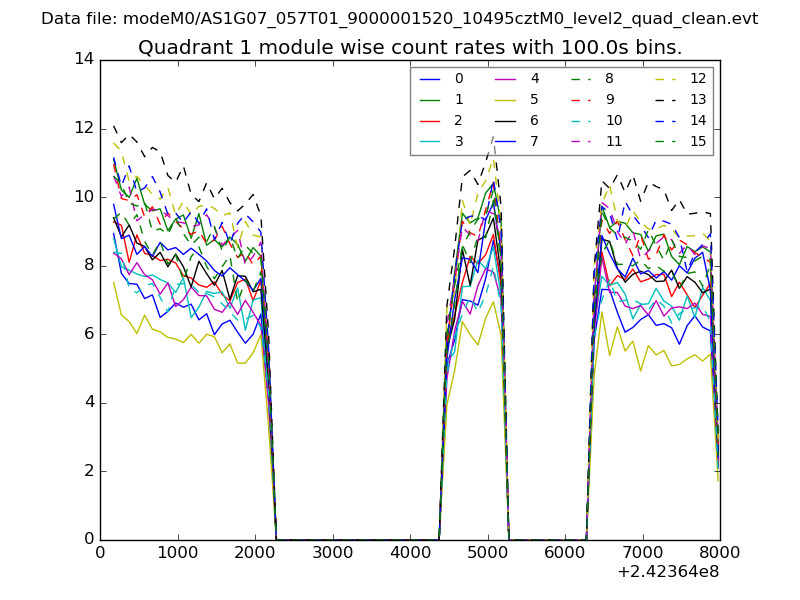

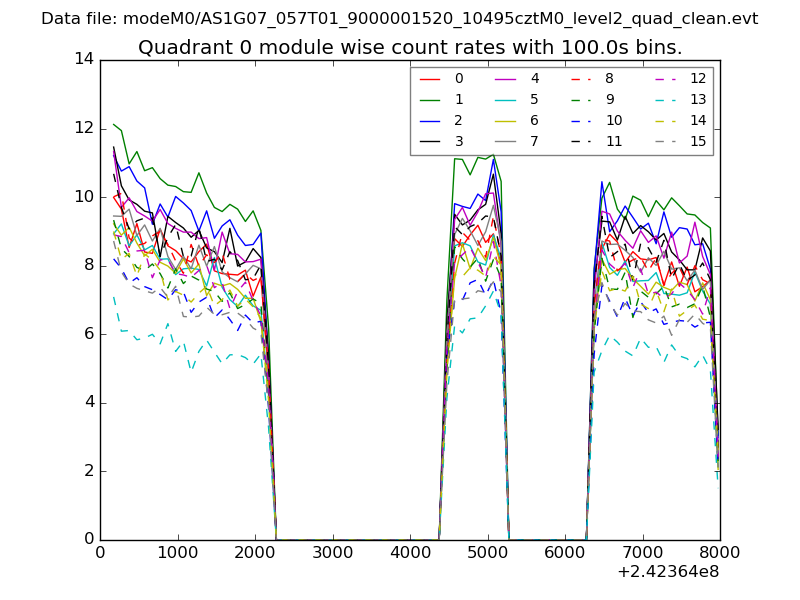

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

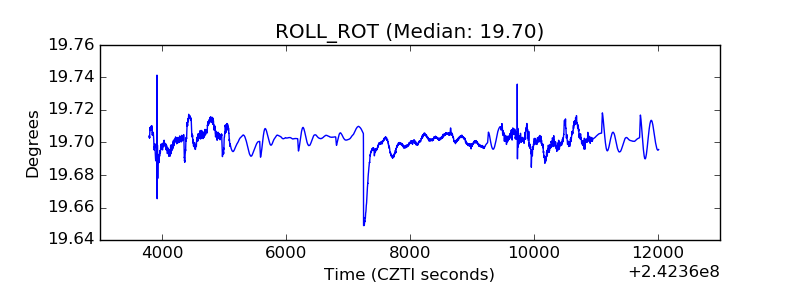

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
