| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_127T02_9000001522_10508cztM0_level2.evt | modeM0/AS1A03_127T02_9000001522_10508cztM0_level2_quad_clean.evt |
| Size (bytes) | 486,017,280 | 129,916,800 |
| Size | 463.5 MB | 123.9 MB |
| Events in quadrant A | 3,028,941 | 865,436 |
| Events in quadrant B | 4,316,056 | 869,779 |
| Events in quadrant C | 3,038,956 | 905,299 |
| Events in quadrant D | 3,899,406 | 846,612 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13161 | 3 |
| B | 0 | 17068 | 2 |
| C | 0 | 13128 | 2 |
| D | 0 | 15725 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6419 | 6 | 0.093473% |
| B | 6419 | 382 | 5.951083% |
| C | 6419 | 19 | 0.295996% |
| D | 6419 | 73 | 1.137249% |

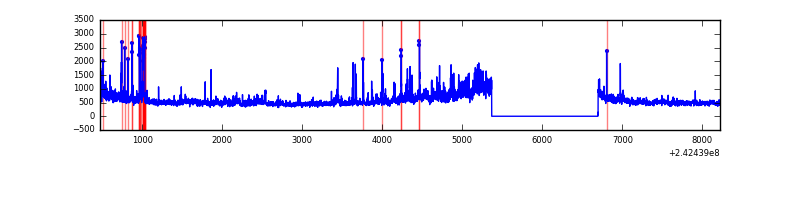

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7749 | 6420 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7749 | 6420 | 257 | 257 | 3.32% | 4.00% |  |
| C | 7749 | 6420 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7749 | 6420 | 41 | 41 | 0.53% | 0.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 80 | 50560 | 324.19 | 765 | 749 | 153.6 |
| A | 13 | 251 | 20544 | 128.84 | 765 | 749 | 153.6 |
| A | 14 | 254 | 7052 | 41.02 | 765 | 749 | 153.6 |
| B | 4 | 239 | 1119621 | 7894.29 | 765 | 745 | 141.7 |
| B | 0 | 214 | 87731 | 613.73 | 765 | 745 | 141.7 |
| B | 4 | 81 | 58019 | 404.1 | 765 | 745 | 141.7 |
| C | 4 | 175 | 9652 | 50.05 | 774 | 777 | 177.3 |
| C | 14 | 234 | 7800 | 39.6 | 774 | 777 | 177.3 |
| C | 13 | 61 | 5837 | 28.53 | 774 | 777 | 177.3 |
| D | 2 | 16 | 421646 | 2347.8 | 756 | 734 | 179.3 |
| D | 8 | 195 | 212543 | 1181.45 | 756 | 734 | 179.3 |
| D | 1 | 20 | 130446 | 723.52 | 756 | 734 | 179.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

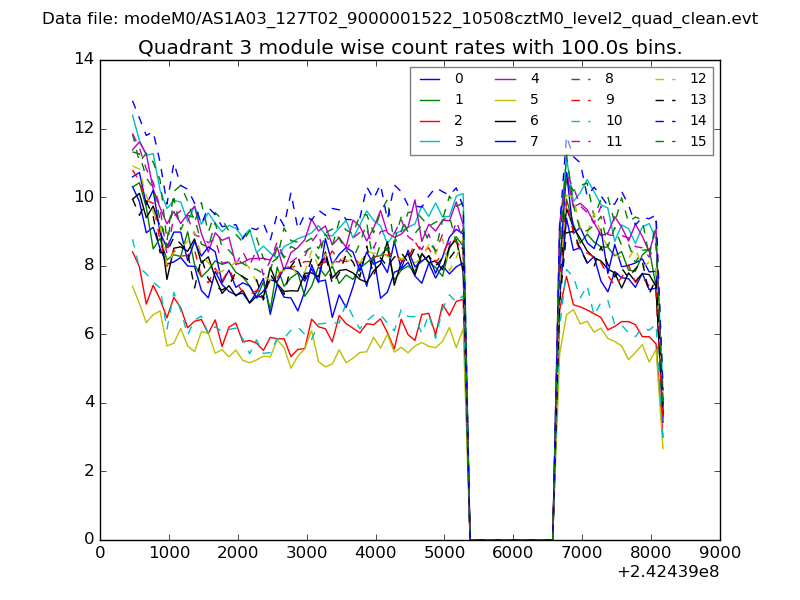

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

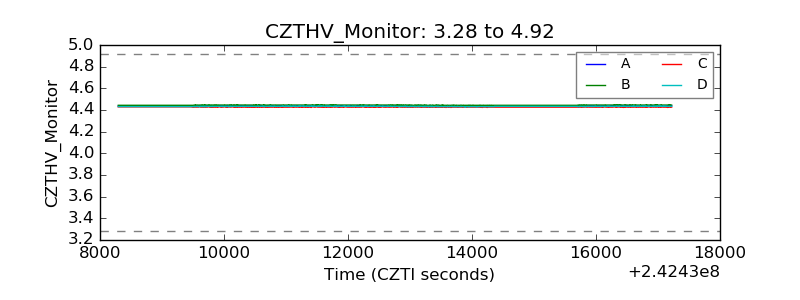

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

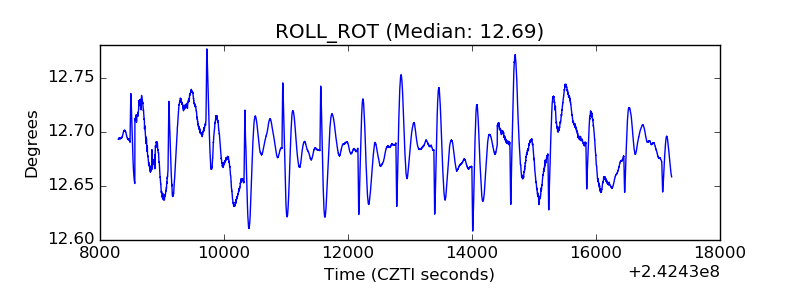

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

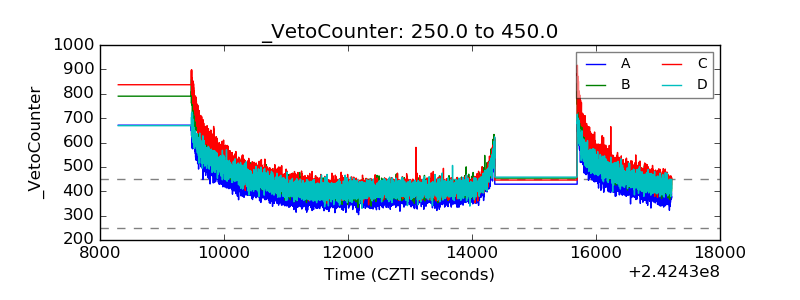

| Veto Counter |  |
