| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A03_033T01_9000001524_10520cztM0_level2.evt | modeM0/AS1A03_033T01_9000001524_10520cztM0_level2_quad_clean.evt |
| Size (bytes) | 518,186,880 | 96,877,440 |
| Size | 494.2 MB | 92.4 MB |
| Events in quadrant A | 3,476,314 | 591,375 |
| Events in quadrant B | 4,118,492 | 598,256 |
| Events in quadrant C | 3,336,616 | 611,636 |
| Events in quadrant D | 4,266,258 | 624,865 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22574 | 7505 |
| B | 0 | 26432 | 9298 |
| C | 0 | 22705 | 7733 |
| D | 0 | 24730 | 7051 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 2 |
| B | 0 | 24 | 2 |
| C | 0 | 24 | 2 |
| D | 0 | 24 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 224 | 70 |
| B | 0 | 224 | 69 |
| C | 0 | 224 | 67 |
| D | 0 | 219 | 64 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7183 | 45 | 0.626479% |
| B | 7101 | 232 | 3.267145% |
| C | 7205 | 66 | 0.916031% |
| D | 7631 | 98 | 1.284235% |

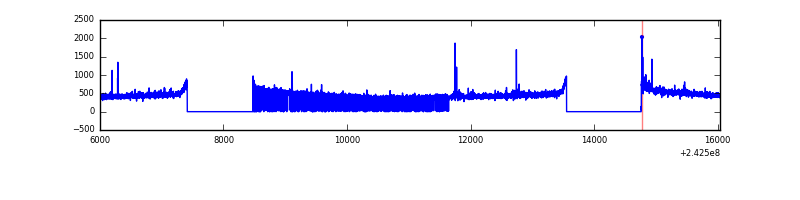

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 10036 | 7636 | 0 | 0 | 0.00% | 0.00% |  |
| B | 10036 | 7571 | 65 | 65 | 0.65% | 0.86% |  |
| C | 10036 | 7654 | 1 | 1 | 0.01% | 0.01% |  |
| D | 10036 | 7735 | 27 | 27 | 0.27% | 0.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 69181 | 396.98 | 856 | 838 | 172.2 |
| A | 3 | 80 | 61716 | 353.62 | 856 | 838 | 172.2 |
| A | 15 | 239 | 24449 | 137.15 | 856 | 838 | 172.2 |
| B | 4 | 239 | 573187 | 3564.55 | 851 | 828 | 160.6 |
| B | 0 | 214 | 86582 | 534.06 | 851 | 828 | 160.6 |
| B | 11 | 51 | 83155 | 512.72 | 851 | 828 | 160.6 |
| C | 14 | 234 | 24918 | 125.06 | 845 | 848 | 192.5 |
| C | 9 | 68 | 7899 | 36.64 | 845 | 848 | 192.5 |
| C | 13 | 61 | 6315 | 28.41 | 845 | 848 | 192.5 |
| D | 8 | 195 | 394171 | 1873.84 | 880 | 855 | 209.9 |
| D | 2 | 16 | 373793 | 1776.75 | 880 | 855 | 209.9 |
| D | 13 | 104 | 66343 | 312.0 | 880 | 855 | 209.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

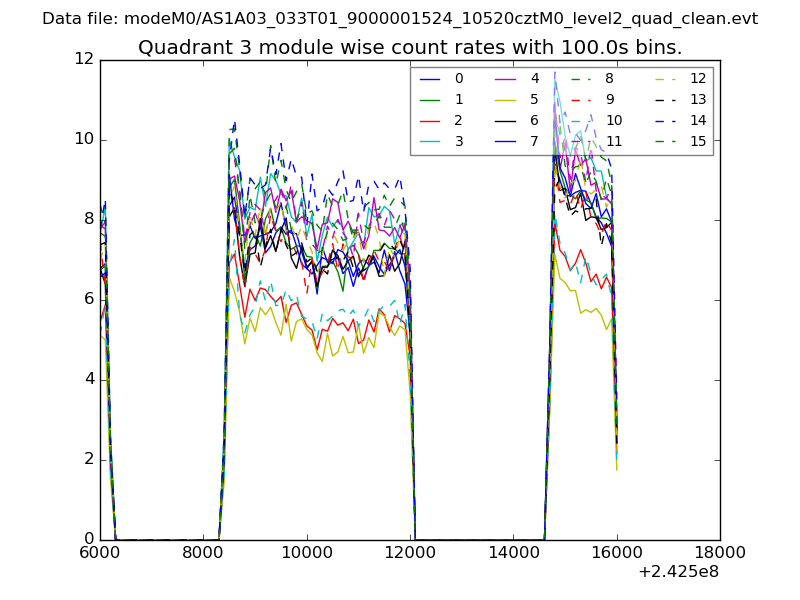

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

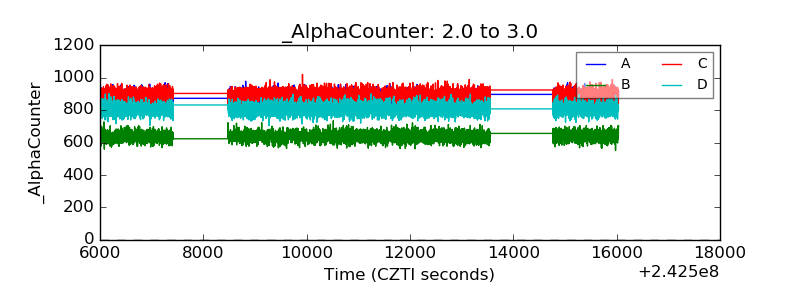

| Alpha Counter |  |
| _CPM_Rate |  |

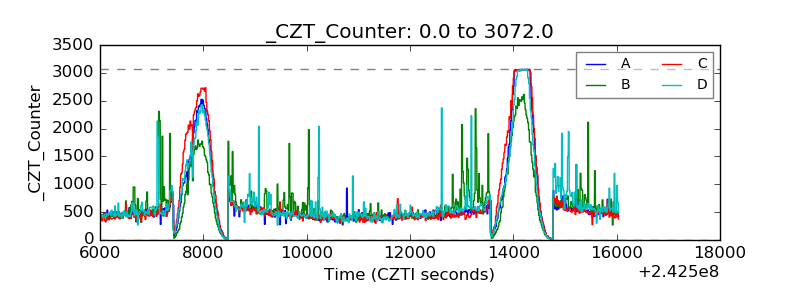

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

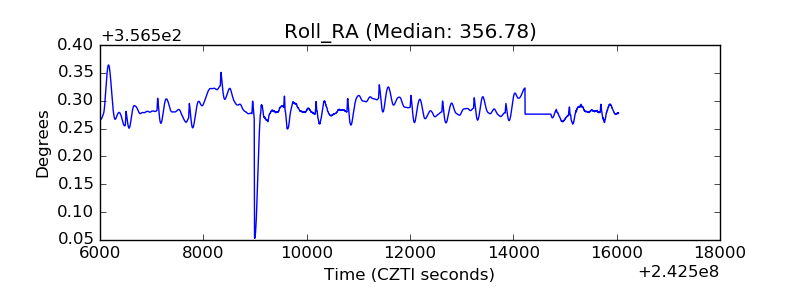

| _Roll_RA |  |
| Veto Counter |  |
